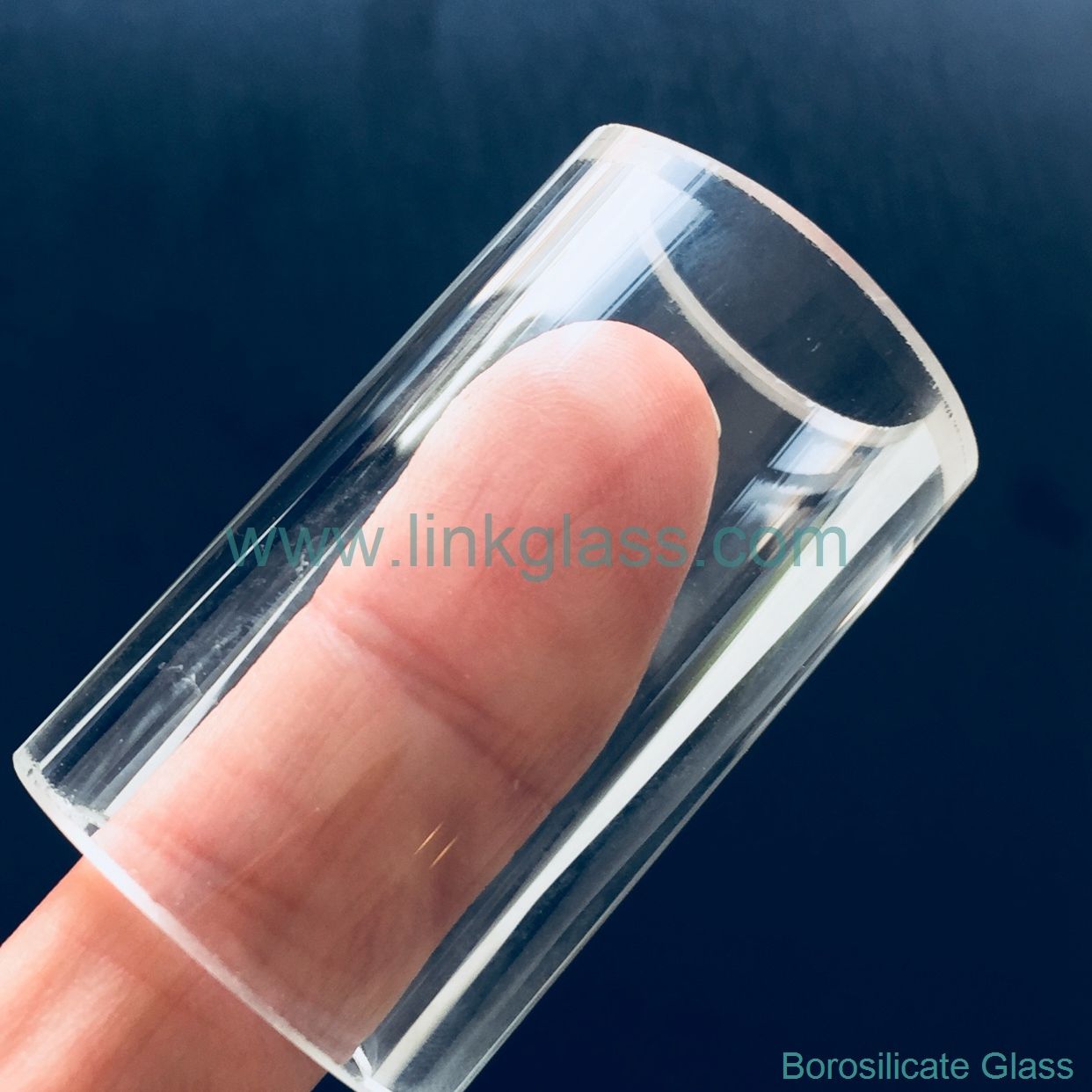

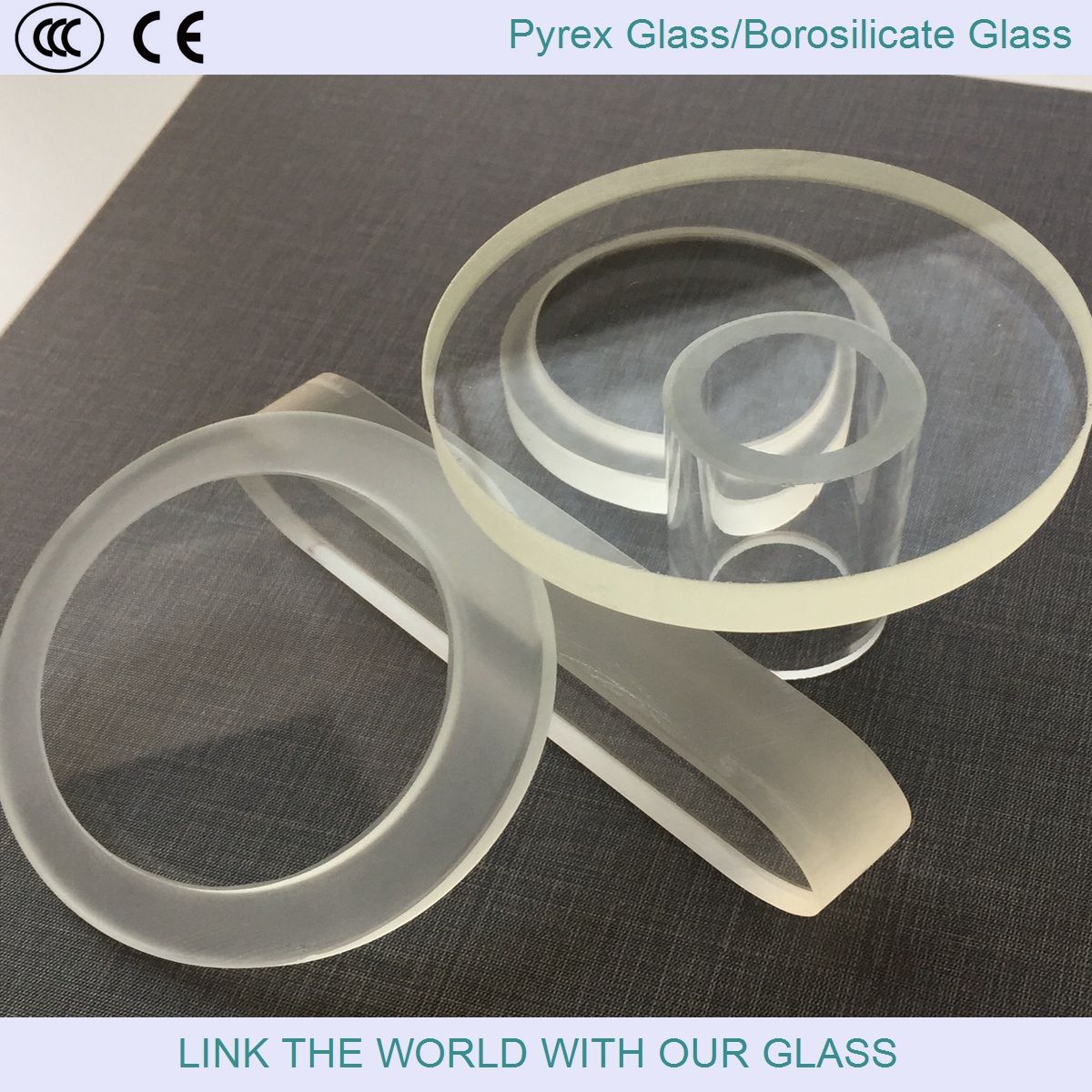

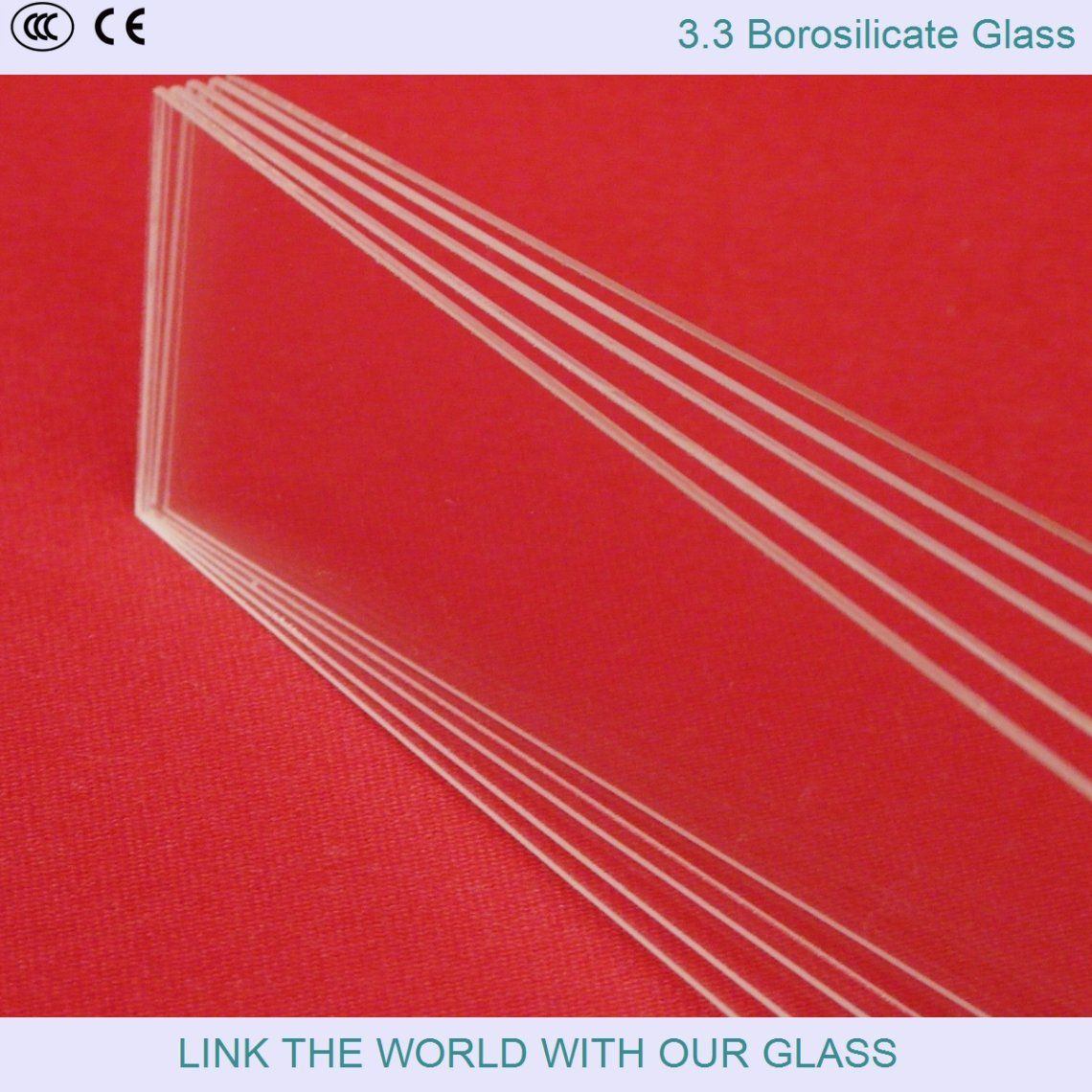

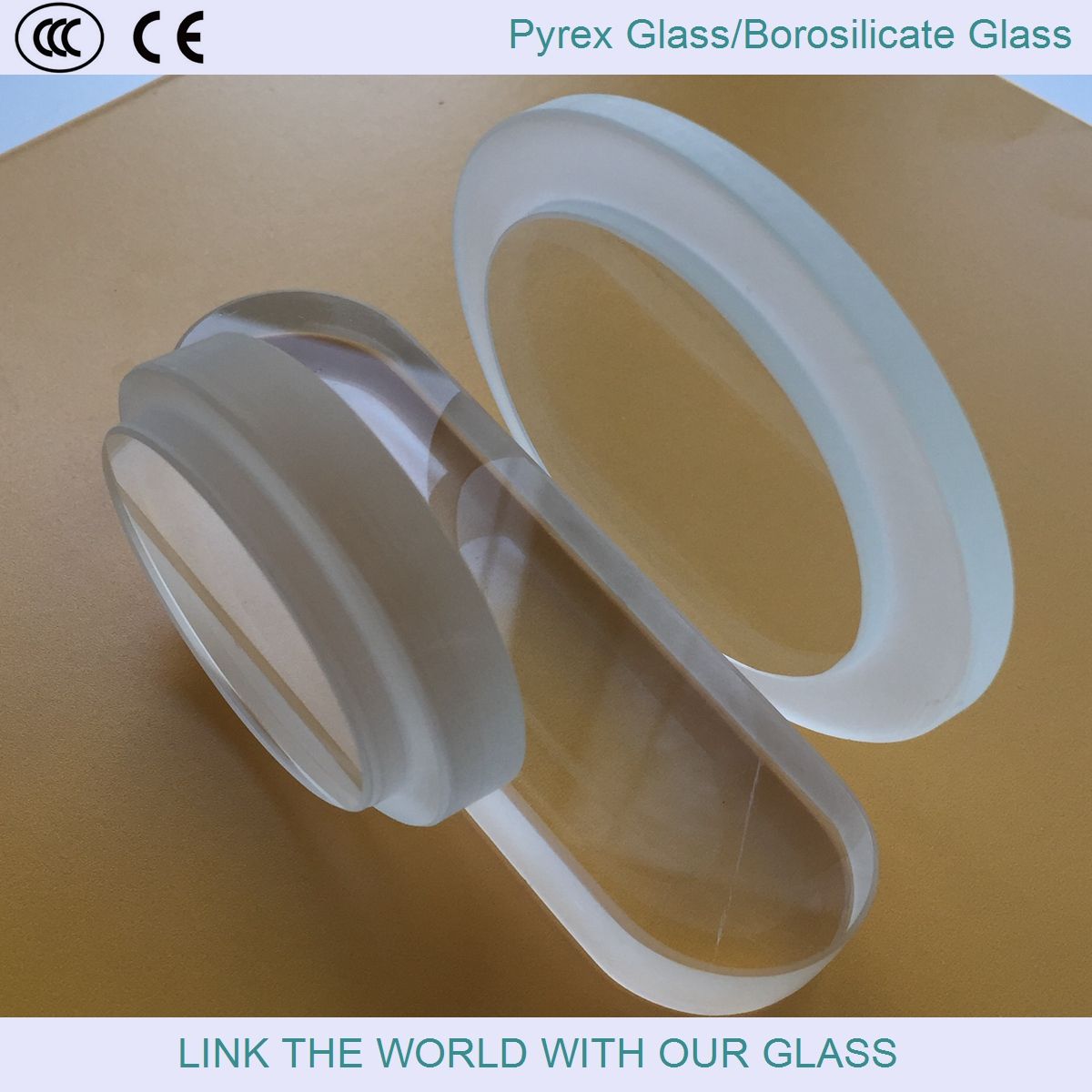

Gauge Glass/Borosilicate Glass/Pyrex Glass/Sight Glass
| Price: |
US $ 20-30/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
gauge glass |
| Thickness: |
3mm-19mm |
| Price: |
Competitive |
| Glass Color: |
Clear; Ultra Clear (Low Iron) |
| Delivery: |
<20days |
| Function1: |
Heat Resistant Borosilicate Glass |
| Function2: |
Pressure Resistant Borosilicate Galss |
| Function3: |
Sharp Temperature |
| Function4: |
Anti-Acid |
| Function5: |
Anti-Alkalinity |
| Function6: |
Boiler,Furnace,Instrument,Sight |
| Shape: |
Flat |
| Appearance: |
Flat Tempered |
| Steel Degree: |
Super-Tempered Glass |
| Thickness Of Flat Tempered Glass: |
19MM |
| Fragment State: |
Ⅲ |
| Technics: |
Physically Tempered |
| Flatness: |
High Class |
| Usage: |
Furnace,Boiler,Sight |
| Standard: |
GB/T23259-2009 |
| Thickness Of Curve Tempered Glass: |
No\ |
Product Description
LINK THE WORLD WITH OUR GLASSGauge Glass/Borosilicate Glass/Pyrex Glass/Sight Glass
Gauge Glass:Gauge Glass as a Sight Glass may be just a glass tube connected to the bottom of the tank at one end and the top of the tank at the other. The level of liquid in the sight glass will be the same as the level of liquid in the tank.| W(mm) | T(mm) | L(mm) |
| 34 | 17 | 115,140,165,190,220,250,280,320,340,370,400,450,500 |
Chemical Properties:Water Resistance: <0.5mg/cm2Acid Resistance: <0.5mg/cm2Alkali Resistance: <80mg/cm2Bend Strength: 100~200MpaLiquid Stress Resistance: 4.5~25MpaImpact-Resistance:- Dia 25mm steel ball impact from 2m height, no crack.
- Dia 105mm steel ball(4.65kgs) from 2m height to ground, no crack.
- Dia 105mm steel ball(4.65kgs) from 1m height to hard ground, no crack.
Sort:Flat Gauge Glass;Grooved Gauge GlassSize: Width 34mm or 30mm,Thickness 17mm,Length 85mm-550mmApplication:Big pressure boiler of Oil, Chemical, Metallurgy, Electric,etc.

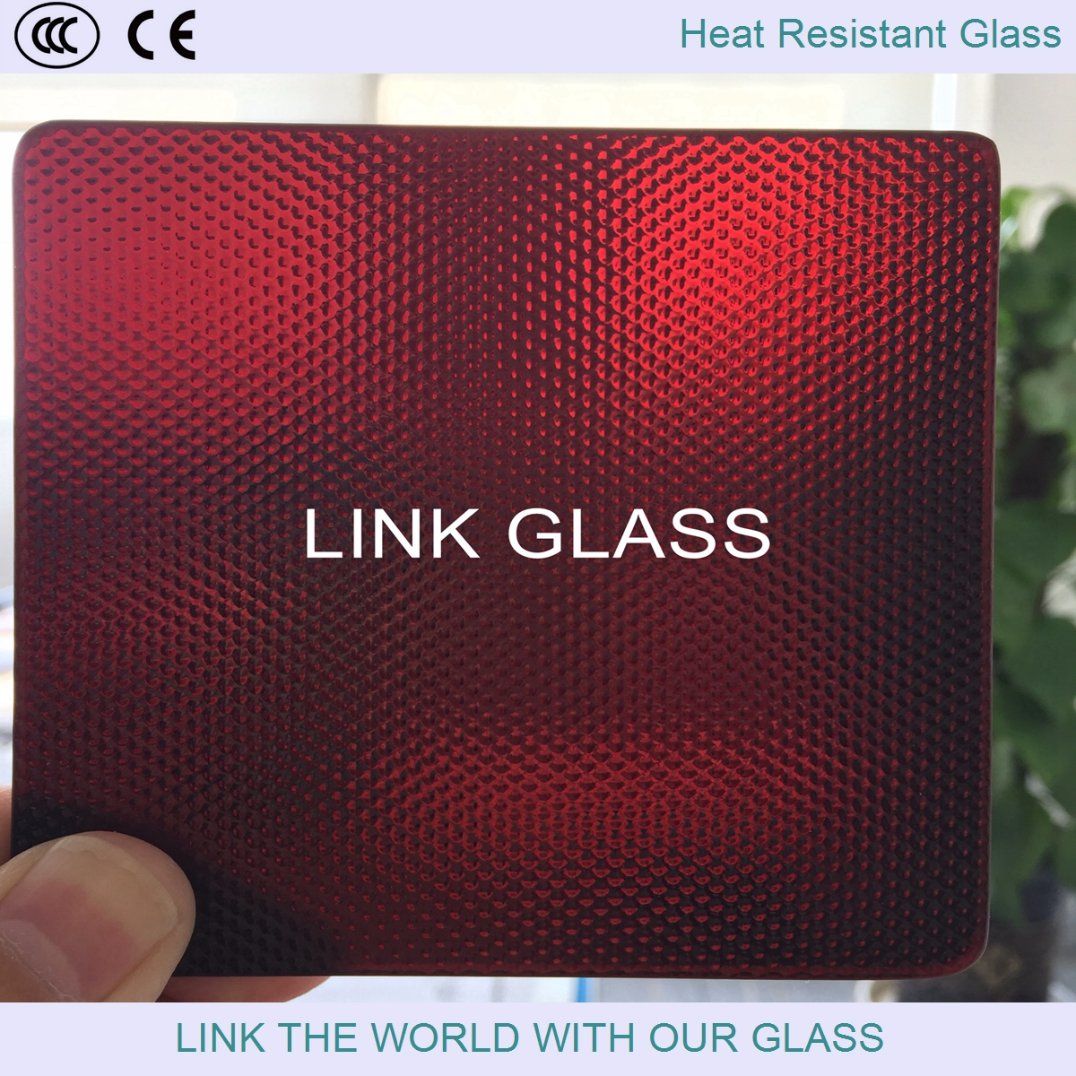

Sort:1. 350 ºC Heat Resistant Glass: This kind of glass needs tempering processing. It contains 5%-8% iron ion in the glass composition, so its surface will become pale turquoise after tempering processing. According to customer's needs, such processing can be made as edging, screen printing, drilling and so on. It can be processed into general chemical viewing mirror glass, piping windows, etc. 2. 550 ºC Heat Resistant Glass: Stress treatment can be made upon request, and it can be used more safely after the treatment. It is quite popular due to its good heat resistance, high transparency and reasonable price, making it the ideal option for high-temperature oven. Specification: 650mm * 1500mm; Thickness requirements: 2mm-50mm.
3. 880 ºC Heat Resistant Glass: This kind of glass is light brown, transparent and 880
ºC-resistant, and it can reach 1000
ºC instantly. According to customer's needs, second processing can be made, such as cutting, lapping, chamfering, edging, drilling and silk-screen, etc. Please feel free to call us for quotations.
4. 1350 ºC Heat Resistant Glass: This kind of product is oven glass with high transparency, above 98% light transmission and excellent electrical insulating property. More importantly, it can be used at a high temperature of 1350
ºC, and instant heat resistance is up to 1450
ºC.
Application:1. Heat Resistant Glass sheet: glass surface shall have excellent high-temperature resistance property and high transparency, which is the requirement of observing temperature as high temperature glass windows; temperature-resistant range: 300ºC-13500ºC.2. Heat Resistant Viewing Mirror Glass: it is applied in industrial viewing mirror glass, boiler viewing mirror glass and piping viewing mirror glass.3. Heat Resistant Water Level Gauge Glass/liquid level gauge glass: common specifications are as follows: 190 * 34 * 17mm; 218 * 34 * 17mm; 250 * 34 * 17mm...4. Heat Resistant Glass Tube: currently 500ºC and 1200ºC-resistant glass tubes are available in our factory; high-temperature resistant glass tube with special temperature requirements and specifications can be customized made.5. Special Fireplace Glass, special oven glass, wave soldering glass: such glass plate needs high-temperature resistance of not less than 800 ºC
Link Glass is a professional and comprehensive glass manufacturer and exporter in East of China with many years professional experiences. We are dedicated to provide 1st class service to all our clients from order to quality control to make every delivery satisfied.
With the hard work of our Products Center team and the close cooperation of technology and capital with our brother companies, Link Glass can supply a wide range of high quality glass and related products.
Products:
- Architecture Glass: Tempered Glass, Laminated Glass, Vsg Glass, Esg Glass, Reflective Glass,
Insulated Glass.
- Residential Glass: Furniture Glass, Home Appliances Glass, Shower Door, Door & Window Glass, Mirror Glass.
- Commercial Glass: Windows and doors, Curtain Wall Glass, Elevator glass, Glass Partition, Greenhouse Glass, Solar Collector Glass, PV Glass, Swimming Pool Fence Glass, Greenhouse Glass.
- Artistic & Decorative Glass: Sandblasted Glass, Silk Printing Glass, Painted Glass, Silver Mirror, Aluminum Mirror, Stained Glass, Satin Glass, Acid Etched Glass.
- Raw Glass: Clear Float glass, Tinted Float Glass, Reflective Glass, Clear Patterned Glass, Tinted Patterned Glass, Central Wired Patterned Glass.
- Special Glass: Fire Resistant Glass, Borosilicate Glass, Pyrex Glass, Polished Wired Glass, Sight Glass, Welding Glass, Borosilicate Glass Tube, Boiler Glass, Furnace Glass, Quartz Glass
- Related Products: L Frame, A Frame, Loading Tools, Spiders Claw, Ground Screws, Hardware
Competitive Advantages:
- Strictly quality control. ISO 9001: 2008 Quality System Certification. Glass products with CE certification, SGS test reports.
- Safe packing & loading. With rich experience of making delivery, we can ensure safe packaging and professional stuffing service for container loading works.
- Convenient logistics conditions. It is only 5 kilometers to Qingdao Port. Half an hour's trip to railway station and one hour's trip to airport.
- Excellent Sales Team. Our staff are knowledgeable and friendly will ensure clients' s smoothest glass purchasing experience with Link Glass.
Now Link Glass' customers are around more than 40 countries all over the world. With the diligently work of whole members of Link glass, we would be glad to keep every customers having a pleasant purchase and fruitful cooperation experience here.
