| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weld Method: |
Laser Welded |
| Steel Core: |
Normal or Silent |
| Kind: |
Handheld Saw |
| Manufacturing Arts: |
Welding |
| Usage: |
Stone Cutting, Cutting Asphalt, Green Concrete |

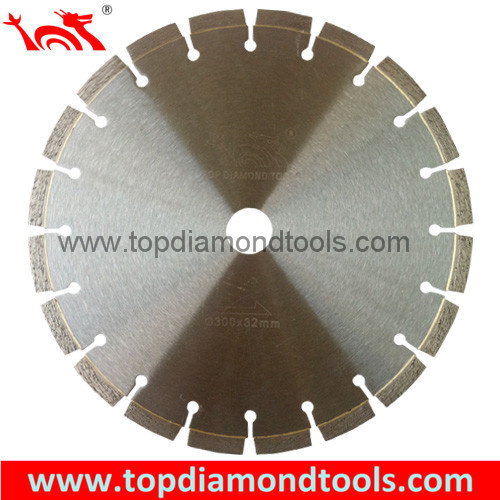

Product Description
Designed for cutting hard non-metallic materials such as masonry and concrete, cured concrete, concrete slabs and pipes, bricks, stone, etc., also for cutting reinforced concrete such as Road, Bridge, etc.
| Code No. | Diameter
(mm/inch) | Segment Size
(mm) | Segment No.
(pcs/set) | Welding Method |
| 105mm(4") | 40x2.2x10 | 8 | Laser Welded |
| 115mm(4.5") | 40x2.2x10 | 9 |
| 125mm(5") | 40x2.2x10 | 10 |
| 150mm(6) | 40x2.2x10 | 12 |
| 180mm(7) | 40x2.4x10 | 14 |
| 200mm(8") | 40x2.8x10 | 16 |
| 230mm(9") | 40x2.8x10 | 18 |
| 250mm(10") | 40x3.0x10 | 18 |
| 300mm(12") | 40x3.0x10 | 21 |
| 350mm(14") | 40x3.2x10 | 24 |
| 400mm(16") | 40x3.6x10 | 28 |
| 450mm(18") | 40x4.0x10 | 32 |
| 500mm(20") | 40x4.2x10 | 36 |
| 600mm(24") | 40x4.6x10 | 42 |
| 650mm(26") | 40x4.6x10 | 46 |
| 700mm(28") | 40x4.6x10 | 50 |
| 750mm(30") | 40x4.8x10 | 54 |
| 800mm(32") | 40x4.8x10 | 57 |
| 900mm(36") | 40x4.8x10 | 52 | Silver Welded |
| 1000mm(40") | 40x5.2x10 | 58 |
| 1050mm(42") | 40x5.2x10 | 60 |
| 1200mm(48") | 40x5.2x10 | 70 |
Quanzhou TOP Diamond Tools Co., Ltd is one of the most professional manufacturers of top quality diamond tools in China with the management system certificate of ISO9001. All of our production and inspection are rigidly controlled according to the International Standard which guarantee our steady quality and reasonable cost of diamond tools, such as diamond saw blades, diamond segments, diamond wire saw, diamond / PCD cup wheels, diamond polishing pads, diamond grinding plate / pucks / plugs, diamond fickert / frankfurt, diamond core bits, router bits, brushes etc.
They are widely used for cutting and grinding granite, marble, concrete, asphalt, ceramics, etc.
With over 15 years of production and problem solving experience, we have been developing diamond tools in different applications featured with reliable quality and reasonable price as follows:
1. Diamond Tools for Concrete Flooring (from surface preparation up to final polishing)
2. Diamond Tools for Stone (from its extraction in the quarry, through slabbing, sawing, drilling, milling and surfacing, up to final polishing)
3. Diamond Tools for Construction.
Our goal is to guarantee our tools work efficiently for every customers always and increase the competition for theirs.
We would like to thank all of our existing customers for their loyalty and support over the years. We would also like to welcome new customers and look forward to a long and prosperous future together.
