| Prod Model: |
Geobor S 146 |
| Name: |
Diamond Products Core Drill Bits |
| Type No: |
Core Drill Bit |
| Bits: |
Diamond Drill Bits |
| Drill: |
Diamond Core Drill |
| Item: |
Diamond Core Drill Bit |
| Suppliers: |
Core Bore Drills Suppliers |
| New: |
2017 Milwaukee Diamond Core Drill Bits |
| Series: |
Wireline Diamond Core Bits |
| Model: |
Impregnated Diamond Core Bits |
| Drilling: |
Exploration Core Drilling |
Product Description
We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Germany, China(joint-venture).
We have rich experience in this field of DTH hammers and bits for 60 years.
Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as US, Canada, France, Spain, Italy, South Africa, Iran, Malaysia, Australia, etc.
Product Description
1. More than 10 years experience in diamond drill bit manufacture field;
2. All products certificated by ISO9001: 9002;
3. Be reputed to be one of the best diamond bit suppliers in China;
4. We are lies inland of China, where the labor cost is less than China coastal areas;
5. We bought our own land and built our own factory; We can provide you competitive price as well as solid quality products
Specifications
TSP Core Bits are ideal for geotechnical drilling applications. They are suited for soft to medium hard formations, such as clay
TSP Core Bits are ideal for geotechnical drilling applications. They are suited for soft to medium hard formations, such as clay, shale, sandstone, limestone, marble, basalt, etc
Properties
Special-shaped PCD are embedded in the matrix as cutting media. High penetration rates are common due to maximum setting exposure of the PCD providing an aggressive cutting face.
· Manufactured with a very erosion resistant matrix. Inside and outside gauge diameter integrity is maintained with a combination of natural diamonds and PCD pins.
· As PCD is very wear resistant material, PCD core bits have a long bit life.

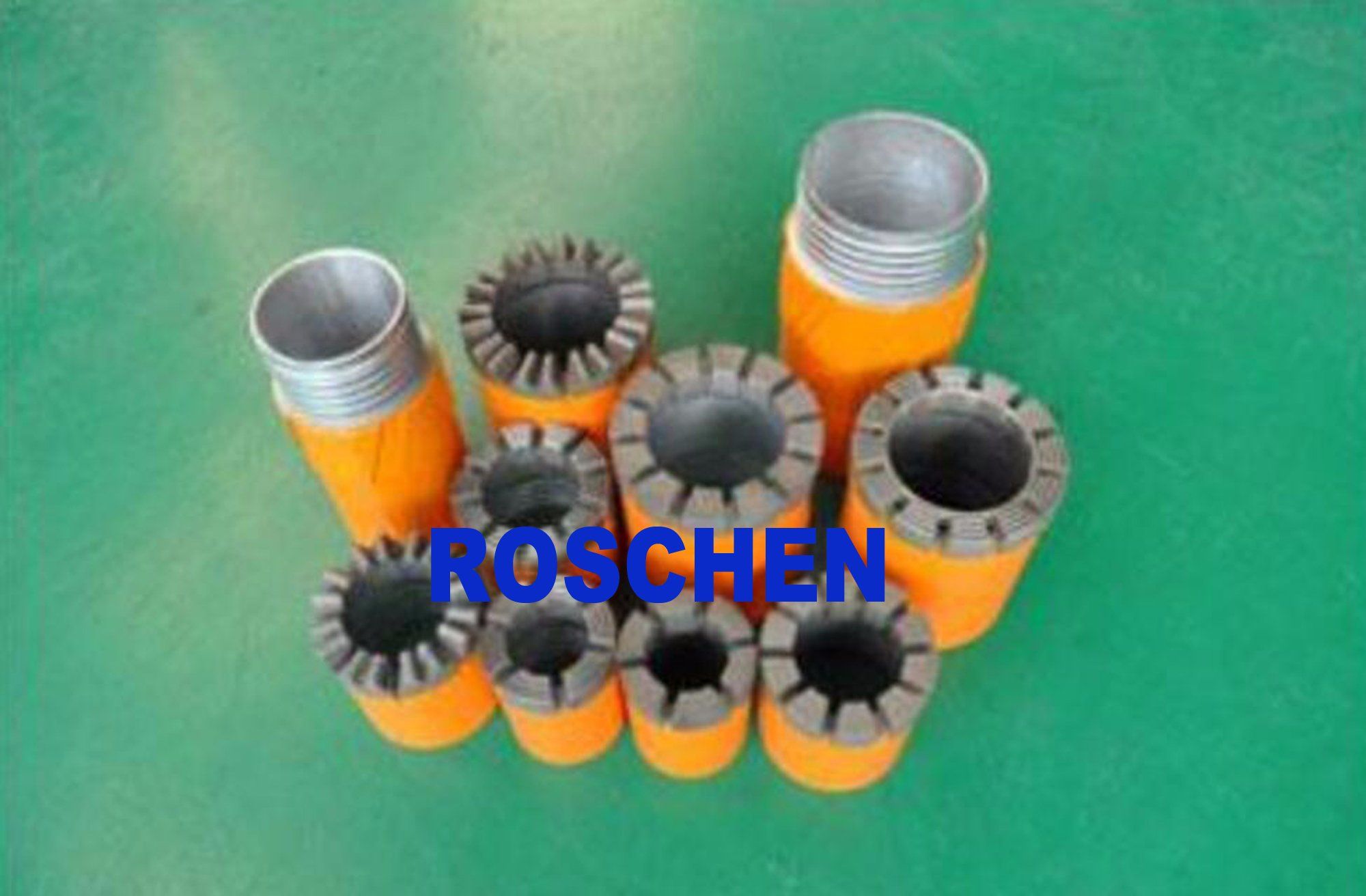

Three types of PCD Core Bits
TSP(Geo cube set) Type, Spicula Type, Cyclinder Type, like the following pictures show.
Specifications
TSP core bits are set with Thermally Stable Polycrystalline cutters, mounted in the bit crown matrix. The bit is extremely tough
TSP core bits are set with Thermally Stable Polycrystalline cutters, mounted in the bit crown matrix. The bit is extremely tough and will cope with massive or broken formations, from soft to hard, highly abrasive formations.
With consistent performance across a wide range of formations, this kind of bit offers a very cost-effective drilling solution in many circumstances, and at the same time allows bit inventory costs to be much reduced.
HQ TSP Core Drilling Bits Model: NQ
...
Introduction:
Impregnated Diamond Core Bits are manufactured with very small, high quality synthetic diamonds, mixed evenly through a metal alloy matrix. The matrix erodes away at the same rate as the diamonds become worn and rounded. Thus new sharp diamonds are exposed to continue cutting through the rock. In most geological formations, impregnated bits are more economical to use than other bits.
Experience and power:
Many years of experience combined with recent improvements in technology and manufacturing concepts have resulted in greatly improved drilling performance of impregnated diamond core drill bits for mineral exploration.
Surface-Set diamond bits are primarily recommended for use in drilling relatively soft, abrasive, unconsolidated formations that are not effectively drilled by impregnated diamond bits. They are also recommended for use in drilling harder formations where the available rotational speeds and bit loads are insufficient to use impregnated diamond bits due to drilling equipment limitations.
Use:
Drill soft to hard rock, widely used in all kinds of drillings for prospecting, water and electricity building and construction industry of road, railway, bridge and building taking out core to examine stake, etc.
Structure:
They are manufactured with very small, high quality synthetic diamonds mixed evenly through a metal matrix. DIYFIA core bits are manufactured to give optimum penetration rates and bit life, which is required to keep the cost of diamond drilling to minimum.
| pcd core bit | |
| tsp core bit | |
| pdc core bit | |
| Wireline diamond core bits specifications |
| SIZE | CORE Ø | HOLE Ø |
| AQTK | 35.5 mm (1-3/8 in) | 48 mm (1-7/8 in) |
| BQ | 36.4 mm (1-7/16 in) | 60 mm (2-3/8 in) |
| BQTK | 40.7 mm (1-5/8 in) | 60 mm (2-3/8 in) |
| NQ | 47.6 mm (1-7/8 in) | 75.7 mm (3 in) |
| NQTK (NQ2") | 50.6 mm (2 in) | 75.7 mm (3 in) |
| NQ3 | 45 mm (1-3/8 in) | 75.7 mm (3 in) |
| HQ | 63.5 mm (2-1/2 in) | 96 mm (3-3/8 in) |
| HQ3 | 61.1 mm (2-3/8 in) | 96 mm (3-3/8 in) |
| PQ3 | 85 mm (3-3/8 in) | 122.6 mm (4-7/8 in) |
| PQ3 | 83 mm (3-1/4 in) | 122.6 mm (4-7/8 in) |
| Wireline diamond core bits, metricl diamond impregnated drill bits specifications |
| "Q" series: | AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT |
| A-Gauge Core Bits: | AQ, AQ-RSG, AWG(AX), AWM, AWT, LTK48 |
| B-Gauge Core Bits: | BQ, BQ-RSG, BQ-2.400, BQ3, BWG(BX), BWM, BWT, LTK60, TBW |
| N-Gauge Core Bits: | NQ, NQ-RSG, NQ-3.032, NQ2, NQ2-RSG, NQ3/NQTT, NQ3-RSG, NQ3-3.032, NMLC, NWG(NX), NWM, NWT, TNW, |
| H-Gauge Core Bits: | HQ, HQ-RSG, HQ-3.830, HQ-3.895, HQ3/HQTT, HQ3-RSG, HQ3-3.895, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT |
| P-Gauge Core Bits: | PQ, PQ3, PWF-Long, PWF-Short |
| S-Gauge Core Bits: | SWF-Long, SWF-Short |
| U-Gauge Core Bits: | UWF-Long, UWF-Short |
| Z-Gauge Core Bits: | ZWF-Long, ZWF-Short |
| T Series: | T36, T46, T56, T66, T76, T86, T101 |
| TT Series: | TT46, TT56, TT66, TT76, TT86, TT101 |
| T2 Series: | T2 46, T2 56, T2 66, T2 76, T2 86, T2 101 |
| TB Series Metric Core Bits: | TB36, TB46, TB56, TB66, TB76, TB86, TB101 |
| T6 Series Metric Core Bits: | T6-76, T6-86, T6-101, T6-116, T6-131, T6-146 |
| T6S Series Metric Core Bits: | T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146 |
| B Series(IS03552-1)Metric Core Bits: | B36, B46, B56, B66, B76, B86, B101, B116, B131, B146 |
| All other standard: | CDDA, DCDMA, Crealius, and ISO sizes. |
FAQ
Q: Are you a manufacturer or trading company?
A: We are a specialized manufacturer.
Q: What are your main products, and used for?
A: Our products include core bit, PDC bit, reaming shell, core barrel, casing, drill rod, SPT equipment, Shelby sampler, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling, geotechnical engineering and soil sampling.
Q: How about the delivery terms?
1. Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By DHL/TNT/Fedex express, air, sea, train.
Q: How about discount?
A: Price is based on products and order quantity.
Q: Do you accept sample order?
A: Yes sure, please contact us for details.
Q: How about your after-sales service?
A: As a manufacturer, we offer promt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.
Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, Roschen always makes a serious inspection for all products and raw materials in strict procedure. We have obtained certificate of ISO9001:2000 in 2004.
