| Usage: |
Drilling |
| Manufacturing Arts: |
Sinter |
| Kind: |
Diamond Drill |
Product Description

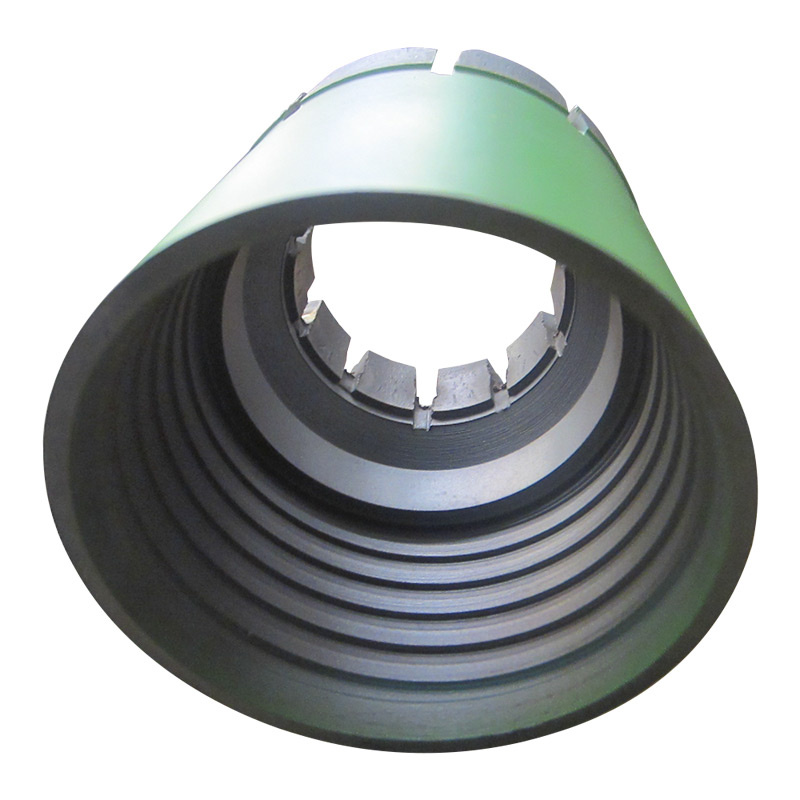

Geological PDC Drill BitSpecificationsGeological diamond core drill bit is used for geological drilling, survey of the foundation works of buildings, investigating geological state of the dam, drilling hole and sample of special projects.
All kinds of core drill bits for geological prospecting, geological engineering, petroleum engineering. Dimension can be produced according to your request.
All these mining and geological diamond drill bits can meet every demand from our customers, and are suitable for drilling in medium hard, hard and very hard formation. Also, any type of mining and geological diamond drill bits can be specially designed and manufactured according to customers' requirements. Reaming shell and bit can form a complete set and use while need.
| Varities & Specifications |
| Diamond core drills | φ36.5\φ46.5\φ56.5\φ59.5\φ66\φ75\φ91\φ93\φ94\φ110\φ131\φ151\φ171\φ200 | Landmark&YB |
| φ47/25\φ46.5/25\φ56.5/35\φ59.5/36\φ60/36\φ75/49\φ76/48\φ91/62 | Landmark&YB |
| Diamond PDC drill bits | φ25~φ36\φ42\φ48\φ56\φ60\φ65\φ75\φ94\φ110\φ113\φ133\φ153\φ190 | Two or three wings |
| φ75\φ94\φ113\φ133\φ153\φ157 | Tile & Steel |
| Diamond Reaming Shells | φ28\φ36\φ46\φ59\φ75\φ91\φ101\φ110\φ130\φ150\φ170\φ200 | |
| Dimension can be produced according to your request. |
Wuhan Wanbang Laser Diamond Tools Co., Ltd. A young and dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999.
As a leading company in professional diamond tools. Wanbang specialized in producing and developing all kinds of laser welded diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wanbang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
Our product including:
Laser welded diamond saw blades for general purpose, concrete, wall, asphalt, brick, Laser welded diamond core bit for wall, concrete and engineering construction.
Diamond saw blades for granite, marble, sandstone, concrete., Diamond hot-pressed (sintered) blades, Diamond electroplated blades, Ring saw, Wire saw, Tuck point blades, Diamond cup wheel and all size of segments for circular saw, gangsaw, wire saw and so on...
We hope our product will bring pleasure in your cutting works.
If you have any interest in our product, please let us know all details (dimension and application) without hesitate. We will try our best to meet your request. If you have time to visit China, you are welcome to visit our company. It is very convenient to get to.
