German Standard Five Rollers Marine Fairlead DIN Type
| Price: |
US $ 129/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
WT0704106 |
| Certificate: |
CCS,Gl,Dnv,BV,ABS,Rina,Kr,RS etc |
| Stype: |
Connical Type or Cylinder Type |
| Size: |
as Per Request |
| Color: |
as Per Your Requirement |
| Dia.: |
12mm~48mm |
| Material: |
Cast Steel/ Iron |
| Type: |
Fairlead |
Product Description
German Standard Five Rollers Fairlead DIN Type
German Standard Fairlead Five Rollers, consistinng of vertical and horizontal rollers, can guide mooring ropes from any direction. Horizontal roller fairlead, also called universal rolelr fairlead, is usually located in the deck end, German Standard Fairlead Five Rollers can greatly recuce the abrasion of mooring ropes for the rollers fixed around the fairlead.
1.Good wear and corrosion resistance.
3.Durable, long lifetime.
3.Provide CCS , BV , LR , BV etc Certificate.
4. Marerial: cast steel ZG230-450,Q235.
5.Surface: Blasting,Epoxy.
6.Customized service is available, Advanced equipment ,Strong consciousness in controlling quality.
We can supply roller fairlead, Fairleads with horizontal rollers according to JISF, DIN and GB standards . We can also make these products according to buyer's drawings.
Certificate: ABS,DNV,GL,RINA,BV etc. Specification| Type | Wire Ø | A | B | C | D | E | F | G | H | I | K | L | weight(kg) |
| CFG2 | 12 | 180 | 100 | 650 | 80 | 446 | 170 | 10 | 465 | 253 | 125 | 356 | 90 |
| CFG3 | 16 | 230 | 130 | 800 | 100 | 546 | 210 | 10 | 575 | 308 | 150 | 446 | 160 |
| CFG5 | 20 | 250 | 130 | 900 | 120 | 626 | 250 | 15 | 655 | 363 | 175 | 506 | 280 |
| CFG8 | 24 | 280 | 160 | 1000 | 140 | 716 | 290 | 20 | 730 | 423 | 215 | 576 | 394 |
| CFG12 | 32 | 300 | 160 | 1200 | 180 | 836 | 366 | 25 | 855 | 518 | 260 | 676 | 860 |
| CFG20 | 40 | 320 | 180 | 1350 | 245 | 1030 | 500 | 35 | 1045 | 660 | 335 | 830 | 1500 |
| CFG32 | 48 | 400 | 250 | 1700 | 300 | 1236 | 610 | 45 | 1260 | 788 | 405 | 1016 | 2550 |
Quality Assurance and Service
1. Have a complete rigorous management, production and inspection processes to control the quality and avoid detail mistake
2. Design and produce ability
3. Rigorous inspection including incoming inspection, flaw detection etc., and double check is a must.
4. Advanced factory facility ensure
5. Response to any inquiry within 24 HRS with design or efficient solution from our engineer or tech supporter.
6. Provide professional customization service according to client's requirements
7. on time delivery, as we have rigorous production schedule and profession follow-up process
8. Moderate price and professional service
If you have any question or inquiry, please feel free to contact us for more details.
Ms Kate
Tel: +86-756-8169003
Phone: +86-13923317268
Website: www.weitongmarine.com

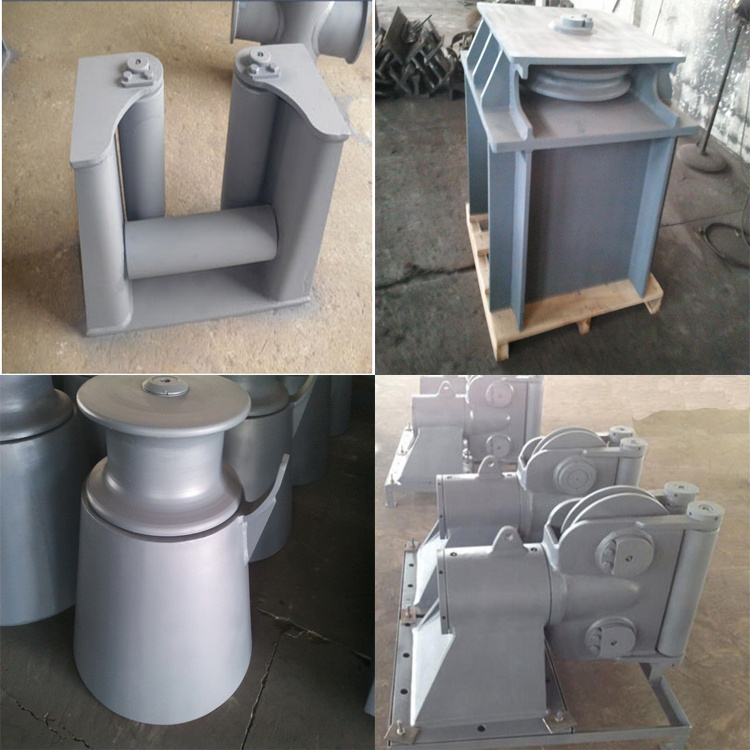

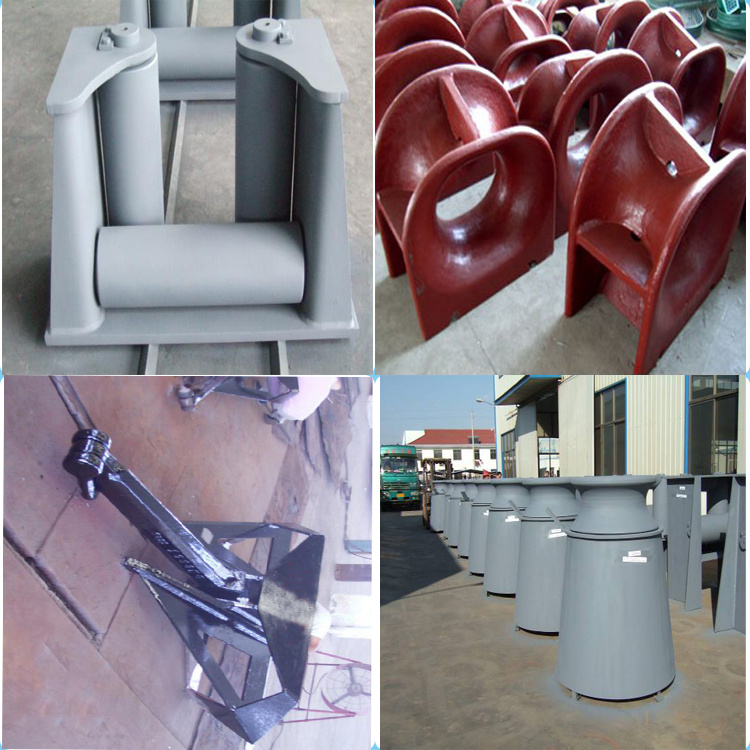

Other Products Photos
Zhuhai Weitong Import & Export Co., Ltd registered upon the approval of China Industry & Commerce Bureau, located in Zhuhai City. Weitong Marine is a professional global supplier of marine and offshore products. We focus on researching and developing the most competitive quality marine equipment and providing customer oriented services in marine industry for worldwide customers.
We believe the professional one should be worthy of trust. We have spent years in the marine industry and really understand what customer concerns; We can help to work out which product is the most cost-effective; We have a well- trained team full of enthusiasm to ensure the pre-sales and after-sales service and make the deal efficiently.
Product Range Comprises:
Marine Deck Equipment: Marine Windlass, Marine Winch, Marine Capstan, Marine Crane, Marine Steering Gear
Marine Life Saving Equipment: Life Davit, Immersion Suit, Life Boat, Inflatable Boat, Life Raft, Life Jacket, Life-saving accessory, etc.
Marine Fire-fighting Equipment: FIFI system, Fire Monitor, SCBA, EEBD, Fire Suit, Heat Insulation Suit, Fire Extinguisher etc
Pollution-prevention Equipment: Oily Water Separator, Oil Separator, Sewage Treatment Plant, Fresh Water Generator, UV-sterilizer Absorbents etc
Marine Mooring Equipment: Marine Anchor, Anchor Chain, Marine Chock, Marine Fairlead, Marine Bollard, Marine Airbag, Marine Fender etc.
Marine Propulsion Equipment: Tunnel Thruster, Marine Propeller etc
Marine Cover, Marine Window, Marine Door, Marine Ladders, Marine Lights
Certificates: ABS, BV, KRNK, GL, LR, RINA, CCS, DNV can be provided for most of the products.
