Good Price China Factory Made PDC Drill Bits for Oil and Mine Drilling PDC Buttons
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
China factory made PDC buttons |
| Product Name: |
Good Price China Factory Made PDC Drill Bits for |
| Application 1: |
for Oil Drilling Field |
| Application 2: |
for Mining and Engineering |

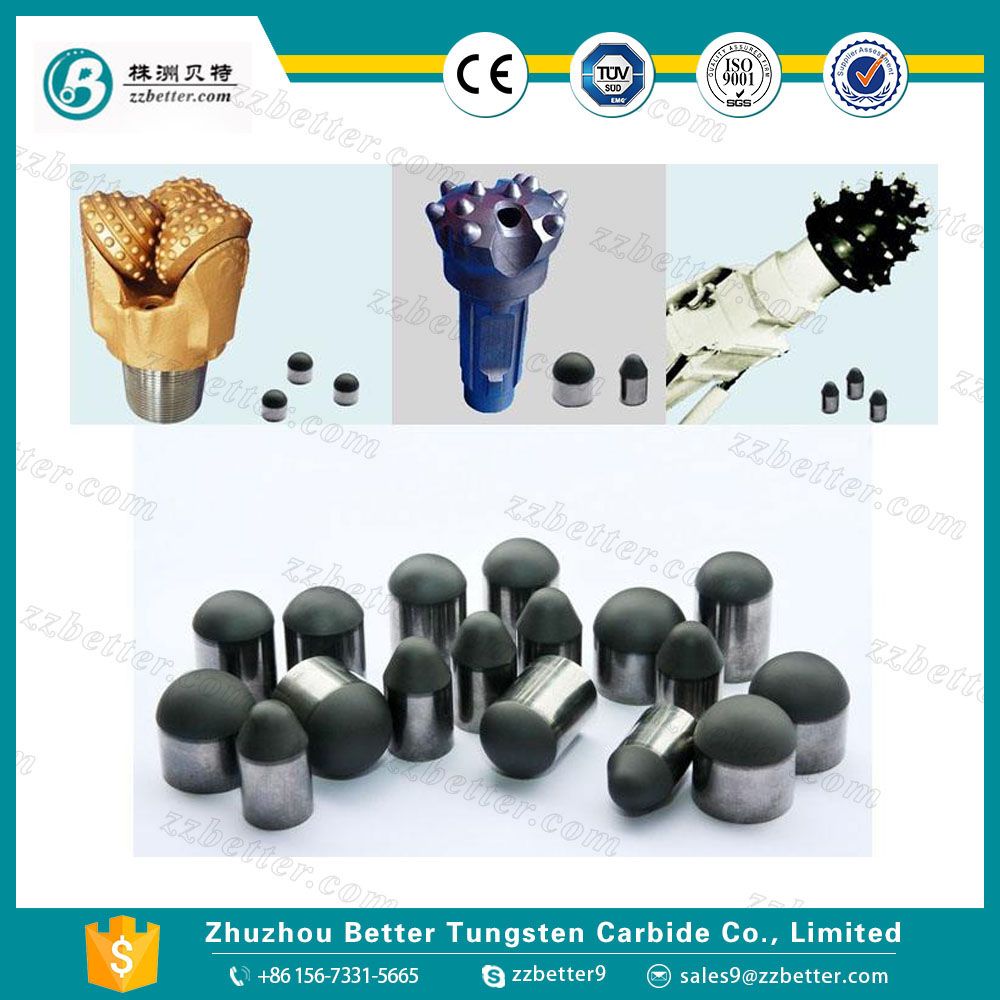

| Type 1: |
Flat Top PDC Button |
| Type 2: |
Spherical Top PDC Buttons |
| Type 3: |
Spoon Shape PDC Drill Bits |
| Other Name: |
PCD Drill Bits |
| Other Name 2: |
PCD Button Bits |
Product Description

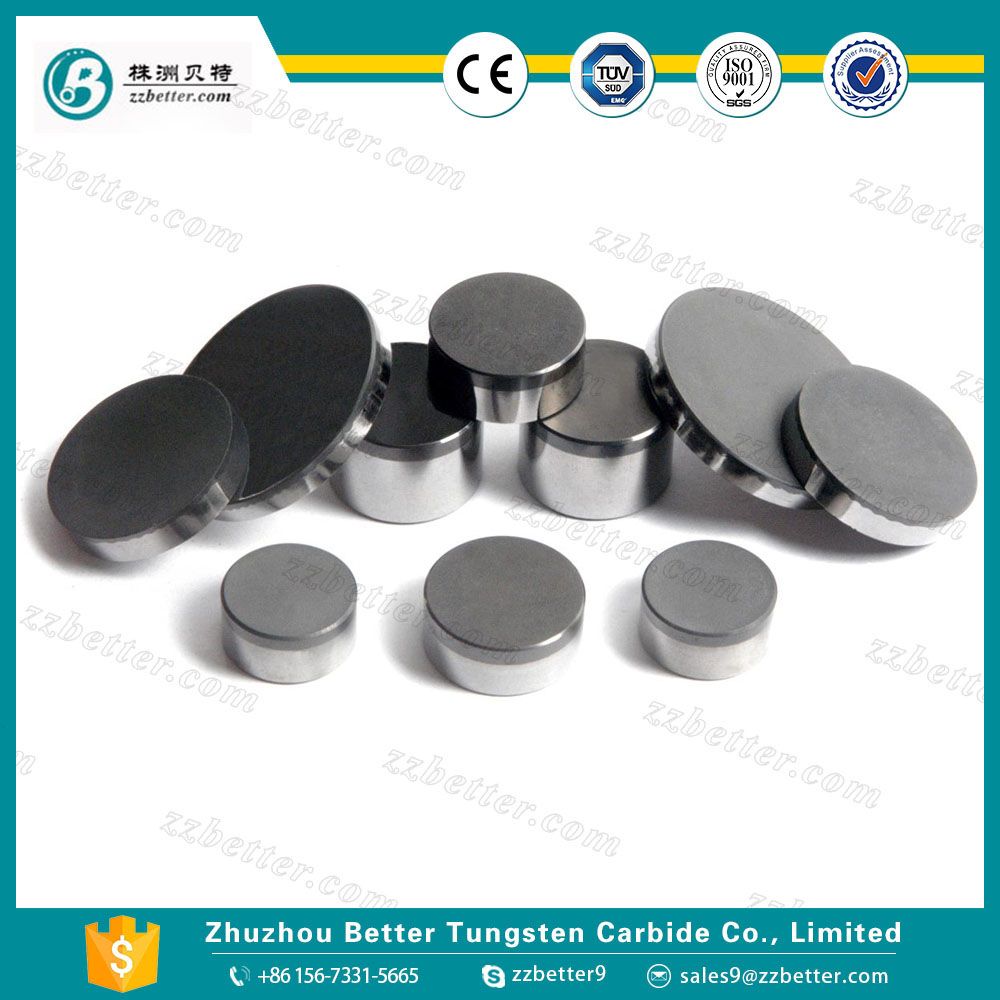

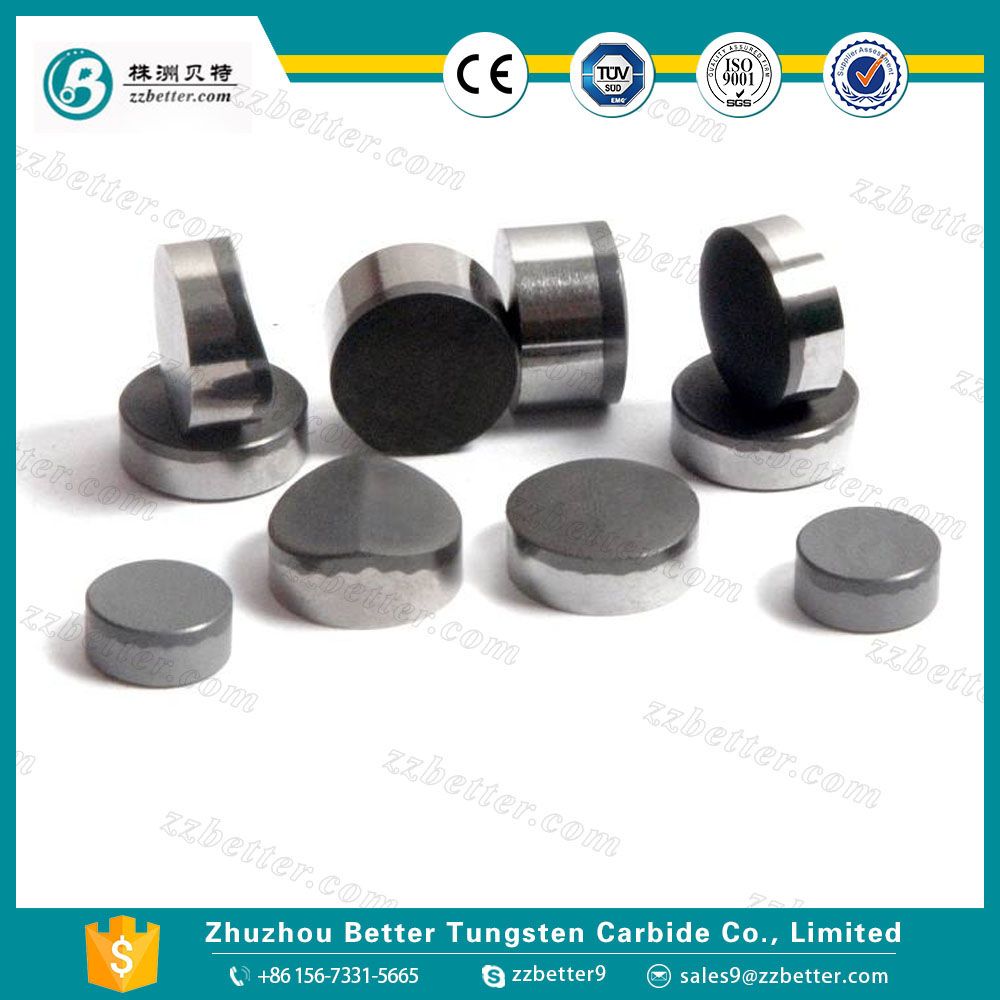

PDC cutters
Polycrystalline diamond cutters (PDC) comprise a polycrystalline diamond (PCD) top layer integrallysintered onto a tungsten carbide substrate using a high-pressure, high-temperature process. PDC cutters are sintered with selected diamond powder and tingsten carbide compact under high temperature and ultra high pressure. The PDC cutters have high hardness, high abrasion resistance and high impact resistance. PDC bttons bits can be widely used for oil and gas well drill bits, geological drill and mining drill bits. The PDC cutters can also be used as cutting tools with diamond for cutting, griding and polishing. 1304,1308,1313,1608,1613,1616,1908,1913,1916,1919mm, other size and shape could be made as your requirementsSPEC SHEET FOR OILFIELD DRILLING PDC CUTTERS| SPEC SHEET FOR OILFIELD DRILLING PDC CUTTERS | |
| SPEC Drawings | Dimension Code | Diameter (D) | Height Total(H) | Height Diamond | Diamond Chamfer | Carbide Chamfer | |
| 1916 | 19.05+/-0.05 | 16.0+/-0.10 | 2.0-2.5 | 0.5x45 | 0.5x45 | |
| |
| 1913 | 19.05+/-0.05 | 13.2+/-0.10 | 2.0-2.5 | 0.5x45 | 0.5x45 | |
| 1613 | 15.88+/-0.03 | 13.2+/-0.10 | 2.0-2.5 | 0.3x45 | 0.5x45 | |
| 1610 | 15.88+/-0.03 | 10.0+/-0.10 | 2.0-2.5 | 0.3x45 | 0.5x45 | |
| 1313 | 13.44+/-0.03 | 13.2+/-0.10 | 2.0-2.5 | 0.3x45 | 0.5x45 | |
| 1308 | 13.44+/-0.03 | 8.0+/-0.10 | 2.0-2.5 | 0.3x45 | 0.5x45 | |
| SPEC SHEET FOR MINING/SHALLOW OIL AND GAS PDC Cutters | |
| SPEC Drawings | Dimension Code | Diameter (D) | Height Total(H) | Height Diamond | Diamond Chamfer | Carbide Chamfer | |
 | 1313 | 13.44+/-0.03 | 13.2+/-0.10 | 2.0-2.5 | 0.3x45 | 0.5x45 | |
| 1308 | 13.44+/-0.03 | 8.0+/-0.10 | 2.0-2.5 | 0.3x45 | 0.5x45 | |
| 1304 | 13.44+/-0.03 | 4.5+/-0.10 | 2.0-2.5 | 0.3x45 | 0.5x45 | |
| 1010 | 10.00+/-0.03 | 10.0+/-0.10 | 2.0-2.5 | 0.3x45 | 0.5x45 | |
| 1008 | 10.00+/-0.03 | 8.0+/-0.10 | 2.0-2.5 | 0.3x45 | 0.5x45 | |
| 1004 | 10.00+/-0.03 | 4.5+/-0.10 | 2.0-2.5 | 0.3x45 | 0.5x45 | |
| 810 | 8.00+/-0.03 | 10.0+/-0.10 | 2.0-2.5 | 0.3x45 | 0.5x45 | |
| 808 | 8.00+/-0.03 | 8.0+/-0.10 | 2.0-2.5 | 0.3x45 | 0.5x45 | |
| 804 | 8.00+/-0.03 | 4.5+/-0.10 | 2.0-2.5 | 0.3x45 | 0.5x45 | |
Zhuzhou Better Tungsten Carbide Co., Ltd is located in Zhuzhou City, Hunan Province, China, where is the largest tungsten carbide producing area in China.
Our main products inclue: Tungsten carbide rods, carbide strips, carbide dies and bushes, tungsten carbide roll rings, carbide disc cutters, carbide end mill cutters, carbidestud and pins, tungsten water jet cutters, precision tools, tungsten carbide grits and powder, welding rods, ceramet inserts, PCD and CBN tools, non-standard and deep-processing products and so on. We also provide very good quality of boron carbide, silicon carbide nozzles.
Our company gathered the professional staff members for designing, producing and saling. Our workers are well trained and experienced. Our team is honest, positive, keeping promise, working hard and carefully. We sincerely hope we can provide our clients with good quality, moderate price together with professional service. We have got ISO9001: 2008 certificate, with advanced equipment, test facilities and professional employees. We strictly carry on ISO9001: 2008 requirements to guarantee the quality.
We have good relations with many factories in tungsten carbide line. We have large stock to keep the fastest delivery. In this way, Our products are 100% quality guaranteed and delivery fast.
