| Prod Model: |
KFR-C |
| Applicant: |
Air Conditioner |
| Main Material: |
Stainless Steel |
| Model: |
Customized |
| Range: |
1-2HP |
| Usage: |
Air Conditioner Bracket |
| Material: |
Stainless Steel |
| Structure: |
Single-side Bracket |
| Size: |
Customzied |
Product Description
For air conditioner 7500BTU, 9000BTU, 12000BTU, 18000BTU, 24000BTU...
0.75HP, 1. HP, 1.5HP, 2HP, 3HP, 4HP...
If you request it, please send me the specification, I will send our competitive prices for your reference.
| KFR-A |
|
| Material: | Mild steel |
| G.W.: | 2.4Kg, 3.3Kg |
| Thickness: | 1.5MM (2.4Kg), 2.0MM (3.3Kg) |
| Size: | 390MM*430MM |
| Range: | 1-2HP |
| Surface finish: | Painted with polyester powder |
| Max weight: | 80Kg (2.4Kg), 100Kg (3.3Kg) |
| Outer packing and description: | One single packing each set, including 6 sets of gharry screws, 4 sets of expansion screws, 4 sets body fixing screws, 4 rubber gasket. |
KFR-B
Material: Mild steel
G.W.: 3.9Kg
Thickness: 2.0MM
Size: 400MM*400MM
Range: 1-2HP
Surface finish: Painted with polyester powder
Max weight: 150Kg
Outer packing and description:
One single packing each set, including 6 sets of gharry screws, 4 sets of expansion screws, 4 sets body fixing screws, 4 rubber gasket.
KFR-H
Material: Mild steel
G.W.: 3.8Kg
Thickness: 2.0MM
Size: 420MM*500MM
Range: 1-3HP
Surface finish: Painted with polyester powder
Max weight: 150Kg
Outer packing and description:
One single packing each set, including 6 sets of gharry screws, 4 sets of expansion screws, 4 sets body fixing screws, 4 rubber gasket.

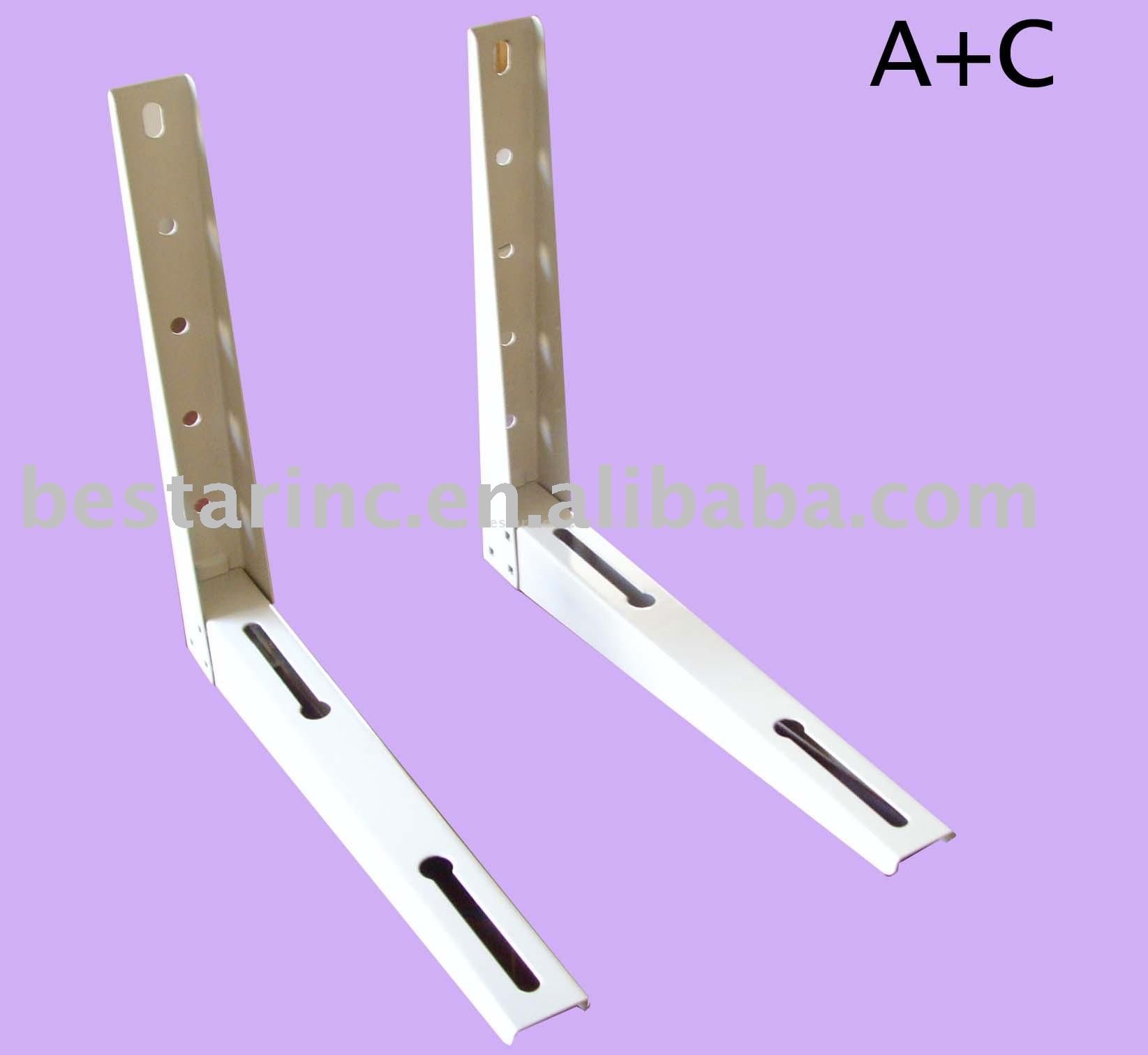

A+C
Material: Mild steel
G.W.: 2.4Kg
Thickness: 2.0MM
Size: 420MM*500MM
Range: 1-3HP
Surface finish: Painted with polyester powder
Max weight: 150Kg
Outer packing and description:
One single packing each set, including 6 sets of gharry screws, 4 sets of expansion screws, 4 sets body fixing screws, 4 rubber gasket.

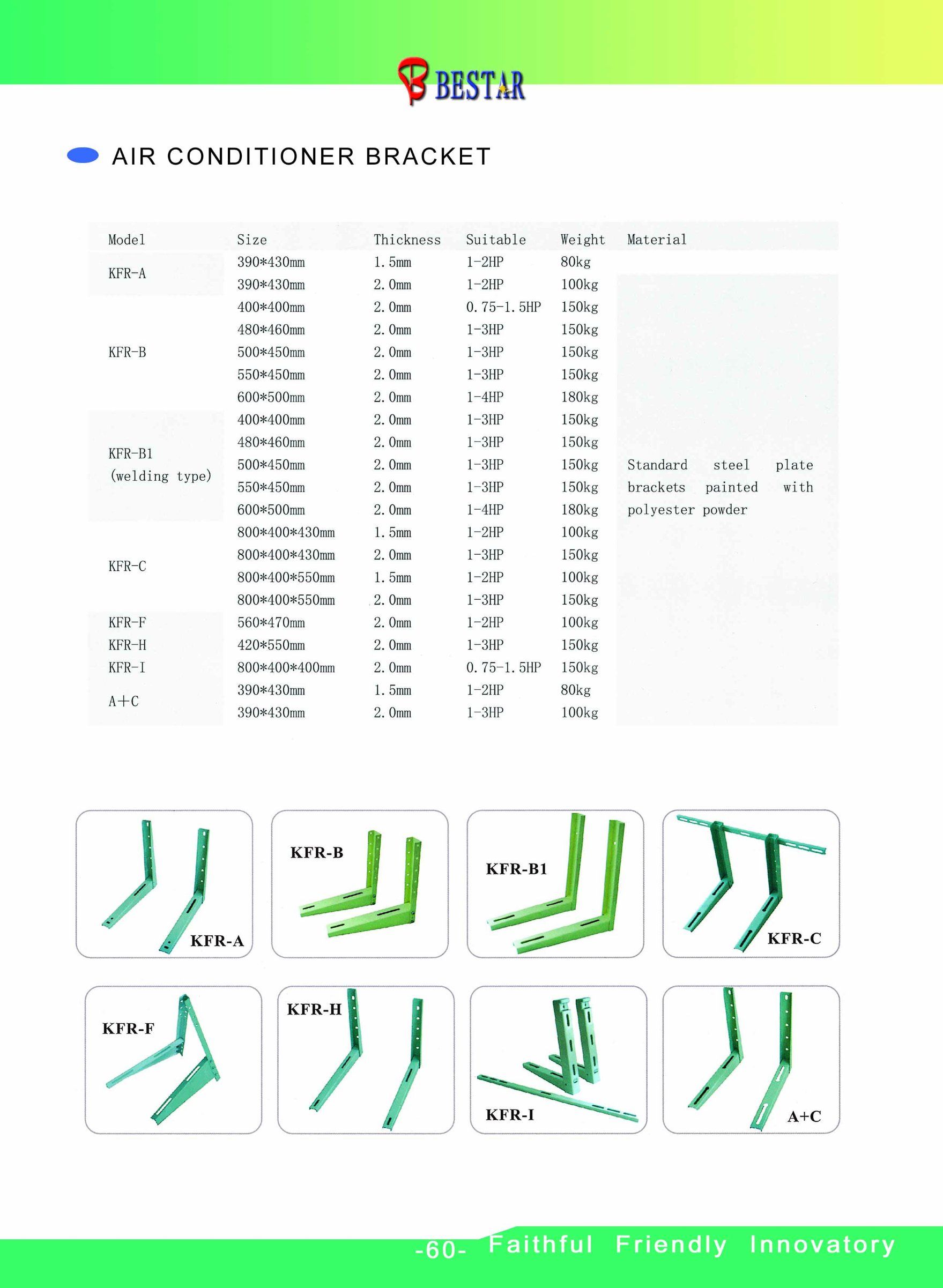

We can supply various kinds of Air conditioner bracket,Air conditioner fitting wall bracket, ac bracket,ac stand,ac support
1.Material:Hot-rolled steel
2.Surface:Painted with polyester powder
3.Thickness:1.5-2.0mm
4.Range:75000-24000BTU
5.Weight:80-180Kgs
6.We can produce according to your samples or drawings
Jinan Retek Industries Inc. is a professional supplier in China, specializing in refrigeration parts. Our main products are refrigerator parts. Now we have two factories in China, manufacturing different kinds of refrigeration parts. One is mainly manufacturing condensers and evaporators. The other one is mainly manufacturing copper filter driers, accumulators and access valves.
With the idea of "Best Products, Best Price and Best Services", our company spares no efforts to achieve the target of "Being the best one, not better one". We concentrate on our products, and hope to provide our customers with best quality products at best price. We know we are young, and we are able to make great progress in future. We have great confidence in our products.
Now we sell our products mainly to refrigerator, freezer and water cooler factories in more than 15 countries and areas, including China, Pakistan, Italy, the USA and Russia. We also welcome customers all over the world to visit our company and set up business relationship for further development.
