Good Quality Diamond Wire for Stone Cutting Plastic Injection

Prod Model:	GCP/MCP SERIES
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter:	8.8-11mm

Product Description

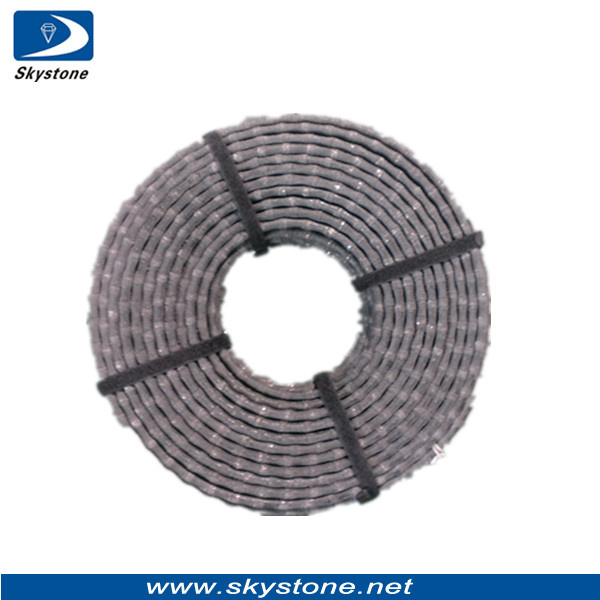

Wires for stationary machines

Advantages:
1.There is not much block size limited for wire sawing compared with disk saw.
2.The wire saw inter-space is thinner and more precise than the large disk saw (deviation < 1 mm)
3.Wire saw cutting is more effective and relatively cheaper in long term working.
4.By virtue of its greater and greater reliability, wire sawing technology is more and more automated and thus becomes competing techniques.
5.Noise nuisance generated by diamond wire sawing is significantly less than that produced by other sawing techniques.

Specification:


Model	Diameter(mm)	Fixing	Beads/m	Material	Sawing speed (mm/min)	Life time (m2/m)	line speed   (m/s)
GCP11.4	11.4	plastic	40	class     1-2   class     3-4  class 5	12-20        8-15        6-10	12-20   10-15   7-10	28-30   28-30   26-30
GCR11.4	11.4	rubber	40
GCP11.0	11.0	plastic	37/40
GCR11.0	11.0	rubber	40
GCP10.5	10.5	plastic	37

Note: Efficiency is measured by down-feed per min.


Profiling - a complementary application for stationary machines.

Advantages:

The use of our reliable diamond wire for shaping makes possible the optimum use of excellent quality materials ;
The low cost of the cuts, the profiling precision and the surface quality indisputably make our diamond wire very competitive;
The diamond wire used in profiling machines is similar to that found in stationary machines, but it is generally of a smaller diameter (8.2mm).


Specification:

Model	Diameter(mm)	Fixing	Beads/m	Material	Sawing speed (mm/min)	life time (m2/m)	Line speed (m/s)
GPP8.8	8.8	plastic	37	class  1-2 class  3-4 class  4-5	12-20   8-15   7-10	12-20   10-15   7-10	26-30   26-30   26-30
GPP8.2	8.2	plastic

Note: Efficiency is measured by down-feed per min.
