| Prod Model: |
SY-DGBS-32 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
900mm - 3500mm |
| Segment Size: |
24X6.6/6.0X10(12)(15)(20)~24X14.5/13.5X15 (20) mm |
| Segment High: |
10/12/15/20 |
| Application: |
Marble,Granite,Limestone, etc |
| Features: |
Good Performance and Long Life |
| Certification: |
BV/SGS/ISO |
| Advantage: |
Quality and Price |
| Supplier: |
Quanzhou Sunny Superhard Tools Co.,Ltd. |
| Country Of Original: |
Quanzhou China |
| Item: |
Diamond Tool Segment for Mable |
Product Description
Gang Saw Segment Specifications
1. Smooth cutting
2. Optimum cutting life
3. Consistent performance
4. Factory price

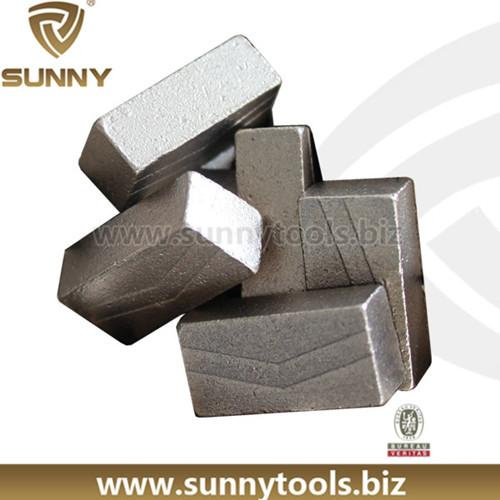

Big Saw Blade Segment
Diamond segment is one part of diamond saw blade, gang saw blade ,ect. It is one of most popular slab cutting and grinding tools. According to practical requirements, we have developed different types of blades and segments, such as for general use, for granite, for marble and for artificial stone etc.
We can also supply other individual segments according to different equipment, different processed material, and different requirement for processing precision from our customers
Flat shape, M shape abd conical shape
Diameter |
Inch |
Core
Thickness |
Segment Size |
Segment
Number |
Note |
mm |
|
mm |
mm |
pcs |
|
φ900 |
36" |
5.0 |
24x6.6/6.0x10(12) (15)(20) |
64 |
Sandwich
segment
and Layer
segments
are available
according to
your working
demand. |
φ1000 |
40" |
5.5 |
24x7.0/6.4x10(12) (15)(20) |
70 |
φ1200 |
48" |
6.0 |
24x8.0/7.4x10(12) (15)(20) |
80 |
φ1300 |
50" |
6.5 |
24x8.4/7.8x10(12) (15)(20) |
88 |
φ1600 |
64" |
7.2 |
24x9.0/8.4x10(12) (15)(20) |
108 |
φ1800 |
72" |
8.0 |
24x9.8/9.2x10(12) (15)(20) |
120 |
φ2000 |
80" |
8.0 |
24x10.5/9.5x10(12)(15)(20) |
128 |
φ2200 |
88" |
9.0 |
24x11.5/10.5x(15)(20) |
132 |
φ2500 |
110" |
9.0 |
24x12.5/11.5x(15)(20) |
140 |
φ3000 |
120" |
10.0 |
24x13.5/12.5x(15)(20) |
160 |
φ3500 |
140" |
10.0 |
24x14.5/13.5x15 (20) |
180 |
Other specifications are available upon request. |
|
|
|
|
|
|
|
|
|
| |
QUANZHOU SUNNY SUPERHARD TOOLS Co., Ltd is a professional and Dynamic Diamond Tools manufacturer, established in 1993, Located in Quanzhou, Fujian province, China, factory covering 15000 square meters. Our technical department is composed of experienced professors and engineers. We devote ourselves to researching and manufacturing cutting and processing Diamond tools for nature stone and building materials. Our tools are exported to more than 60 countries, including America, Brazil, Italy, Russia, Ukraine, India, Egypt, South Africa etc.
Main Products:
Cutting Tools (Saw blade, Segment, Wire saw etc)
Grinding&Polishing Tools (Calibration Rollers, Fickerts, Frankfurt, Cup wheel, Profilling wheel, Polishing pad, brush etc)
Drilling Tools (Finger Bit, Core drill etc)
The Philosophy of Sunny is "Superior product and service derived from standard and efficWe have a high efficiency team, each department strictly comply with company regulations.
From receiving your enquiry, put order in production and Dispatch to after-sales service, Ient management. "
In order to provide customer most suitable tools, we keep researching and analysing nature stone and engineering material. We cooperate with stone factory to test tools, and keep close contact with our customers by visit or communication to get knowledge of market demand.
We Response All Your Request efficiently To Save Your Time And Provide Your Utmost Convenience.
The deep understanding for customer's demand and strict quality control help us developing quickly, we wish to get your collaboration to achieve our objectives together!
Our aim is to provide our clients stable and consistant quality with competitive price.
Advantages enable clients benefits from our tools.
1. Experienced bond system
2. Advanced equipment and high grade raw material
3. Strictly production procedures control and quality inspection.
4. Customer's active feedback and support help us developing fast.
