| Price: | US $ 4200/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | T/T |
| Shaping Mode: | Injection Mould |
|---|---|
| Process Combination Type: | Compound Die |
| Application: | Electronic |
| Installation: | Semi Fixed |
Design Software | UG, ProE, Auto CAD, Solidworks, etc. |
Mould Material | 718H, P20, NAK80, S316H, SKD61, etc. |
Hardness of the steel | 20~60 HRC |
Mould Base | HASCO, DME, LKM, etc. |
Runner | Hot runner, Cold runner, as per customers requirement and part structure. |
Mould Cavity | Single-cavity or Multi-cavit, as per customers requirement and part structure. |
Ejection Techniques | Pin ejection, sleeve ejection, bar ejection, blade ejection, etc. |
Gate Type | Edge gate, sub-gate, pin gate, side gate, etc. |
Mould hot treatment | Quencher, Nitridation, Tempering, etc. |
Mould Cooling System | Water cooling or Beryllium bronze cooling, etc. |
Mould Surface | EDM, texture, high gloss polishing |
Mould Life | >500,000 shots |

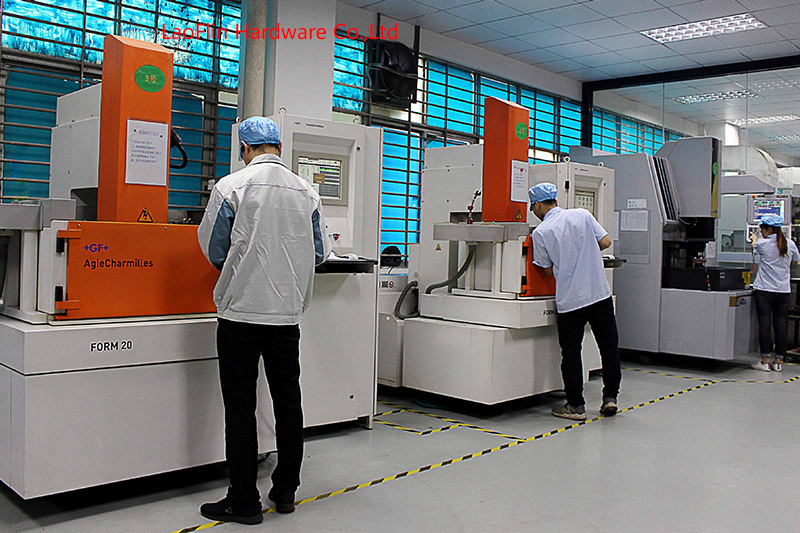

Equipments | High speed CNC, standard CNC, EDM, Wire cutting, Grinder, Lathe, Milling machine, plastic injection machine |
Raw material of plastic injection | PP, PA6, PLA, AS, ABS, PE, PC, POM, PVC, PET, PS, TPE/TPR, etc. |
Lead time | 25~60 days |
Step 2:
1.Negotiation |
the quality, price, material, delivery time, payment item, ect.
|
2.Place an order |
according customers drawings or samples, or we can design for you.
|
3. R&D |
According the customer's requirement to design or improve 3D modle.
|
4.drawing confirm | According customers requirement to design the mould. Then we send the mould design to customers for approval befor we make the mould |
5.Mould processing |
CNC machine processing and assembling .then having the mould testing.
|
6. Sample confirm |
Before shippment or move forward to production; we send samples to customers to confirm first. |
7. Sample shoot |
If the first sample is not be satisfied by customers, we modify the mould until meet customers satisfaction. |
| 8.Production |
If your quantity is beyond our storage, we will provide lead time to you.
|
| 9.Delivery |
Delivery the goods by sea or air ,Follow the customer's requirement |
PAYMENT TERMS: 50% DEPOSIT BY T/T,. 50% BALANCE BY T/T BEFORE DELIEVERY.
TRADE TERMS: FOB Ningbo/Shanghai,China
PACKING DETAIL:
Neutral packing export standard carton for products.
Wooden packing for moulds.
All of the products are inspected by QC before delivery.
