Home Toolbuy Products Gq40 40mm Iron Rod Cutting Machine /Rebar Cutter /Steel Rod Cutter High Quality Hydraulic Steel Bar Cutter
Gq40 40mm Iron Rod Cutting Machine /Rebar Cutter /Steel Rod Cutter High Quality Hydraulic Steel Bar Cutter
| Price: |
US $ 900-1100/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Money Gram |
| Prod Model: |
GQ40A |
| Name: |
Gq40 Rebar Cutting Machine |
| Color: |
Accept Customization |
| Rod Bar Capacity: |
6-40mm |
| Rebar Capacity: |
6-32mm |
| Cutting Machine Voltage: |
380V |
| After-Service: |
12 Months |
| Cutting Speed: |
32times/Min |
| Motor Power: |
3kw-3phase |
| Optional Motor: |
50Hz/60Hz |
| Weight: |
395kg |
Product Description
GQ40A Rebar Cutting Machine, is manufactured according to JG/T5085-1996 standard, is applicable to ordinary carbon steel, Hot-rolled steel and corrugated rebar in reinforced concrete. It can also cut flat steel, angle steel and square steel provided with special blades. GQ40/50/60 has the following features:1. Compact structure, solid and reliable2. Good lubricating properties. Adopt closed structure, use Gear Splash lubrication, fill in 8-12kgs oil, the machine could work continuously for more than 3 month (oil level not lower than the oil calibration, so that make sure the machine is in well lubrication condition)3. Low power consumption. The gear uses rolling bearing, low resistance, could save 1/3 power comparing with other rebar cutting machines | GQ40A steel bar cutter electric cnc rebar cutting machine | |
| Cutting Capacity | Steel Rod | ≤40mm |
| II Rebar | ≤32mm |
| Max Flat Steel | 70*15mm |
| Max Square Steel | 32*32mm |
| Max Angle Steel | 50*50mm |
| Cutting Frequency | 32times/min |
| Motor Power | 3kw(3 Phase) |
| Voltage | 380v |
| Weight | 395kg |
| Dimension(L*W*H) | 1250*500*730 |
| Optional Motor | 220v/415v/440v |
| 50HZ/60HZ |

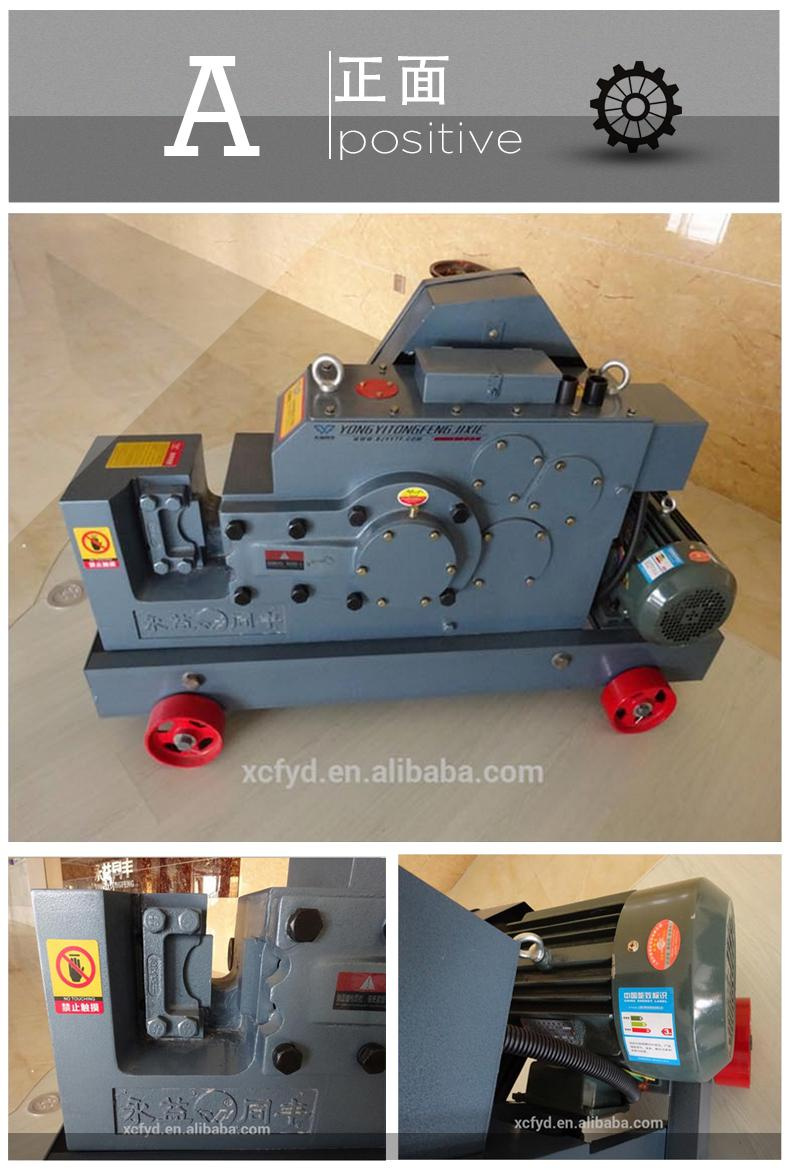

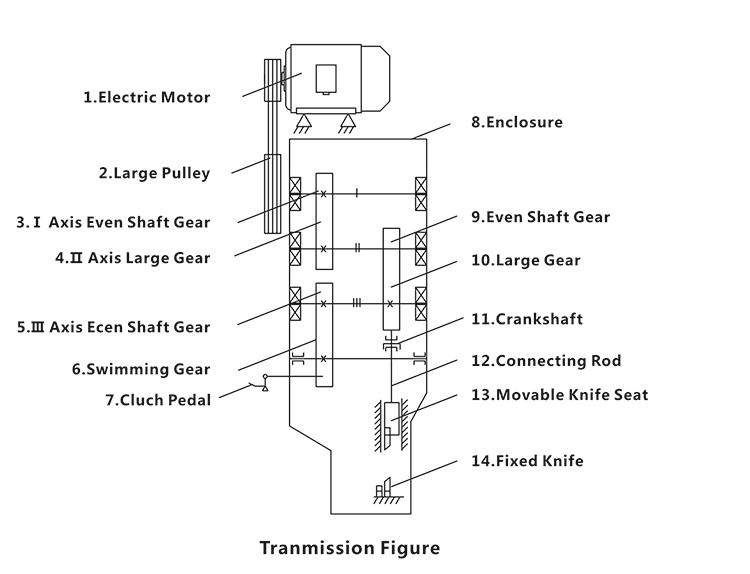

Machine Show As the transmission figure shows: Motor 1 via V-belt drive the large pulley 2 to make it turn, the even shaft gear 3 mesh the gear 4, II axis even shaft gear 9 mesh the III axis gear 10, III axis even shaft gear 5 mesh the swimming gear 6, the torque transmitted to crankshaft drive the connecting rod 12 to push movable knife seat 13 to cut.
Product packaging and export
We adopt wooden and iron box to pack steel rod cutter machine, better guarantee the safety and quality of products, we adopt multiple port, multiple exit point.Such as Shanghai, Qingdao, guangdong and other regions.Product transportation will be faster and more convenient.covered with plastic bag -- protect machine from water. plastic bag covered with strong waterproof bag -- double protect machine fromwater and surface damage.fix the machine into Iron shelf -- prevent from damage. carton cover onto the iron shelf -- protect the privacy of clients' goods.
HENAN YONGYITONGFENG INTELLIGENT TECHNOLOGY Co., Ltd., founded in 2000, is a professional manufacturer in manufacturing small-sized construction machinery, which cover construction machinery, road machinery and and concrete equipment.
Our products mainly are:
Steel Bar Cutting Machine
Steel Bar Bending Machine
Steel Bar Straightening & Cutting Machine
Concrete Cutting Machine
Polishing Machine
Impact Rammer
Road Roller
Being located in Change City, Henan Province, China, We are enjoying convenient transportation. Our factory is neighboring to the railway, expressway and aviation airport. Besides, Changge is very famous as the largest production base for construction machines in North China. About 80% of construction machines in China are made here every year. Xuchang FengYiDa is one of the leading producers in this business line, owning professional technology and rich experience for over 10 years.
With nearly 130 agents' hard-working during the past 11 years, We won great reputation in domestic market. In last year, we established good relationship with customers in Australia, South Africa, Tanzania, and Southeast Asia., etc.
Welcome your inquiry!
