| Price: | US $ 16000SET |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1SET |
| Pay Type: | L/C,T/T |
| Prod Model: | TSY-37G/8poles |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: | 3 Tons |

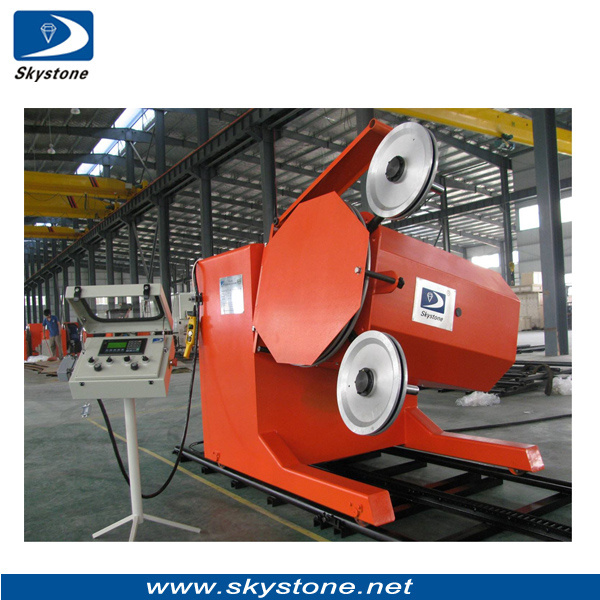

TSY G SERIES
Advantages:
1.Manufactured with first quality materials and components, the TSY G series is a strong and reliable machine that allows to easily make great cuts on any kind of material.
2. The feed movement is automatically controlled by PLC and inverter that allows a precise and complete management of the diamond wire during the cutting , so that to obtain the best output and production on any material.
3. The machine have protection functions which including: wire broken, machine overload, cutting finished,and other malfunction happened, so that to maintain the best efficiency of the system.
4. The motor head can move per side, in order to make two parallel cuts without moving the machine,which is driven by motor with Position Limited Function. The same device allows to make horizontal cuts at ground level without the use of any auxiliary accessories.
G SERIES INVERTER
The model with vectorial inverter control system allows to vary the diamond wire speed from 0 to 40 m/sec. in order to optimize its consumption and get the best output.
Specification:
| Main motor power | 37kw |
| Total power | 37.75kw |
| Wire tension and cutting current | automatic controled by PLC and inveter |
| Diameter main flywheel | 800mm |
| Lateral movement of cutting head | 1.8 m |
| Cutting head rotation | 360 |
| Linear wire speed | 0-40 m/s |
| length of rails | 3m*3 |
| Traveling speed | 0-150m/h |
| Workind condition | humidity < 95% (without dew) |
Skystone in quarry:
