| Prod Model: |
TSY-15KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 37kw Weight 464 Kg: |
Make by Steel and Electrical Elements |
| Customized: |
Customized |
| Condition: |
New |
| Quality: |
Good |
| Type: |
CNC Cutting Machine |
| Usage: |
Sandstone,Quartz,Limestone |
| Application: |
Stone Industry |
| Source Voltage: |
380V |
| Automation: |
Automatic |
Product Description
Company Instruction:Skystone has been devoting to diamond tools industry since 1994,which has developed a professional diamond wire saw manufacturing factory ,a stone machine manufacturing factory, a diamond tool R&D center, a equipment R&D center,a mining project technology center and a building cutting technology center. Our range of wires covers all the needs in quarries as well as in processing for marble, granite and abrasive materials. Our product quality have been proven by our clients all over the world, which including Canada,USA,Brazil, Norway, Spain, South Africa, Iran,Turkey, Russia, Poland and other 30 countries.
Wire saw machine:

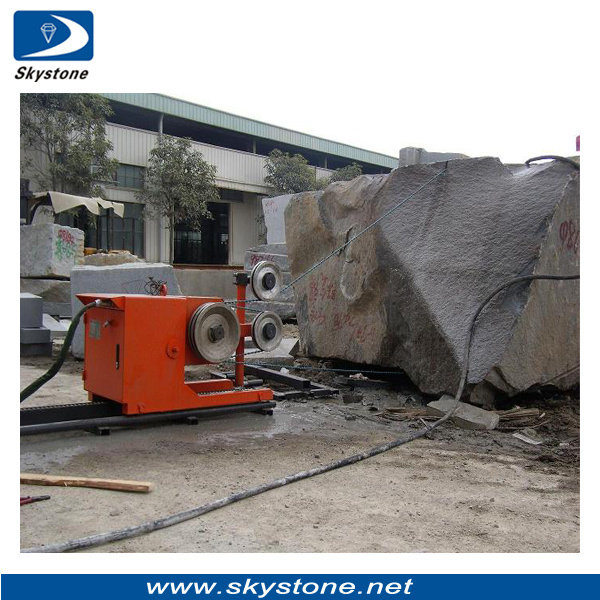

TSY G series is a compact design, which can cut in any direction, vertical, horizontal, or inclined, straight against the wall/floor of the benches, in quarries of marble or granite.
TSY-G SERIES Advantages:1.Manufactured with first quality materials and components, the TSY G series is a strong and reliable machine that allows to easily make great cuts on any kind of material.
2.The feed movement is automatically controlled by PLC and inverter that allows a precise and complete management of the diamond wire during the cutting , so that to obtain the best output and production on any material.
3.The machine have protection functions which including: wire broken, machine overload, cutting finished,and other malfunction happened, so that to maintain the best efficiency of the system.
4.The motor head can move per side, in order to make two adjacent cuts at 180 cm distance from each other in a single positioning on rails,which is driven by motor with Position Limited Function. The same device allows to make horizontal cuts at ground level without the use of any auxiliary accessories.
G Series Inverter The model with vectorial inverter control system allows to vary the diamond wire speed from 0 to 40 m/sec. in order to optimize its consumption and get the best output.
Technical parameter:| Model | | TSY-15 |
| Main Motor Power | | 15 kW |
| Wire tension and cutting current | | Automatic controlled by a
PLC and Inverter |
| Line Speed | | 0-40 m/sec |
| Cutting head rotation | | 360° (By hand or by motor) |
| Machine Weight | | 464 kg |
| Length of rails | | 2mx3 |
| Traveling speed | | 0-60m/h |
| Working condition | | -15ºC~+40ºC Humidity< 95% (without dew) |

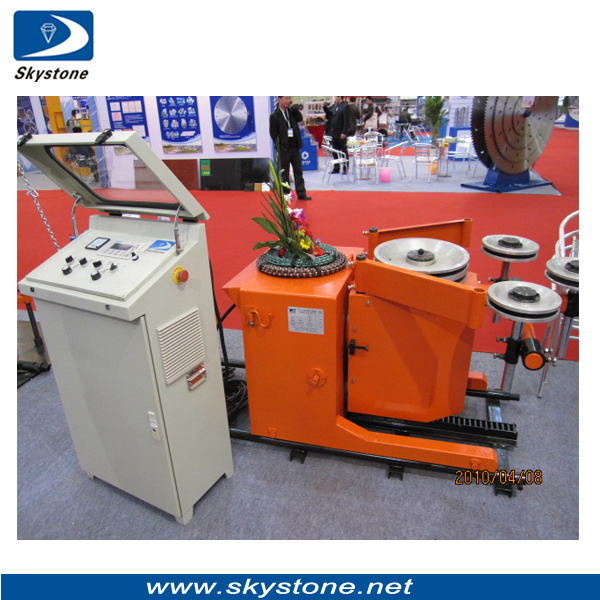

Skystone In Stone Fair:
Skystone Diamond tool company was founded in 1992, Quanzhou city, Fujian province. In 2003 the company headquarter was moved to Fuzhou High-tech area. During more than 10 years development, we continuously strive to technology innovation and strict quality control, gaining much experience in diamond tools production. Meanwhile, we have trained many creative researchers and company managers with innovation spirit.
We began to research diamond wire technology in 2000. After years of hard working, we succeeded in making high quality diamond wires. What' S more, we have our own special advanced technique for diamond wire muanufacture. Until now, we have a complete series of diamond wires as quarry operation, blocks dressing and cutting, multi-wire cutting, special shaping cutting and concrete building cutting etc...
