| Price: | US $ 1.5-9/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | 15DN0011 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Welding Method: | Hot Sintered & Laser Welding |
| Body Material: | 65mn Steel |
| Surface Treatment: | Spray Paint |
| Dimension: | 105-400mm |
| Segment Type: | Segmented, Continuous Rim, Turbo |
| Slot: | Key Slot, Narrow Slot, U Slot |
| Arbor Hole: | 22.23/25.4 |
| Segment Number: | 17-42 |
| Machine: | Hand Tool or Cutting Machine |
| Shape: | Round |
| Manufacturing Arts: | Welding |
| Usage: | Stone Cutting |
| Customized: | Customized |
| Thickness: | 2.6, 3.0, 3.2, 3.4, 3.6, 4.0, 4.2 |
| Kind: | Circular Saw |
| Brand: | Dm |
| Saw Blade External Diameter: | 250, 300, 350, 400, 450, 500 |
| Specification: | 10'', 12'', 14'', 16'', 18'', 20'' |
Diamond saw blade consists of two parts; the base body and head. Is the main support base of the tip portion of the adhesive, and the tip is cut from the part during use, the tip will be in use and continue to consume, while the matrix is not, it has been able to play a cutting head the role is because it contains diamond, diamond as the most hard substance, it is friction in the tip of the cutting work object. The diamond particles in the head by a metal wrapped inside
Features: General Purpose Blades come high~frequency welding, polished, sintered,
turbo or with under-cut protection for light to medium job applications
Applications: General Purpose Diamond Blade used for cutting block, concrete, pavers, brick, green concrete, hard concrete, clay pavers, and natural stone
Machinery: Angle grinder, hand held circular saw, gas powered saw, walk behind saw.

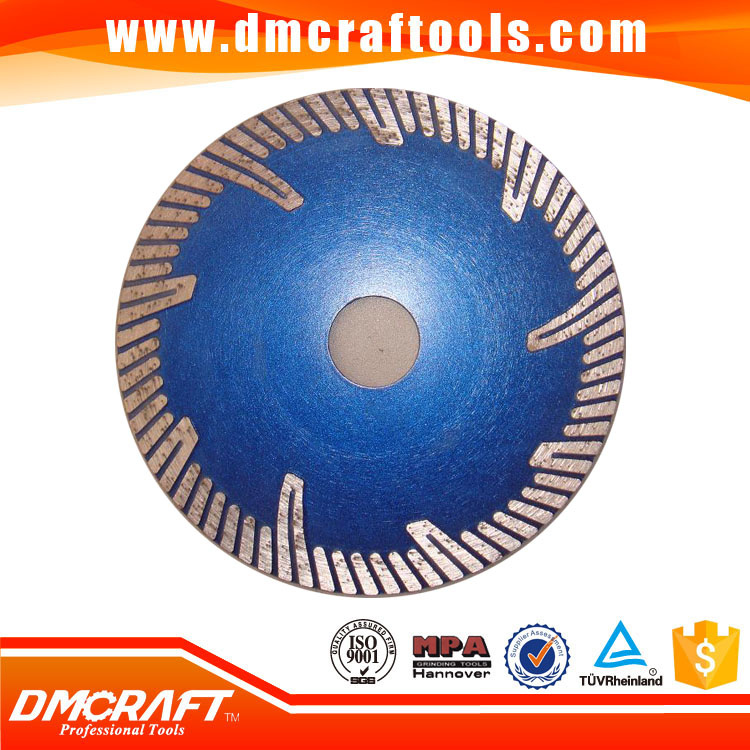

| Products: Deep Wave Turbo Diamond Saw Blade | ||||||
| Item Number:15DN0010 | ||||||
| Description:*Hot pressed sintered type with deep wave turbo style for General purposes *Dry&Wet cutting concrete, abrasives, granite, marble, cements, bricks, stone, etc. *Extra long cutting life, 30-40% longer than cold pressed sintered ones. *Wave core can make cutting be faster and smoother. The segment in the core will protect the wave core from damages of deep cutting in short time. *The blade is specially good at deep cutting those abrasive materials and hard stones. | ||||||
| Diameter | Arbor Hole Diameter | Item Number | ||||
| mm | inches | mm | inches | Rim Height | ||
| 10mm tall | ||||||
| 105 | 4" | 22.23-20 | 7/8"-5/8" | DSB1021-10510 | ||
| 115 | 4.5" | 22.23 | 7/8"-5/8" | DSB1021-11510 | ||
| 125 | 5" | 22.23 | 7/8"-5/8" | DSB1021-12510 | ||
| 180 | 7" | 22.23 | 7/8"-5/8" | DSB1021-18010 | ||
| 200 | 8" | 25.4-22.23 | 7/8"-5/8" | DSB1021-20010 | ||
| 230 | 9" | 22.23 | 7/8"-5/8" | DSB1021-23010 | ||
| 250 | 10" | 25.4-22.23 | 7/8"-5/8" | DSB1021-25010 | ||
1. Each saw blade is packed in an inner cardboard case, and then several of these inner cases are put in an export standard carton; then reinforced with straps.
2. Normally we can make shipment within 20-30 days after receiving your payment or L/C.

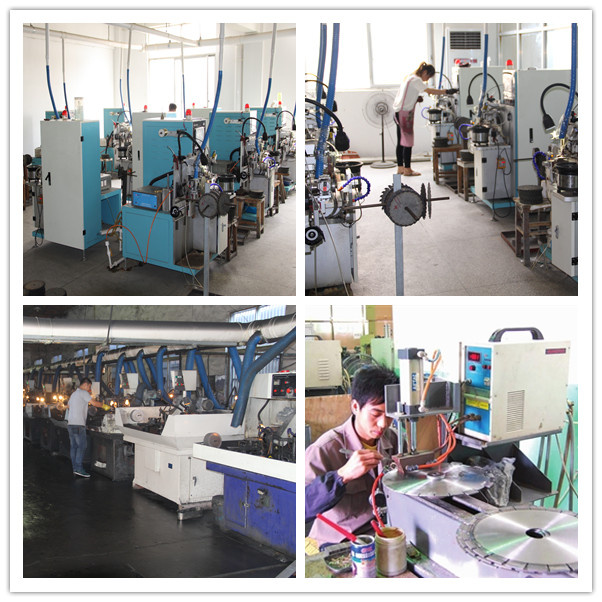

Our company
