| Prod Model: |
SY-DWCR-1033 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bead Diameter (mm): |
9.0 - 11.5 |
| Beads/Meter: |
28 - 37 |
| Cutting Speed(M2/H): |
5 - 10 |
| Wire Life(M2/M): |
25 - 45 |
| Line Speed(M/S): |
30 - 38 |
| Diamond Quality: |
Element Six Diamond |
| Saw Features: |
High Tension & Efficiency |
| Characteristics: |
Satisfactory Result |
| Fixing Method: |
Injection Plastic Diamond Wire Cutting Rope |
| Wire Saw Packaging: |
Poly Bag, Carton, Plywood |
| Manufacturing Arts: |
Sinter |
| Usage: |
Stone Cutting |
| Graininess: |
Success Formula for Stone Cutting |
| Thickness: |
11.5mm 11mm 10.5mm 9mm 8.5mm 7.3mm |
| Kind: |
Diamond Wire Cutting Rope |
| Brand: |
Sunny |
| Saw Blade External Diameter: |
Bead Diameter 10.5mm |
| Specification: |
11.5mm 11mm 10.5mm 9mm 8.5mm 7.3mm |
Product Description

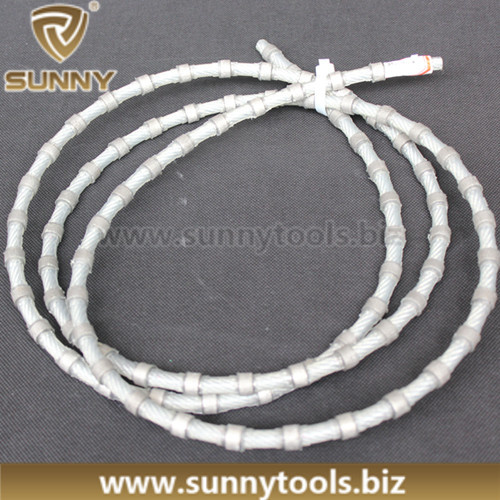

Granite Marble Sandstone Limestone Diamond Wire Cutting Rope(SY-DWCR-1033)
Wire Saw Features:
High quality cable insures less breakage and good tension.
Original plastic yields better performance in tough condition.
Wire Saw Applications:
For Marble Quarrying Squaring Cutting.
Used for all kinds of domestic and imported van chain saw machines and wheeled chain saw machines.
Characteristics:
Cutting direction being at will.
Cutting controlled in a far distance.
Low vibration, low noise and no dust.
Working under water and structure space.
Safety Suggestions:
Change connections when situation permits.
Water spraying about 25-50 L/min as per cut dimension.
The rotation of the wire saw should be regularly checked.
The worn condition of saw beads should be regularly checked.
Adjust the linear speed of the wire saw according to the material being sawn.
[2013080204]
A Specs Guide Chart for Diamond Wire Saw:
| Bead Diameter (mm) | Beads/Meter | Fixing Method | Application | Line Speed(m/s) | Cutting Speed(m2/h) | Wire Life(m2/m) |
| Ø11.5 |
28-32 | Spring connection | marble quarry | 33~38 | 5~8 | 30~45 |
| Ø11.0 |
| Ø11.0 | 37 | High quality plastic | marble squaring | 30~35 | 8~10 | 30~40 |
| Ø10.5 | 37 |
| Ø9.0 | 37 | High quality plastic | marble profiling | 30~35 | 8~10 | 25~40 |
QUANZHOU SUNNY SUPERHARD TOOLS Co., Ltd is a professional and Dynamic Diamond Tools manufacturer, established in 1993, Located in Quanzhou, Fujian province, China, factory covering 15000 square meters. Our technical department is composed of experienced professors and engineers. We devote ourselves to researching and manufacturing cutting and processing Diamond tools for nature stone and building materials. Our tools are exported to more than 60 countries, including America, Brazil, Italy, Russia, Ukraine, India, Egypt, South Africa etc.
Main Products:
Cutting Tools (Saw blade, Segment, Wire saw etc)
Grinding&Polishing Tools (Calibration Rollers, Fickerts, Frankfurt, Cup wheel, Profilling wheel, Polishing pad, brush etc)
Drilling Tools (Finger Bit, Core drill etc)
The Philosophy of Sunny is "Superior product and service derived from standard and efficWe have a high efficiency team, each department strictly comply with company regulations.
From receiving your enquiry, put order in production and Dispatch to after-sales service, Ient management. "
In order to provide customer most suitable tools, we keep researching and analysing nature stone and engineering material. We cooperate with stone factory to test tools, and keep close contact with our customers by visit or communication to get knowledge of market demand.
We Response All Your Request efficiently To Save Your Time And Provide Your Utmost Convenience.
The deep understanding for customer's demand and strict quality control help us developing quickly, we wish to get your collaboration to achieve our objectives together!
Our aim is to provide our clients stable and consistant quality with competitive price.
Advantages enable clients benefits from our tools.
1. Experienced bond system
2. Advanced equipment and high grade raw material
3. Strictly production procedures control and quality inspection.
4. Customer's active feedback and support help us developing fast.
