Green Brick Cutter for Clay Brick Making Machine (YWQP)
| Price: |
US $ 10000-30000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
SQT500*300 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia |
| Method: |
Automatic |
| Place Of Origin: |
Shaanxi, China(Main Land) |
| Warranty: |
12 Months |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Delivery Detail: |
50 Days |
| Supply Ability: |
20 Sets/Year |
| Condition: |
New |
| Certification: |
ISO9001-2800 |
| Type: |
Brick Making Machinery |
Product Description
Green Brick Cutter for Clay Brick Making Machine**Production Description**

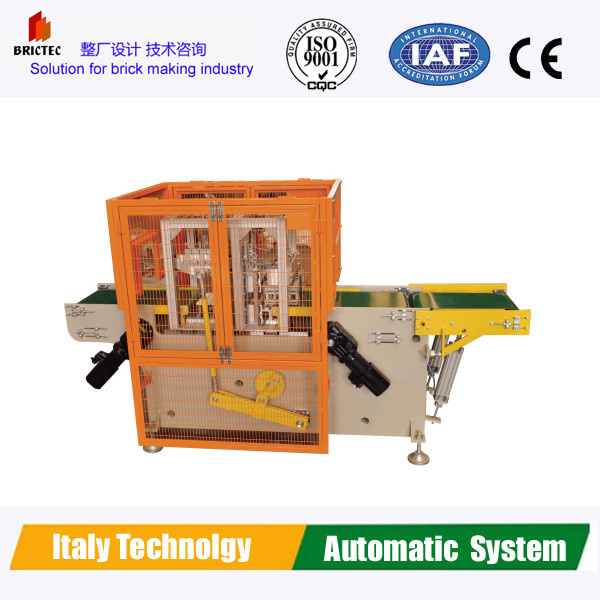

Slug Cutter SQT500*300 is mainly used for cutting the material which are extruded from vacuum extruder in certain length. The entire working process is under automatic control of PLC.
Its cutting wires are pneumatically tensioned, and the space between wires can be adjusted according to the requirements of making different products. In order to keep wire sharp, sections flat and service life of wires have been improved. Before cutting, a sensor equipped on the driven shaft of conveyer can detect the speed of material from the extruder to the control center accurately, and the cutting frame is driven to move simultaneously with the extruded material, which ensures the cutting sections to be perpendicular to the bottom surface, and reduce the waste.
| Specification | Cutting Frequency (time/min.) | Cut billet length(mm) | Working Pressure (MPa) | Power (kW) | Dimensions(mm) |
| SQT500×300 | 30 | >500 | 0.6~0.8 | Single Power | Total Power | 4300×1140×2065 |
| 2.2 | 5.75 |
| 1.5×2 |
| 0.55 |
**Company Description**
Xi'an Brictec Engineering Co. Ltd. Not only majors in sales of brick making machines, but also concentrates on the domestic and overseas fired brick designing, kiln designing, factory building designing and turn-key project. We have many professional specialists, among which 6 are senior engineers in brick making machine industry and 10 are of high title. We cooperate with some factories which are all excellent in brick machinery making. We can supply you with the most suitable machine.
**Our services**
Before sale: Give some advices to customer on how to build a new-brand brick plant and choose the best and economic plant according to the local situation for recovering the investment within a short time; We are also responsible for the offer, flow chart, and detailed information of each machine.
In sale: We will send the technicians to coach brick making machines installation and debug machines. We also train the local operators till they can fully control them.
After sale: Regularly visit customers, solve all the problems with the machine and take advice from customers.
Our finished projects overseasThrough decades of supplying of over 50sets of kiln and dryer to brick manufacturer.Brictec has accumulated extensive knowledge of process flow requirements, raw material preparation, product forming, automatic handling system, and electronic controls. This expertise has inevitably led to client requests for expanded Brictec design/build services to the entire plant.
- Tunnel Kiln 50,000Pcs/Day in Bangladesh with Small Tunnels Dryer
- Tunnel Kiln 200,000 Pcs/day in China with Fully Auto Loading and Unloading System
- Tunnel Kiln 100,000 Pcs/day in China with Fully Auto Stacking System
- Tunnel Kiln 200,000 Pcs/Day in China with Fully Auto Stacking System
- Two Tunnel Kilns 200,000Pcs/Day in China with Fully Auto Stacking System
- Hoffmann Kiln 100,000Pcs/Day in India and Bangladesh
We are not only the equipment supplier, meanwhile we make optimization for equipment selection. Our access to experienced sub-contractors result in our clients obtaining a new plant with the proper equipment . You can rely on Brictec to deliver a complete plant-on-time and on-budget-producing a high quality product.
Brictec objective evaluation for different company machinery performance as there are over 100 brick making machinery suppliers in China. We help you to choose the most suitable machinery from China, i.e. some company professional stiff extruder, some professional for soft clay extruder, some are special for fully auto loading & unloading system, some professional for kiln and dryer facilities, so it would be difficult for you to purchase from those manufacturer by yourself and maintain the after-sales service , we make it all in one and whole project responsibility.
COMPANY INFORMATIONS:
In the year of 2011 Shandong Mine Machinery Cosmec Construction Materials Machinery Co., Ltd. And Xi'an Brictec Kiln Co., Ltd. Set up the joint venture of Xi'an Brictec Engineering Co., Ltd...Brictec engineering employing the former general manager of European COSMEC PICININI SRL, former chief drying engineer of PICININI, former chief kiln engineer of LAVAZZETTI. They work together with experienced domestic technical and thermal engineers, provide
1) The overall solution for the domestic and international brick factory turnkey project design, undertake and construction;
2) Brick making and automation equipment sales and after-sales service;
3) New brick equipment, new type kiln and new drying technology invention and R&D activities.
We have accomplished over 50 brick projects of engineering, trading, technical support in Asia, Africa and South America. We have also successfully constructed over twenty production lines in China.
OUR SERVICE:
Before-sale services:
(1) Tell customer how to build a brick plant, the complete plant including three parts, brick shaping machinery, drying and firing. (Confirm clay, power electricity, water, land area, fund)
(2) Guide customers to choose the best and economic plant, recover the investment within short time.
(3) site inspection
(4) We are responsible for the offer, flow chart, and detail specification of each machinery.
In-Sale services:
(1)Quality control must be inspected strictly
(2)In accordance with the agreements stipulated in the contract
After-sale services:
(1) We will send the technicians to guide with device installation, debugging and training operators until customers are fully satisfied.
(2) Guarantee for machinery, materials and equipment supplied under this quotation are valid for a period of 12 months after commissioning or 16 months after delivery whichever is earlier. Warranty shall cover manufacturing defect in material and workmanship but exclude:
1. Daily wear and tear 2. Mishandling or improper operation3. Incoming power supply fluctuation
4. Consumable and spare parts.
(3) Regular visit customer, consult with the customer feedback, come true with the customer's two-way communication.
