| Price: | US $ 2400-3310/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | UG-7050L |
|---|---|
| Working Area: | 70*500mm |
| Laser Type: | CO2 Sealed-off Laser Tube |
| Rated Laser Power: | Reci W2 90W |
| Working Table: | Honey Comb and Knife Strip Double Working Table |
| Driver And Motor Type: | Yako Three Phases Stepper Motor and Driver |
| Guide Rail: | Linear Square Guide Rail |
| Transmission Type: | Belt Transmission |
| Cutting Speed: | 0-10000mm/Min |
| Control System: | Ruida 6442s |
| Software: | Rdworks V8 |

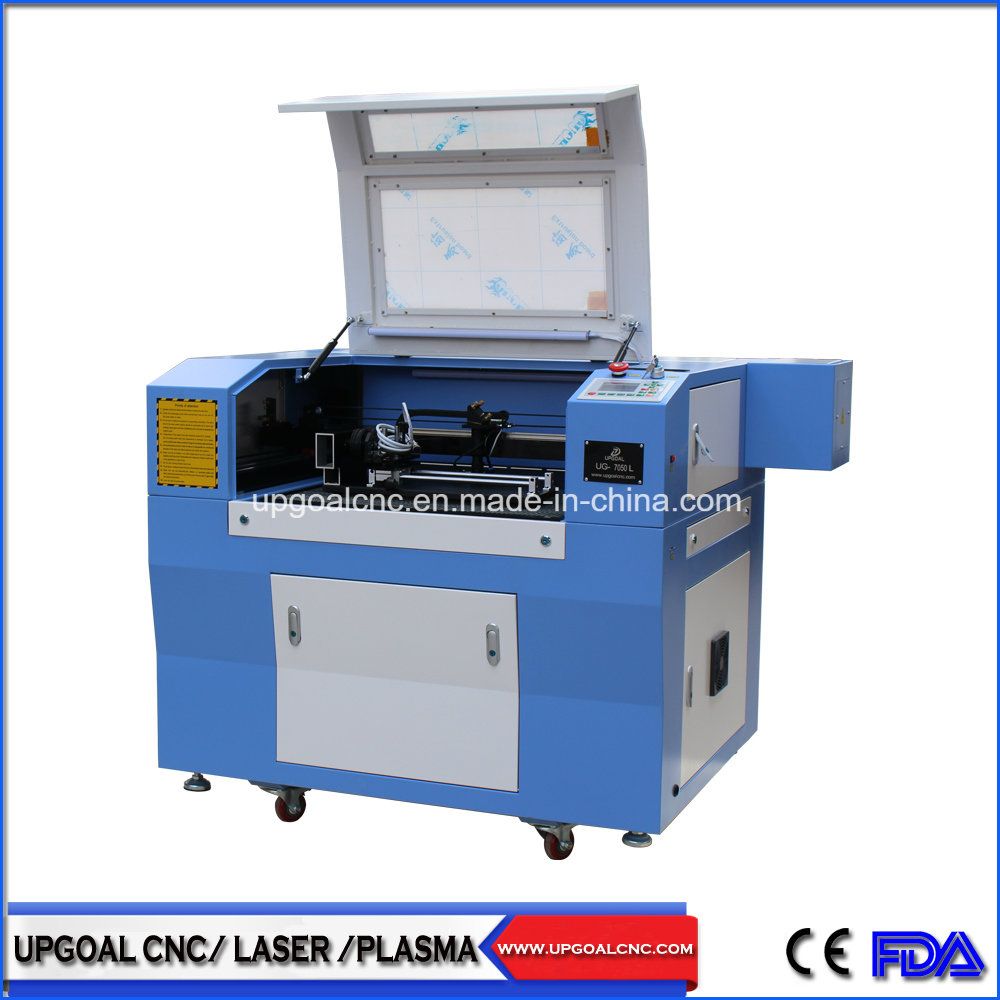

Greeting Card/Wedding Card Co2 Laser Cutter Machine with Rotary Axis
Applications
Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.
Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc
Materials Can work With: Organic glass, acrylic board (the paulownia, lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.
Features
Laser Head
Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.
Laser Tube
Adopted high quality RECI W2 ( rated power 90W , maxinum power 100W) Co2 laser tube, long working time time and stable
Working Table
Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.
Knife Strip Table: With oxidation treatment and low reflection ratio Ensured cutting quality.
Auto Lifting Table for more thickness materials:Maximum Loading 50kgs with 300mm up-down distance.
Beam Path System
Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.
Motion System
Imported High precision, low friction force and stand wear and Hiwin linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise
Operation System
Advanced USB port RuiDa 6442 DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .
With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.
Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.
Rationalized placement of the electronic parts. Optimized heat dissipation effect.
Cooling System
Water pump cooling.
Technical Parameters
Effective working area | 700*500mm |
Laser Type | Co2 sealed-off laser tube |
Laser tube power | W2 series, Reci, Beijing (Rated power: 90W, max. Power: 100W) |
Working table | Honey comb and knife strip, double working table |
Auto lifting table | Up and down 300mm |
Driver mode | 3 phases stepper motor and Driver, Yako brand |
Guide rail | Linear square guide rail ( Hiwin,Taiwan) |
Transmission | Belt transmission |
Control panel | English |
Laser output control | 1-100% software setting |
Engraving speed | 0-60000mm/min |
Cutting speed | 0-10000mm/min |
Control system | RuiDa 6442S |
Control software | RDWorks V8 |
Design software when delivery | CorelDraw |
Control panel | DSP offline |
Positioning | Infrared positioning |
Focusing | Auto |
Resolution accuracy | < 0.01mm |
Location precision | < 0.01mm |
Highest scanning accuracy | 2500DPI |
Type of cooling | Water pump cooling |
Water protection system | Yes |
Blow-off system | Air pump for the laser head Air blower for the machine |
Biggest scanning accuracy | 2500DPI |
Working temperature | 0-45 °C |
Operating humidity | 5-95% (without condensed water) |
Supporting picture format | PLT,DST,DXF,BMP, DWG,AI,LAS,etc |
Rotary axis | Roller type, no diameter limitation |
Voltage | AC 220V+10% 50/60Hz, single phase |
Certificate | CE/FDA |
Parts Photos

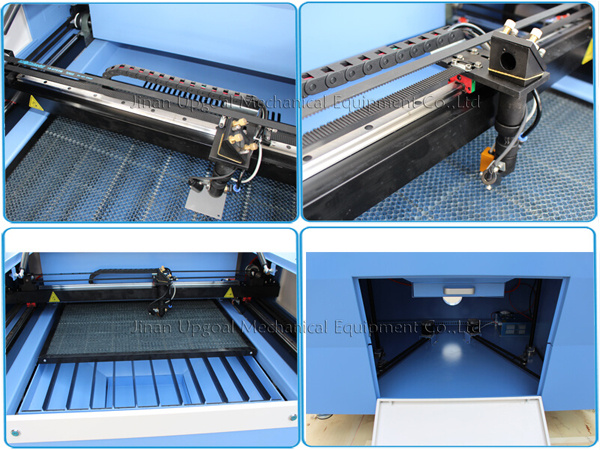

Co2 laser head/Double working table/Auto lifting table

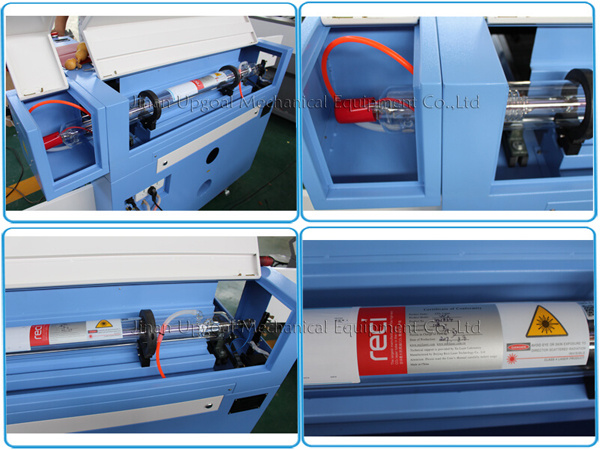

Reci W2 90W Co2 laser tube

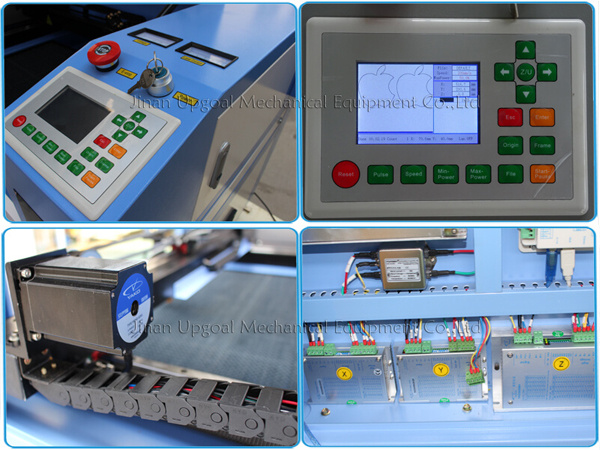

RuiDa 6442S control system/Yako three phases stepper motor driver

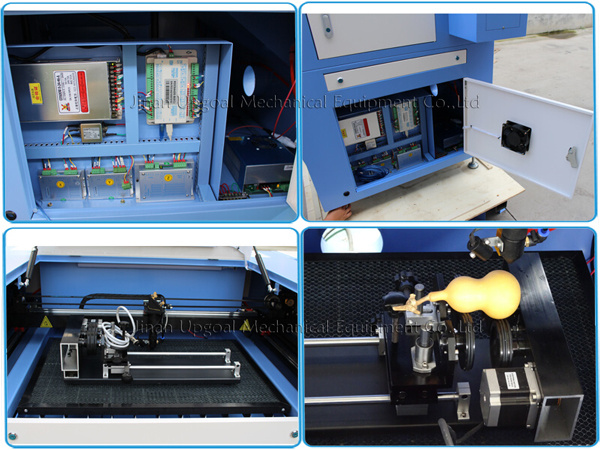

Control cabinet / Roller rotary axis

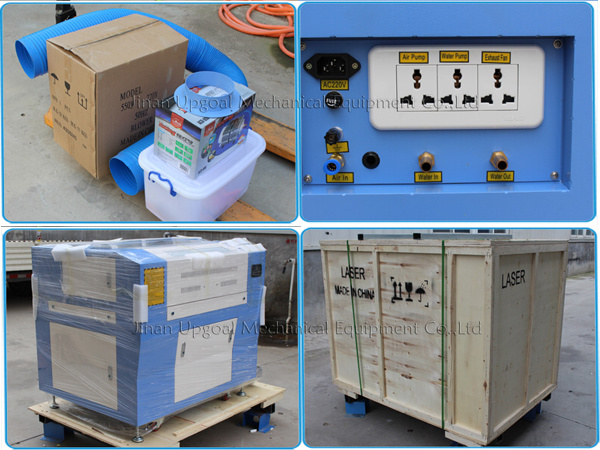

Accessories/power socket/packing
Reference Working Videos
https://www.youtube.com/watch?v=T6l7K-gZILc&t=65s
https://www.youtube.com/watch?v=H9_fOHEAG_E&t=71s
Reference Sample Photos
For more information, just feel free to contact us!
