| Prod Model: |
NJJ5161TJR5 |
| Chassis Type: |
Jmc Jx1063tsga25 |
| Curb Weight: |
4710kgs |
| Gross Weight: |
5995kgs |
| Pile Extraction Force: |
20t |
| Type: |
Pressure Pile Driver |
Product Description

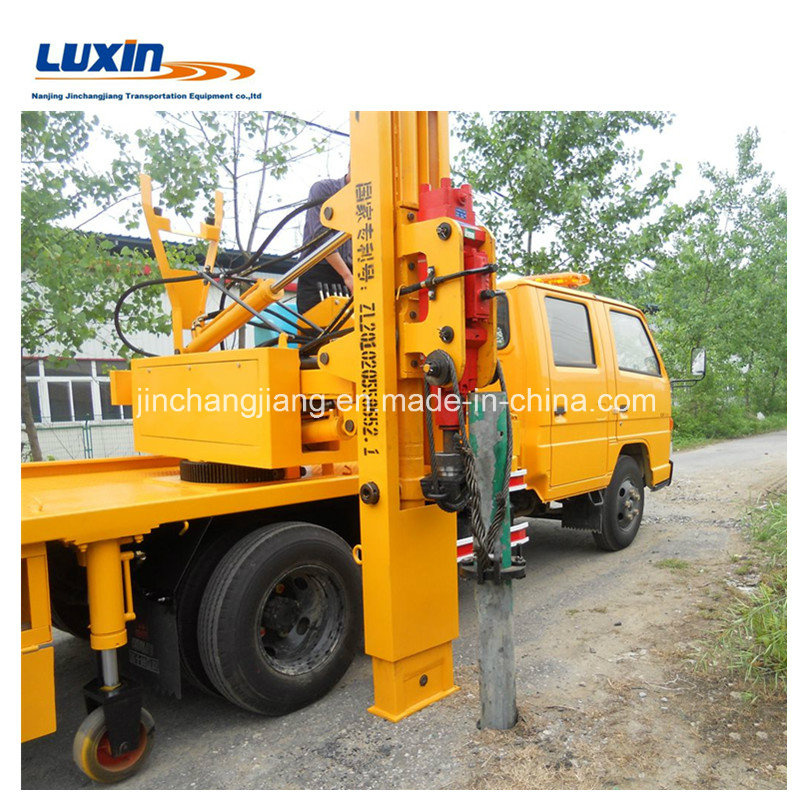

>>>Product Description:NJJ5061TQX truck mounted highway hydraulic guardrail pile driver is designed for road maintanence work specially on highway with
function of pile driving and pile extraction. It is composed of JMC JX1061TSG25
chassis, pile driving & extracting device, hydraulic systems,hydraulic hammer,control system, security systems,as well with warning lights on top. It has the characteristics of strong engine power, low fuel consumption, reliable braking performance, aesthetic appearance, spacious comfortable interior and wide vision.
>>>Features:* Equipped with hydraulic pile and extraction device, the equipment can be used to pull out damaged post and replaced new one completely with hydraulic system.
* The vehicle can be rotated 240
o and no need to be turned the direction during driving and extracting guardrail post work.
* The truck mounted pile driver become more effeciency and save labour cost thanks to its capacity of carrying more than 1T repair materials like guardrail post as well as the necessary road signs, make it best solution for small jobs in different location.

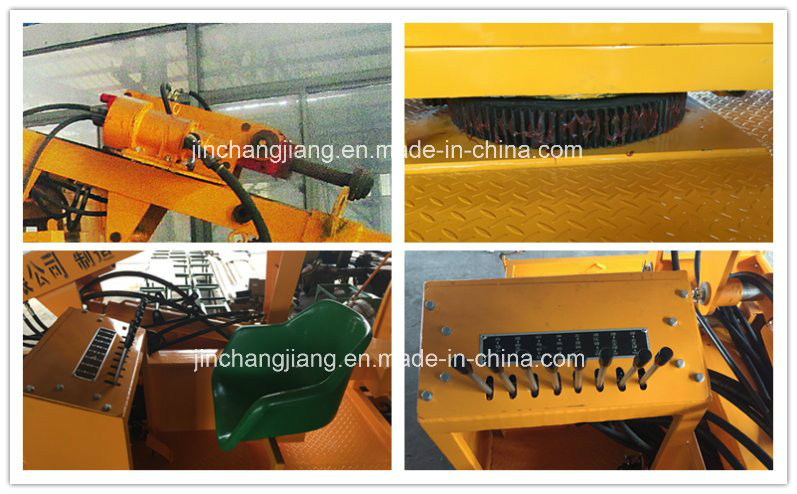

>>>Details
>>>Technical parameter:| Model | Unit | NJJ5060TQX5 | NJJ5061TQX5 | NJJ5070TQX5 |
| Dimension(l×w×h) | mm | 6240×1962×2820 | 6260×1880×2890 | 6250x1880x2850 |
| chassis | | JMC JX1063TSGA25 | JMC JX1061TSG25 | ISUZU QL1070A5HWY |
| Seat capacity | | 3+3 | 2+3 | 2+3 |
| Max speed | km/h | 110 | 100 | 110 |
| Engine power | kw | 90 | 85 | 96 |
| Displacement | ml | 2402 | 2771 | 2999ml |
| Gross weight | kg | 5995 | 5995 | 6750 |
| Curb weight | kg | 4710 | 4550 | 4700 |
| ★ Max Load | kg | 895 | 1170 | 1725 |
| Patent | | This special vehicle has got its own intellectual property rights, and won two national patents
Patent No:ZL201010502209.X(Utility model patent) ,ZL201020558552.1(Invention patent) |
| Drive mode | | Hydraulic drive |
Pile drive device
| Radius | mm | 2100mm |
| Side distance | mm | 860mm |
| Max working height | mm | 4680mm |
| Working pressure | Mpa | 16MPa |
Hydraulic hammer(optional)
★ | | | YC180 | YC230 |
kg
Mpa
Hz
kw
mm
KN
M
| Weight
Impact
Frequency
Rated power
Lift height
Pile extraction force
Pull out distance
Rotary | 180
10-13
5.8-13
16.2
700-2700
20
2.3
240° | 230
10-17
10-15
20
700-2700
30
2.3
240° |
| Hydraulic Motor |
ml/r
Mpa
Mpa | Model
Displacement
Rated pressure
Max pressure | JAM6-800D40
775
16
20 |
| Gear oil pump |
Mpa
r/min
ml/r | Model
Rated pressure
Rated speed
Displacement | CBN-F540-BFPL
20
2500
40 |
multiway valve
|
MPa
L/min | Model
Pressure
Displacement | ZSI-L15E-T00000000
16
63 |
>>>Certification:

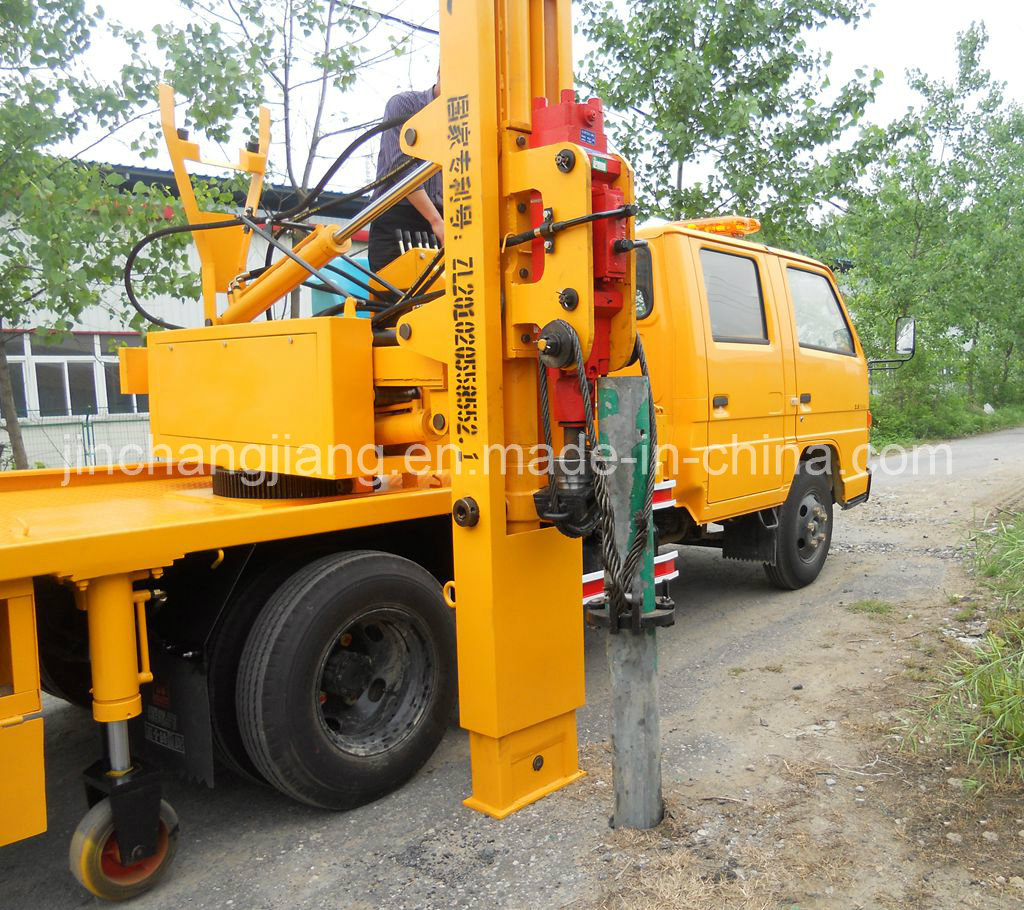

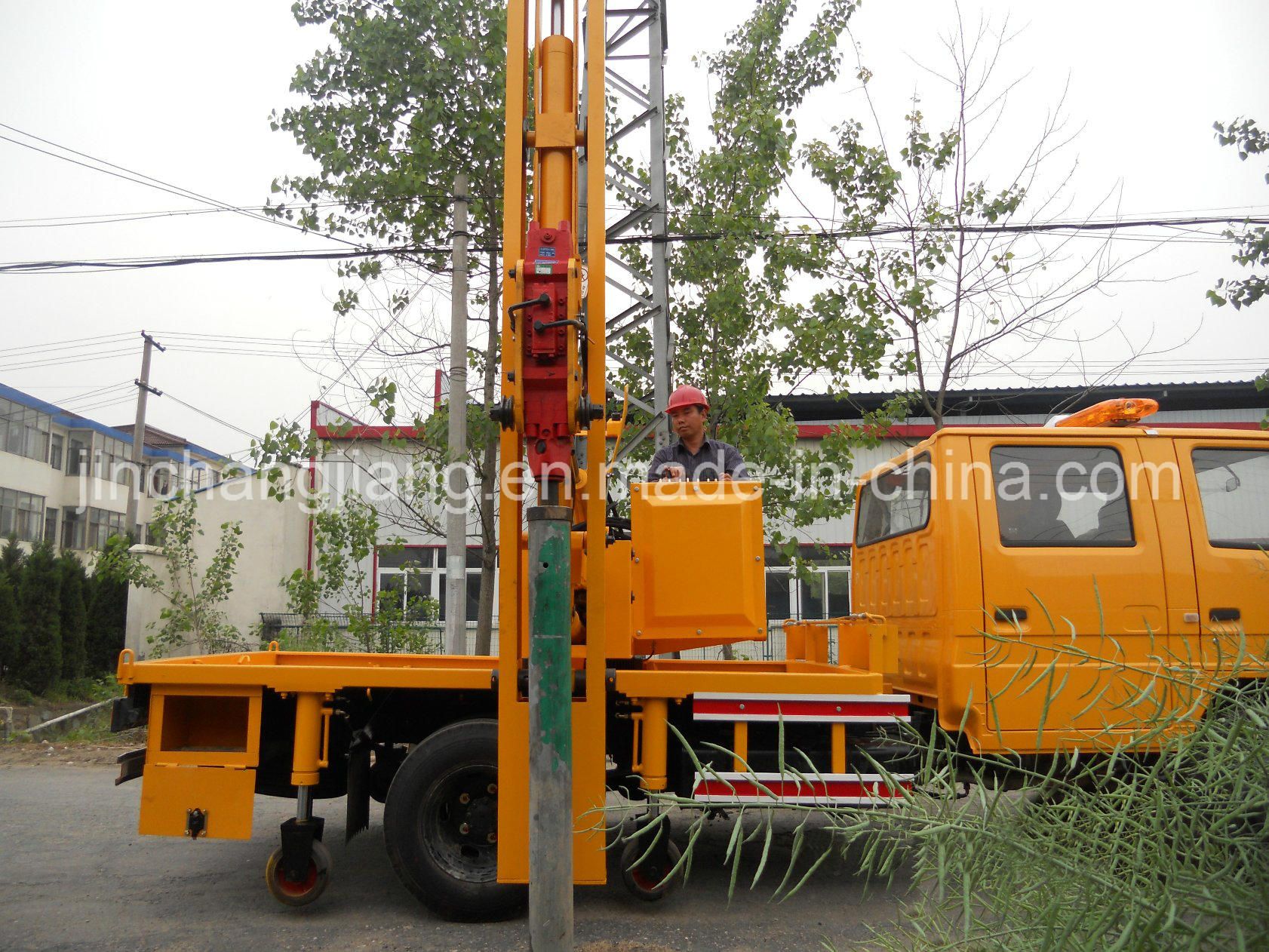

>>>Usage on site:
Related product NJJ5120TQX5>>>Truck mounted guardrail post pile driver combined with pile driving, pile extracting and pile drilling function.>>>Contact:Janie
