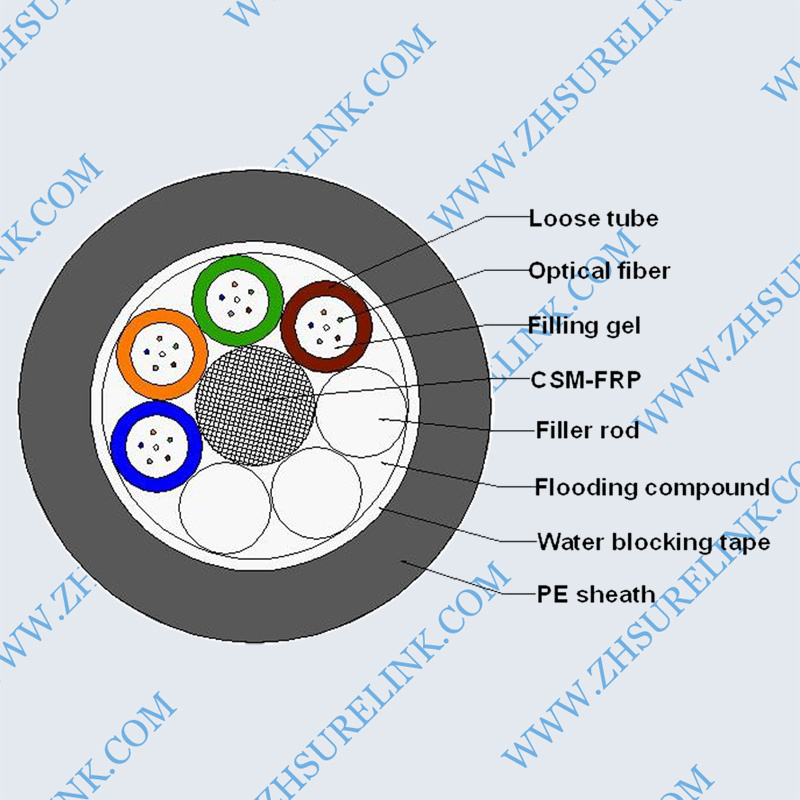

GYFTY Outdoor Sm 9/125 Unarmored Fiber Cable
Price: |
US $ 0.10/Meter |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
2KM |
Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
Prod Model: |
GYFTY |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Fiber Cable: |
G652D. |
Central Stength: |
FRP |
Outer Jacket: |
PE Material |
Type: |
Single-mode Fiber |
Application: |
Communication |
Certification: |
VDE |
Connection Structure: |
ST |
Brand: |
Surelink |
Sheath Material: |
HDPE |
Product Description
GYFTY Outdoor Sm 9/125 unarmored Fiber Cable 1. Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental characteristics.
3. Anti-electromagnetism ability.
4. Small cable diameter, light cable weight, easily to install.
Main Technical Parameters
Fiber number | Cable diameter (mm) | Cable net weight (Kg/km) | Min. bending radius (mm) | Min. tensile strength (N) | Min. crush pressure (N/100mm) |
Static state | Dynamic state | Short term | Long term | Short term | Longterm |
42 and below | 10.9 | 93 | 110 | 220 | 1500 | 600 | 1000 | 300 |
44~48 | 11.3 | 103 | 120 | 240 | 1500 | 600 | 1000 | 300 |
50~84 | 12.4 | 121 | 130 | 260 | 1500 | 600 | 1000 | 300 |
86~96 | 13.1 | 133 | 140 | 280 | 1500 | 600 | 1000 | 300 |
98~108 | 13.9 | 149 | 140 | 280 | 1500 | 600 | 1000 | 300 |
110~120 | 14.7 | 166 | 150 | 300 | 1500 | 600 | 1000 | 300 |
122~132 | 15.5 | 184 | 160 | 320 | 1600 | 600 | 1000 | 300 |
134~144 | 16.2 | 201 | 170 | 340 | 1800 | 600 | 1000 | 300 |
Operating temperature | -40~+60ºC |
*The structures in the list are all typical, the cable structure also can be design according customer's requirement.
