H-3 H Model Split AC Bracket
| Price: |
US $ 1-10/Piece |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
H-3 |
| Container: |
1X20FT |
| Gross Weight: |
3.5kg |
| Net Weight: |
3kg |
| Delivery Time: |
5-15 Working Days |
| Color: |
Pure |
| Customized: |
Customized |
| Surface Treatment: |
Polyester Powder Coating Prevent From Rusting |
| Link: |
Rivets |
| Sample: |
Ok |
| Service: |
24 Hours Online |
| Cooling Method: |
Direct Cooling |
| Certification: |
CCC |
| Condition: |
New |
Product Description

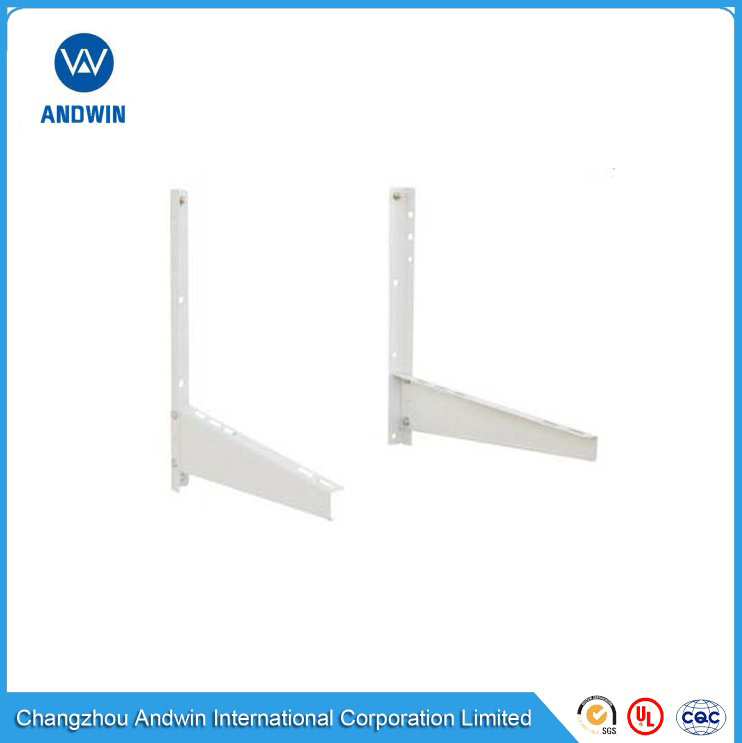

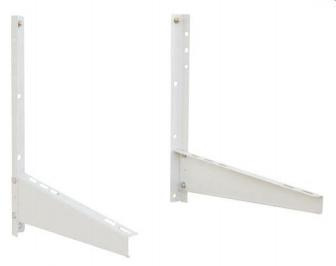

H-3 H Model Split AC Bracket
H model split AC bracket specification
Size:500x550mm
Thickness:2.2mm
Material:cold rolled steel/band steel/hot dipped steel
Color:white/beige
Surface treatment:polyester powder coating
Equipped with:6pcs assembling gharry M8x16
Package:neutral carton
Individual carton:560x125x45mm
Quantity:1 set
Net weight:3kg per set
gross weight:3.5kg per set
Outer carton:570x210x160mm
Quantity:6 sets
H model split AC bracket parameters| NO. | Vertical bar
(mm) | Bottom bar
(mm) | Thickness
(mm) | N.W
(kg) | G.W
(kg) | Loading
(kg) | 1x20ft
(set) |
| H-1 | 460 | 460 | 1.8 | 2.2 | 2.5 | 180 | 11000 |
| H-2 | 540 | 540 | 2 | 2.7 | 3.2 | 200 | 8200 |
| H-3 | 500 | 550 | 2.2 | 3 | 3.5 | 200 | 7700 |
| H-4 | 600 | 600 | 2.5 | 3.7 | 4.2 | 250 | 6000 |
Service:
We can offer the OEM/ODM service, can put your own brand/Logo or provide your design to us, we make sample as your request, and meet your target price. Any size can be customized depend on your requirement. Any color can be customized depend on your requirement.
1. Please be noted that the price in our website is merely the reference price and the actual one is subject to our final confirmation!
2. Any problem, requirement and suggestion, pls contact us freely, we'd be very pleased to be at your side.
3. Price terms depend on you, no matter EXW, FOB, CIF or C&F.
4. Choose a Suitable vessel for you, fast or cheap.
Shipping
1) By air, sea or combined transportation
2) Express via FedEx, TNT, UPS, DHL, EMS, ...(As your request)
3) Tracking Number will offer you immediately after delivery.
4) Shipping cost depends on the shipping method, product quantity, weight, carton size and your area
Delivery Time
1) Small order: Within 5-15 working days delivery after get your pay.
2) Big order: Within 20-35 working days after sample approval.
Payment
1) Paypal, Western Union, Bank transfer
2) 30% deposit and balance 70% paid before shipment or against the copy of B/L.
(Bulk order)

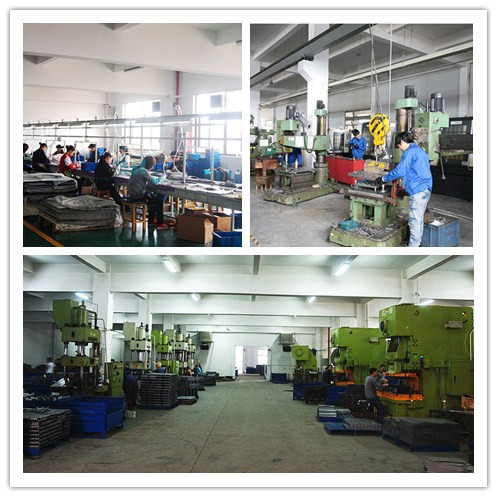

Bracket's Workshop:

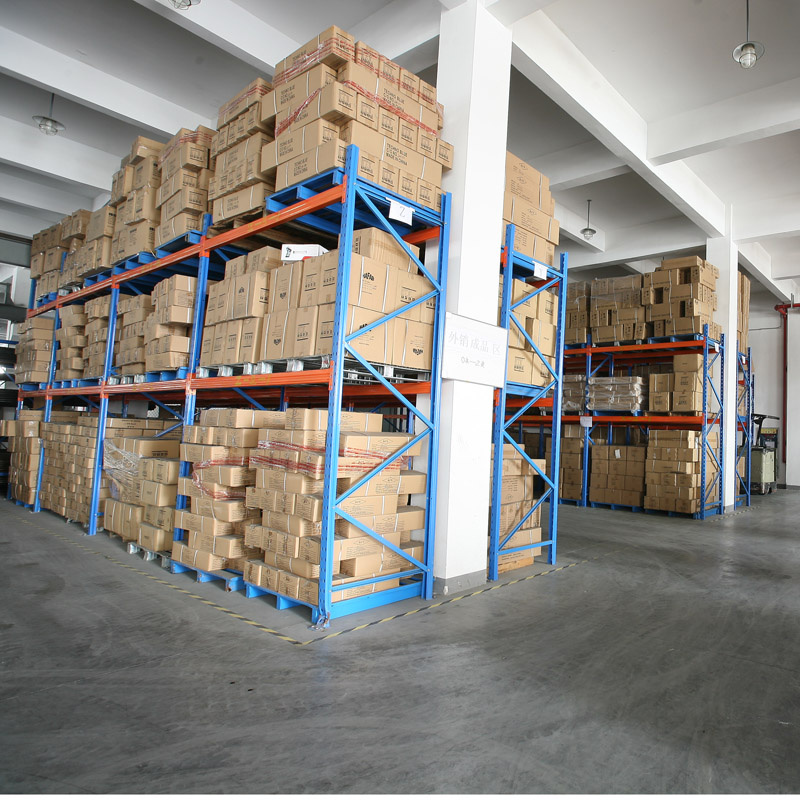

Bracket's Warehouse:

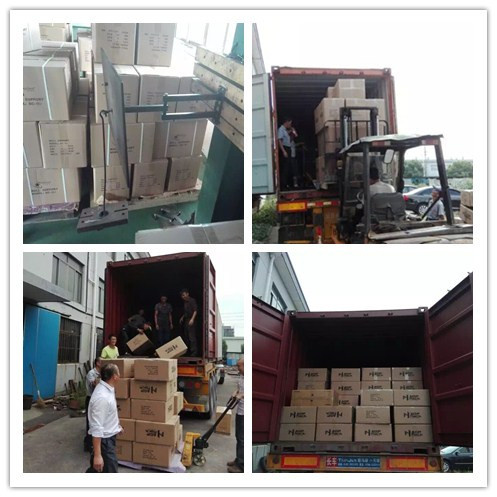

Bracket's packing:

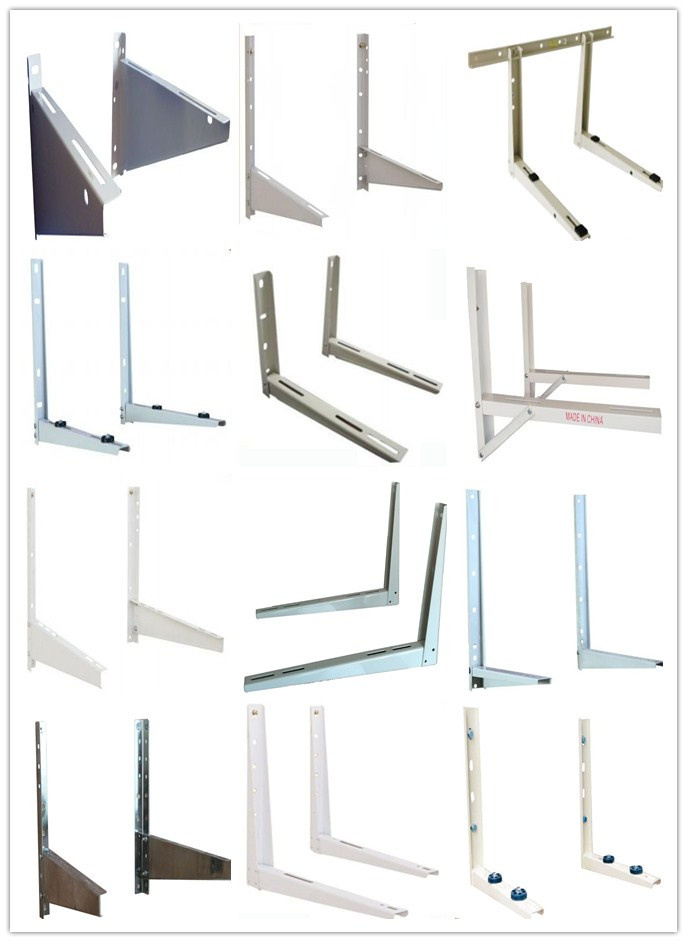

Our related brackets:
