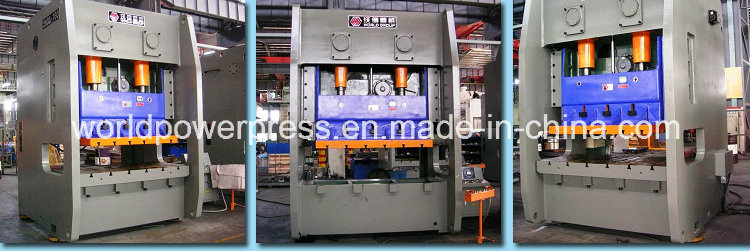

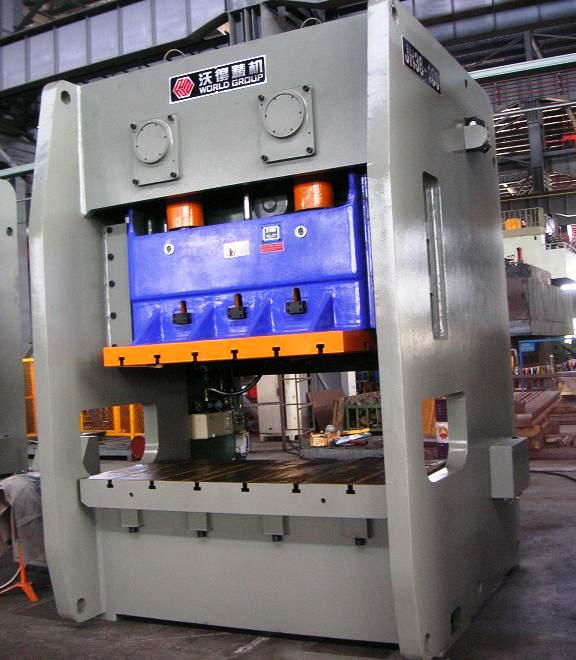

H Frame Automatic Power Press Machine

Name: H Frame Automatic Power Press Machine
Brand: tool-buy.com
SKU: 678062771
Availability: InStock
Rating: 4.5 (111 reviews)

Price:	US $ 30000-40000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Shanghai Yingxin World Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	JH36
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity Range:	110ton to 315ton
Power:	380V/50Hz/3phase
Clutch Type:	Oil Bath Wet Type Pneumatic Clutch
Overload Protected System:	Hydraulic Pump
Lubircation System:	Auto Grease Center Lubrication
Control:	PLC
Type:	General Punching Machine
Controlling Mode:	Artificial
Automatic Grade:	Semiautomatic
Power Source:	Mechanical Drive
Precision:	High Precision

Product Description

Power Press

Features:

1.Steel welded body, heat treatment, high rigidity, accuracy and stability;

2.Double crank, high frequency quenching, grinding treatment;

3.Hex retangular guideway;

4.Wet clutch, hydraulic overload protector;

5.Auto lubrication, electric die adjustment.

Standard Equipments: Optional Equipments:

1) Wet clutch 1) Dry clutch

2) PLC 2) Light curtain

3) Hydraulic overload protecting pump 3) Inverter

4) Touch screen 4) Variable speed motor

5) Cam controller 5) Foot pedal

6) Die height adjusted motor (JH21-60 and upon models) 6) Cushion

7) Auto lubrication system 7) Auto feeding shaft

8) Manual lubrication system 8) NC feeder

9) Double hand control panel 9) Die quick change device

10) Electronic crankshaft angle indicator

11) Predetermined counter

12) Balance cylinders for slide and upper die

13) Work light

14) Joint for air

15) Joint for miss-feeding

16) Absorbing pads

Parameters:

ITEM		UNIT	JH36-110	JH36-160	JH36-200	JH36-250	JH36-315
Nominal Capacity		KN	1100	1600	2000	2500	3150
Slide Stroke		mm	180	200	250	280	300
Slide Strokes	Fixed	Times/min	65	55	45	35	35
Slide Strokes	Variable(optional)	Times/min	35-65	30-55	25-45	25-35	25-35
Max.Die Shut Height		mm	400	450	500	550	550
Die Shut Height Adjustment		mm	90	100	110	120	120
Side Window Size	Forward-Rear	mm	700	780	860	940	960
Side Window Size	Height	mm	350	400	450	460	460
Distance Between Uprights		mm	1850	2020	2380	2600	2600
Bolster Size	Forward-Rear	mm	680	760	840	920	940
	Left-Right	mm	1750	1950	2300	2500	2520
	Thickness	mm	155	165	170	180	190
Slide Bottom Size	Forward-Rear	mm	520	580	650	700	700
Slide Bottom Size	Left-Right	mm	1400	1500	1850	2100	2100
Bolster Surface Height		mm	900	900	1000	1100	1090
Overall Dimensions	Forward-Rear	mm	2080	2300	2500	3000	3050
	Left-Right	mm	2100	2240	2600	3000	3100
	Height	mm	3100	3350	3750	4110	4110
Motor Power		KW	11	18.5	22	30	37
Weight(approximate)		kg	15000	21500	30000	38500	40500

Shanghai Yingxin World Machinery Co., Ltd is a professional supplier and exporter of mechanical power press, hydraulic press brake and shearingring machines in China.

We can supply mechanical power press from 6.3Ton to 1600Ton, hydraulic press brake from 63Ton to 400Ton, hydraulic guillotine shear or swing beam shear with cutting depth from 6mm to 40mm, and feeders etc. With more than 10 years exporting experience, our machines have been used and approved by the market, such as Turkey, Russia, Norway, Germany, Brazil, South Africa, Saudi Arabia, Oman, Iran, Pakistan, Thailand and Indonesia.

We commit to offer best quality, reasonable prices and valuable technical assistance to every customer.

Warranty Policy

Since the buyer's final acceptance date, our company implements the products after sale service. The warranty period is one year. During the warranty period, our company provides free maintenance and replacement parts, if these parts or damages are out of quality problems. In the meantime, the machine should be under normal operation by the buyers. (Except for improper operation or man-made damage by the buyers. ) We can send the parts by courier if urgently needed while the buyer should pay the freight.

Installation Support

We can arrange our engineer to support the buyer to install the machines at buyer's factory. And the buyer should pay all the accommodations and round air tickets.
