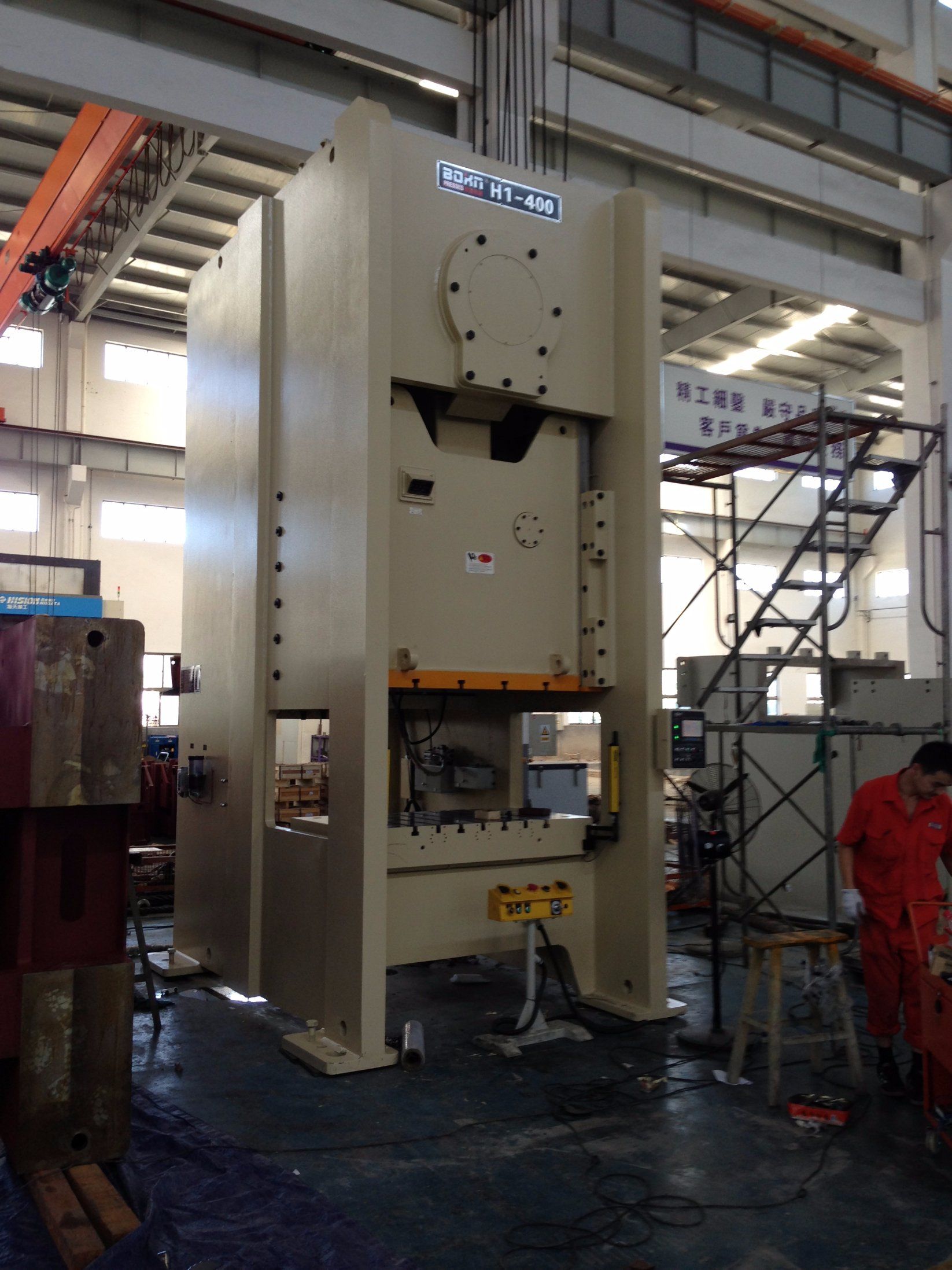

H1-400 Semiclosed Single Crank Power Press Machine

H1-400 Semiclosed Single Crank Power Press Machine
Price: US $ 70000-75000/Piece
Min Order: 1/Piece
Pay Type: T/T
Prod Model: H1-400
Certificate: TUV
Exporting Country: The Only Brand in China Keeps Exporting to America
Zhejiang Made: The One and Only Zhejiang Made Presses Brand
Stroke: 250mm
Die Height: 500mm
Spm: 20-40
Slide Adjust: 120mm
Bolster Size: 1200*900
Slide Size: 950*700
Main Motor: 22.5kw
Type: General Punching Machine
Automatic Grade: Automatic
Power Source: Electric
Precision: High Precision
Controlling Mode: PLC

Product Description

H Frame Crank Press (H1 Series 80 ton to 315 ton )
This is generally applicable for blanking, punching, bending and forming process on small single work of thin steel plate and progressive die parts, which can connect with single press, progressive die, mechanical arm or added with transfer system.






Features
  • High torque, low noise clutch and brake.Rigid frame with less deflection.
  • High accuracy transmission gears and high rigidity crank ensure press long life and accuracy.
  • Forced Lubrication system with default monitor ensures the operation reliability.
  • User-friendly design and all-function electric control system provide high automation compatibility.

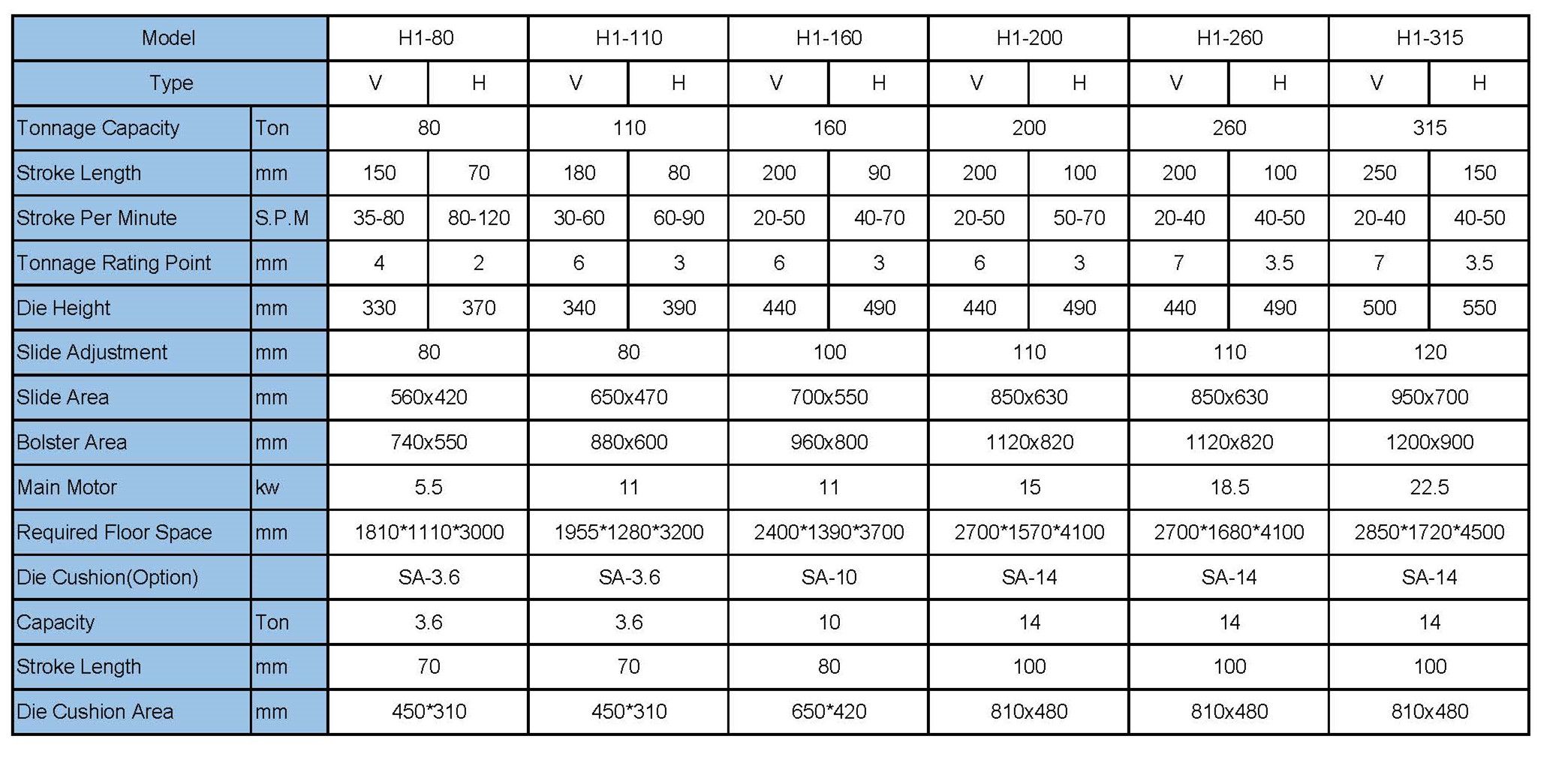

Specification

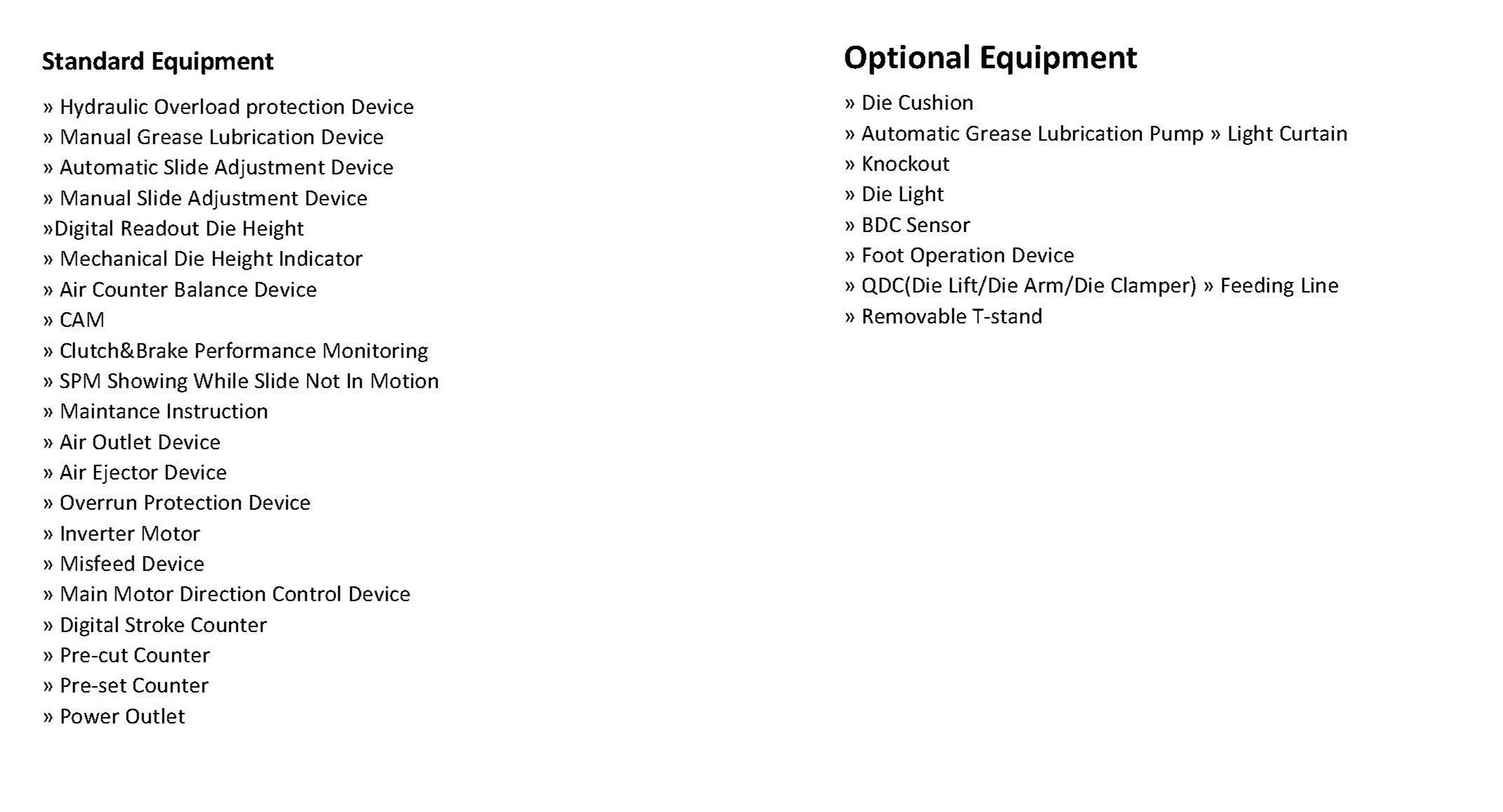

Equipment










Ningbo BOXIN Machinery Co., Ltd. Was found in 2003, is one of the leading press manufacturer in Ningbo, China. With the CE and TUV certification, we are the only China press manufacturer who keeps exporting our machines to American and Mexico market in the past several years. We are developing other countries markets and looking for professional wholesales all over the world.

Some of our major customers are CHNT, MAZDA, AUX, GEELY, BYD, MIDEA Who are satisfied with BOXIN machine's quality. As our machines are accuracy and durability.

In order to meet the requirement of it's customers in building high quality products, our company use all high precision, high performance machine tools from Japan. BOXIN products range from 16 ton open back C-frame press up to 2000 ton eccentric gear driven link motion car body panel stamping machines. Other than stamping press, it also manufactures cold and hot (warm) forging press machine for both home appliance and automotive industries.

Implementation standard: JIS 1 class standard

The machine is widely used for pressing and forming in the fields of electronic, household electric appliance, furniture, communication tools and vehicles (automobile, motorcycles, bike) and hardware etc.

Applicable processes: Stamping, forming, pressing, cut, blanking, deep drawing, punch, bend, molding, stretching and rolling.
