| Prod Model: |
XQD-19 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Xqd-19 |
| Strap Width: |
19mm |
| Tool Size: |
280X160X180mm |
| N./G.Weight: |
3.8kgs |
| Application: |
Wooden Case |
| Strapping Material: |
Strip |
| Packaging Type: |
Cartons |
| Automatic Grade: |
Semi-Automatic |
| Strapping Mode: |
Welding Type |
| Driven Type: |
Pneumatic |
| Structure: |
Hand Strapping |
Product Description

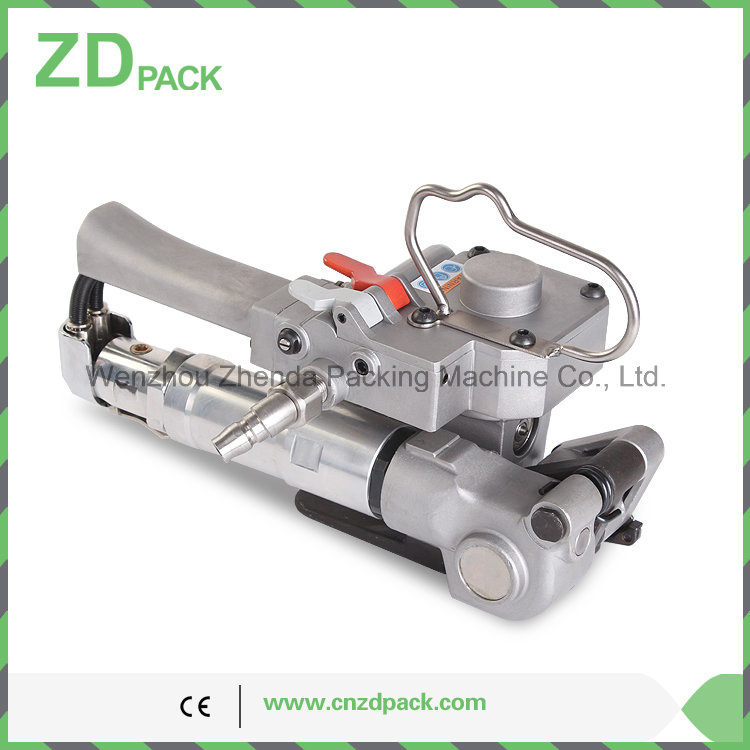

Hand-held Pneumatic Strapping Tools For 1/2"-3/4" PP/PET strapping (XQD-19/25)
The tool works on the polyester or polypropylene strap, friction weld,actuated by the air. Popularly apply to the wooden case baling,barrel,big size carton or Steel coil packaging.
The air compressor is required for the air supply. It is good at strap size: 19mmx0.8mm.
Technology imported from Switzerland, XQD-19E-25E PET Pneumatic Packing Tool adopts high pressure air supply to tension and friction welding at high speed and finish the packing at one time . It is swift and tidy with flat and tact welding point, and is widely applied to light steel industry, metal, paper-making, stone and wood material packing tools.
Specification
Model |
Max belt thickness |
Max shrinking force |
Average air pressure | (mm)
Dimension |
Weight |
| XQD-19E | 13-19x1.0mm | 259kg | 0.65Mpa | 280x160x180mm | 3.8kg |
| XQD-25E | 16-25x1.2mm | 259kg | 0.65Mpa | 280x160x180mm | 3.8kg |
Wenzhou Zhenda Packing Machine Co., Ltd. is a leading manufacturer in respect of packaging machine( strapping tool, strapping machine). Located in Qingjiang industrial, Yueqing, Zhejiang, China, near the beauty of Yandang Mountain, establish in 2003, including about 100workers. We have been engaged in the field for decade years. Our company insists on the tenets of "Unity Cooperation, Professional Production, Technical Creation, and Enterprising". With high technology, best quality, full specifications, and good package, we have won a good reputation among customers, and our brand extending well at home and abroad. Our goods are exported to Southeast Asia, Europe, America, Middle East and so on. We specialize in pneumatic strapping tools, electric strapping machines, battery operated strapping tools, manualPP/PET tensioner and sealer, steel strapping tools and semi-automatic strapping machine, they are professional in polyester and polypropylene strap and steel strap tools.
We are continuely developing new products to suit international markets and customers.
Our motor is Better quality, Better service.
If you are interested in any of our products, welcome to contact us for further business!
