| Prod Model: |
TDSB-115 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Circular Saw Blade |
| Blade Materials: |
Alloy Steel |
| Segment Material: |
Synthetic Diamond |
| Certification: |
SGS, ISO9001:2008, BV |
| Advantage: |
Factory Price & High Quality |
| Features: |
Smooth Cutting & Long Life |
| Supplier: |
Quanzhou Sunny Superhard Tools Co., Ltd. |
| Manufacturing Experience: |
23years |
| Exporting Experience: |
11years |
| Shape: |
Round |
| Usage: |
Stone Cutting |
| Customized: |
Customized |
| Graininess: |
Success Formula for Stone Concrete Cutting |
| Thickness: |
Depend on Diameter |
| Kind: |
Circular Saw Blade |
| Manufacturing Arts: |
Cold Pressed, Hot Pressed |
| Brand: |
Sunny |
| Saw Blade External Diameter: |
105-230 |
| Specification: |
4-9'' |
Product Description
diamond blade Advantage:
1, for both Wet and Dry cutting
2, Machinery: Circular saw, Masonry saw etc.
3, Application: suitable for Tile,Brick,Stone and Concrete cutting
4, Manufaturing process: Cold pressed,Hot pressed

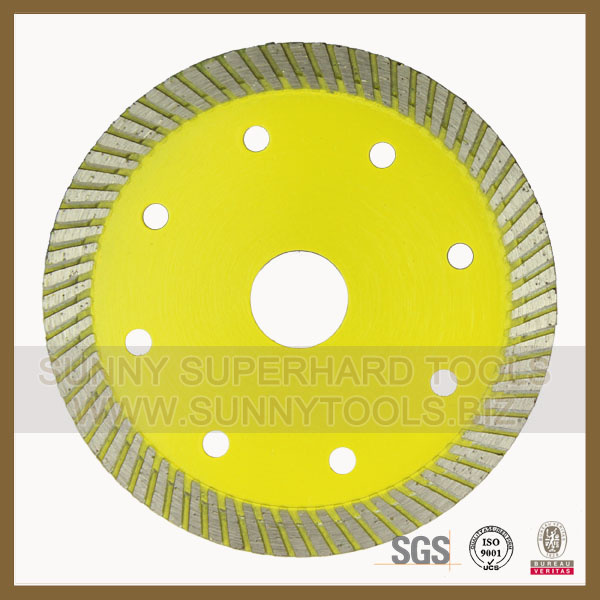

The Turbo type Diamond Cutting Discs is specially designed for fast,chip free cutting of granite and porcelain tile.
Hot pressed Turbo Diamond try Cutting Discs/blades
This kind of cutting disc is used to both dry cutting and wet cutting Non-metal materials. Available for Engineered Stone, Granite, and Marble / Ceramic.
Features of Silent Saw Blade
1.Continuous rim tirbo segemnt;
2.fast and smooth cutting large range of medium to hard stone materials,including concrete,tile,ceramic,marble and slate.
Parameter Diamond Turbo Saw Blade
| Specification for Turbo Diamond Saw Blade |
| Item No. | Blade Diameter | Bore(mm) | Segment width(mm) | Segment height(mm) |
| SUNNY-100 | 4.0"(105) | 20 | 1.7 | 8 |
| SUNNY-110 | 4.35"(110) | 20.00 | 1.8 | 8 |
| SUNNY-115 | 4.5"(115) | 22.23 | 2 | 8 |
| SUNNY-125 | 5"(125) | 22.23 | 2 | 8 |
| SUNNY-150 | 6"(150) | 22.23 | 2.2 | 8 |
| SUNNY-180 | 7"(180) | 22.23 | 2.2 | 8 |
| SUNNY-200 | 8"(200) | 22.23 | 2.4 | 8 |
| SUNNY-230 | 9"(230) | 22.23 | 2.6 | 8 |
The Technical data just for your reference, Other sizes can manufacture as requirement
FAQ:
1. We would like to buy your products, how do I know the quality of your products?
-We are most professional in the field of stone cutting. We'd like to inform you the result ,which
of the clients using our products. It is neccsary to test the performance of products,we suggest
you make a trial order. Otherwise,you will never know the performance of Chinese products.
2. What is the minimum quantity we should buy?
-We don't mind how much quantity you buy for the sample order.
3. As I know many companies supply free samples, do you offer free samples?
- Sorry, we don't offer free samples.As a matter of our experence, the clients cherish the products paid. Just because the quantities of sample is small,its cost is higher than normal production.
4. What is your mode of payment?
-The payment is 100% T/T in advance for Air cargo , the terms is negotiated for sea cargo.
5. We send you the payment, what should we do if you don't send our order?
-This is impossible to happen! Please inform us or send us the copy of bank slip after you send
us the payment, so that we can make the production and make of shipment earlier.
6. How long you send the shipment after we make the payment ?
-It depends on the quantity of order,as usual,we send the shipment within one week on receipt of payment. It may need more days for special order (like big order or unnormalized specification order). We always inform clients the production time needed before placing an order.
7. What is the delivery way you send our goods?
It depends on clients' requirement. Normally send by air,by sea by courier, It only costs 5 to 10 days by air,it costs around 30 days by sea.
8. How much shall I pay for the shipping cost?
-We calculate the approximate gross weight, check the lowest Air freight rate or Ocean freight rate,add the charge of China custom formalities & documents show the shipping cost in the Proforma Invoice of your order.
9. What we should do if your products dont have good performance?
-Check if you are operating the machine in the right way , dont cut fast when it just starts,eliminate
some trouble, find the real problem.Contact us and send us a report for our research, and those used products ,our technical department can find the problem. It proves product problem after testing, we will make compensation for clients or replacement will be done immediately.
QUANZHOU SUNNY SUPERHARD TOOLS Co., Ltd is a professional and Dynamic Diamond Tools manufacturer, established in 1993, Located in Quanzhou, Fujian province, China, factory covering 15000 square meters. Our technical department is composed of experienced professors and engineers. We devote ourselves to researching and manufacturing cutting and processing Diamond tools for nature stone and building materials. Our tools are exported to more than 60 countries, including America, Brazil, Italy, Russia, Ukraine, India, Egypt, South Africa etc.
Main Products:
Cutting Tools (Saw blade, Segment, Wire saw etc)
Grinding&Polishing Tools (Calibration Rollers, Fickerts, Frankfurt, Cup wheel, Profilling wheel, Polishing pad, brush etc)
Drilling Tools (Finger Bit, Core drill etc)
The Philosophy of Sunny is "Superior product and service derived from standard and efficWe have a high efficiency team, each department strictly comply with company regulations.
From receiving your enquiry, put order in production and Dispatch to after-sales service, Ient management. "
In order to provide customer most suitable tools, we keep researching and analysing nature stone and engineering material. We cooperate with stone factory to test tools, and keep close contact with our customers by visit or communication to get knowledge of market demand.
We Response All Your Request efficiently To Save Your Time And Provide Your Utmost Convenience.
The deep understanding for customer's demand and strict quality control help us developing quickly, we wish to get your collaboration to achieve our objectives together!
Our aim is to provide our clients stable and consistant quality with competitive price.
Advantages enable clients benefits from our tools.
1. Experienced bond system
2. Advanced equipment and high grade raw material
3. Strictly production procedures control and quality inspection.
4. Customer's active feedback and support help us developing fast.
