| Prod Model: |
RTC160 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| External Working Rang: |
50-160mm |
| Internal Working Range: |
38-154mm |
| Model: |
Rtc160 |
| Scraping Length: |
114mm |
| Certificate: |
ISO, CE |
| Application: |
Pipe Tool |
| Tansport Case Size: |
390*210*135mm |
| Max Dimensions: |
380*120*250mm |
Product Description

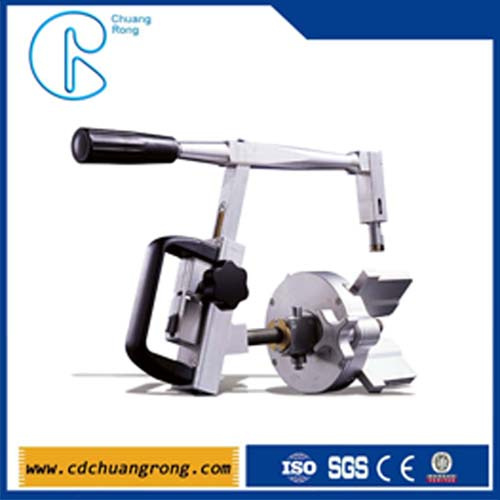

Hand Piping Scraper Tools(RTC 160)
ESSENTIALS TO PREPARATE THE PLASTIC PIPES BEFORE ELECTROFUSION EXTERNAL Ø 50 ÷ 160 mm INTERNAL Ø 38 ÷ 154 mm
Essential patented (RTC series) tools for plastic pipes preparation before electrofusion.
Working range external: Ø 50 ÷ 160 mm
Internal: Ø 38 ÷ 154 mm
Mandrel device to cover all working diameter
Rotatine arm with a blade supported
Device designed to mantain constasnt thickness of the continuous chip
TECHNICAL FEATURES | RTC160 | RTC315 | RTC710 |
| Working Range |
| External | 50-160mm | 75-315mm | 355-710mm |
| Internal | 38-154mm | 58-300mm | 290-675mm |
| Max Scraping length | 114mm | 137mm | 530mm |
| Diamensions |
| Max diamensions | 380x120x250mm | 510x310x410mm | 825x805x695mm |
| Transport case | 390x210x135mm | 230x500x270mm | 800x580x350mm |
| Weight |
| Pipe scraper | 2.5kg | 4.5kg | 16kg |
| Standard composition | 5.65kg | 7.5kg | 39kg |
CHUANGRONG is a leading professional supplier of plastic pipe system products since 2005.We have exported our products more than 50 countries and area.
Our products:1.Plastic pipe 2.HDPE fittings 3.PPR fittings 4.PP compression fittings 5.pipe welding machine and tools 6.pipe repair clamp Our aim is to provide customer with the best solutions of plastic pipe connection.
Thank you for your looking through.
