| Prod Model: |
EPH-210 |
| Product Name: |
Manual Hydraulic Bearing Puller |
| Capacity: |
15 Ton |
| Jaws Quantity: |
2 |
| Spread: |
25-381mm |
| Max. Reach: |
245mm |
| Cylinder Stroke: |
254mm |
| Certificate: |
Ce, ISO9001:2008 |
| Warranty: |
1 Year |
Product Description
Product Features:
1. Unique "Safety Cage" system, can firmly fixed the work-piece with the good skid-resistance and safety.
2. Self - centering, anti - eccentric load, ensures that the screw rod is always in the center of force and extends the service life.
3. Through the T type handle and the safety cage to control the wheel quickly, it's more convenient to operate.
4. Slim tapered jaws make it easier to work in narrow space.
5. NPT 3/8" quick coupling, can work with kinds of 700bar/10000psi power pack together.
6. Slim tapered jaws make it easier to work in narrow space.
Technical Parameters:| Model No. | Jaws Quantity | Capacity (ton) | Spread (mm) | Reach (mm) | Cylinder Stroke (mm) | Cylinder Oil Tank Capacity (cm³) | Weight (kg) |
| SOV-EPH-108 | 3 | 10 | 19-304 | 203 | 156 | 226 | 11 |
| SOV-EPH-110 | 3 | 15 | 25-381 | 245 | 254 | 516 | 23 |
| SOV-EPH-113 | 3 | 25 | 63-457 | 304 | 362 | 1202 | 48 |
| SOV-EPH-116 | 3 | 50 | 76-635 | 355 | 337 | 2399 | 91 |
| SOV-EPH-208 | 2 | 10 | 19-304 | 203 | 156 | 226 | 10 |
| SOV-EPH-210 | 2 | 15 | 25-381 | 245 | 254 | 516 | 22 |
| SOV-EPH-213 | 2 | 25 | 63-457 | 304 | 362 | 1202 | 44 |
| SOV-EPH-216 | 2 | 50 | 76-635 | 355 | 337 | 2399 | 87 |
Packaging Details1. Outside packaging: Standard export wooden packing;
2. Inner packaging: Al-Ti alloy carrying case;
3. Customized packaging acceptable.
Shipping Way1. Small quantity: By international exress, such as DHL, TNT, FEDEX, UPS, etc. Depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: By sea transportation. Goods will arrive in 30~45 days, according to the diatance.
Product ApplicationFlange separator is widely used in petrochemical, electric power, steel, liquid, gas pipeline maintenance, repair the most ideal, the most secure special tool. The first stage is the design of the self-locking and moments of the flange, the separation of the work more safe and simple.
Our Service1.24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.

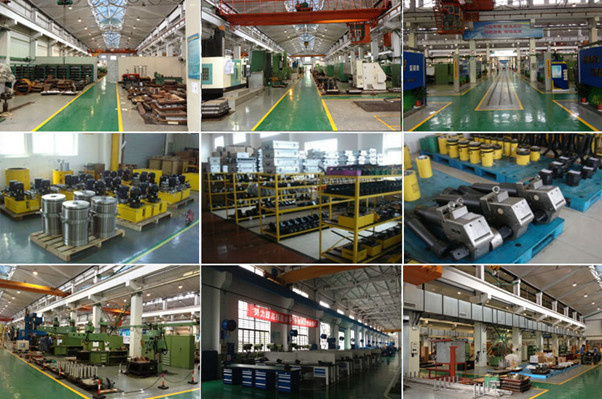

Company InformationSOV Hydraulic Technoloy (Shanghai) Co., Ltd. Is a manufacturer engaged in designing and manufacturing hydraulic cylinders, synchronous PLC hydraulic system, hydraulic pumps, torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includ many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
Our products include:Hydraulic cylinders, jacks (5-1000ton);
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM);
Hydraulic pullers (5-100 ton);
Integrated hydraulic lifting system solutions;
Hydraulic parts.
Competitive Advantages1. High quality in competitive price;
2. Low minimun order quantity;
3. Wide range of products for your reference;
4. Good customer service: Customer satisfaction is our promary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: Customer's LOGO engraving, customized packaging, and produce the products according to customers' design, etc.
Best wishes for you!
About SOV Hydraulic Technology(Shanghai) Co., Ltd.
Shanghai SOV Hydraulic Technology(Shanghai) Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger; Low height, ultra pressure, lock nut
Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton;
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Hydraulic pipe cutting and beveling machine
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
