Prod Model: |
TP3 |
Name: |
Heavy Hydraulic Rescue Tools Set |
Pump: |
Bjq-63/0.6-F |
Spreader: |
Gykz-42-120/600-Z |
Cutter & Spreader: |
Gyjk-32-100/28-15-Z |
Cutter: |
Gyjq-28/150-Z |
Spoort RAM: |
Gycd-110/750-Z |
Brand: |
Topsky |
Product Description

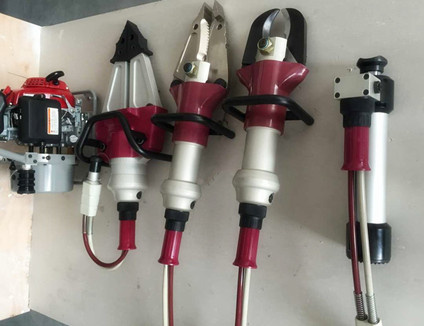

Heavy hydraulic rescue tools set (Single Interface, Double-tube)
Include:
1 Heavy hydraulic motor pump BJQ-63/0.6-F
1 Heavy hydraulic spreader GYKZ-42-120/600-Z
1 Heavy hydraulic cutter & spreader GYJK-32-100/28-15-Z
1 Heavy hydraulic cutter GYJQ-28/150-Z
1 Heavy hydraulic support ram GYCD-110/750-Z
2 5 m hose
Introduction
It combines the most advanced technology of hydraulic rescue. Hydraulic rescue tools are double tubing connections single interface.
Pressure plug in one step. The tool can work under circumstances not close any valves easily replace other tools for different purposes.
Couplings are rotating design, it can rotate 360 degrees, so that the pipe split operation is easier, faster, and simplifies the process of connecting and disconnecting between tools, saving valuable rescue time.
Feature
Single Interface,Double-tube
Super-high relief efficiency
Large output power
Super-fast connections
Low noise
High Precision High Sensitive
1. Heavy hydraulic motor pump
Model: BJQ-63/0.6-F
Feature
Imported Honda GX100 gasoline engine, can connect two rescue equipment and the same time. Effectively saving preparation time rescuers and rescue time and reduce staffing requirements.
Furthermore dual output pump with good thermal properties make unlimited working hours, low noise levels, contribute to the rescue call quality and trapped personnel. Light weight, small size. Easy to carry rescue.
Product parameters:
Rated working pressure | 63MPa*2 |
Engine power: | 2.1kW / 3600rpm |
High flow: | 0.55L / min |
Low flow: | 2.3L / min; |
working speed: | 3400 ± 150rpm; |
Hydraulic oil tank capacity: | 3.1L |
Accessories: | carrying a backpack. 5 m hose |
Dimensions: L * W * H: 310 × 280 × 380mm | Dimensions: L * W * H: 400 × 305 × 460mm |
Accessories: | 2 sets of 5 m single-port hose |
2. Heavy hydraulic cutter & spreader
Model:GYKZ-42-120/600-Z
Feature
According to ergonomic design,
High-efficiency,
Simple operate,
Twin -tube single-access expansion, traction, tear, extrusion and other operations.
Tip rapid opening and closing fast work, anti-skid switch control, making the operation more precise.
Internal bidirectional hydraulic lock, with self-locking function;
Expansion head is extremely flat,can be wedged extremely narrow gaps.
Special anti-skid surface treatment can play the role of the relief environment safer.
Product parameters:
Rated working pressure: | 63MPa |
opening distance: | 700mm |
Rated expansionary force: | 42KN |
Maximum expansion force: | 120KN |
Dimensions: L * W * H: | 850 × 290 × 175mm |
Weight: | <18.5kg |
3. Heavy hydraulic cutter & spreader
Model:GYJK-32-100/28-15-Z
Feature
According to ergonomic design
Simple operation,
Double-tube single coupler can expand, cut, clamp and other operations.
Tip rapid opening and closing fast work,
Skid switch control, making the operation more precise.
Internal bidirectional hydraulic lock, with self-locking function
Light,
Good Flexibility,
Functional,
Body balance, effort, easy to operate.
On a single rescue equipment combines the features dilator and shear, it can be used as the preferred rescue tools. (Note: cut, shear expansion blade color:, black /white.)
Product parameters:
Rated working pressure: | 63MPa |
Opening distance: | 360mm |
Cutting capacity (Q235 Material): | 28mm plate |
Cutting capacity thickness (Q235 Material): | 15mm |
Expansion force | 32KN |
Dimensions: L * W * H: | 765 × 190 × 170mm |
Weight: | <14kg |
4. Heavy hydraulic cutter
Model:GYJQ-28/150-Z
Feature
According to ergonomic design
Simple operation,
Double-tube single coupler can expand, cut, clamp and other operations.
Tip rapid opening and closing fast work,
Skid switch control, making the operation more precise.
Internal bidirectional hydraulic lock, with self-locking function
Light,
Good Flexibility,
Functional,
Body balance, effort, easy to operate.
Perfect use of curved blade pullback action to overcome the various structures of the vehicle. (Note: cut, shear expansion blade color: black/ white.)
Product parameters:
Rated working pressure: | 63MPa |
shear capacity (Q235 Material): | 28mm |
shear capacity (Q235 Material): | 15mm |
Open distance: | 150mm |
Dimensions: L * W * H: | 730 × 190 × 170mm |
Weight: | <13kg |
5.Heavy hydraulic support ram
Model: GYCD-110/750-Z
Feature
Simple operation,
Double-tube single connection can hold the top into operation,
Skid switch control, making the operation more precise.
light,
Small,
Functional,
Excellent side load coordination
Able to face all kinds of accidents, traffic accidents and rescue, earthquake and other disaster relief, building collapse rescue.
Slip claw-type structure ejector rod head and the base of the mandrel so that the inclined or flat surface can be safe and secure.
Bidirectional hydraulic lock self-locking feature to lock the top does not hold any position retraction, reduce operational risks rescuers hold the top time.
Product parameters:
Rated working pressure: | 63MPa |
hold the top force: | 110KN |
Operating range: | 450-750 |
Hold the top stroke: | 300mm |
Dimensions: L * W * H: | 450 × 90 × 165mm |
Weight | <8.5kg |
