Hand Tool Torque Multiplier Price Bolt Torque Multiplier
| Price: |
US $ 50-1000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
FY-PLC |
| Product Name: |
Hand Tool Torque Multiplier Price Bolt Torque Mult |
| Torque Range: |
1500-20000nm |
| Drive Ratio: |
4.8-96.8 |
| Imput Square: |
12.7mm |
| Out Square: |
25-60mm |
| Bolt Diameter: |
M20-M80 |
| Dimension(L*W*H): |
80X80X119 |
| Weight: |
2.6-31kg |
| Color: |
Black |
| Brand: |
Fy-Fdb |
| Material: |
Carbon Steel |
| Type: |
Square Head |
| Connection: |
Common Bolt |
| Head Style: |
Square |
| Standard: |
DIN |
| Grade: |
12.9 |
| Finish: |
Black |
Product Description
Product Description
Hand tool torque multiplier price bolt torque multiplier
Product FeatruesHand torque multipliers are the ideal tools for applications where air and electricity aren't easily accessible. The gearing design allows for a high torque output with minimal input. Commonly used in petrochemical, power generation, transportation, railway construction, shipping and maintenance industries.
Accuracy better than ± 5%.
Precision tightening and loosening of all heavy duty fastening connections.
For operation in combination with a torque wrench.
Torque Multiplication Ratio - low energy input with high torque output.
Compact design allows for operation in space-restricted applications.
Ideal tool for applications where air and electricity aren't easily accessible.
Most models furnished with anti-windup ratchets allowing jobs to be performed easily, efficiently and safely.
Shear pin at input drive protects gear box in case of torque overload.
Constructed with quality steel.
Each tool contains extra shear pins, and torque multiplication selection chart.

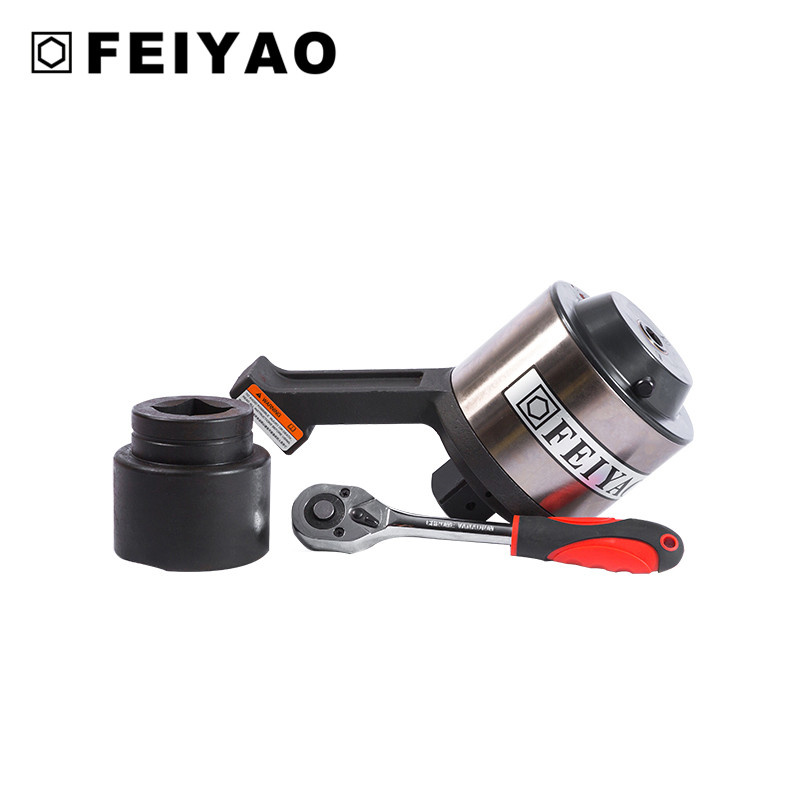

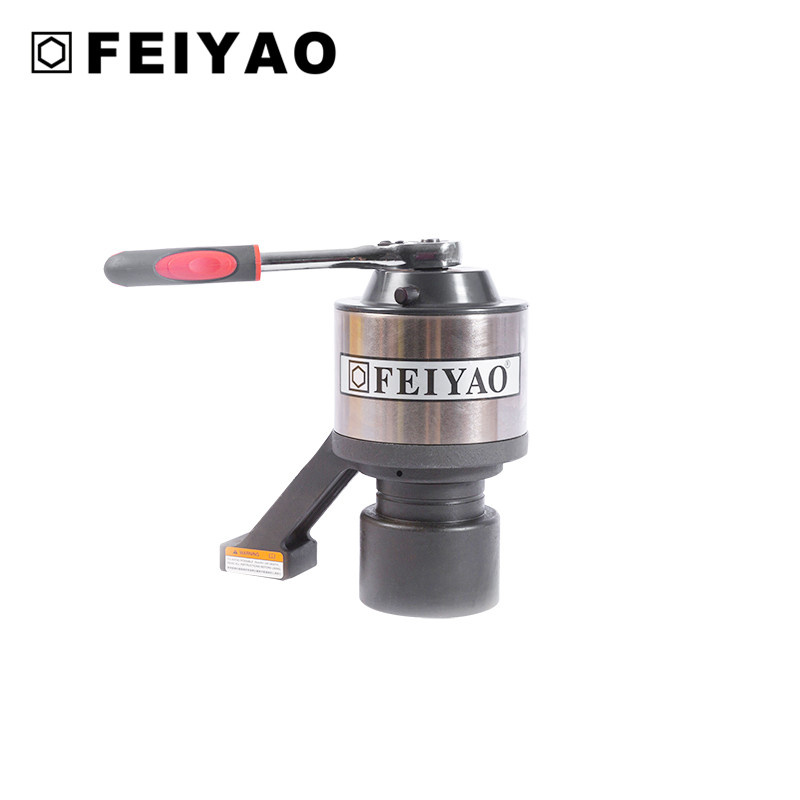

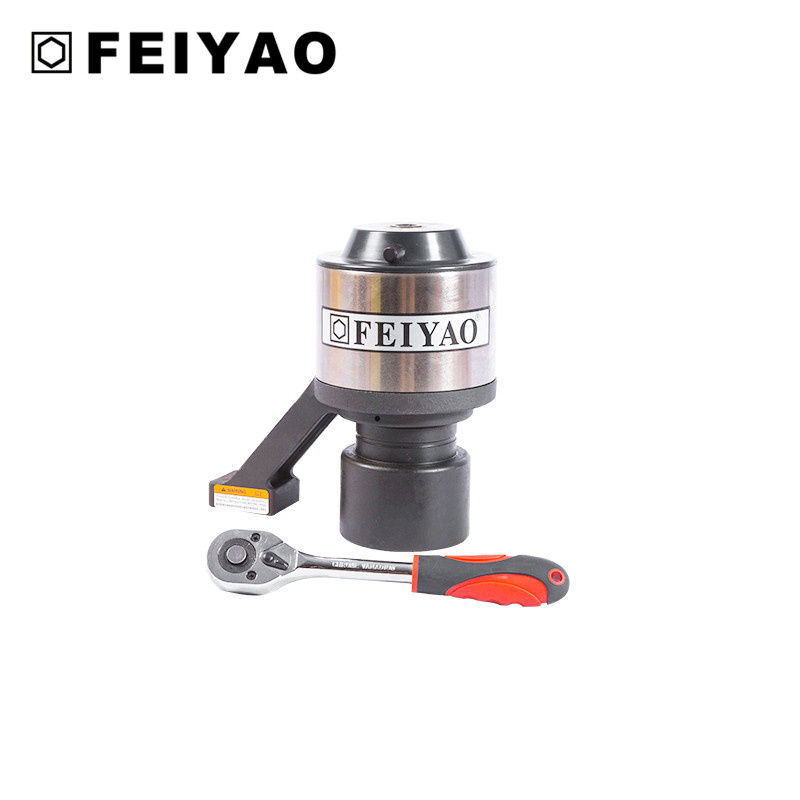

Commonly used in petrochemical, power generation, transportation, shipping and maintenance industries.Product Picture
pecifications for torque wrench multiplier:
| model | FY-FDB-15 | FY-FDB-20 | FY-FDB-35 | FY-FDB-55 | FY-FDB-75 | FY-FDB-100 | FY-FDB-150 | FY-FDB-200 |
| Max torque(Nm) | 1500 | 2000 | 3500 | 5500 | 7500 | 10000 | 15000 | 20000 |
drive
ratio
| 4.8 | 14 | 17 | 19 | 22 | 61 | 74.8 | 96.8 |
imput square
(mm)
| 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 |
output square
(mm)
| 25 | 25 | 30 | 35 | 40 | 50 | 55 | 60 |
bolt
(mm)
| M20-30 | M22-36 | M30-45 | M36-52 | M42-60 | M52-68 | M60-76 | M72-80 |
| nut to edge(mm) | S30-46 | S32-55 | S46-70 | S55-80 | S65-90 | S80-105 | S90-115 | S105-135 |
| dimension(mm) | 80×80× 119 | 74×74× 147 | 95×95× 162 | 105×105× 190 | 115×115× 210 | 134×134× 244 | 146×146× 305 | 146×146× 325 |
| weight (kg) | 2.6 | 3.9 | 5.5 | 7.5 | 10 | 17 | 25 | 31 |
Our ServicesOne Year Warranty, repair and service for the whole life, question report response in 24 hours, and reply in 48 hours.

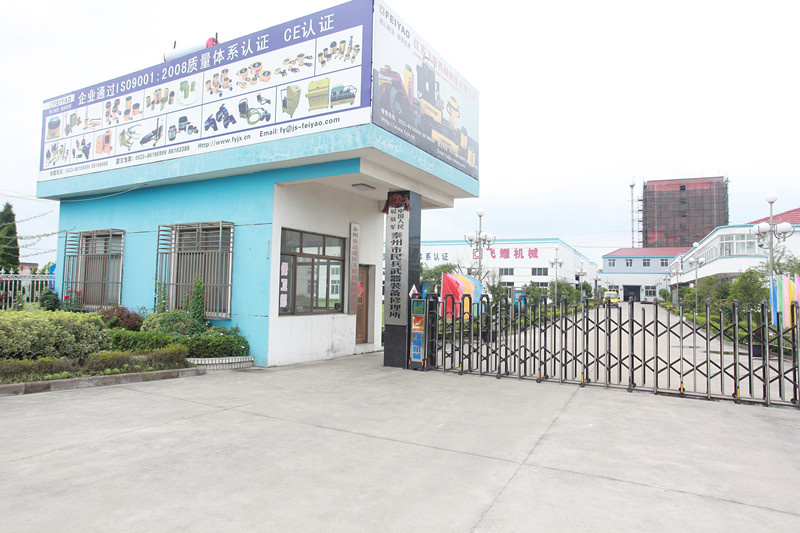

Company Information
Established in 1978, Jiangsu Feiyao Machinery Manufacturing factory is an professional leading manufacturer of hydraulic tools in China. Such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.
Our products have been widely sold to Europe, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.
Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides, we have gained CE and ISO9001 certificates.
We warmly welcome all overseas customers to talk with us about business or other cooperations.CertificateSince the establishment in 1978, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand FEIYAO, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our main product category includes: · Hydraulic cylinders and jacks· Hydraulic bolting tools such as hydraulic torque wrench· Hydraulic bolt tensioners, nut splitters.
