Prod Model: |
SED006 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Blade Material: |
Diamond |
Product Type: |
Hot Pressed Diamond Cutti |
Diameter Of Saw Blade: |
75-3500mm |
Finishing: |
Ti-Coated, Polishing |
Product Description

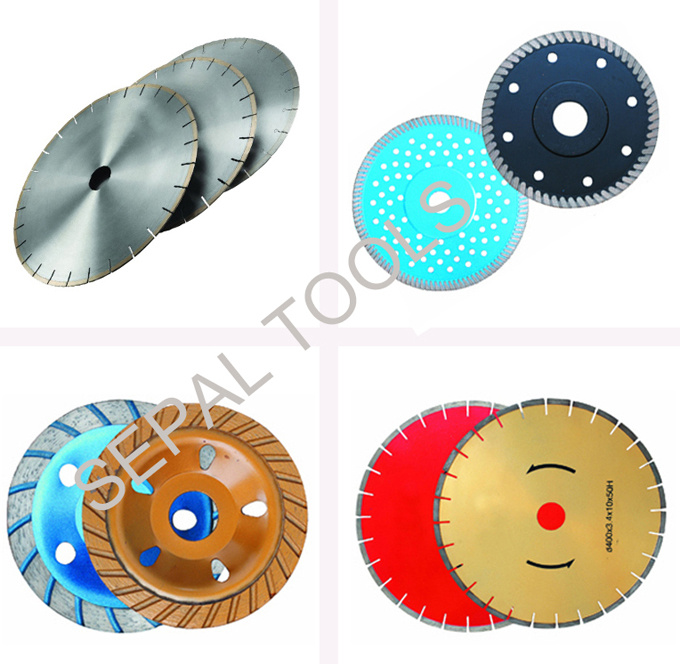

Circular Saw Blade-Diamond Saw Blade
Features:
DIAMOND SEGMENTED SAW BLADE (SINTERED FOR DRY CUTTING ) - Cold Pressed
SINTERED DIAMOND SEGMENTED SAW BLADES FOR DRY CUTTING(Hot Pressed)
1.Sharpness Saw blade, high efficiency and stable performance.
2.Mature production process.
3.Smooth cutting edge and fast cutting.
4.Different cutting material with different diamond grits.
Outer Dia. | | Inner Diameter (Hole) | | Segment Dimension | Segment | QTY/CTN (pcs) | N.W./ G.W. | MEASURE |
inch | mm | Metric (mm) | Inch | (T X H X L) | Number | pcs | kg | cm |
4" | 105 | 16/20/22.23 | 5/8", 20, 7/8" | 1.8x7.0x35 | 6or7or8 | 100*2 | 19/21 | 38×32×22 |
4.3" | 110 | 16/20/22.23 | 5/8", 20, 7/8" | 1.9x7.0x32.3 | 9 | 100*2 | 21/23 | 39×38×22 |
4.5" | 115 | 20/22.23 | 20, 7/8" | 1.9x7.0x38.3 | 8 | 100*2 | 21.5/23.5 | 45×32×22 |
5" | 125 | 20/22.23 | 20, 7/8" | 1.9x7.0x37.5 | 9 | 100*2 | 27/29 | 48×33×24 |
6" | 150 | 20/22.23 | 20, 7/8" | 1.9x7.0x33.5 | 12 | 100 | 19/21 | 48×46×18 |
7" | 180 | 22.23/25.4/30 | 7/8", 1", 1-1/5" | 2.2x7.0x35 | 14 | 50 | 17.5/18.5 | 23×23×33 |
8" | 200 | 22.23/25.4/30 | 7/8", 1", 1-1/5" | 2.4x7.0x39.2 | 14 | 50 | 21/23 | 27×40×31 |
9" | 230 | 22.23/25.4/30/50 | 7/8", 1", 1-1/5", 2" | 2.4x7.2x34.4 | 16/18 | 50 | 35.5/36.5 | 28×24×37 |
10" | 250 | 22.23/25.4/30/50 | 7/8", 1", 1-1/5", 2" | 3.0x7.5x37 | 16/18 | 20 | 15/18 | 27×27×14 |
12" | 300 | 22.23/25.4/30/50 | 7/8", 1", 1-1/5", 2" | 3.2x7.5x35 | 22 | 20 | 21/24 | 32×32×16 |
14" | 350 | 22.23/25.4/30/50 | 7/8", 1", 1-1/5", 2" | 3.2x7.5x40 | 24 | 10 | 18.5/21.5 | 37×27×8 |
Application:
Suitable for cutting various kinds of hard and brittle materials such as sandstone ,limestone ,cement ,asphalt ,granite ,marble ,ceramics ,concrete ,etc.
Advantage:
*Best material with advanced machines.
*Deformation will not happen after long time using.
*15 years experience, free consult service.
Packing Picture:
Payment and Delivery Terms: MOQ | 200pcs |
Lead Time | Within 15days after receiving your deposit |
Package | Carton, white board, color board, blister, double blister, color box, brown box, PVC bag, etc. |
Payment Terms | T/T,Western Union |
Feature | Longer working time and competitive price |
Service | Contact us at any time |
