Hardware and Tools Cutting Machine Laser Cutter
| Price: |
US $ 60000-170000Set |
| Min Order: |
1Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Cutting Head: |
Precitec/Raytools |
| Motor: |
Imported Servo Motor |
| Laser Source: |
Ipg/Raycus |
| Cutting Thickness: |
22mm CS, 12mm Ss |
| Position Speed: |
120m/Min |
Product Description

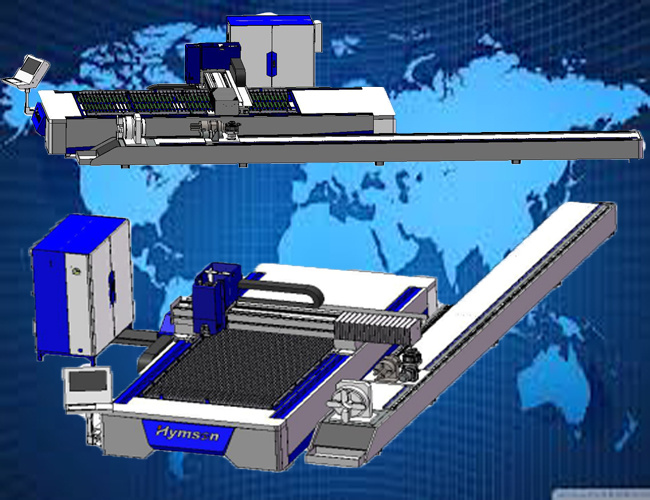

(HF3015A-6012P)Sheets and pipes fiber laser cutting machine
Information:Fiber laser cutting machine is designed for cutting of the laser equipment, applicable to all types of
Sheets and pipes (including precious metal), plating materials, coating materials, coating material and sheet cutting. Stable and reliable operation of the equipment, processing good quality, high efficiency, simple operation and easy maintenance.

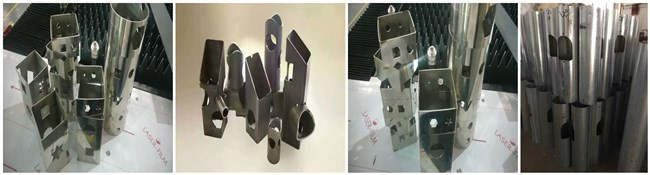

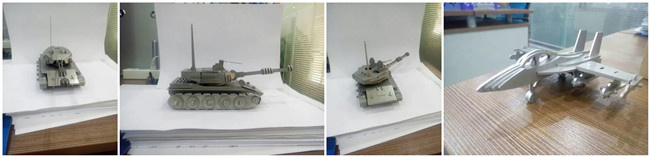

Sample:

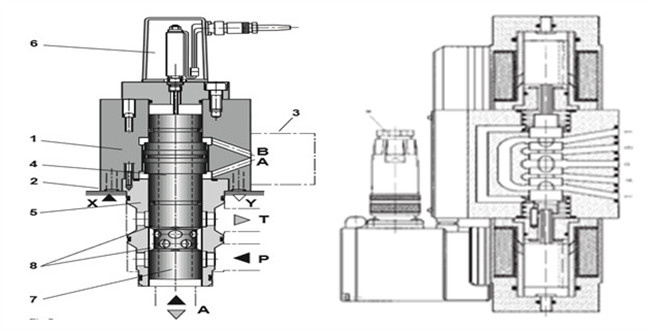

Fiber laser cutting machine with the advantages of proportional valve:☆Gas components imported from Germany Rexroth, AirTac and so on
☆Flexible: nitrogen, oxygen, air free choice
☆Low pressure cutting pressure is automatically controlled by the proportional valve
☆ Help improve the cutting process and high-quality cutting quality
☆ Special processing capacity: iron angle / thick plate holes
☆Reduce the manual adjustment work, improve production efficiency 30% to 50%
☆ Save 20% to 40% gas consumption
Fiber Laser Cutting Machine Advantage:(1) Fiber laser cutting machine is for metal precise cutting powered by fiber laser technology. The quality fiber laser beam results in faster cutting speeds and higher quality cuts compared to other cutting solutions. The key advantage of a fiber laser is its short beam wavelength (1,064nm). The wavelength, which is ten times lower than that of C02 laser, generates high absorption into metals. This makes the fiber laser become a perfect tool for cutting metal sheets of stainless steel, carbon steel, mild steel, aluminum, brass, etc.
(2) The efficiency of a fiber laser far exceeds traditional YAG or CO2 laser. The fiber laser beam is capable of cutting reflective metals with much less energy as the laser is absorbed into the metal being cut. The unit will consume little to no energy when not active.
(3) Another advantage of fiber laser is the use of highly reliable single emitter diodes with projected lifetimes greater than 100,000 hours of continuous or pulsed operation.
(4) ACCURL Laser software allows for the capability to control power, modulation rate, pulse width and pulse shape giving the user full control of the lasers capabilities.Why choose Hymson:1,We are factory of fiber laser cutting machine for 10 years,we believe we can produce a good quality mnachine for every of our customer.
2,
Quality is the life of our factory, We don't sell the lowest price machine, but we sell the best quality machine.3,
While we also supply free after we
service forever,We have very experience engineer 24 hours online, so any doubts, just usknow, we will give you solutions in 10 minuts. 4,Intelligent servo exhausting system for dust extraction and clean working.
5,Automatic proportional valve for better and high precision cutting! Max. 50% gas saving! 10% labor cost saving!
Specification: | Machine model | HF3015AP | Machine model | HF3015AP |
| Processing range | 3000mm*1500mm | Y axis stroke | 3020mm |
| Z-axis stroke | 110mm | X axis stroke | 2210mm |
| X/Y-axis positioning accuracy | ±0.03mm/m | Machine tool weight | About 6.3t |
| X/y axis repeatability accuracy | ±0.02mm | Max load | 400KG |
| X/y axis maximum linkage speed | 110m/min | Machine size | 8700*5000 |
| Max. acceleration | 0.6g | Main power supply protection rating | TP54 |
| Pipe cutting specifications (standards) | Φ30~φ120mm | Cutting thickness | Subject to the laser power
|
| Cutting stroke | 6000mm | Pipe cutting production max. length | 3000mm |
| Pipe cutting u-max speed | 50m/min | Cutting u maximum acceleration | 0.6g |
| Pipe cutting v-axis maximum speed of rotation | 150r/min | Pipe rotating v-axis acceleration | 0.2g |

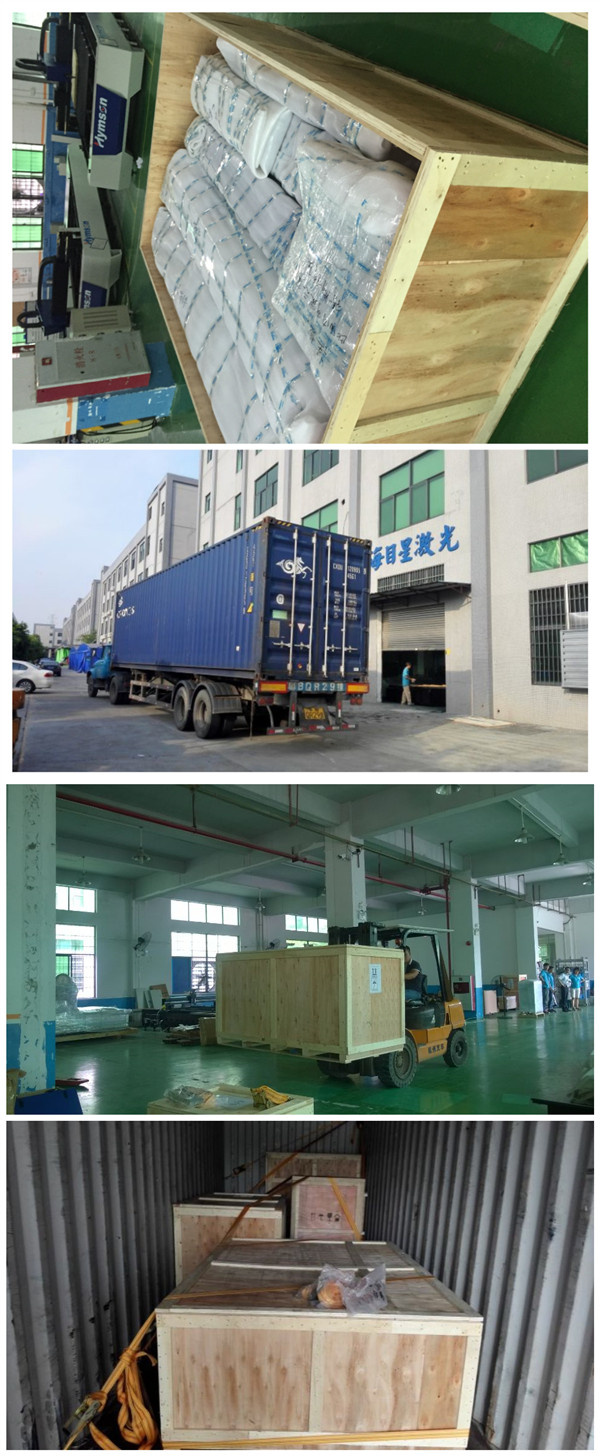

Packing:

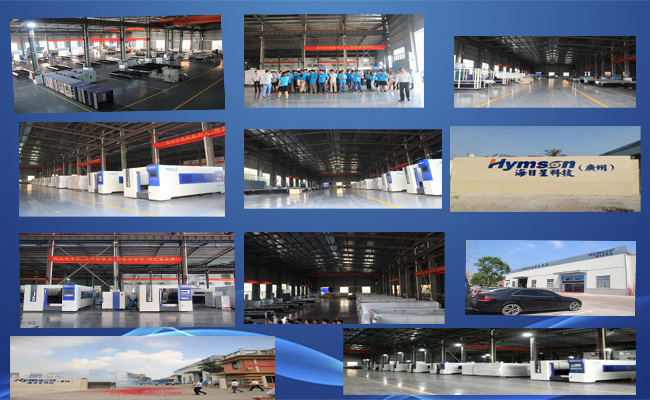

Workshop:
1. Hymson Group Profile
Hymson technology group is a world-wide famous high-tech laser industry group, founded in 2007, specialized on R&D laser and automation, owns many top patents of laser productions and its products are popular for all over the world and admired for its comfortable wealth creation. National high and new technology enterprise qualification authentication. Owning 12 innovation patents, 6 software copyrights. Owning hundreds of patents for utility model. SGS and ISO9001 authentication enterprise. Won the second prize in the nation's highest specification innovation entrepreneurship competition (Intelligent equipment first Prize/ First prize in Guangdong province.
Subsidiary Corporation:
ShenZhen Hymson Laser Technology Co. Ltd
800 workers, 20K sqm factory, producing Laser source, Laser Micromachining, Special Laser machines, Laser automation lines, lithium battery Laser system. etc.
GuangZhou Hymson Laser Technology Co. Ltd
200 workers, 10K sqm factory, producing Full ranges of rapidly laser cutting
Machine for many metals with a kerf less than 20um, alloy /carbon/stainless steel, copper, aluminum, for all sizes metal cutting from size 3000*1500mm, 4000*2000mm and 6000*2000mm, from laser power 500W till 6000W.
Anshan Hymson Laser Technology Co. Ltd
100 workers, 5K sqm factory, producing All kinds of marking machines, including UV/Green/Fiber/CO2/YAG laser marking machines for electronic components, IC, electrical appliances, mobile communication industry, hardware, tools, plastics, precision instruments, medical equipments/packings, PPVC pipe, jewelry, auto parts, etc.
2. The core technology team and management team
Abundant experience in Laser & Automation products for 15 years+.
Group has many prestigious advisors and professionals in this industry
Of China and talents with doctoral and master's degrees.
Team members are graduates from top International universities, with abundant experience in overseas companies or foreign companies.
Granted: Nearly 30 invention patents, nearly 100 utility model patents, nearly 50 software copyrights.
Annual investment in research funding take up 9% of total sales.
3. Hymson's Industry First
First manufacturer of inverter fully-auto assembly line in the world.
First manufacturer of air-cooled UV laser source in domestic. (Advancer in the world)
First manufacturer of portable laser machine in domestic.
Fist manufacturer of mylar packing automatic production line with vertical technology.
First manufacturer who use CAN communication system in auto-workshop.
4. Awards and honors
National hi-tech enterprise qualification
Shenzhen high-tech industry association (Members)
Guangdong province power industry association (Counselor)
Guangdong province laser industry association (Outstanding contribution award)
Shenzhen advanced manufacturing association (Vice-chairman)
Hong Kong metal surface treatment society (Members)
Shenzhen machinery industry association (Counselor)
5. Advantage and solutions of Hymson laser cutting machine
Widely application service engineering mechanical, and building mechanical, and food processing mechanical, and textile mechanical, and light mechanical, and agricultural machinery, and oil mechanical, and electrical manufacturing, and tool manufacturing, and elevator manufacturing, and car manufacturing, and printing packaging, and decorative, industry, applies Yu Banjin, and pipe, and plexiglass, and template, and rubber, and ring oxygen glass Silk Board, synthesis material of cutting, and playing hole, achieved has in above industry of no die efficient of of production processing and in Stable & High efficiency & Intelligent,
6. Parts of Business parters
Apple, Foxconn, Huawei, Flextronics, Emerson, ZET, Delta, Foxlink, TDK, LENS TECHNOLOGY, ATL, GoldenSea, CIMC, etc.
7. Key Supplier
IPG, Beckhoff, Atlanta, Schneider, Precitec
