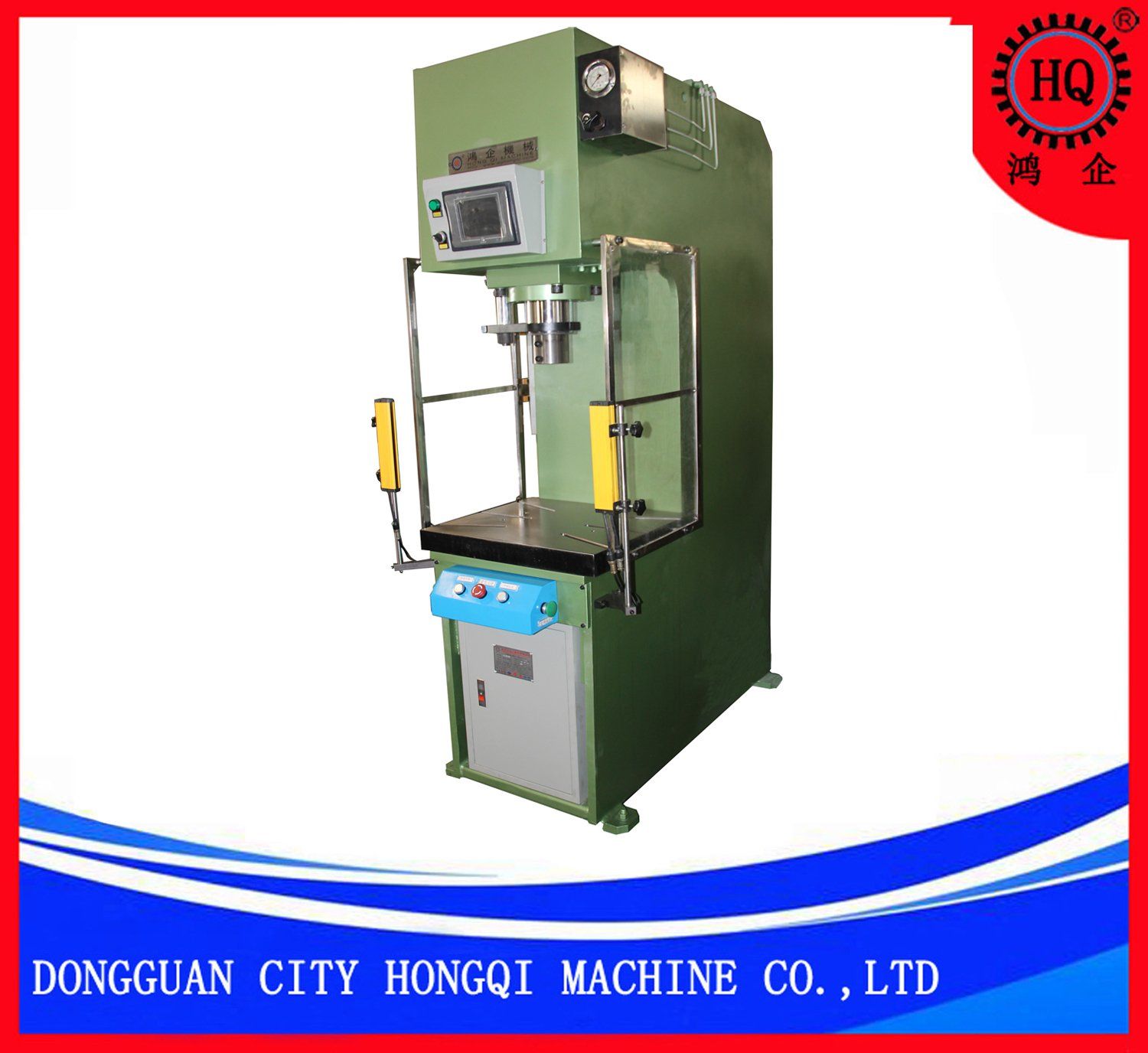

Hardware Fittings Processing Machine
| Price: |
US $ 1000-20000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal |
| Prod Model: |
HQPR-20T |
| Pipeline: |
Taiwan High Voltage Pilpeline |
| Oil Seal: |
Japan Nok |
| Battery Valve: |
Taiwan Hytac |
| Oil Pump: |
Taiwan Hytac |
| Motor: |
Taiwan Chyun Tsen |
| PLC: |
Japan Mitsubishi |
| Human-Computer Interface: |
Tanwan Weinview |
| Push Button Switch: |
Siemens |
| Main Electronic Parts: |
HK Aiks |
| Main Voltage: |
380V*50Hz |
Product Description
Features and characteristics for hardware fittings processing machine- Precision structure,uniform load,eliminated innerstress
- Infrared ray to protect,high safety ,operation is convenient.
- Integrated type oil hydraulic circuit design, simple pipeline,and the press plate prevent fall back and with the function of overload,working press can adjust stepless
- Operation mode divide into automatic control and hands control
- Press plate two-stage speed to control,first, rapid down,second,slow speed to add pressure
- Machine route range can no period of adjustment
- Both hands button control press plate go up and go down,prevent single hand to operate and various operate function,can automatic counting productivity
- can accord with manipulator,automatic feeder to constitude automatic production line
- Control method using PLC+man-machine
- Apply to various hardware fittings processing, mobile phone parts die cutting,electron products punching molding,metal products molding,strentch etc,apply to pressure casting product's side cutting
Technical parameters for hardware fittings processing machine| Model | Press ability | down table size | die hole diameter | table height | Power | Max opening | Max route | throat depth | speed(mm/sec) |
| TON | mm | φmm | mm | HP | mm | mm | mm | up | down | add pressure |
| HQC-5TD | 5 | 450*360 | 38 | 750 | 5 | 350 | 250 | 175 | 150 | 190 | 12 |
| HQC-10TD | 10 | 500*400 | 38 | 750 | 5 | 500 | 350 | 200 | 150 | 190 | 12 |
| HQC-20TD | 20 | 600*400 | 38 | 750 | 7.5 | 500 | 350 | 200 | 150 | 190 | 12 |
| HQC-30TD | 30 | 600*400 | 38 | 750 | 7.5 | 500 | 350 | 200 | 150 | 200 | 10 |
| HQC-60TD | 60 | 600*400 | 38 | 750 | 7.5 | 700 | 500 | 200 | 150 | 200 | 10 |
| HQC-100TD | 100 | 800*600 | 38 | 900 | 10 | 700 | 500 | 300 | 150 | 200 | 10 |

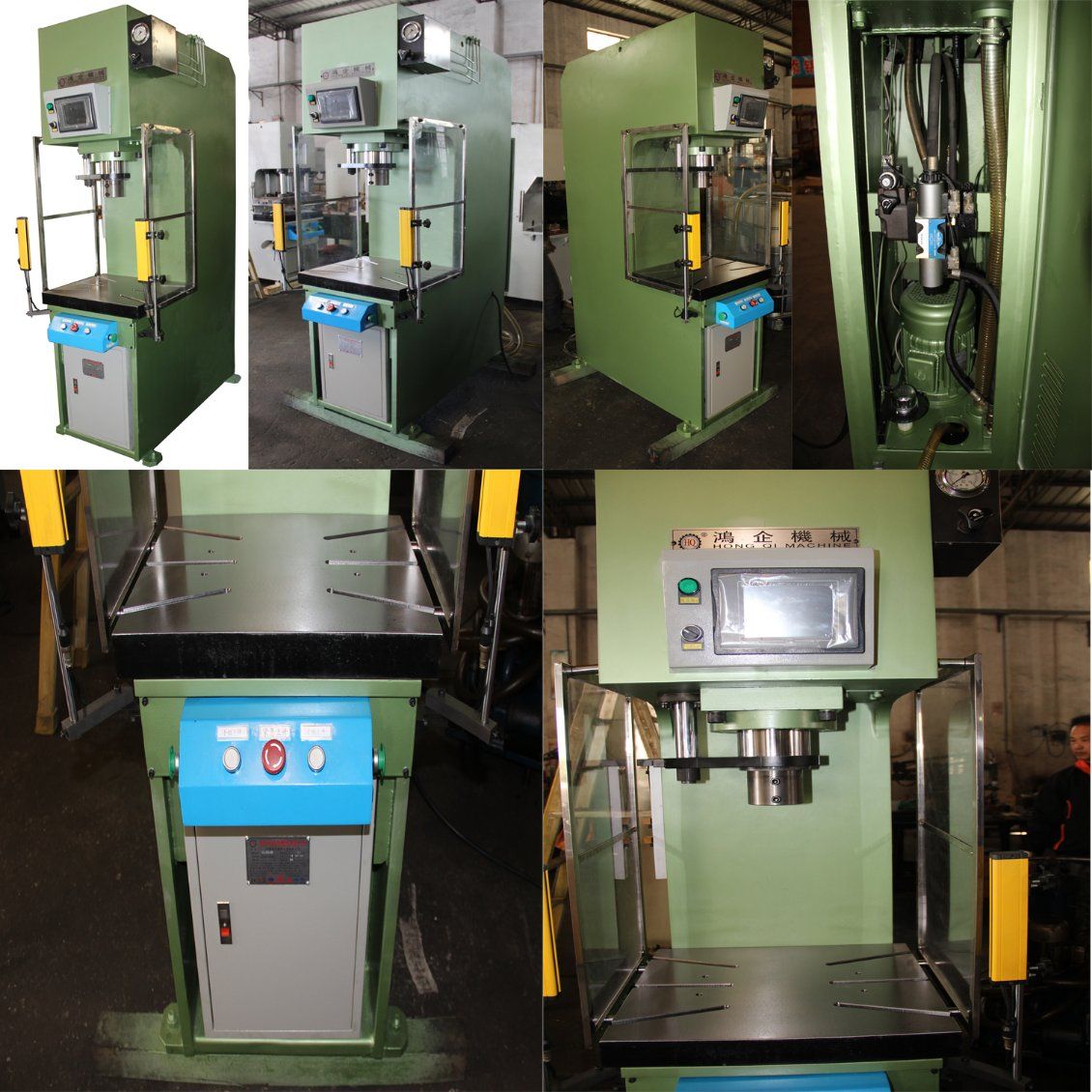

Details for hardware fittings processing machine
Packing and transportation for hardware fittings processing machine
Applicable products for hardware fittings processing machine
Guarantee & after sale service
1) Guarantee for 1 year exluding consumable parts .Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) when receiving the your deposit, we will prepare machine for you,it will spend 15-30days to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.
4) Free installation and fully test before sending and free training for operators
FAQ for hardware fittings processing machine1, How to pay to you for hardware fittings processing machine?
T/T inadvance or by Paypal . We can accept 30% deposit , and balance paid before delivery machine to you .
2, How long is the delivery time for hardware fittings processing machine?
For standard machines, it would be 5-7 days; For non-standard machines and customized machines according to client's specific requirements, it would be 30-60 days.
3, Do you arrange shipment for hardware fittings processing machine?
Yes, dear esteemed customers, for FOB price, we will arrange shipment for you. For EXW price, you need to arrange shipment by yourselves or your agents.
4,How about the documents after shipment for hardware fittings processing machine?
After shipment, we'll send all original documents to you by DHL or Tele-Release, including packing List, commercial invoice, B/L, and other certificates as required by clients.
5, How is the packing for hardware fittings processing machine?
Waterproof plastic film package with foam protect in each corner
Solid Seaworthy Wood Box Package
Save space as much as possible for container loading .
VIDEO:
FOR MORE MACHINE INFORMATION, PLEASE VISIT OUR WEBSITE: www.dghongqi.com
Tips for hardware fittings processing machine1.We are factory to make punching maching,die cutting machine ,hydraulic machine for several years. It's reliable and experienced Supplier .
2.we accept OEM and ODM,if you have any requirements of the machine, pls let me know and will be made as your specifications
3.We have After-sales team to help you to solved machine problem at first time .
4.The machine warranty 1 years except consumable parts.different machine have different price . Our machine quality are assurable.We look forward to cooperate with and welcome to visit our factory !
Dongguan City Hongqi Machine Co., Ltd was established in 1995, the national high new technology enterprise, the company is the development, production and sales company based on hydraulic machine, precision punching and automatic die cutting machine. Hydraulic fittings are used by world famous brands like Japanese(YUKEN), Germany(Rexroth), USA(SUNNY), Italy(ATOS), Taiwan(PPt) and so on, also electronics accessories are Japan(Mitsubishi), Germany(Siemens). Italy, France and Taiwan's major supplier(for customer to choose). The products are 3-200 tons precision hydraulic press machine, 3-3000 tons general hydraulic machine, FPC rapid pressure machine and accept OEM and ODM.
EP precision punching and Type C single station, double-bit precision punching machine can be processed: PET, PCB, FPC, protective film, double sided tape, thin copper, aluminum and other electronic materials. Can be broken half and all punching, the accuracy can be controlled in 0.01mm. For electronics, automotive, appliance, hardware, footwear, sports, rubber and plastics industry of spare parts processing. Ordinary hydraulic machine for all kind of hardware products, stereotypes, drawing, auto parts catagory assembly, stamping, molding. Machine perforance is stable, efficient, energy saving, environmental production. While the company offers special plane design, equipment maintenance, spare parts and other service.
Our customer inclued Honda, DJK, MINTH, MFLEX, O-film, HFOXCONN, Midea, BAOSTEEL, SUMSUNG, DEREN, Lenovo, Toyota, FLEXTRONICS, FAW-Volkswagen and so on. Our productivity can be made 1000-2000PCS per year and the total amount of sales is $2.5 million-5 millons.
Welcome to visit our factory and wll provide best service for you!
