| Prod Model: |
201 |
| Lenghth: |
6 M or According to Customer's Demand |
| Monthly Output: |
5000 Tons |
| Surface Finish: |
Polish Finish,Satin Finish,Hairline Finish |
| HS Code: |
73064000 |
| Type: |
Stainless Steel Pipes |
| Standard: |
EN |
| Grade: |
300 Series |
| Certification: |
JIS |
| Shape: |
Round |
| Technique: |
Cold Rolled |
| Surface Treatment: |
Polished |
Product Description

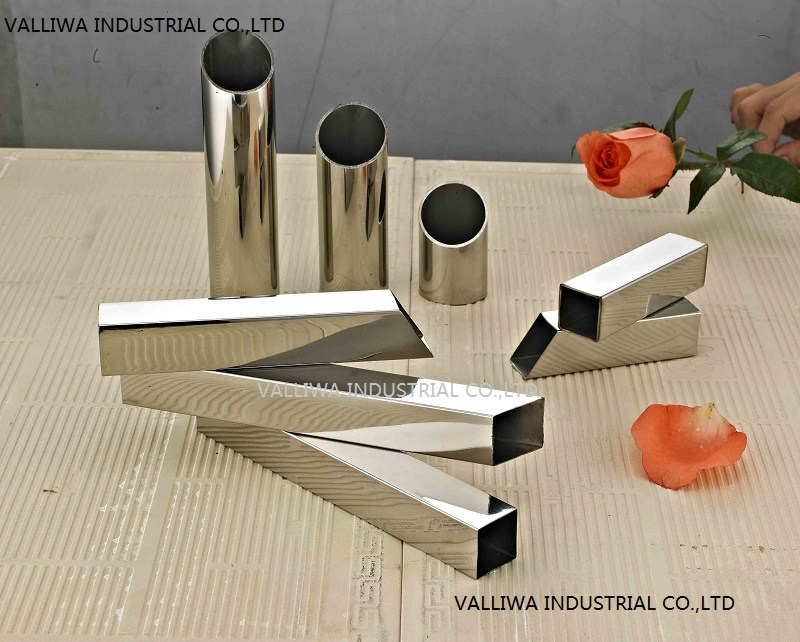

Hardware with steel tube
1) Material of stainless steel: 304,316L, 202, 201,430, 410 .
2) Specification for stainless steel
Sizes for round stainless steel pipe:
OD(mm):9.5, 12.7, 15.9, 17, 18, 19.1, 20, 21, 22.2, 23, 25.4, 28, 31.8, 35, 38.1, 48, 50.8, 60, 63.5, 63.5, 73, 76.2, 88.9, 101.6, 114, 127, 129, 133, 141, 159, 168, 175, 191, 203, 207.
Sizes for Square Stainless Steel Pipe:
10X10 ; 12X12; 12.7X12.7; 14X14; 15X15; 16X16; 17X17; 18X18; 19X19; 20X20; 23X23; 25X25; 28X28; 30X30; 31.8X31.8; 35X35; 36X36; 40X40; 50.8*50.8; 60X60; 80X80; 100X100;
Size for Regtangular Stainless Steel Pipe:
20X10 ;23X11;25X13;30X10; 30X15; 30X20; 36X23; 38X25; 40x10; 70x10; 90x10; 40x20; 50x25; 50x30; 60x30; 60x40; 73x43; 75x45; 80x40; 95x45; 50x100; 100x110; 100x120; 120x60; 150x50; 100x150; 40x210; 50x200; 120x130; 150x60
3) Thickness(mm): 0.3 - 3.0.
4) Length: 6m, 5.8m or Cutting available upon request
5) Tolerance:
OD: +/-0.2mm
Thickness: +/- 0.05mm
Length: +/- 5mm
6) Standard: ASTM, Jin, GB.
7) Finish: 2B ,Mirror, No.4 , Polish, Hairline and Satin Finish.
8) Application: Construction, upholstery, industrial instrument, automobile

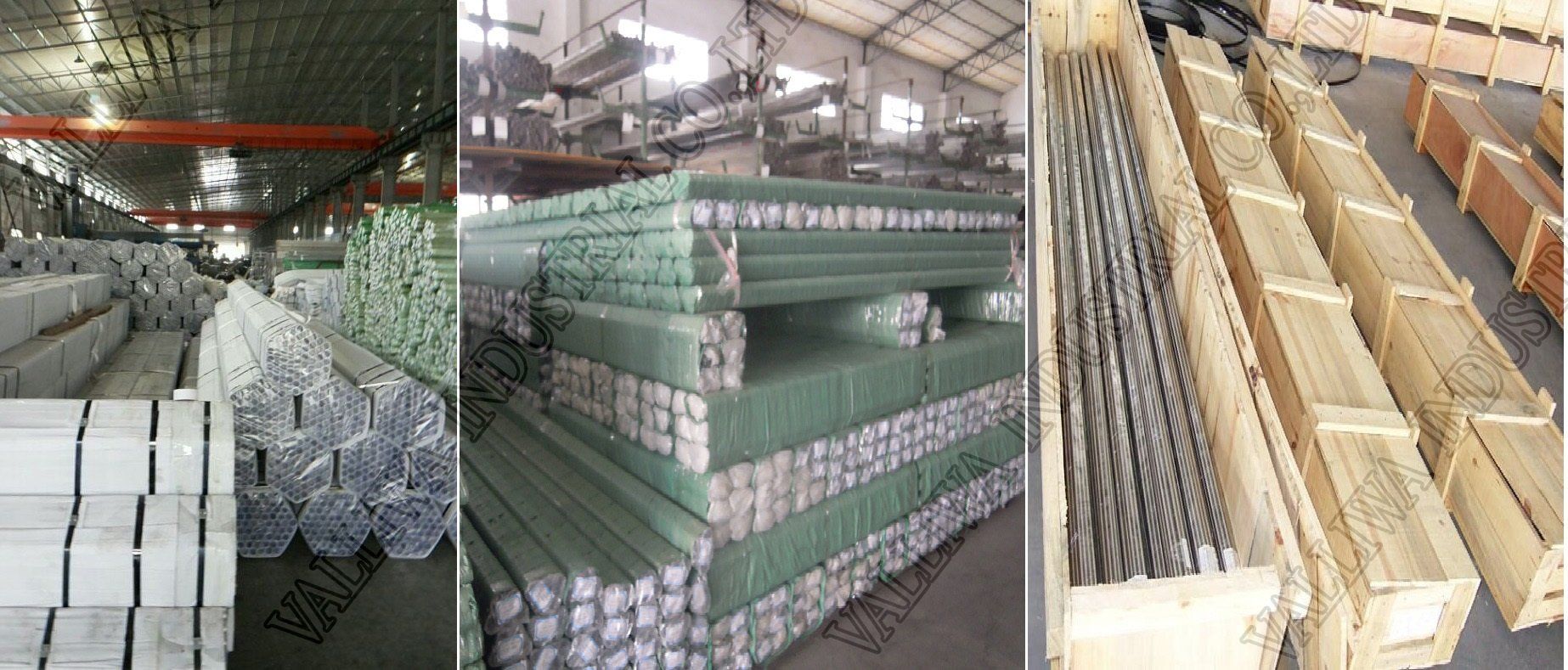

9) Inner packing: Plastic bag inner, outer: Weaving bag or carton, wooden crates, or according to customers' request.
The Factory for Stainless Steel
| Name | Stainless Steel Tubes&Stainless Steel Pipes |
| Standard | ASTM A554, A249, A269 and A270, A312 |
| Material Grade | 201 ( Ni 0.8%),
202 (Ni 3.5%~4.5%),
301(Ni 5%)
304 (Ni 8%, Cr 18%),
316 (Ni 10%, Cr 18%),
316L (Ni10%~14%),
|
| Outer Diameter | 6mm--159mm |
| Thickness | 0.3mm - 3.0mm |
| Length | 6m or as customers' request |
Tolerance | a) Outer Diameter: +/- 0.2mm |
| b) Thickness: +/- 0.02mm |
| c) Length: +/- 5mm |
| Surface | 180G, 320G, 400G Satin / Hairline
400G, 500G, 600G or 800G Mirror finish |
| Application | Decoration construction, upholstery, industry instrument |
| Test | Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT |
Chemical Composition of Material | Material
Composition | 201 | 202 | 304 | 316 | 430 |
| C | ≤0.15 | ≤0.15 | ≤0.08 | ≤0.08 | ≤0.12 |
| Si | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 |
| Mn | 5.5-7.5 | 7.5-10 | ≤2.00 | ≤2.00 | ≤1.00 |
| P | ≤0.06 | ≤0.06 | ≤0.045 | ≤0.045 | ≤0.040 |
| S | ≤0.03 | ≤0.03 | ≤0.030 | ≤0.030 | ≤0.030 |
| Cr | 16-18 | 17-19 | 18-20 | 16-18 | 16-18 |
| N | 3.5-5.5 | 4-6 | 8-10.5 | 10-14 | |
| Mo | | | | 2.0-3.0 | |
Mechanical Property | Material Item | 201 | 202 | 304 | 316 |
| Tensile Strength | ≥535 | ≥520 | ≥520 | ≥520 |
| Yield Strength | ≥245 | ≥205 | ≥205 | ≥205 |
| Extension | ≥30% | ≥30% | ≥35% | ≥35% |
| Hardness (HV) | <253 | <253 | <200 | <200 |

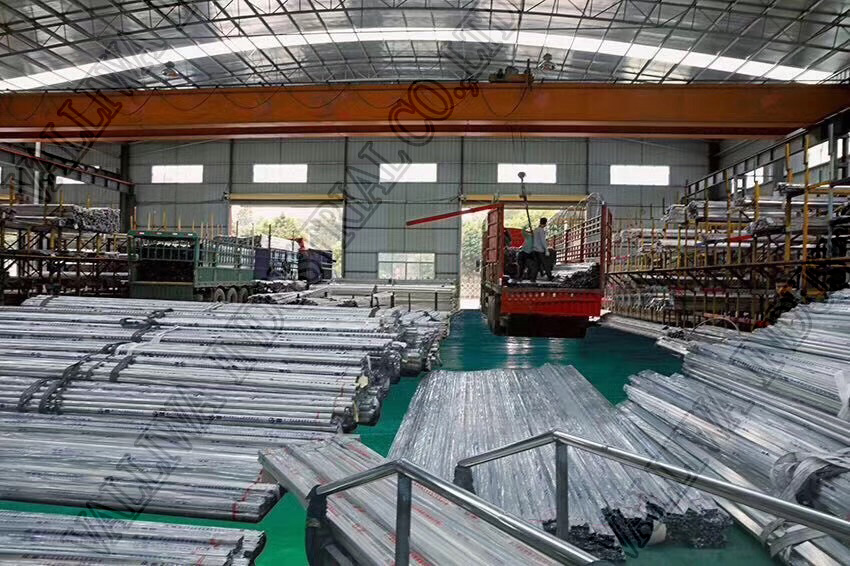

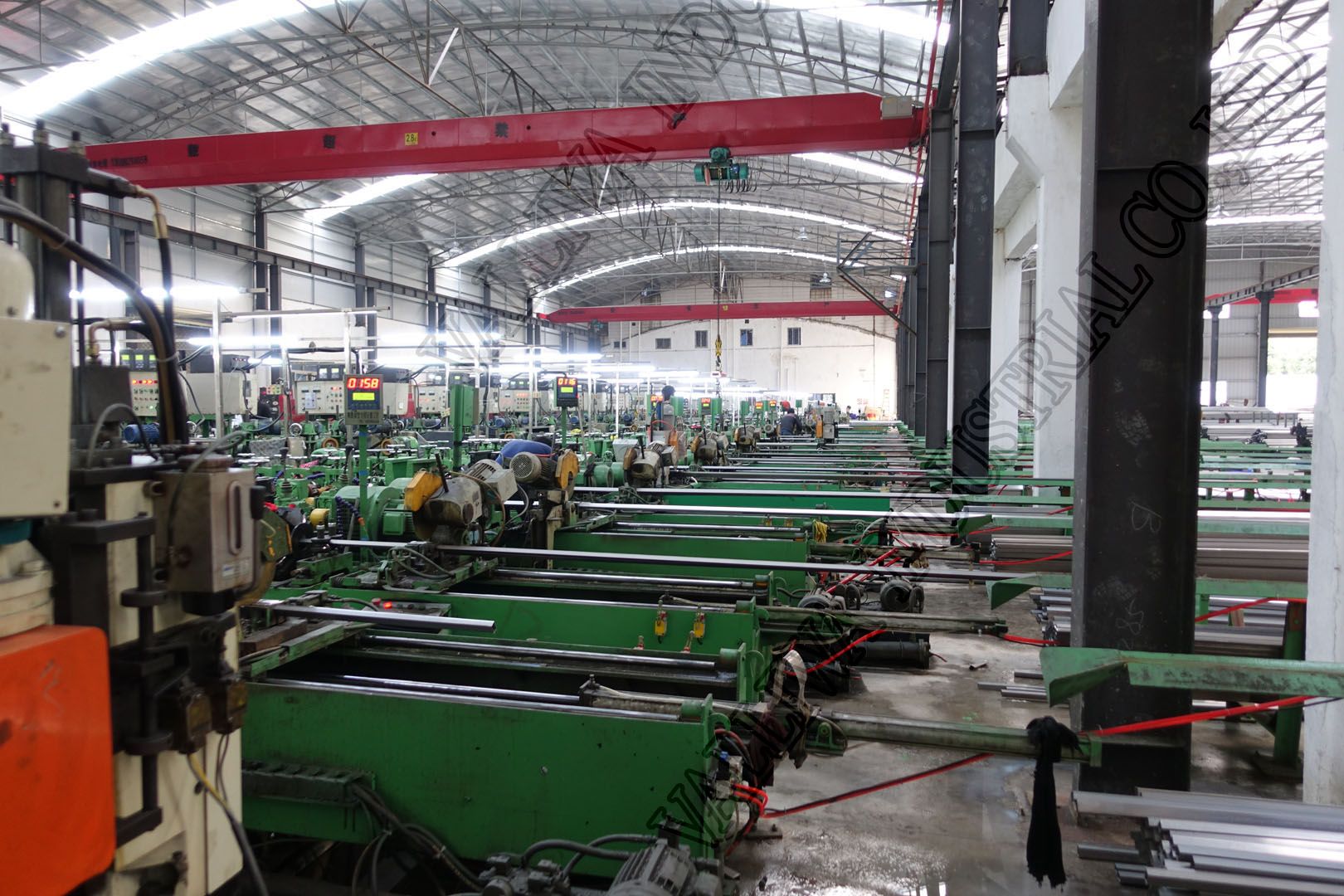

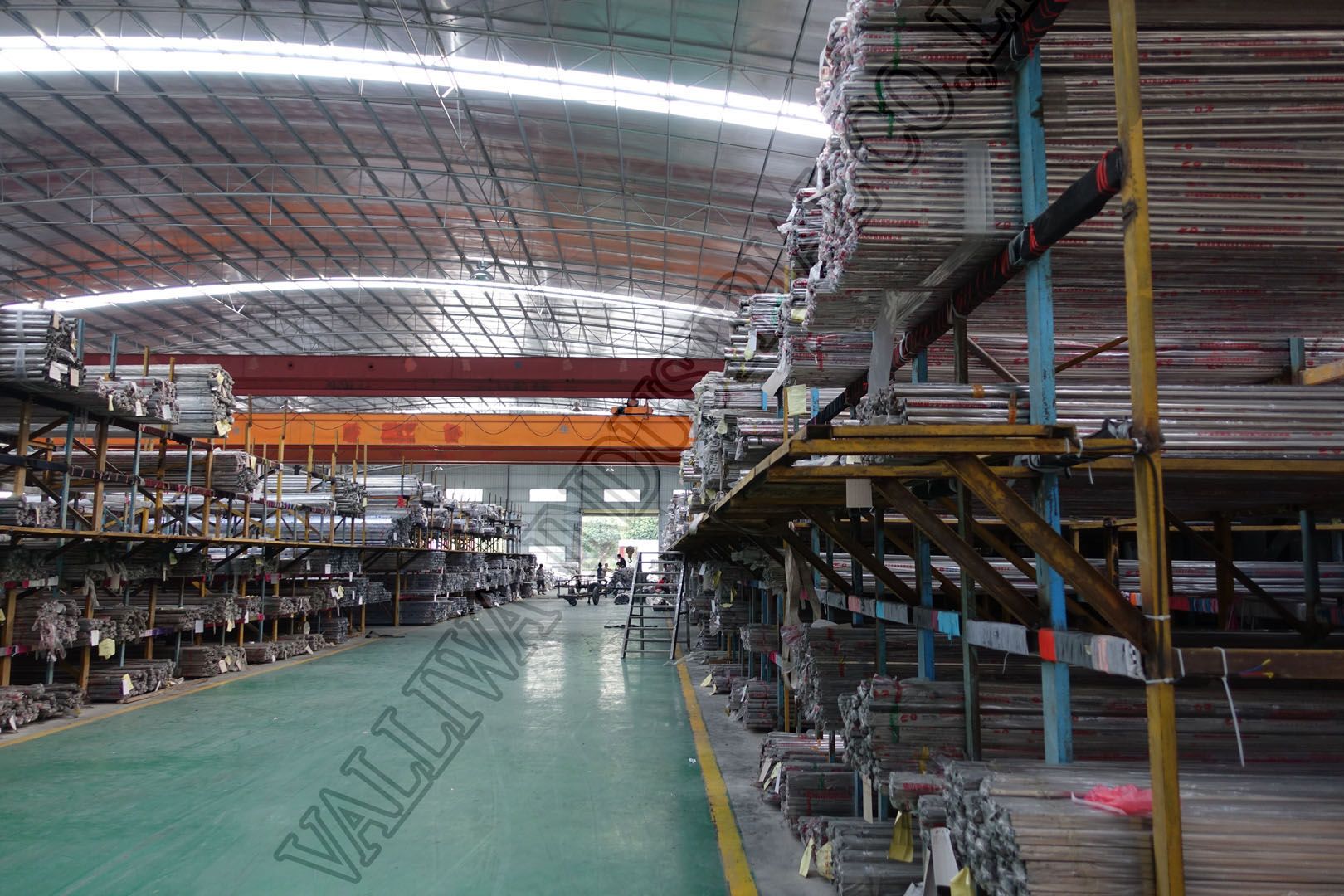

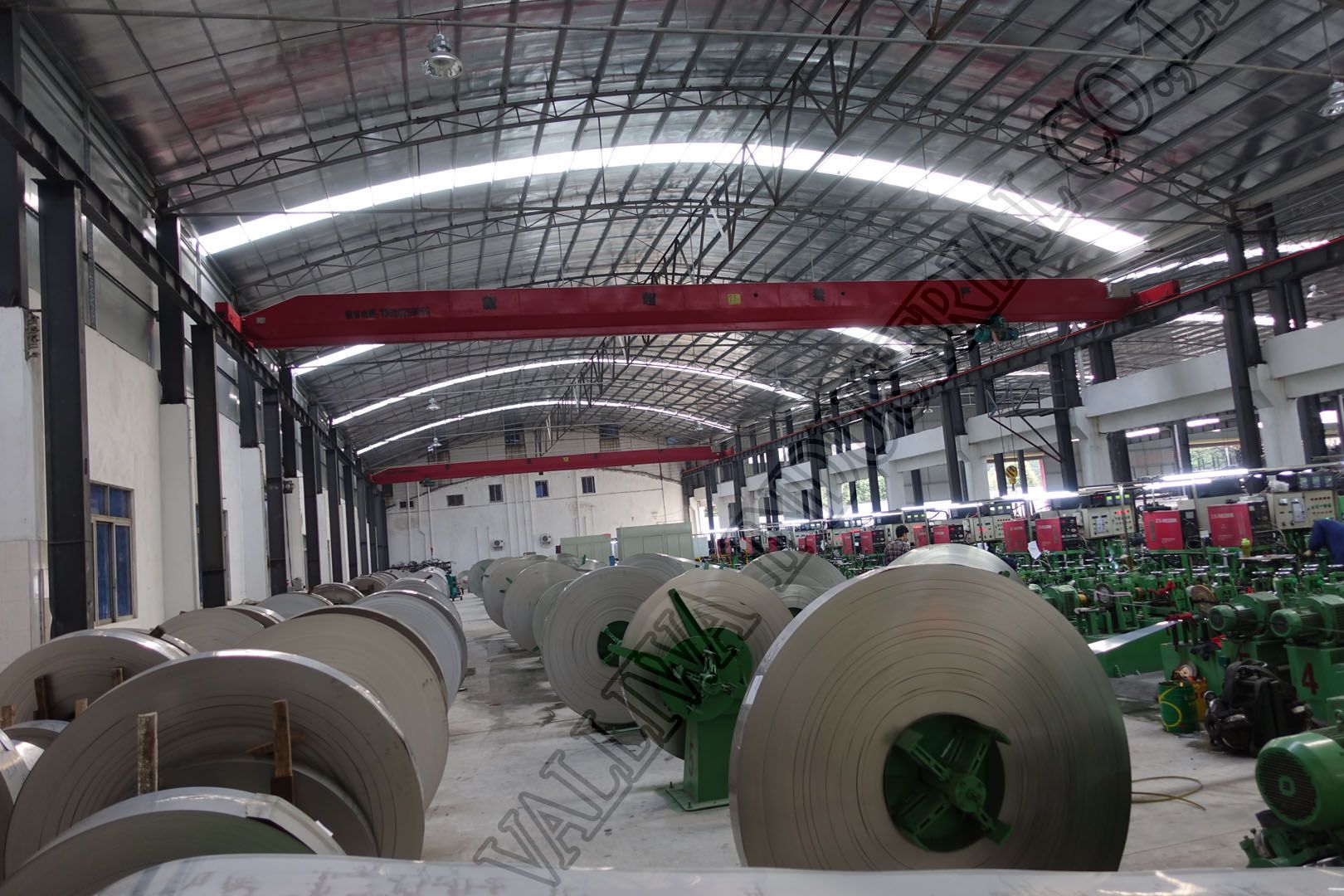

Foshan Valliwa Stainless Steel Co., Ltd. is located in Can Chen town, Foshan city, Guang Dong province and was founded in 2007 with a factory area of 5000 square meters and over 200 personnel for professional design, production and marketing.
After years of development, Valliwa has already big enough to establish multiple processing factories, specializing in the production of stainless steel decoration, including the material types of AIS/SUS304; AISI/SUS316L; AISI/SUS430; AISI/SUS410; AISI/SUS201; AISI/SUS202 and so on. The thickness scale is from 0.3mm to 3.0mm. The Standard Sizes include 1000mmX2000mm; 1219mmX2438mm; 1219mm X 3048mm.
Valliwa steel Factory is equipped with line of Hair Line finish, line of No. 4 finish and satin finish; High-temperature electrical Vacuum Coating Equipment, etched machines and sand blasting machine. Valliwa mainly produce color Stainless Steel, Titanium Coating Stainless Steel plate, sand blasting Stainless Steel plate, etched Stainless Steel plate, fingerprint-proof Stainless Steel Plate. The color include: Golden, Sapphire blue, Bronze, Rose Golden, Purple, Champagne, Brown, coffee, Silver and Black. Shunwei is a real expert in the color Stainless Steel Industry and has many years of professional experience in color Stainless Steel Surface processing.

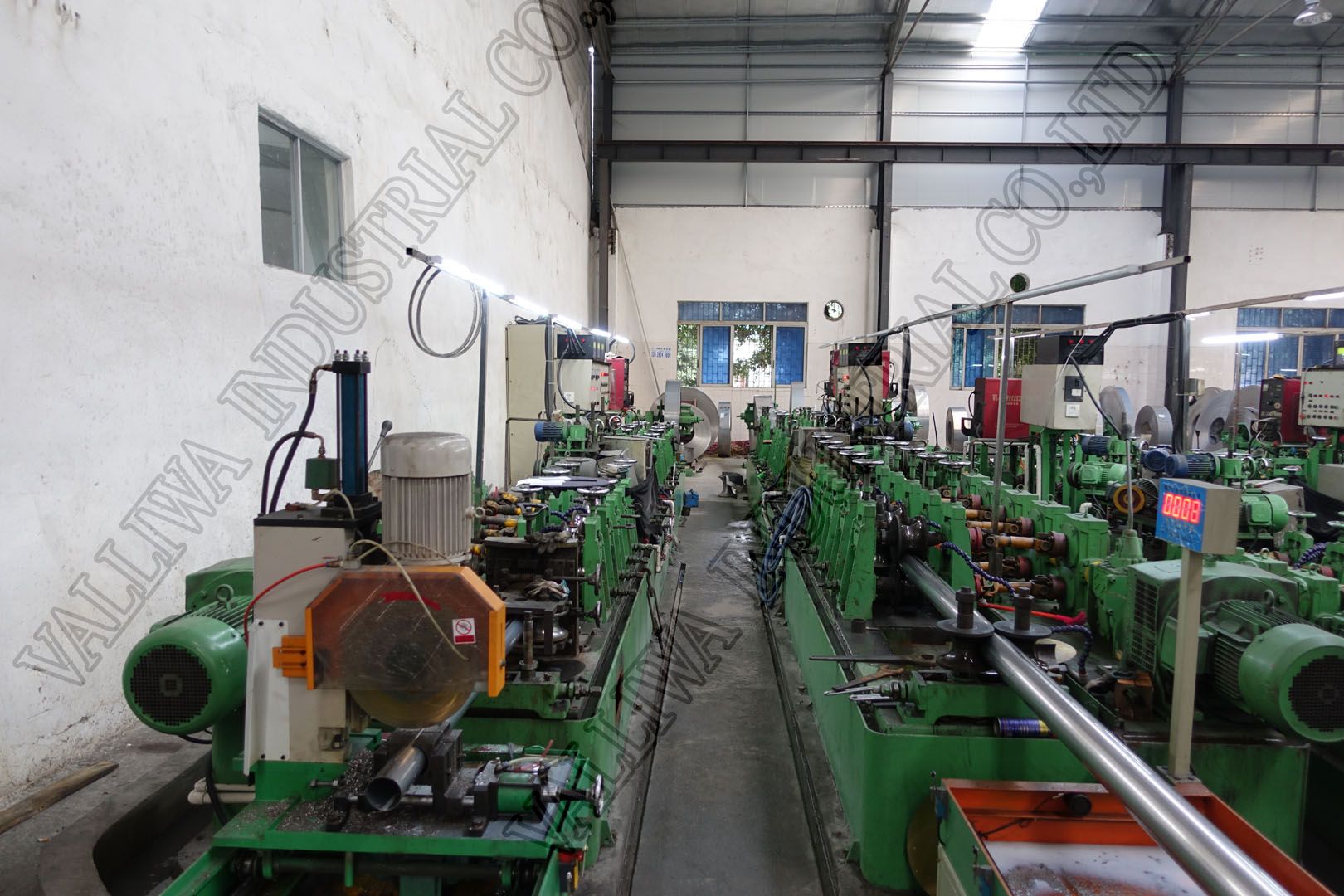

We also have another factory named Mei Hong Guang Stainless Steel Co., Ltd. is professional manufacturer of stainless steel welded tubes & pipes with all kinds, including round, square, rectangular, slot, empaistic, threaded tubes & pipes in different sizes and grade 201, 202, 301, 304, 316, 316L, 430, 410s etc. The products are up to standard of GB, ISO, ASTM, JIS, BS, DIN, AISI, etc. They are widely used in decoration, paper making, chemicals, metallurgy, medicine, furniture, automobile parts and other industries.
Outer Diameter range: 9.5-219mm, Wall-Thickness: 0.28-3.0mm for Round pipes, Square pipes, Rectangular pipes, Embossed pipes, Hairline pipes(Drawing Pipes) other products of various specifications.
Therefore, our products sell well in North America, Europe, Brazil, Korea, Indonesia, Thailand, Viet Nam.
Based on the south of China, Covering all over the country, going towards the world with the advanced manufacturing equipment, high grade talent, Valliwa have the big competitive advantages. We are willing to build the steel Empire with all walks of life.
