Hc-400 Manual Dicing/Cutting Saw for Lab Equipment
| Price: |
US $ 99-1999/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
HC-400 |
| High: |
Speed |
| Material: |
Quality Control |
| Lab: |
The University |
| Used: |
No,It Is New |
Product Description

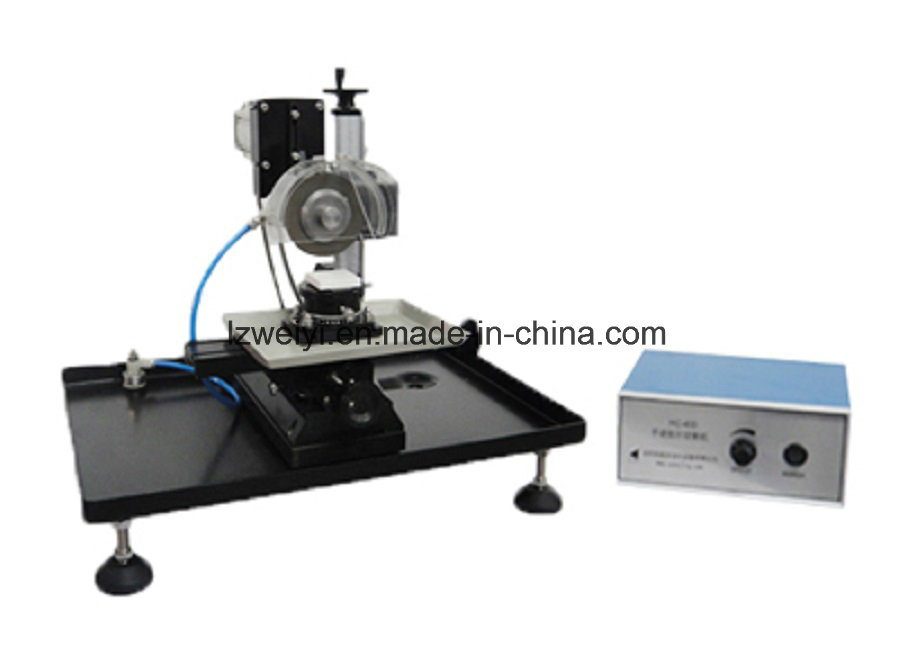

| Model: | HC-400 Manual Dicing/Cutting Saw |
Brief
Introduction: | HC-400 Manual Dicing/Cutting Saw can be used for dicing and cutting all kinds of materials, depth can reach to 1inch. HC-400 accuracy can reach to 0.02mm, Sample's platform can rotate 360°, equip with cross vise(90°Positioning model). This machine can manual control X,Y,Z-axis cutting capacity, easy to operate. |
| Main Feature: | High precision processing, quickly use, easy to operate, low cost. |
Technical
Parameter: | 1. DC motor power:120W, stepless speed adjustable, speed range: 50-3000RPM,Voltage: 220V-240V/AC.
2. X, Y and Z-axis Max. travel distance X=8inches (200mm), Y=6(150mm)inches, Z=4inches(100mm)
3. Sample's platform can rotate 360°
4. 3 sets Blade clamps:Φ90mm,Φ62mm,Φ48mm |
| Specification: | Size:570mm×400mm×500mm Weight:37kg |
Standard
Accessories: | | 1 | Electroplating diamond blade:Φ100×12.7×0.4mm | 2pcs | | | 2 | Full sintered Diamond BladeΦ100×12.7×0.35mm | 1pc | | | 3 | Vacuum chuck | 1set | | | 4 | Cross vise | 1set | | | 5 | Aluminum Plate | 2pcs | | | 6 | Steel plate for holding samples | 2pcs | | | 7 | Blade clamps | 3set | | | 8 | Wax | 4pcs | | | 9 | Resin ceramic block | 2pcs | |
|
