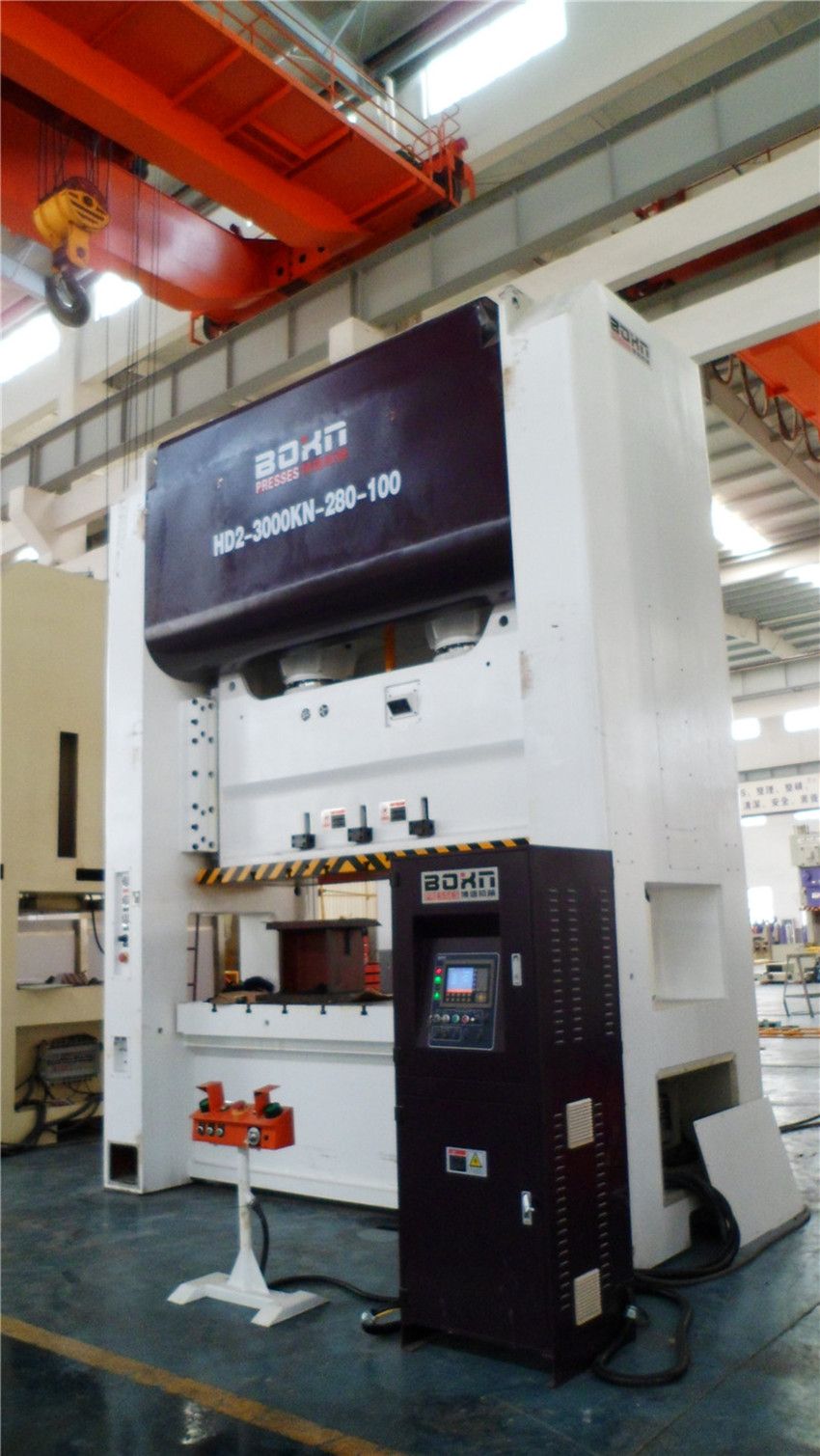

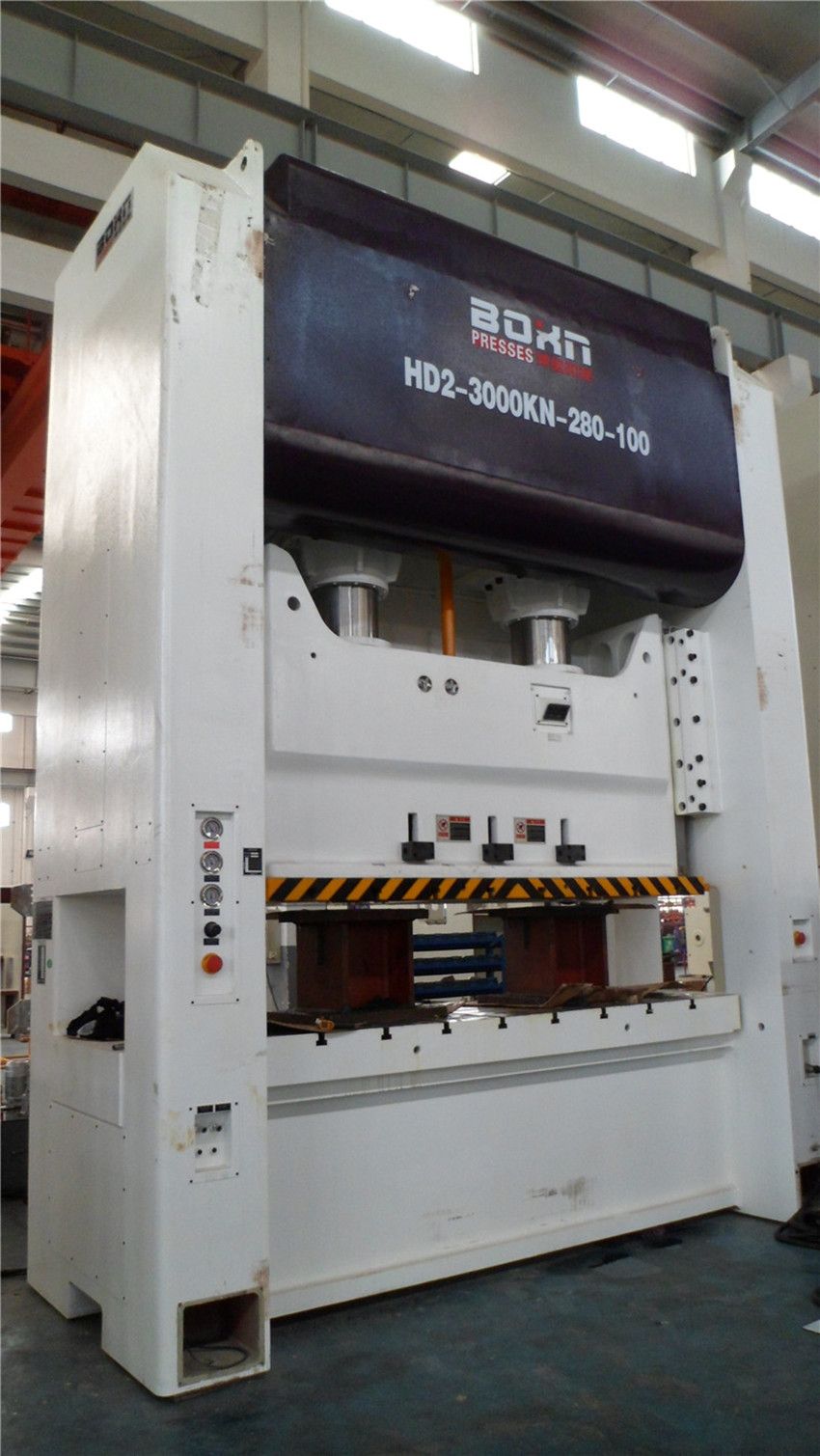

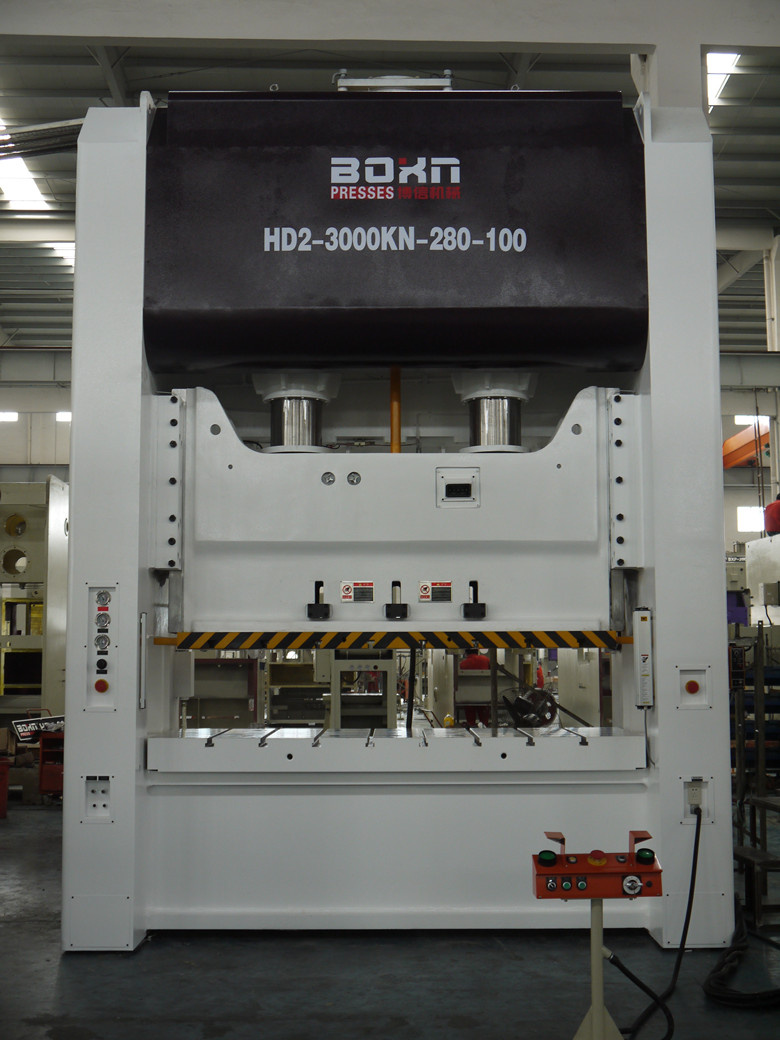

HDP-300 Plunger Straight Side Double Point Power Press Machine

HDP-300 Plunger Straight Side Double Point Power Press Machine
Price: US $ 120000/Piece
Min Order: 1/Piece
Pay Type: T/T
Prod Model: HDP-300
Certificate: TUV
Exporting Country: The Only Brand in China Keeps Exporting to America
Zhejiang Made: The One and Only Zhejiang Made Presses Brand
Stroke: 300mm
Die Height: 550mm
Spm: 20-35
Slide Adjust: 120mm
Bolster Size: 3200*900*190mm
Slide Size: 3400*1000*190
Main Motor: 22 Kw
Type: General Punching Machine
Automatic Grade: Automatic
Power Source: Electric
Precision: High Precision
Controlling Mode: PLC

Product Description

Straight Side Double Point Crank Press (H2 Series 110 ton to 600 ton )

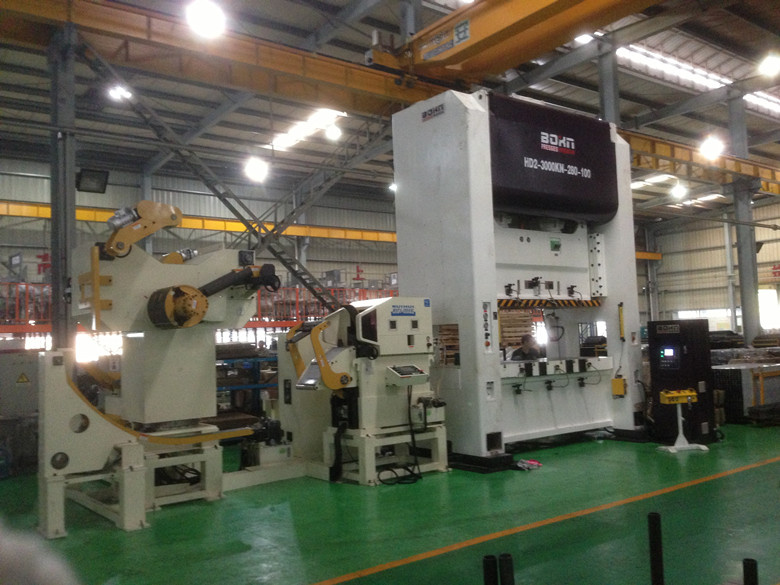

This model adopts design of central driving and 8-point guided slide that increase eccentric loading capability by 20%. It is applicable for blanking, punching, bending and forming process of large multi-process thin panels, which can even work independently, connectively or paired up with the transfer device for production over the whole line.




Features
  • Designed with strong frame for minimal deflection enhance machine durability with accurate parts.Design makes it easy to integrate automation.
  • Excellent performance in automatic feed, progressive die or single stroke applications.
  • The H2 slide is guided with 8-point guided slide and adjusted with eccentric bolts.
  • Stand-alone operating console, intuitive read outs and easy to use, convenient, controls.

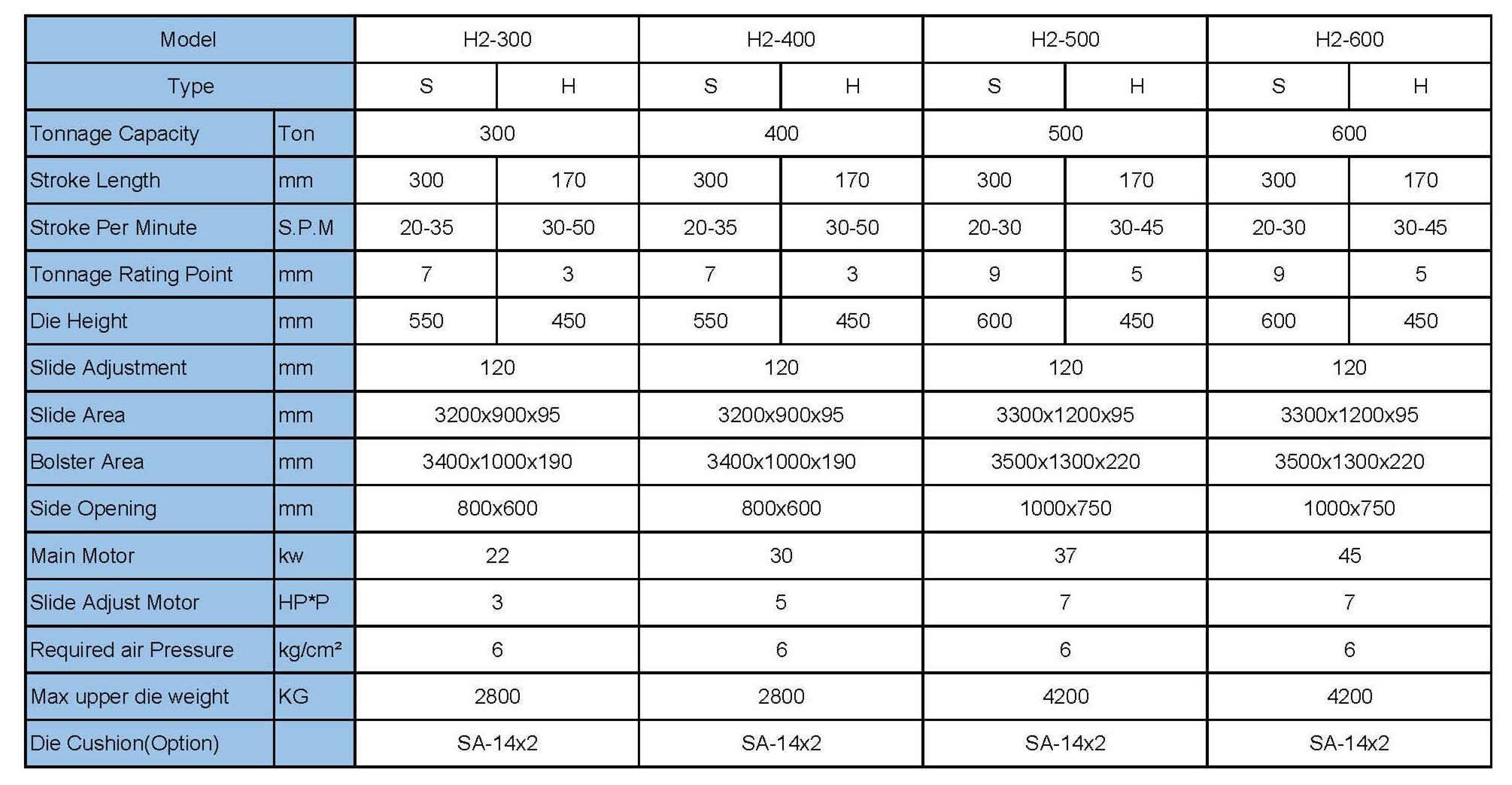

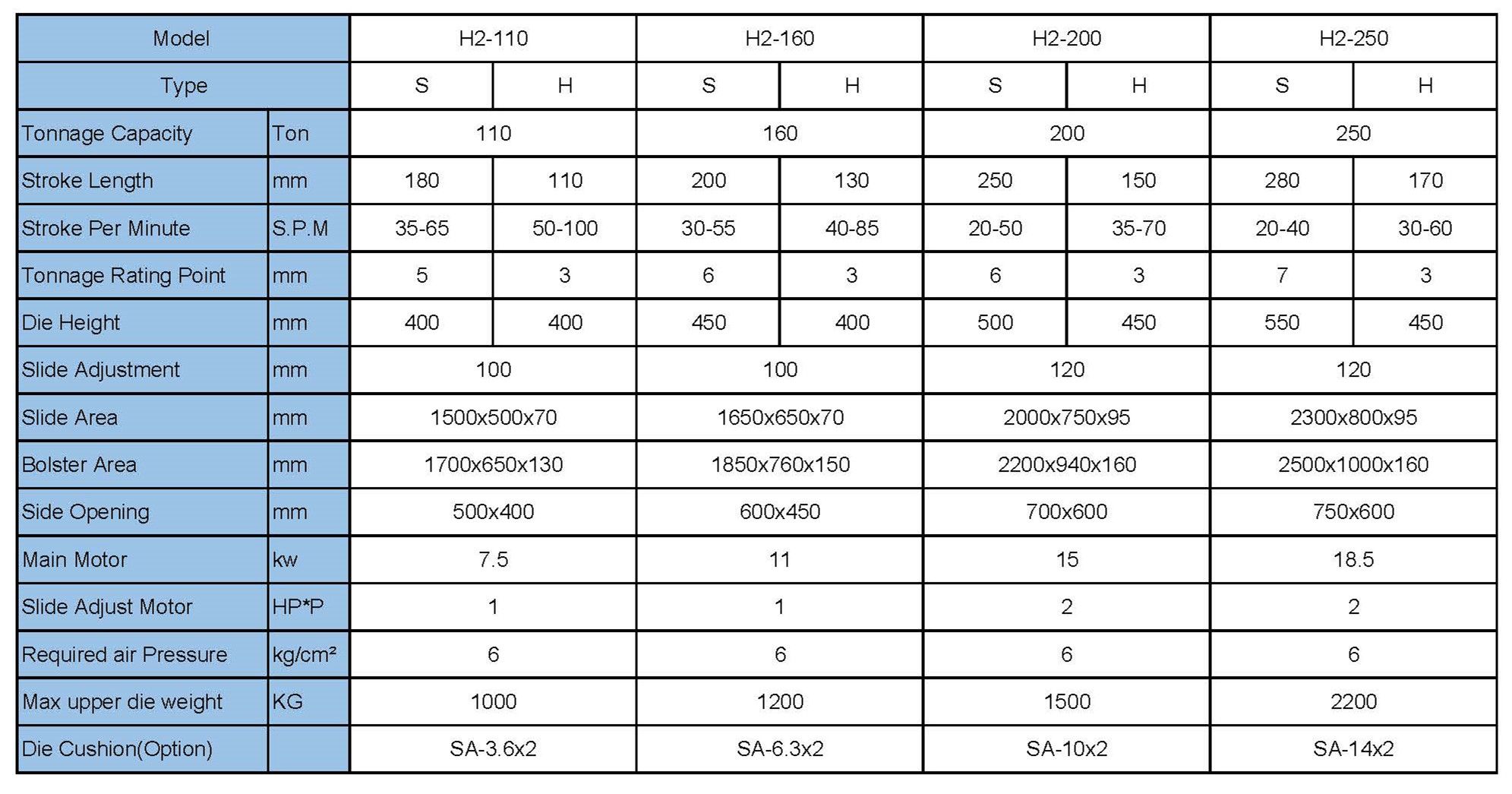

Specification

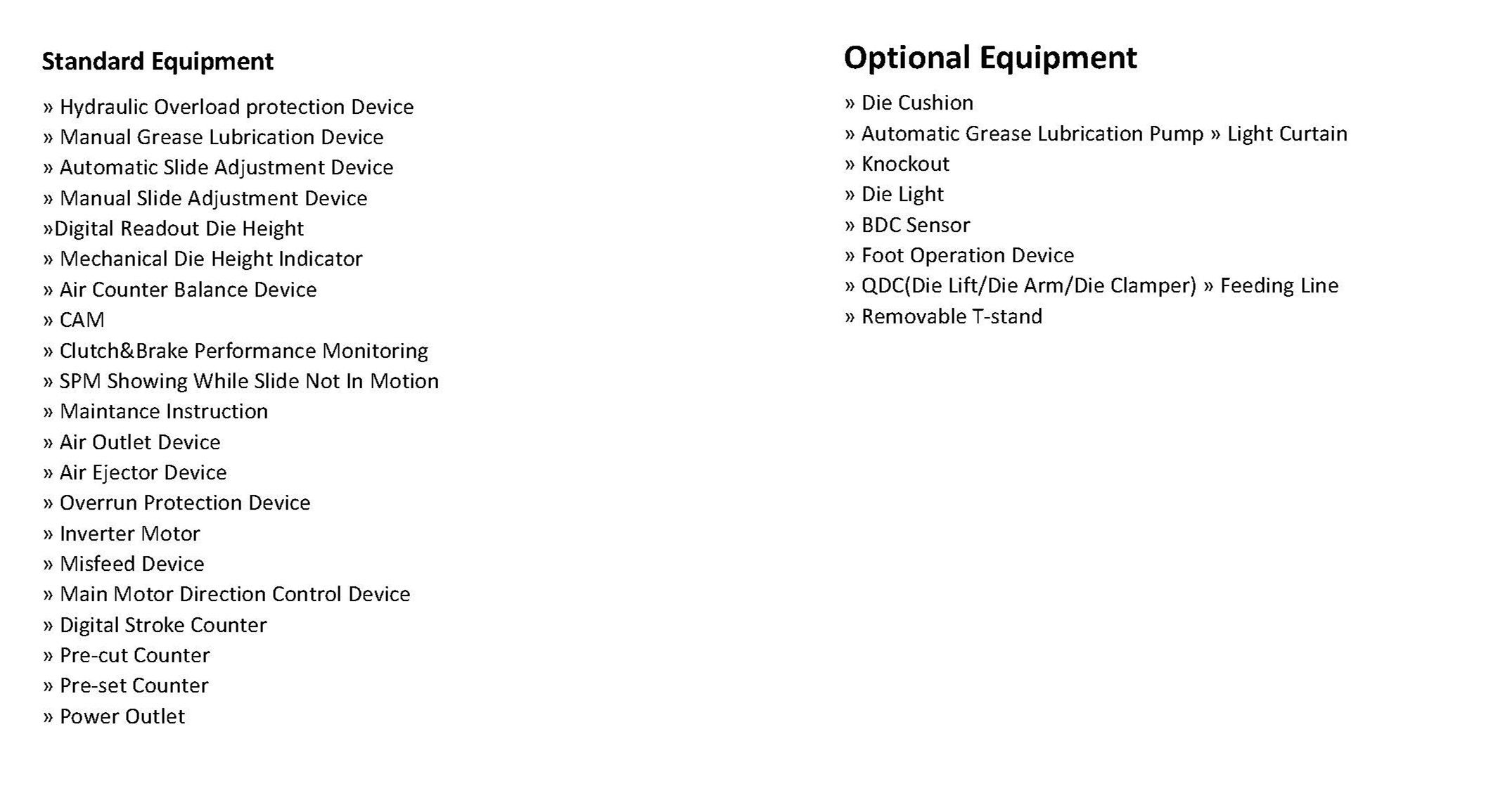

Equipment
Ningbo BOXIN Machinery Co., Ltd. Was found in 2003, is one of the leading press manufacturer in Ningbo, China. With the CE and TUV certification, we are the only China press manufacturer who keeps exporting our machines to American and Mexico market in the past several years. We are developing other countries markets and looking for professional wholesales all over the world.

Some of our major customers are CHNT, MAZDA, AUX, GEELY, BYD, MIDEA Who are satisfied with BOXIN machine's quality. As our machines are accuracy and durability.

In order to meet the requirement of it's customers in building high quality products, our company use all high precision, high performance machine tools from Japan. BOXIN products range from 16 ton open back C-frame press up to 2000 ton eccentric gear driven link motion car body panel stamping machines. Other than stamping press, it also manufactures cold and hot (warm) forging press machine for both home appliance and automotive industries.

Implementation standard: JIS 1 class standard

The machine is widely used for pressing and forming in the fields of electronic, household electric appliance, furniture, communication tools and vehicles (automobile, motorcycles, bike) and hardware etc.

Applicable processes: Stamping, forming, pressing, cut, blanking, deep drawing, punch, bend, molding, stretching and rolling.
