| Prod Model: |
20-1600mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania |
| Gas Pipe,Water Pipe: |
20-1600mm |
| Material: |
PE |
| Hardness: |
Hard Tube |
| Type: |
Thermoplastic Pipe |
| Color: |
Color |
| Hollow: |
Hollow |
| Shape: |
Round |
| Usage: |
Water Supply Pipe |
Product Description
(For more info, You may contact me. I will provide product catalog)High quanlity HDPE Pipe for Water Supply: PE80/PE100Specifications:
1. Material: High quality virgin PE100/PE80
2. Diameter: 20mm to 1200mm
3. Pressure: PN4 to PN20
4. Standard: ISO4427/4437
5. We also supply :
HDPE PIPE BUTT FUSION MACHINE FOR WELDING PIPE &FITTING.:1). HDPE Pipe, fitting, Welding machine.
2). UPVC pressure water pipe, fitting and various type of valves.
3). PP Compression fitting ( Italy designed type )
4). Micro Irrigation fittings ( barbed fitting & valves ) -------------------------------------------------------------------------------------------------------------------------------------------------
Features:
1.Material: High quality, virgin PE100/PE80
2. Diameter: 20mm to 1200mm
3. pressure: PN4,PN6,PN8, PN10, PN12.5, PN16 PN20( SDR33, SDR26, SDR21,
SDR17,SDR13.6, SDR11,SDR9)
4. Connection: Socket fusion, butt fusion joint, electro fusion joint, flanged joint
5. Standard: ISO4427, GB/T13663-2000
Application:
Water supply, industrial liquids transportation, sewage treatment. Mariculture, and

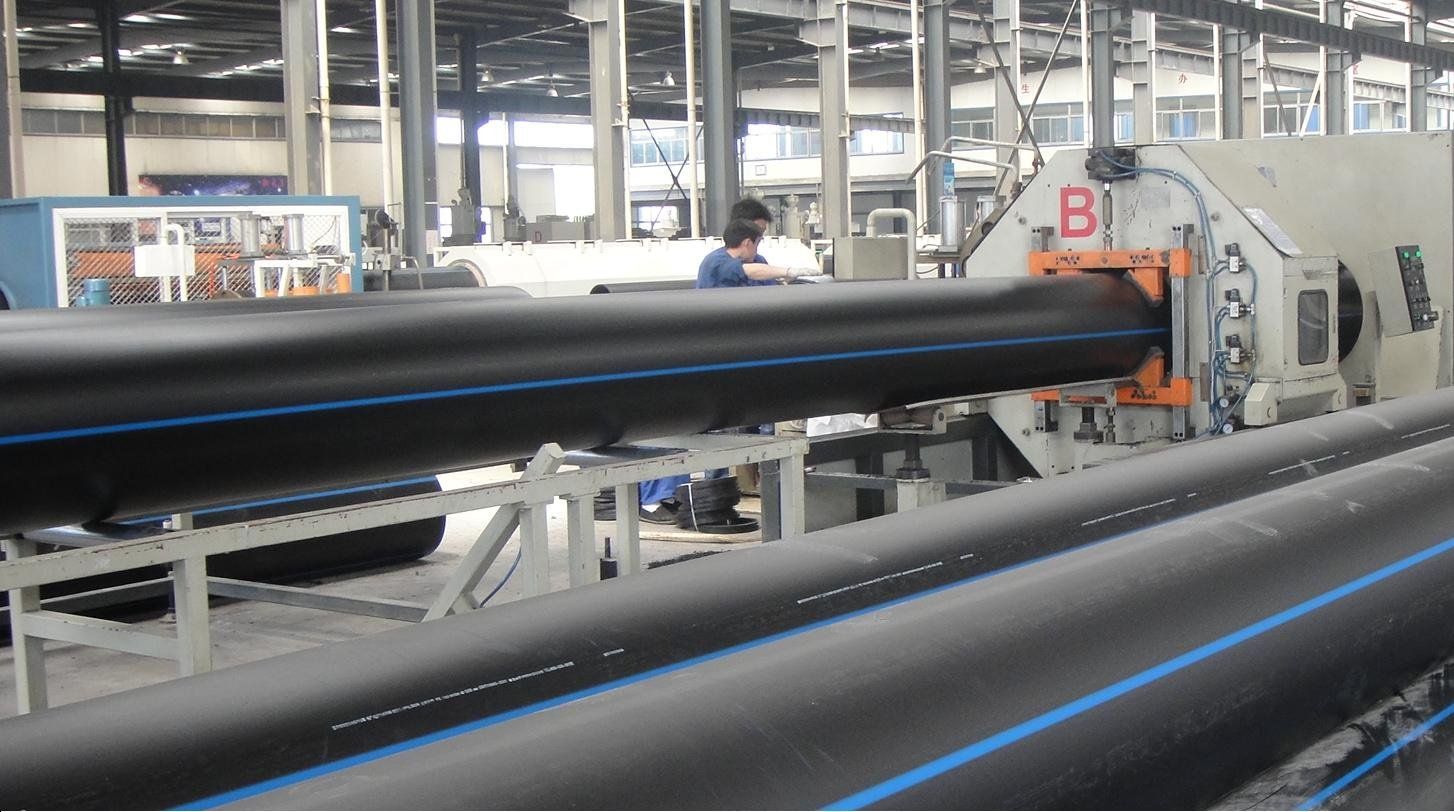

agricultural irrigation, etcOur advantage:1, High quality ( We use the best material to produce the pipe )2,Competitive price .3,Fast delivery.4,Good after sales service .Production Workshop:

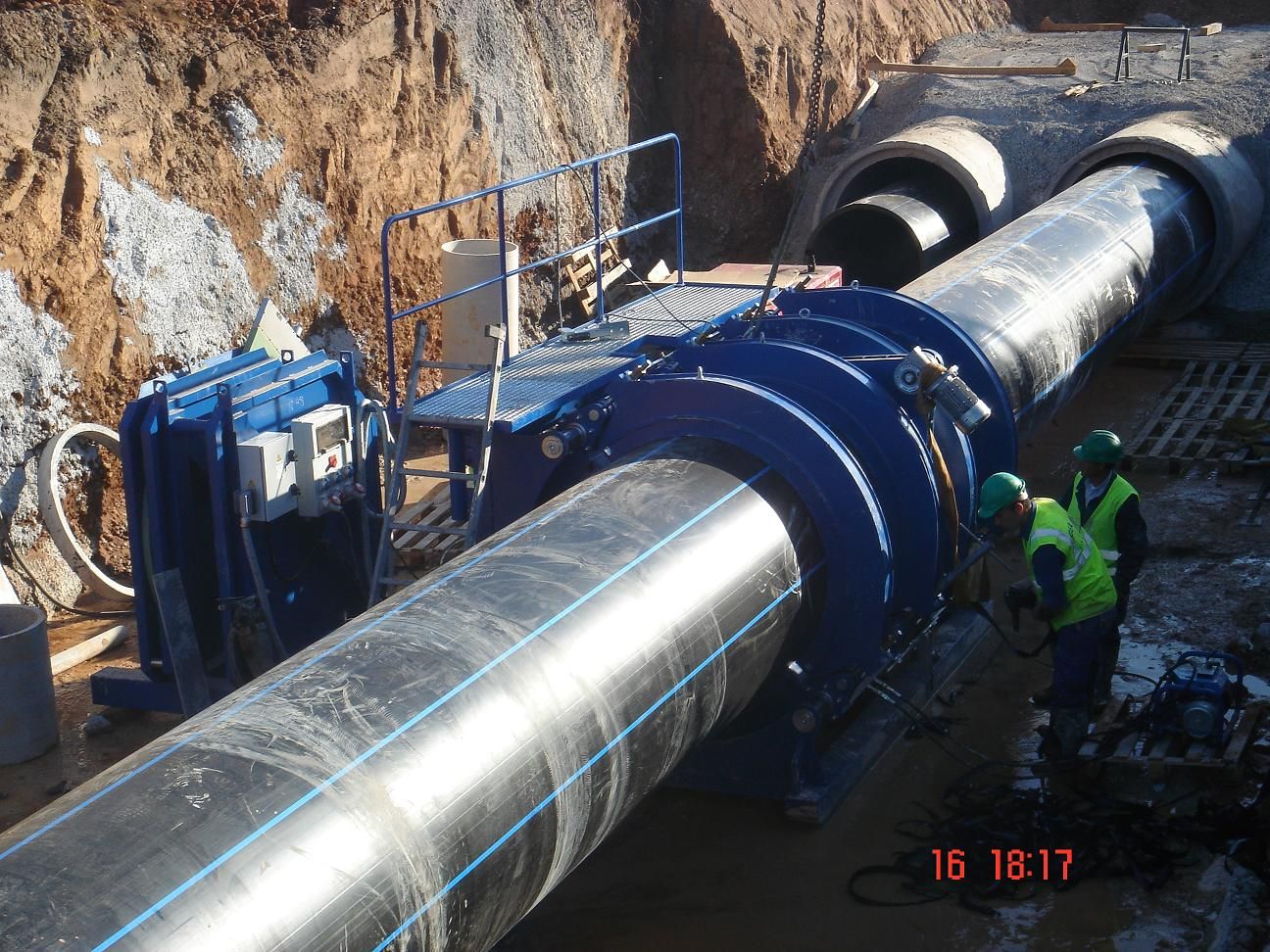

HDPE Pipe Welding M/C (50-1600mm)
Outer Diameter
(mm) | Standard Dimensions |
| SDR33 | SDR21 | SDR17 | SDR13.6 | SDR11 |
| Normal Pressure(Mpa) |
| 0.6 | 0.8 | 1 | 1.25 | 1.6 |
| Thickness(mm) | Thickness(mm) | Thickness(mm) | Thickness(mm) | Thickness(mm) |
| 20 | | | | | 2.3 |
| 25 | | | | 2.0 | 2.3 |
| 32 | | | 2.3 | 2.4 | 3.0 |
| 40 | | 2.3 | 2.3 | 3.0 | 3.7 |
| 50 | | 2.3 | 2.9 | 3.7 | 4.6 |
| 63 | 2.3 | 2.5 | 3.6 | 4.7 | 5.8 |
| 75 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 |
| 90 | 2.8 | 4.3 | 5.4 | 6.7 | 8.2 |
| 110 | 3.4 | 5.3 | 6.6 | 8.1 | 10.0 |
| 125 | 3.9 | 6.0 | 7.4 | 9.2 | 11.4 |
| 140 | 4.3 | 6.7 | 8.3 | 10.3 | 12.7 |
| 160 | 4.9 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 5.5 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 6.2 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 6.9 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 7.7 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 8.6 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 9.7 | 15.0 | 18.7 | 23.2 | 28.6 |
| 355 | 10.9 | 16.9 | 21.1 | 26.1 | 32.2 |
| 400 | 12.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 13.8 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 15.3 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 17.2 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 19.3 | 30.0 | 37.4 | 46.3 | 57.2 |
| 710 | 21.8 | 33.9 | 42.1 | 52.2 | - |
| 800 | 24.5 | 38.1 | 47.4 | 58.8 | - |
| 900 | 27.6 | 42.9 | 53.3 | | |
| 1000 | 30.6 | 47.7 | 59.3 | | |
| 1200 | 36.4 | 57.2 | 70.6 | | |
| 1400 | 42.4 | 66.7 | 82.4 | | |
ZHANGJIAGANG XINGJINGGANG MACHINERY Co., Ltd which is a professional plastic machinery supplier located in Zhangjiagang city, China. A beautiful and famous city for all kinds of plastic machinery.
We specialize in the development, design, manufacture and marketing of various plastic machines. Such as
Part-I: Plastic Pipe Production Line:
1. UPVC/PVC Pipe Extrusion Line
2. PVC Double Pipe Production Line
3. HDPE Pipe Extrusion Line
4. PP-R Pipe Production Line
5. HDPE Pipe Butt Fusion Welding Machine
6. PE IRRIGATION DRIP PIPE PRODUCTION LINE
Part-II: Plastic Pipe Butt Welding M/C:
7. HDPE Pipe Fitting Welding Machine
8. HDPE PIPE MULITI-ANGLE CUTTER
Part-III: Plastic Profile Extrusion M/C:
9. UPVC Windows Door Profile Extrusion Line
10. WPC Profile Extrusion Line
11. UPVC Ceiling Wall Panel Extrusion Line
Part-IV: Plastic Auxiliary Machines:
12. Plastic Shredder
13. Plastic Crusher
14. High Speed Mixer for PVC Resin
15. Color Mixer
16. PVC/PE Pulverizer/Milling Machine
Plastic crusher and so on
As one of the reliable suppliers in China, We have keeping improved our management & technology level. Up to now, we has earned good reputation in domestic and abroad market. And our products have been exported to many countries, like Mexico, America, Argentina, Chile, Brazil, Iran, and Saudi Arabia. Thailand, Malaysia, Indonesia, Russia, India and so on.
'Quality and honest is our foundation, customer satisfactory is our job, to get "Win-Win" is our main target. We always focus on improving our quality. And we have build up a professional after-sale services team with rich-experienced in machine commissioning and installation. Each year we will attend China plastic exhibition, and we have got the CE certificate for our machine
We believe our quality and service will bring success to each customer.
Welcome final users and distributors from all the world contact with us and create success
With your support and our effort, we deeply believe that the tomorrow of XINGJINGGANG machinery will be much better.
