| Price: | US $ 2.3-5.8/Pairs |
|---|---|
| Min Order: | 500/Pairs |
| Pay Type: | Western Union,Paypal,Money Gram |

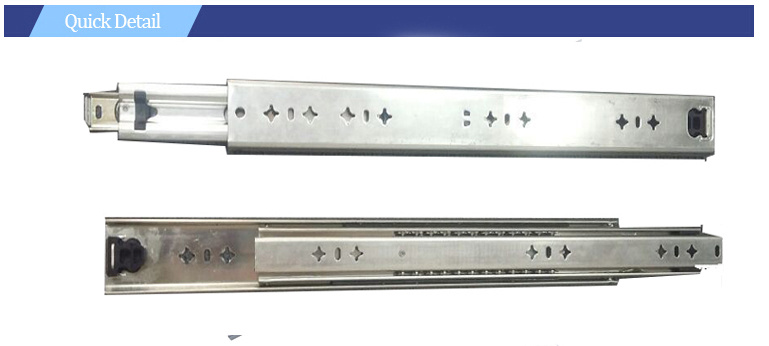

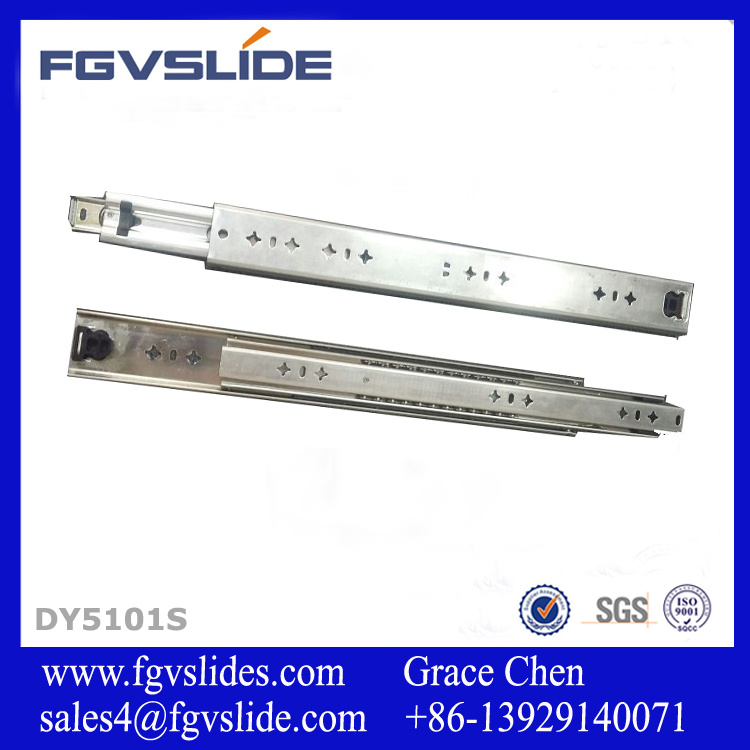

| Prod Model: | DY5101S |
|---|---|
| Load Rate: | 25kg |
| Product Mount Method: | Bottom Mounting |
| Width: | 35mm |
| Test: | SGS |
| Finish: | Galavanized Steel |
| Thickness Of Material(O/M/I): | 1.8*1.0*1.5 |
| Material: | Iron |
| Rail: | Linear |
| Structure: | Three Knots |
| Slide Type: | Steel Ball Type |
Width: 51mm
Side space: 19±0.7mm
Material:Work hardened cold rolled steel (2.5mm*2.5mm*2.5mm).
Length: 8"(203mm)-60 ".(1524mm)
Load capacity: 270lbs 120kg)/ 18"

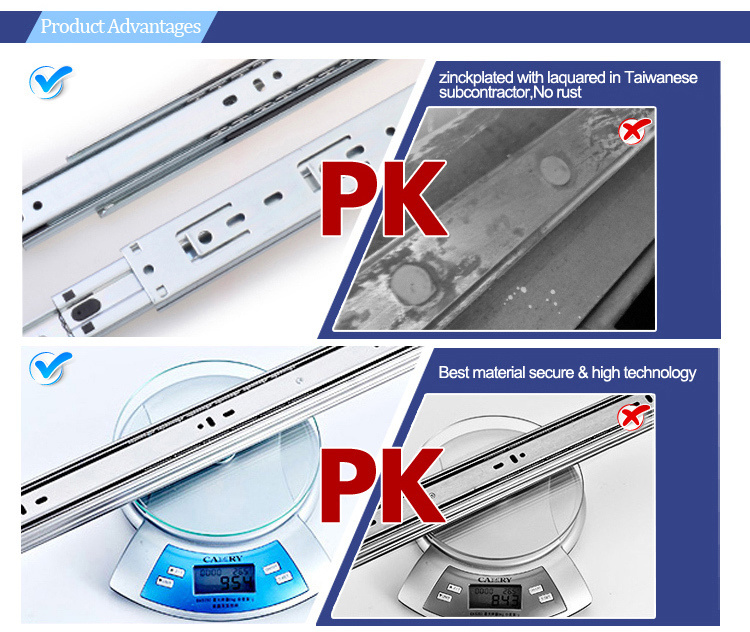

Finish: Electro-zinc plated with clear or color chromate.
Applications: Heavy duty storage drawers, truck bodies, and large pantry pull-outs etc.
Feature: Can be pushed and pulled more than 10, 000 times

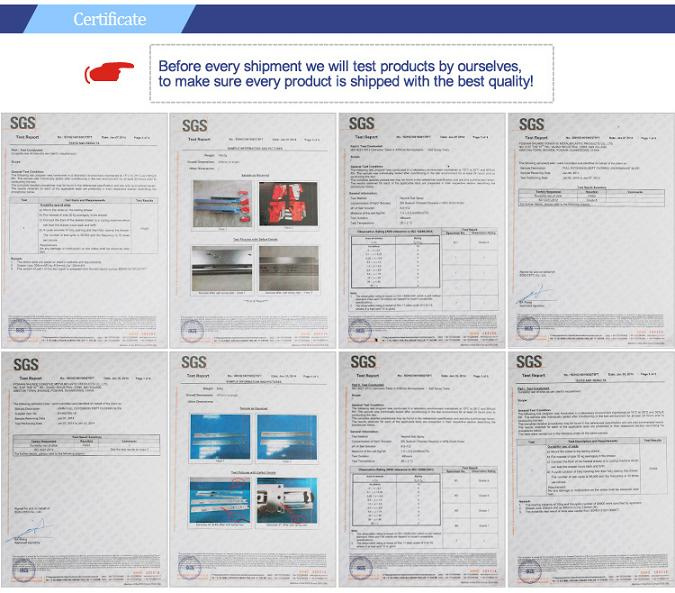

Testing | SGS TEST |
Passed over 50,000 open-close | |
Passed 48 hours salt spray test | |
Passed 45 pounds load test | |
Sample | Sample free and small order can be accepted |
Features | Strengthened adjustable screw can widen the adjustable ranges and longer using life. |
thickness : 1.5*1.5*1.5mm | |
longer life time,smaller volume |

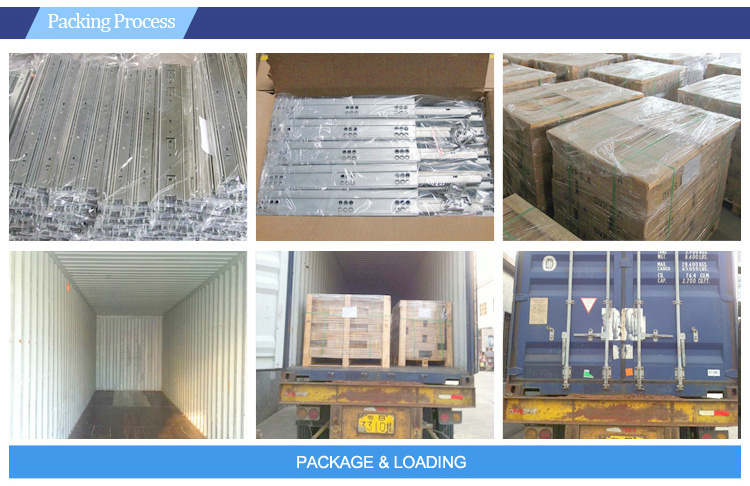

Thickness(mm) | Length(mm) | N.W.(kg)/box | G.W.(kg)/box | CTN SIZE(mm) |
1.0*1.0*1.2 | 250 | 11.25 | 11.75 | 270*200*100 |
1.0*1.0*1.2 | 300 | 13.5 | 14 | 320*200*100 |
1.0*1.0*1.2 | 350 | 15.75 | 16.25 | 370*200*100 |
1.0*1.0*1.2 | 400 | 18 | 18.5 | 420*200*100 |
1.0*1.0*1.2 | 450 | 20.25 | 20.75 | 470*200*100 |
1.0*1.0*1.2 | 500 | 22.5 | 23 | 520*200*100 |
1.0*1.0*1.2 | 550 | 24.75 | 25.25 | 570*200*100 |
1.0*1.0*1.2 | 600 | 27 | 27.5 | 620*200*100 |
1. What's the MOQ for the first time purchasing?
If make logo and brand package, MOQ is 20 feet container. If there is no need for brand logo and
package, MOQ is 500 pairs per size.
2. Before purchasing, how can we get to know the quality?
We can send sample to you to check. Also customer can appoint some agent to inspect the mass
production quality in our factory to make sure the quality.
3. What will be the loading capacity for 20ft container?
Max loading capacity is 27 tons, but exact loading capacity depends on the slide model you choose
and the country you are from, for further information, please consult from our sales.
4. What will be the delivery time?
Normally is 25-30 days after order confirmed by both parties.
5. What are the payment terms?
TT or Cash or LC,30% deposit, against B/L
6. What should we do if goods are received with some quality problems?
All goods have been inspected during the assembling and packing, the chance to get defective slide is
very rare. If there are some quality problems, such as finish problem,
-------------------------------------------------------------------------------------------------
