| Prod Model: |
MJ263G |
| Model: |
Mj263G |
| Warranty: |
One Year |
| Voltage: |
380V, 3phase, 50Hz (Can Customized) |
| Certificate: |
Ce&ISO |
| Service: |
Oversea Service Is Available |
| Brand: |
Hicas |
| Packaging: |
Plywood Box |
| Machine’s Net Weight: |
3500 Kg |
| Application: |
Woodworking |
| Usage: |
Cutting Big Square Wood |
| Type: |
Rip Saw |
| Layout: |
Vertical |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Certification: |
ISO |
Product Description

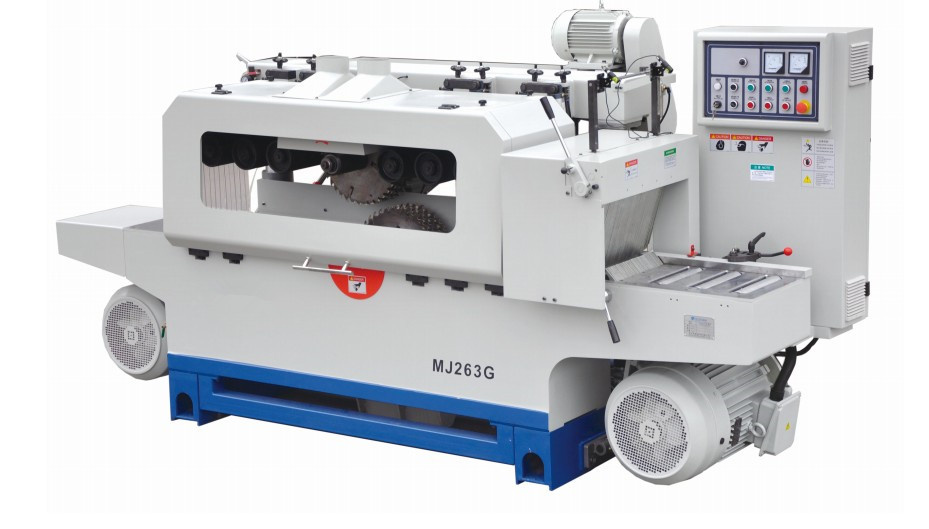

MJ263G Automatic multi rip saw
3, Main features:- the machine uses the structure of two groups of saw blade processing at the same time, then choose smaller and thinner saw blade according to the wood hardness and thickness.
- the spindle with special alloy steel and Φ60mm diameter, after repeated heat treatment and precision machining, its performance is stable and high precision.
- the axis with water cooling structure.
- machine feeding system equip 7 sets feeding roller, to achieve a strong feed, to ensure the processing of thick material feeding fluency.
- Upper feeding roller structure adopts the cylinder pressing structure and the segmented pressing material structure and can force adjustment according to the hardness of the wood thickness to ensure smooth feeding.
- Feeding using frequency converter and cardan shaft transmission structure, feeding speed of 15 m / min.
- the front of the feed configuration three anti-rebound security guards to ensure that equipment operation more secure.
- equipped with manual lubrication pump on the important sliding, rotating position, such as columns, slide rails, motor rotation, etc. for centralized supply oil lubrication.
- equipped with 2 sets of laser marking instrument
4, Technical parameters| Model | MJ263G |
| Max cutting width | 300 mm |
| Max cutting thickness | 280 mm |
| Min cutting thickness | 80 mm |
| Min cutting length | 800 mm |
| Spindle speed | 3000 r/min |
| Feeding speed | 3-15 m/min |
| Spindle diameter | Φ60 mm |
| Saw blade diameter | Φ305-Φ405 mm |
| Total motor power | 94.75 KW |
| Upper spindle motor | 45 KW |
| Lower spindle motor | 45 KW |
| Feeding motor | 4 KW |
| Beam lifting motor | 0.75 KW |
| Pressing wheel dimension | Φ140×Φ35×50 mm |
| Dust collection port diameter | Φ140 mm |
| Machine's overall size | 355×145×180 cm |
| Machine's net weight | 3500 kg |
