Heavy Duty Socket for Square Drive Hydraulic Torque Wrench
| Price: |
US $ 500-8000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
FY-S24 |
| Product Name: |
Heavy Duty Socket Wrench for Square Drive Hydraul |
| Color: |
Black |
| Materal: |
Alloy Steel |
| Pressure: |
700bar |
| Voltage: |
220 V |
| Current Frequency: |
50Hz |
| Dimensions: |
430 X 285 X 430 mm |
| Certificate: |
ISO9001 2008 |
| OEM: |
Available |
| Warranty: |
1 Year |
Product Description

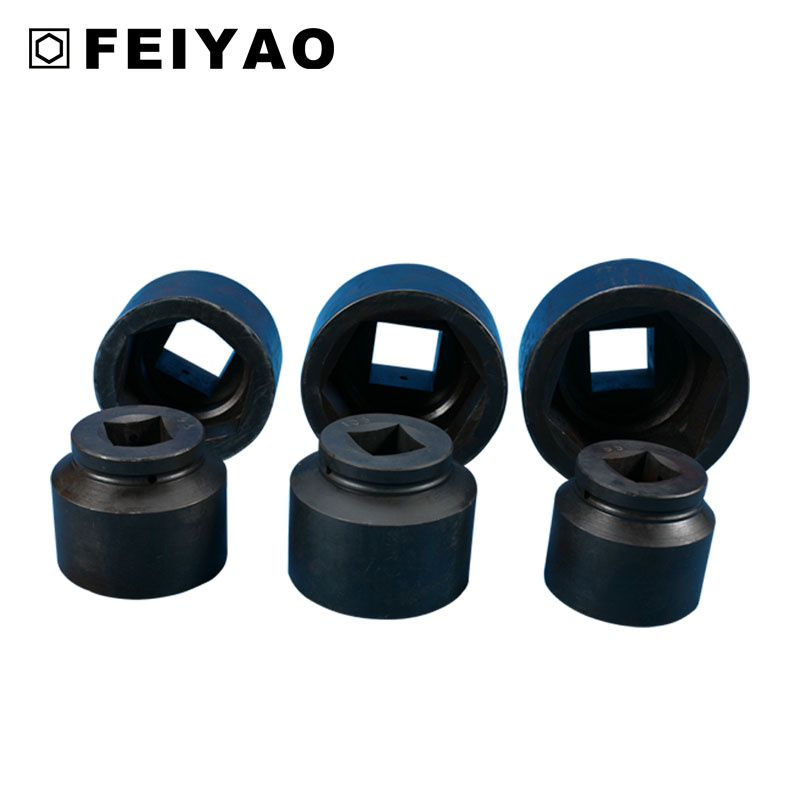

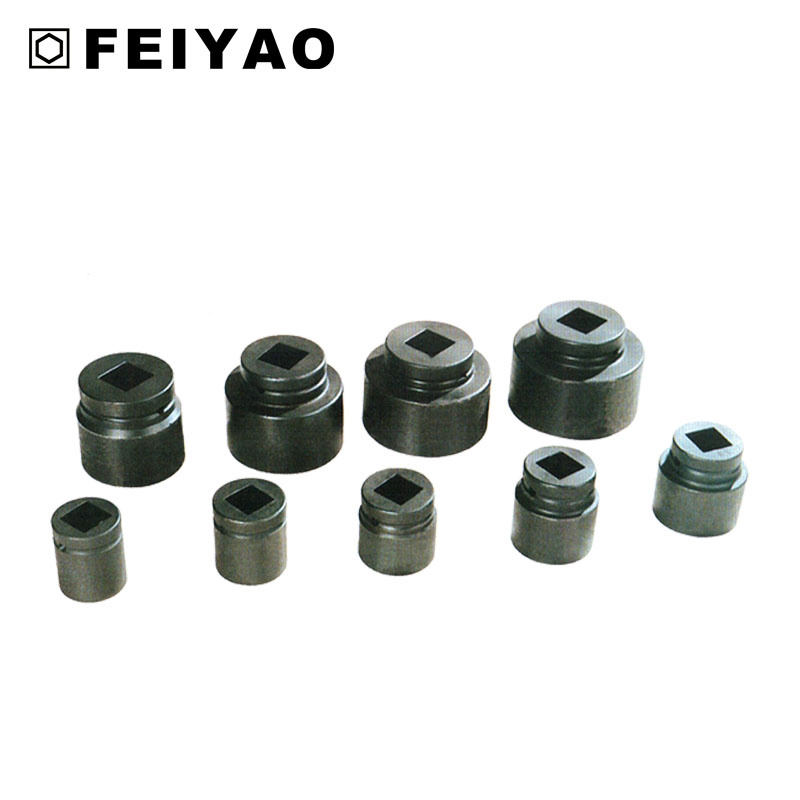

Heavy Duty Socket for Square Drifve Hydraulic Torque Wrench
Features1. It's raw material is Senior Chromium-Molybdenum alloy steel2. The sockets are made under Germany DIN standard(3121&3129)
3. It adopts standard heat-treatment and ensures life-long warranty
Parameter Information
3/4"Square Hole ( FY-2MXTA)
| Power Head | Bolt Size M | Nut Size (mm) | L1 | L2 | D1 | D2 |
| FY-S24-F19 | M16 | 24 | 54 | 32 | 40 | 40 |
| FY-S27-F19 | M18 | 27 | 54 | 32 | 42 | 42 |
| FY-S30-F19 | M20 | 30 | 54 | 33 | 46 | 44 |
| FY-S34-F19 | M22 | 34 | 54 | 32 | 48 | 44 |
| FY-S36-F19 | M24 | 36 | 57 | 32 | 53 | 44 |
| FY-S41-F19 | M27 | 41 | 58 | 33 | 60 | 44 |
| FY-S46-F19 | M30 | 46 | 63 | 36 | 66 | 44 |
| FY-S50-F19 | M33 | 50 | 65 | 40 | 71 | 44 |
| FY-S55-F19 | M36 | 55 | 70 | 45 | 77 | 54 |
1"Square Hole ( FY-5MXTA)| Power Head | Bolt Size M | Nut Size (mm) | L1 | L2 | D1 | D2 |
| FY-S34-F25 | M22 | 34 | 59 | 32 | 58 | 58 |
| FY-S36-F25 | M24 | 36 | 62 | 32 | 59 | 59 |
| FY-S41-F25 | M27 | 41 | 65 | 38 | 67 | 54 |
| FY-S46-F25 | M30 | 46 | 65 | 38 | 74 | 54 |
| FY-S50-F25 | M33 | 50 | 70 | 43 | 79 | 60 |
| FY-S55-F25 | M36 | 55 | 80 | 52 | 84 | 60 |
| FY-S60-F25 | M39 | 60 | 85 | 57 | 89 | 60 |
| FY-S65-F25 | M42 | 65 | 85 | 58 | 98 | 70 |
| FY-S70-F25 | M45 | 70 | 90 | 62 | 104 | 70 |
| FY-S75-F25 | M48 | 7 | 95 | 65 | 108 | 70 |
1−1⁄2" Square Hole (FY−8, 10, 16, 20 MXTA)| Power Head | Bolt Size M | Nut Size (mm) | L1 | L2 | D1 | D2 |
| FY-S27-F38 | M27 | 41 | 85 | 44 | 74 | 74 |
| FY-S46-F38 | M30 | 46 | 85 | 44 | 74 | 74 |
| FY-S50-F38 | M33 | 50 | 90 | 45 | 79 | 79 |
| FY-S55-F38 | M36 | 55 | 90 | 45 | 84 | 84 |
| FY-S60-F38 | M39 | 60 | 100 | 45 | 94 | 94 |
| FY-S65-F38 | M42 | 65 | 100 | 45 | 98 | 80 |
| FY-S70-F38 | M45 | 70 | 105 | 50 | 104 | 80 |
| FY-S75-F38 | M48 | 75 | 110 | 50 | 118 | 85 |
| FY-S80-F38 | M52 | 80 | 115 | 55 | 118 | 90 |
| FY-S85-F38 | M56 | 85 | 125 | 60 | 128 | 90 |
| FY-S90-F38 | M60 | 90 | 125 | 60 | 139 | 90 |
| FY-S95-F38 | M64 | 95 | 130 | 65 | 139 | 90 |
| FY-S100-F38 | M68 | 100 | 135 | 70 | 144 | 90 |
| FY-S105-F38 | M72 | 105 | 135 | 70 | 149 | 90 |
| FY-S110-F38 | M76 | 110 | 135 | 70 | 158 | 90 |
| FY-S115-F38 | M80 | 115 | 135 | 70 | 159 | 90 |
| FY-S120-F38 | M85 | 120 | 135 | 70 | 168 | 95 |
| FY-S130-F38 | M90 | 130 | 155 | 93 | 189 | 95 |
2−1⁄2" Square Hole(FY−27, 39, 50, 60 MXTA)| Power Head | Bolt Size M | Nut Size (mm) | L1 | L2 | D1 | D2 |
| FY-S55-F63 | M33 | 55 | 100 | 57 | 86 | 114 |
| FY-S60-F63 | M39 | 60 | 100 | 52 | 119 | 119 |
| FY-S65-F63 | M42 | 65 | 100 | 52 | 119 | 119 |
| FY-S70-F63 | M45 | 70 | 120 | 67 | 128 | 128 |
| FY-S75-F63 | M48 | 75 | 120 | 67 | 128 | 128 |
| FY-S80-F63 | M52 | 80 | 130 | 71 | 128 | 128 |
| FY-S85-F63 | M56 | 85 | 130 | 71 | 128 | 129 |
| FY-S90-F63 | M60 | 90 | 140 | 73 | 139 | 139 |
| FY-S95-F63 | M64 | 95 | 140 | 73 | 139 | 139 |
| FY-S100-F63 | M68 | 100 | 140 | 81 | 149 | 130 |
| FY-S105-F63 | M72 | 105 | 150 | 89 | 149 | 130 |
| FY-S110-F63 | M76 | 110 | 150 | 90 | 158 | 130 |
| FY-S115-F63 | M80 | 115 | 150 | 98 | 168 | 130 |
| FY-S120-F63 | M85 | 120 | 150 | 98 | 178 | 130 |
| FY-S130-F63 | M90 | 130 | 170 | 98 | 188 | 130 |
| FY-S135-F63 | M95 | 135 | 170 | 114 | 198 | 130 |
| FY-S145-F63 | M100 | 145 | 170 | 122 | 210 | 152 |
| FY-S150-F63 | M105 | 150 | 190 | 140 | 216 | 152 |
| FY-S155-F63 | M110 | 155 | 190 | 140 | 229 | 152 |
| FY-S165-F63 | M115 | 165 | 190 | 140 | 241 | 152 |
Established in 1978, Jiangsu Feiyao Machinery Manufacturing factory is an professional leading manufacturer of hydraulic tools in China, such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.
Our products have been widely sold to Europe, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.
Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides, we have gained CE and ISO9001 certificates.
We warmly welcome all overseas customers to talk with us about business or other cooperations.

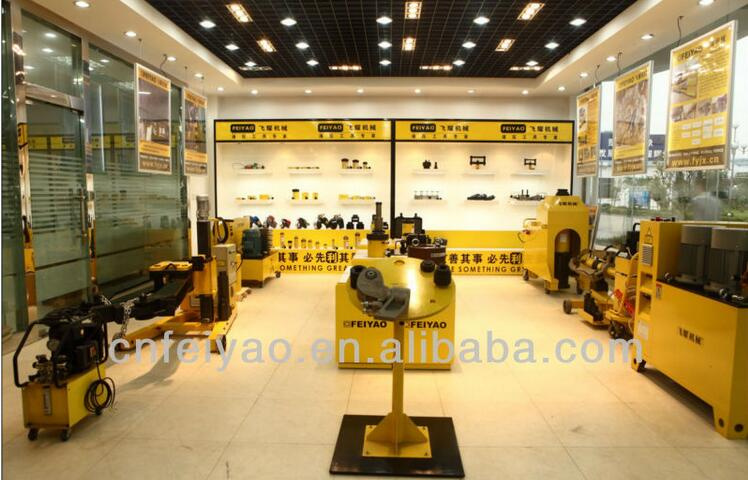

Any phone call, E-mali, Fax from you would be a beginning of happy cooperation.Showroom

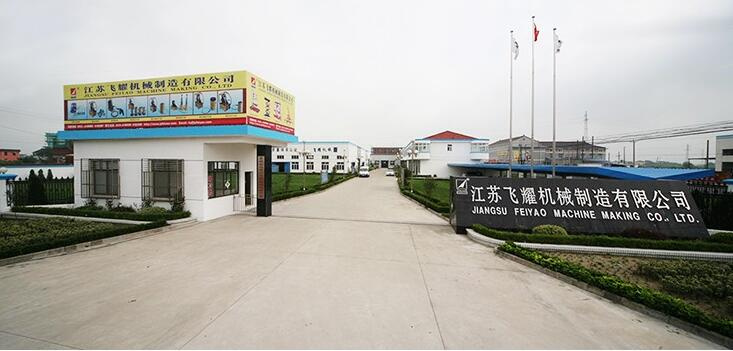

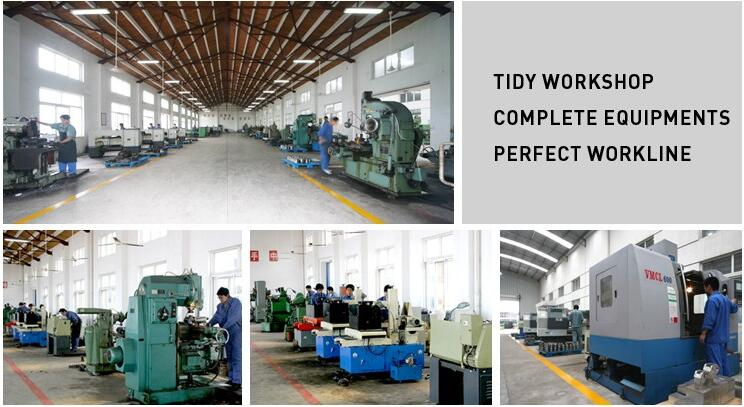

Factory Show
