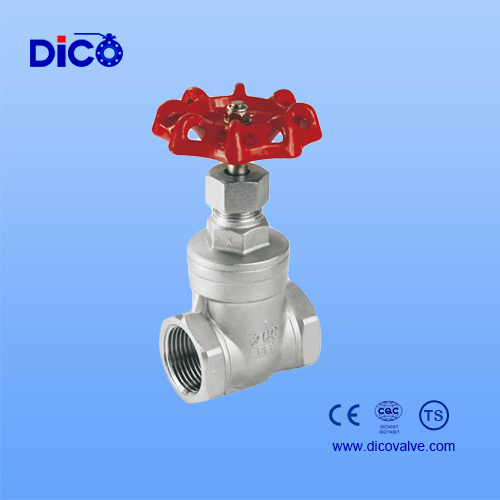

Heavy Type Stainless Steel CF8/CF8m Handle Wheel Gate Valve
| Price: |
US $ 5-40/Piece |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Z15W-16P/R |
| Certification: |
ISO;Ts;Ce |
| Type Of Way: |
2 Way |
| Material: |
Stainless Steel |
| Connection Form: |
Thread |
| Seal Surface: |
Parallel Gate Valve |
| Thread Position Of Valve Rod: |
Inside Gate Valve |
| Application: |
Household Usage |
Product Description
Basic Info.
name | stainless steel female thread gate valve |
| Design | full port |
| Material of construction | investment casting |
| Material | SS304/SS316/SS201/WCB |
| Working pressure | 150Lb--2500Lb |
| Size range | 1/2"--6" |
| End Connection | BSP/BSPT/NPT/DIN2999/DIN259 Threaded |
| Mode of operation | Manual |
|
| Specification |
| Nominal pressure | PN1.6,2.5,4.0,6.4M.pa |
| Strength testing pressure | PT:2.4,3.8,6.0,9.6M.pa |
| Seat testing pressure(hight pressure) | 1.8,2.8,4.4,7.1Mpa |
| Applicable media | water oil gas Nitric acid Acetic acid |
| Applicable temperature | -20ºCto200ºC |
| Product standard | ASME B16.34 |
| Wall thickness standard | ASME B16.34 GB12224 |
| Thread standard | ANSI B 1.20.1,BS 21/2779,DIN259/2999,ISO228 BSPT BSPP NPT |
| Inspection standard | API598 EN12266 |
| Product certification | PED 97/23/EC(CE2138) ISO900 |
HOW ABOUT PACKAGE
NO.4:FAQ
FAQ
1 Are you a factory or trading company?
We are a factory specialized in manufacturing valves and fitting over 10 years.
And we have got the verification of compliance for ball valve from ECM and ISO9001 certificate of manufacturing and processing of valves and fittings.
2 Where are the main markets for your products?
We hope to make business with companies from all over the world. And for now, our valves and fittings have been exported to especially in North America, South America, South Asia, Europe and Middle East.
3 Do you have a minimum quantity of the products?
No, we will build business with you with even 1pc. We believe this cooperation will be a long-term relationship for our high quality, competitive price and good after-sale service.
4 Are samples available to be sent with free?
It depends on what product you need. There are hundreds of products we sell. You can contact us for particular answer.
5 Can you print our Logo on the valves?
Yes, we can totally produce products according to your this kind special request, even manufacture it based on your drawing.
6 What is your lead time?
It's around 30 days normally. If we have the products in stock, it will be about 15days
7 How can I check your factory situation while it's difficult for me to come to China?

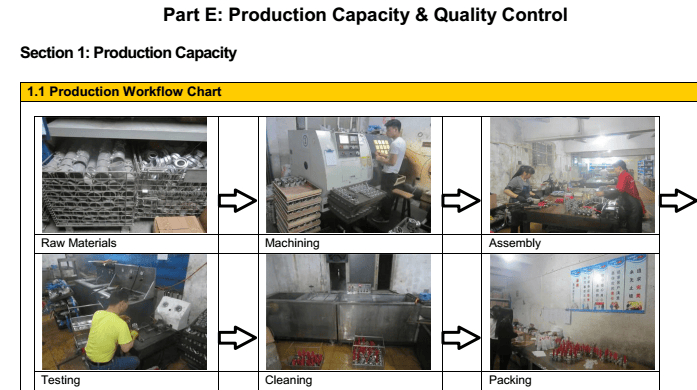

We have photos and videos on our website and face book, It shows every step of the manufacturing.
We also have a showroom in CA, USA. If you have time, you can take a look.

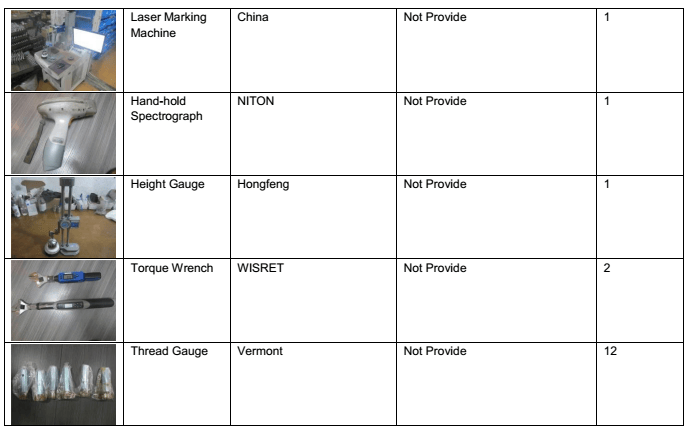

8 How can you guarantee the quality of products?
First of all, we have the numerical control device to manufacture products accurately. Then our quality inspectors will test products one by one to make sure every valve or fitting we sell is qualified.
9 How long is the quality guarantee period?
We supply 6 to 12 months for quality guarantee according to customers' using frequency.
10 How do you pack?
1.Plastic bags→2.Paper box→3.Cartons→4.Plywood Case

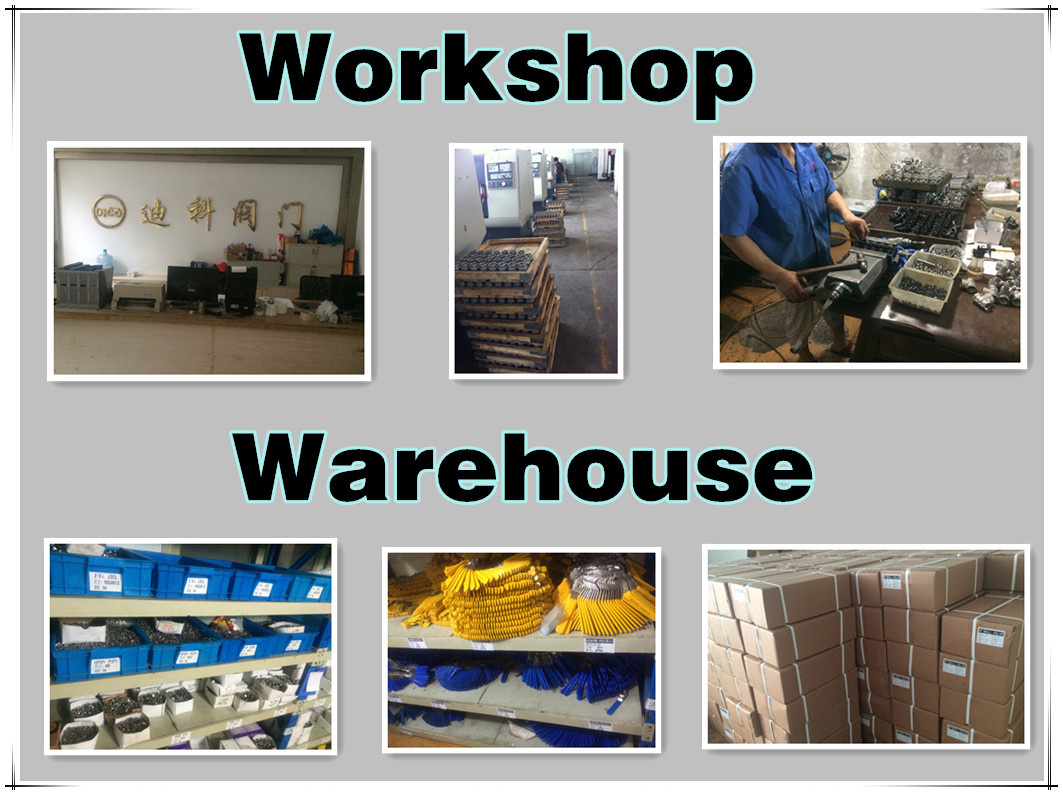

NO.5 DICO VALVE WORK SCENE
| Material of product's parts |
| NO | DESCRIPTION | MATERIAL |
| 1 | BODY | CF8M | CF8 | WCB |
| 2 | BONNET | CF8M | CF8 | WCB |
| 3 | DISC | CF8M | CF8 | WCB |
| 4 | STEM | CF8M | CF8 |
| 5 | SEALRING | PTFE/RPTFE |
| 6 | PACKING | PTFE/RPTFE |
No. 12 Yongle Wr. Yongxing Twon, Longwan Area, Wenzhou, Zhejiang, China
Tel: 86-577-85800568
Mob: 86-15968739765
Fax: 86-577-86901099
Web: www.dicovalve.com
Wenzhou Dico Valve Technology Co., Ltd, (Wenzhou Sente valve Co., Ltd); Established in 2005 and situated in wenzhou China, which called Chinese valve city. Dico Valve is a professional plant integrating R&D, production, sales and service of valves and has abundant strengths and plentiful production experience with a staff of over 50 involving several senior managers and engineers. DICO has obtained certifications of ISO 9001, API6D, CE, TS and so on.
The product category, materials applied and executive standards mainly produced in DICO company is listed below:
1. Category: Thread ball valve, Gate valve, Globe valve, ISO5211 Mounting pad flange ball valve etc;
2. Executive standards: ISO, API, DIN, BS, JIS, GB and so on;
3. Materials: WCB(A105), LCB(LF2), C5(F5), WC6(F11), CF8(F304), CF8M(F316), CF3(304L), CF3M(316L) and so on;
4. Diameter: 1/4"-6"(DN6-DN150);
5. Pressure: CLASS 150~CLASS 800(PN16-PN64);
6. Applicable temperature: -30º C~300º C;
In recent years, the products are exported to the nations involving USA, Turkey, Brazil, France, Italy, India, Spain and so on, and widely applied and well accepted by vast users in domestic and foreign fields like petroleum, oil refinery, chemicals, power station, boiler, metallurgy, power system control set and so on.
Our persistent management tenet is based on continuous exploitation, strict quality control, favorable price and complete service. Sincerely welcome to vast new and old clients to visit and cooperate with a view to commonly developing a brilliant tomorrow.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
