| Prod Model: |
CH-W011 |
| Product Name: |
Hex Wrench, Hex Allen Key with Zinc Plated |
| Certificate: |
ISO9001:2008, SGS Testing Report & RoHS |
| OEM: |
Available |
| Type: |
Hex Wrench |
| Material: |
Chrome-vanadium Steel |
| Standard: |
European Type |
| Surface Treatment: |
Chrome |
| Feature: |
Anti-Magnetic |
Product Description

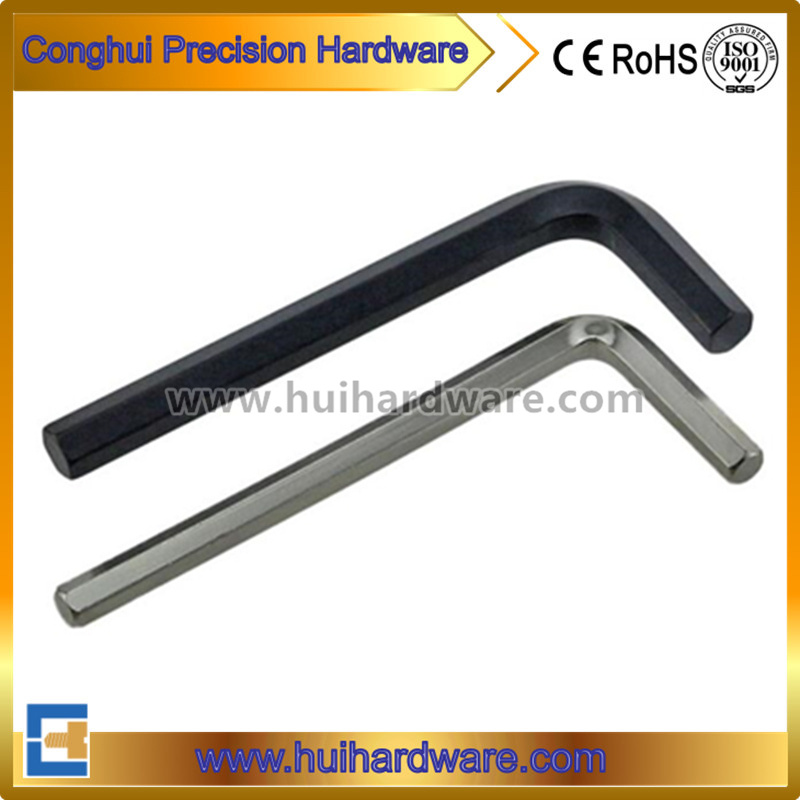

Hex Wrench, Hex Allen Key with Zinc Plated
Product Discreption
| Product Name | Hex Wrench, Hex Allen Key with Zinc Plated |
| Material | 45#Carbon Steel,40CR,CRV,Alloy Steel,Carbon Steel,High Carbon Steel,Copper Alloy,Cast Iron,Aluminum Alloy,Plastic,etc |
| Size | 0.7-16mm or as per your request |
| Usage | Single Open-End Hex Wrench |
| Certificate | ISO9001:2008, SGS testing report & RoHS |
| Screw Drivers | Phillips, Slotted, Truss, Square, Crossed, Y-type, T-type, Torx, PZ drives, Hex socket etc |
| Package | General export package, or according to customer's requirement |
| Delivery time | About 7 -15 days after all details confirmed and able to offering fast delivery for urgent order |
| Customer Service | Replacement at all our cost for rejected products if the part does not match with the PO drawings |
| Unit:mm |
| Size | Nomal Flat End |
| 0.7 | 0.9 | 1.27 | 1.5 | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 |
| Length | 33 | 38.4 | 47.32 | 46.78 | 49.91 | 53.26 | 60.00 | 65.11 | 71.24 | 80.16 | 97.16 | / | / | / | / |
| Width | 11 | 11.27 | 15.8 | 15.92 | 17.03 | 18.98 | 22.06 | 21.98 | 25.22 | 30.29 | 38.76 | / | / | / | / |
|
| Unit:mm |
| Size | Ball End With Lengthened |
| 1/2 | 9/16 | 1/16 | 3/16 | 1/4 | 3/8 | 3/32 | 5/16 | 5/64 | 7/32 | 1/8 | 5/32 |
| 12.95 | / | 1.57 | 4.76 | 6.33 | 9.49 | 2.37 | 5.86 | 4.65 | 6.35 | 3.16 | / |
| Length | 200.47 | / | 62.32 | 120.16 | 140.5 | 175.02 | 87.14 | 130.3 | 75.61 | 131.31 | 93.05 | 103.9 |
| Width | 58.60 | / | 14.91 | 31.58 | 38.14 | 48.98 | 19.33 | 34.37 | 17.54 | 33.73 | 22.37 | 28.05 |
| Size | Nomal Flat End |
| 1/16 | 5/64 | 3/32 | 1/8 | 5/32 | 3/16 | 7/32 | 1/4 | 5/16 | 3/8 | 1/2 | 9/16 |
| | 1.57 | 1.98 | 2.36 | 3.14 | 3.97 | 4.76 | 5.56 | 6.34 | 7.93 | 9.53 | 12.65 | 14.53 |
| Length | 45.46 | 51.16 | 57.73 | 66 | 72.64 | 84.62 | 90.48 | 95.62 | 108.25 | 119.8 | 134.36 | 159.36 |
| Width | 14.94 | 16.8 | 19.56 | 22.71 | 28.81 | 31.65 | 34.73 | 34.7 | 43.18 | 48.08 | 56.76 | 59.20 |
Application
| sw | for DIN 912 | for DIN 913-916 | for DIN 7984 | for DIN 7991 | l 1 | l 2 |
| 1.5 | M1.6-M2 | M3 | - | - | 14 | 45 |
| 2 | M2.5 | M4 | M3 | M3 | 16 | 50 |
| 2.5 | M3 | M5 | M4 | M4 | 18 | 56 |
| 3 | M4 | M6 | M5 | M5 | 20 | 65 |
| 4 | M5 | M8 | M6 | M6 | 25 | 72 |
| 5 | M6 | M10 | M8 | M8 | 28 | 80 |
| 6 | M8 | M12-M14 | - | M10 | 32 | 90 |
| 7 | - | - | M10 | - | 34 | 95 |
| 8 | M10 | M16 | M12 | M12 | 36 | 100 |
| 10 | M12 | M18-M20 | M14 | M14 | 40 | 112 |
| 12 | M14-M16 | M22-M24 | M16-M18 | M16 | 45 | 125 |
| 14 | M18 | - | M20-M22 | M18-M20 | 55 | 140 |
| 17 | M20-M22 | - | M24 | M22-M24 | 60 | 160 |
| 19 | M24-M27 | - | - | - | 70 | 175 |
About our company:
Shenzhen Conghui Precision Hardware Co., Ltd is a professional manufacturer specialize in all kinds of precision industrial fasteners and accessory parts for 9 years.
Our product range includes screws, nuts, knobs, bolts, washers, rivet, anchor and CNC parts. We strictly implement various quality standards like GB, ISO, DIN, JIS, AISI NFE and BSW.
Our products are hot sale in markets North America, Southeast Asia and Europe, widely use in machine assembling, electronics, constructional engineering furniture cabinets, etc.
We sincerely hope to start mutual benefit and win-win business with you, and set up long term partnership in the near future.
In order to help you check the specification and quality before place an order,we could offer free samples for your reference,you just need to pay the shipping cost.
FAQ:
1)Q:Are you a Trading company or a Manufacturer?
A: We are an Industry&Trade Company .
2) Q:What's your product range?
A: Our product range includes screws, nuts, knobs, bolts, washers, rivet, anchor and CNC parts. We strictly implement various quality standards like GB, ISO, DIN, JIS, AISI NFE and BSW.Non-standard products also accepted.
3) Q:Why should I choose you? What's your advantages? Industries you are serving?
A: We are a professional manufacturer and have 9 years production and management experience in the field of fasteners .
We can provide our customers with a good solution in the area of production design, production process,packaging and after-sale service.Customer satisfaction is our sole pursuit.
4) Q:Which industry field are your product is suitable used in ?
A:Our products are widely use in machine assembling, electronics, constructional engineering furniture cabinets, etc.
Customer Service
· 1. No question refund within 3 days.
· 2. Well trained and experienced staffs at your service.
· 3. Short lead time.
· 4. International standard matched
· 5. Non-standard / standard / OEM / ODM / customized service provided.
· 6. Small Quantity available.
· 7. Designed in accordance with customers' request.
· 8. Packed and delivered by customers' requirement.
Any more questions or demands, pls feel free to contact me!
