Heyi Split Core Current Transformers Kct Series Clamp on Design Mini Cts 5A Ma 333mv Output

Heyi Split Core Current Transformers Kct Series Clamp on Design Mini Cts 5A Ma 333mv Output
Price: US $ 1-10/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: KCT split core CTs
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: Kct-6, Kct-10, Kct-16, Kct-24, Kct-36,
Design Advantage: Clamp on Cts
Accuracy: 0.5 / 1.0
Split Core Transformer Input: 5-630A
Split Core Transformer Output: 1A / 5A / 0.333V or Ma Output
Window Size: Check Specification Below
Rated Frequency: 50-2 kHz
Dielectric Strength: 2.5kv/1mA/1min
Internal Structure: Epoxy
Operating Temp: -25 C~+75 C
Application: Instrument
Type: Current Transformer
Phase: Single

Product Description

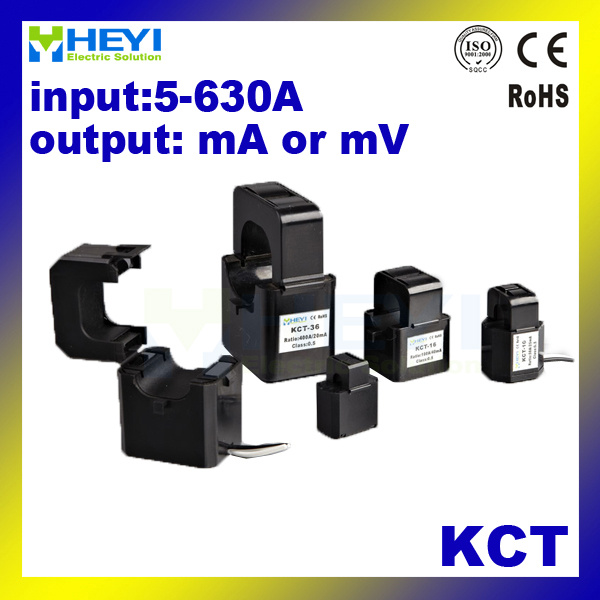

KCT series retro-fit split-core current transformer has been specially designed to facilitate their installation in new or already existing net works. They may be installed without opening any cable or bus-bar circuit. An internal precision resistor across the secondary winding of the CT provides a low safe
voltage output. It can save time and the installation costs.


 Features

1) The structure of the self-locking, safe, easy to install, portable

2) Wide inner window, allowing clamping of big cables or bus-bars

3) Wide range of sizes to accommodate all the existing installations

4) Isolated plastic case recognized according to UL94-V0

5) Wires plugs, Audio plugs, Power plugs and so on five kinds of plugs



 Specification

ModelKCT-06
Current Ratio5A/2.5mA10A/5mA20A/10mA
Primary Current (A)5A10A20A
Max. Current (A)30A30A30A
Output2.5mA5mA10mA
Load Resistance (Ω)200Ω100Ω50Ω
Turns Ration2000:12000:12000:1
Class0.5/1.0
Protection Level7.5V0-P
Insuliation CategoryCATIII
Operating Condition -20ºC ~ +50ºC85%RH, No condensation, IN-house & Any direction installable
Storage Condition -30ºC ~ +50ºC85%RH, No condensation



ModelKCT-10
Current Ratio5A/2.5mA20A/10mA60A/20mA75A/25mA1-75A/0.333V
Primary Current (A)5A20A50A75A1-75A
Max. Current (A)60A60A75A75A1-75A
Output2.5mA10mA20mA25mA0.333V
Load Resistance (Ω)400Ω100Ω50Ω20Ω/
Turns Ration2000:12000:13000:13000:1/
Class0.5/1.0
Protection Level7.5V0-P
Insuliation CategoryCATIII
Operating Condition -20ºC ~ +50ºC85%RH, No condensation, IN-house & Any direction installable
Storage Condition -30ºC ~ +50ºC85%RH, No condensation



ModelKCT-16
Current Ratio100A/33.3mA100A/40mA120A/40mA200A/66.7mA100-200A/0.333V
Primary Current (A)100A100A120A200A100-200A
Max. Current (A)120A120A120A240A/
Output33.3mA40mA40mA66.7mA0.333V
Load Resistance (Ω)50Ω50Ω50Ω50Ω/
Turns Ration3000:12500:13000:13000:1/
Class0.5/1.0
Protection Level7.5V0-P
Insuliation CategoryCATIII
Operating Condition -20ºC ~ +50ºC85%RH, No condensation, IN-house & Any direction installable
Storage Condition -30ºC ~ +50ºC85%RH, No condensation



ModelKCT-24
Current Ratio100A/40mA200A/40mA200A/66.7mA400A/80mA100-400A/0.333V
Primary Current (A)100A200A200A400A100-400A
Max. Current (A)150A240A240A480A480A
Output40mA40mA66.7mA80mA0.333V
Load Resistance (Ω)50Ω50Ω50Ω50Ω/
Turns Ration2500:15000:13000:15000:1/
Class0.5/1.0
Protection Level7.5V0-P
Insuliation CategoryCATIII
Operating Condition -20ºC ~ +50ºC85%RH, No condensation, IN-house & Any direction installable
Storage Condition -30ºC ~ +50ºC85%RH, No condensation



ModelKCT-36
Current Ratio300A/100mA400A/40mA500A50mA600A/60mA300-600A/0.333V
Primary Current (A)300A400A500A600A300-600A
Max. Current (A)360A480A600A720A720A
Output100mA40mA50mA60mA0.333V
Load Resistance (Ω)50Ω50Ω50Ω50Ω/
Turns Ration
Class0.5/1.0
Protection Level7.5V0-P
Insuliation CategoryCATIII
Operating Condition -20ºC ~ +50ºC85%RH, No condensation, IN-house & Any direction installable
Storage Condition -30ºC ~ +50ºC85%RH, No condensation

Note: The Current Ratio above are common type, that's ok to customise the ration according to

customers' requirement.

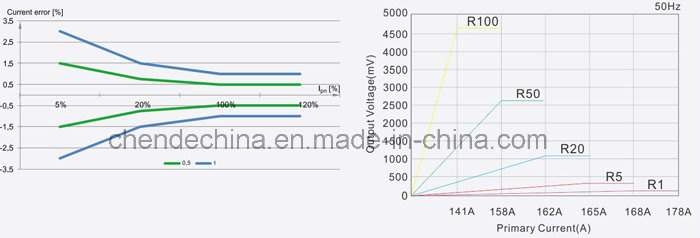

Graph



 Applications

1) Current measurement, monitoring and protection for electrical wiring and equipment.

2) Current and power measurement for electric motors, lighting, air compressor, heating

and ventilation system, air-condition equipment and automation - control system.

3) Current, power and energy monitoring device.

4) Relay protection device.

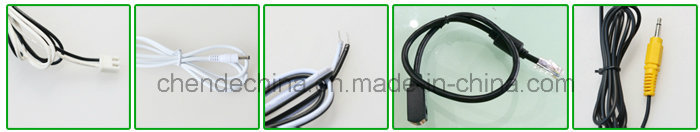

Five connector choice


How to Order?
1. Please let us know what kind of model, color, poles and rated current etc.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay it soon.
5. After full payment, all goods will be sent to you in 6-10 days as usual.
6. OEM/ODM is welcomed. Free OEM for more than 5000 sets orders.

Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.

Payment:
1. We accept Western Union and T/T
2.30% deposit and 70% before shipping
3. No payment collection. We only can deliver goods after getting full payment.

Warranty:
1. We provide 1 year warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods


Contact us:
Send your Inquiry Details in the Below, Click "Send" Now!
YOUR BENEFITS IS OUR BUSINESS!!!

We are the professional manufacturing the 0.5-35 KV outdoor indoor, fuse cut out composite insulator dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on

1. Who we are

Heyi is dynamic company established in 1992, who specializes in research and design, manufacturing, and distribution of all kind ofcurrent transformer

Further more, we also develop ours business for the electrical product, like energy meter, power meter, power capacitor, relay, proximity switch and so on, focusing in ours customers needs, provide the best solution supporting ours customers, be the best in their filed of businss

2 why choose us

We have our own facilities for R&D, Production, Sales & Market, and Customer Support, specializing in the design, manufacture and delivery of customized solution. Equipped with all kinds of professional instruments and testing equipment, combined the professional standard of product testing methods, now we has an annual output of 5, 000, 000 or more products.

3 Heyi Mission, vision values

Heyi mission is to provide reliable, accurate and customized current transformer solution

Heyi vision is leading global split core CT manufacture and energy solution provider

Values Enthusiastic by our work, we offer a quality personal and close service to our customers

Some products have been approved by CE and IEC certificates.
