Hf856A Bored Pile Construction Machine, Piling Drilling Equipment for Foundation
Price: |
US $ 250000-300000/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Prod Model: |
HF856A |
Drilling Depth: |
56(M) |
Drilling Diameter: |
600 - 1500(mm) |
Chassis(Max.Traveling Speed): |
3(Km/H) |
Diesel Engine: |
6bt5.9 Cummins |
Engine(Rated Power): |
108/2100(Kw/Rpm) |
Operating Weight Of Total Machine: |
38000(Kg) |
Rotary Drive(Max.Torque): |
80(Kn.M) |
Product Description

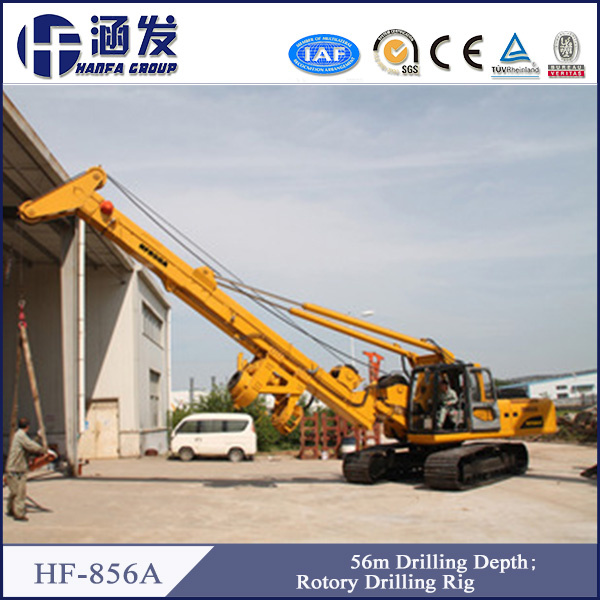

HF856A Hydraulic Rotary Pile Drilling Rig
Application:
1. Max. depth 56m, hole diameter 600~1600mm;
2. 112KW Cummins (USA) diesel engine supply power, very powerful and durable;
3. Adopting telescopic mast structure which owns simple structure and makes transport more convenient;
4. The + -shape axle bed structure is used to fax boom and link arm, boom can adjust around and control the arm, guarantees vertical on rough place;
5. Triangular structure between link arm and amplitude cylinder increases the machine stability;
6. Power head adopts unique patent structure, which save cost and make more convenient;
7. Adopting original imported hydraulic pressure motor from Italy, it has sensitive reaction and can free down;
Technology date:
Parameter Type | HF856A |
Drilling diameter | 600-1000mm |
Max drilling depth | 56m |
Overall measurement | Working dimentions | 18050mm×3200mm×7297mm |
Transport dimentions | 14727mm×3200mm×3325mm |
Machine Weight | 38000kg |
Engine | Model | B5.9-C Cummins(USA) |
Rated power | 112kw |
Type | Turbocharged direct-injection |
Rotary drive | Max.torque | 80kn·m |
Rotation speed | 1-22rpm |
Crowd cylinder | Max.push | 150kn |
Max.pull | 100kn |
Max.stroke | 2000mm |
Main winch | Max.line pull | 120kn |
Max.line speed | 70m/min |
Rope diameter | 24mm |
Auxiliary winch | Max.line pull | 60kn |
Max.line speed | 50m/min |
Rope diameter | 18mm |
Mast inclination | Free adjustment farwards /back wards | 0-93° |
Free adjustment left/right | ±3° |
Electronic Management System | Long distance monitor system | Available |
Drilling record system | Available |
On car printer | Available |
Chassis | Chassis modality | Customizable |
Max travel speed | 2.0km/h |
Min ground clearance | 500mm |
Track width | 800mm |
Hydraulic system pressure | 300bar |
Same series for your choice:
Model | Drilling diameter | Max drilling depth | Rotary drive torque, rotation speed | Engin type/rated power |
HF850A | 600-1600mm | 46m | 80kn·m,1-22rpm | B5.9-C Cummins/ 112KW |
HF128A | 600-1500mm | 42m | 50/102kn·m, 38/20rpm | B5.9-C Cummins/ 113KW |
HF168A | 600-1800mm | 44/56m | 80/165kn·m, 24/12rpm | B5.9-C Cummins/ 133KW |
HF525 | 1400mm | 25m | 50kn·m,1-20rpm | B5.9-C Cummins/ 86KW |
HF530 | 0-1200mm | 30m | 50/60kn·m,1-22rmp | B5.9-C Cummins/ 86KW,112KW |
HF630A | 300-1200mm | 30m | 55kn·m,0-22rpm | B5.9-C Cummins/ 86KW |
HF320A | 300-1200mm | 20m | 30kn·m,0-22rpm | B5.9-C Cummins/ 86KW |
