| Prod Model: |
P5 |
| Pixel: |
5mm |
| IP Level: |
IP65 |
| Max Power Consumption(W/M2): |
450 |
| Module Size(mm): |
160*160 |
| Product Name: |
Taxi Top LED Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Market Display |
| Average Power Consumption: |
180W / m² |
| Scanning Mode: |
1/16 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
FCC |
| Pixel Pitch: |
5mm |
| Pixel Density: |
40000 DOT/ M2 |
Product Description
1.Key Features:
1.High Resolution 2.5,3,5 mm pixel Spacing
2.Intensity >=5000 nit
3.Intelligent Power Supply Management
4.Quick installation and maintenance
5.Multiple control Options
6.Made of high quality LEDs
7.Lower Power Consumption
8.IP65 grade
2.Specifications:
| Model Type: | P2.5 | P3 | P5 |
| Pixel Pitch | 2.5 mm | 3mm | 5mm |
| LED Type | SMD 2121 | SMD1921 | SMD 2727 |
| Pixel Density | 160,000 dot/ m2 | 111,111 dots | 40000 dot/ m2 |
| Module Size | 160*160mm | 192*96 | 160*160mm |
| Frame Size | 1100mm( L) x 410mm(H) X W:164mm(bottom)/ 99mm (top) | 820mm( L) x 390mm(H) X W:170mm(bottom)/ 99mm (top) | 1100mm( L) x 410mm(H) X W:164mm(bottom)/ 99mm (top) |
| Frame Materials | Aluminum | Aluminum | Aluminum |
| Screen Size | 960mm*320mm | 768mm*288mm | 960mm*320mm |
| Screen Resolution | 384*128 dot | 256*96 dots | 192*64 dot |
| Brightness | >=5000 nit | >=3500 nit | >=5500 nit |
| Contrast | >8000:1 | >8000:1 | >8000:1 |
| View Angle | 150°(H)/150°(V) | 150°(H)/150°(V) | 150°(H)/150°(V) |
| Scan Mode | 1/32 scan | 1/32 scan | 1/8 scan |
| Power Supply Input | DC9--24V | DC9--24V | DC9--24V |
| Max Consumption | 420w | 270w | 450w |
| Average Consumption | 130w | 90w | 150w |
| Optimal Viewing Distance | 1--20M | 3--20M | 5--50M |
| Driving ICs: | ICN2038 | ICN2038 | ICN2038 |
| MTBF | 10,000 Hours | 10,000 Hours | 10,000 Hours |
| Frame Frequency | 60-85HZ | 60-85HZ | 60-85HZ |
| Fresh Frequency | >1920HZ | >1920HZ | >1920HZ |
| Control Method | Asynchronous | Asynchronous | Asynchronous |

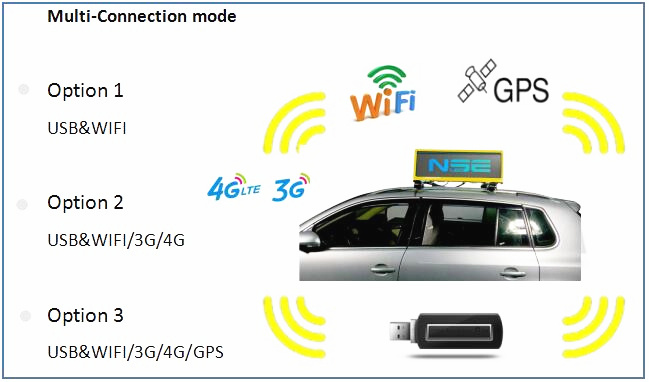

| Control Mode | 3G/4G/WIFI/ Ethenet/ USB | 3G/4G/WIFI/ Ethenet/ USB | 3G/4G/WIFI/ Ethenet/ USB |
| Temperature Operating | -40°~+70° | -40°~+75° | -40°~+75° |
| Working Humidity | 10%-90%RH |
| Screen Protection | Waterproof, rust-proof, dust-proof, anti-static, anti-mildew |
| Power Protection | over-temperature/over-current/ over-voltage protection |
| Package | Honeybox |
| Package Dimension | 1100mm(L) X 500mm(H) X 270mm(W)
|
| Screen Weight: | 24 kg | 15kg | 23kg |
| Gross Weight: | 31 kg | 22Kg | 30kg |
| Certificates | CE. ROHS | CE. ROHS | CE. ROHS |
3.Product desctription:

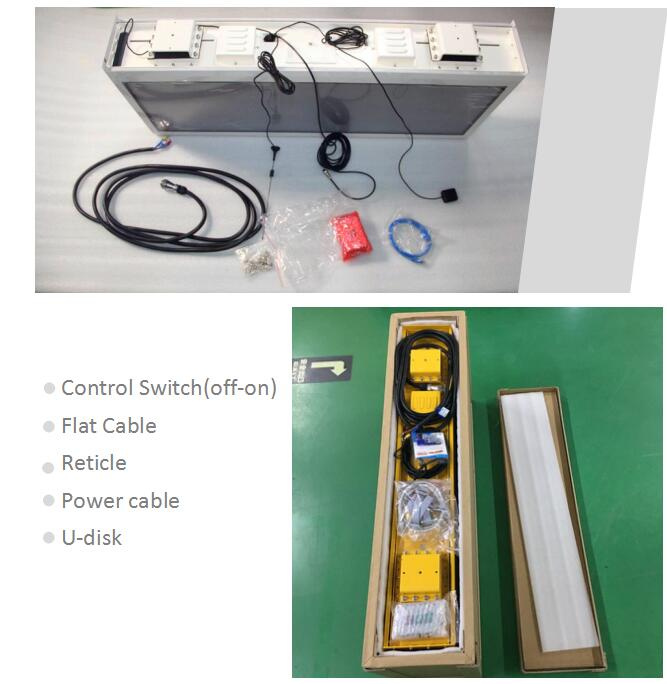

4.Package
5.Company information
6.Company Certificate
7.Trade Terms:
1.Payment: T/T , Western Union or Paypal are welcomed.
2.Production lead time 7days
3.Sample can be delivered in 3days
4.Shipping freight are quoted under your requests
5.Shipping port: Shenzhen, Mainland China
6.Discounts are offered based on order quantities
7.MOQ:1pcs
To be known as a leading portable sign manufacturer, NSE has got rapid-growth in the market in the past 5 years. Being an ISO9001 Certified and Government-nominated "Hi-Tech Enterprise", we are continuously investing in the Research and Development of portable and other creative LED display products. Currently, we have few patents registered in China.
Now our LED display products have been sold to more than 60 countries and areas, such as South Africa, Australia, USA, Germany, Spain, Poland, Russia, Australia, Chile, Brazil, Paraguay, Mexico, Thailand, Malaysia, Indonesia, Vietnam, Saudi Arabia, Iran, and so on. We are also supplying ODM business to two leading VMS products suppliers in Australia and Brazil.
We believe that quality and customers' need can be achieved and satisfied only with high & Whole-hearted dedication, and persistence in pursuing high performance of the products. With strict quality assurance system, we are receiving less than 0.01% compliant of noticeable defects from our products. So far, Our products had passed various certificates, such as UL, CE, FCC, ETL, CCC, RoHS ec.
"Create Value, Display Infinity", NSE will continue to break new ground on the basis of past achievements, to strive to top-class LED products supplier.
