| Price: | US $ 45000-180000set |
|---|---|
| Trade Terms: | CIF |
| Min Order: | 1set |
| Pay Type: | L/C,T/T |
| Prod Model: | F series |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Power: | 500W / 1000W / 2000W / 3000W |
| Working Area: | 1500mmx3000mm / 2000mmx4000mm / 2000mmmx6000mm |
| Function: | Laser Cutter Metal |
| Color: | White |
| Max Moving Speed: | 100m/Min |
| Max Cutting Speed: | 35m/Min |
| Position Accuracy: | 0.03mm |
| Laser Source: | Ipg / Maxphotonics |
| Min Line Width: | 0.1nm |
| Repostion Accuracy: | 0.02mm |
NO.1 Characteristics of our laser cutting machine
1. Application of gantry structure and integrated cast cross-girder to achieve higher rigidity, stability, shock resistance.
2. High-performance laser source and stable operating system which make the best cutting effect.
3. The machine owns perfect cooling system, lubrication system and dust removal system, to ensure that it can operate stably, efficiently and durably.
4. The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.
5. The machine is used for cutting a variety of metals with excellent and stable cutting quality.
6. The specialized CAD / CAM automatic programming software and automatic nesting software aim to maximally save raw materials.
7. Access to the CNC system through Ethernet interface makes communication and remote monitoring possible during the laser cutting process.
NO.2 Machine Application Field
1.Application Materials: Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc
2.Application Industries: BODOR Fiber Laser Cutting Machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.

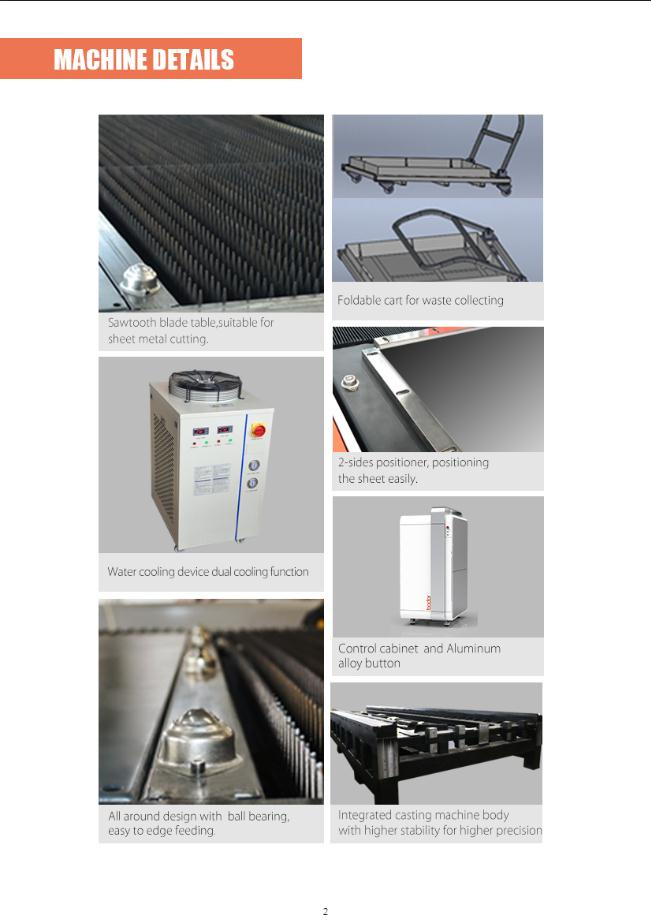

NO.3 Machine Details
NO.4 Parameters of laser cutting machine
Model | F1530 | F1540 | Option |
Max Cutting Range | 1500*3000mm | 1500*4000mm | According to Demands |
Machine Size(L*W*H) | 2.4*4.7*1.9m | 2.4*5.7*1.9m | |
Accessory Parts(L*W*H) | Chitler 1*1*1.2m Control Box 1*0.8*1.8m Fiber Module 0.5*0.6*0.14m | ||
Laser Medium | Single Core Junction Semiconductor Module | ||
Max Cutting Speed | 25m/min | ||
Cooling Way | Water Cooling | ||
Laser Power | 500W(Option 200W/300W/400W/1000W/2000W) | ||
Min Line Width | 0.1mm | ||
Cutting Depth | 0.2-6mm | ||
Driving and Transmission Way | Imported Servo Motor and Linear Guide Rail | ||
Power Requirements | 380V/50Hz/16A | ||
Continuous Working Time | 24Hours | ||
Related Weight | Machine Body 2732kg Trolley 116kg Computer Cabinet 56kg Servo Cabinet 75kg Transformer 77kg Chiller 93kg Fiber Module 50kg | ||
NO.1 Our Factory And Quality Control
Quality is our paramount mission that underpinning the lifeline of the company, and it is the most important factor to maintain long-term business relationships with customers. Special attention is paid to the quality of every unit of BODOR laser cutting machine. Standard quality control system and team are responsible to insure the product quality in every process with different instruments like laser interferometer and laser power meter. The laser interferometer and laser collimator are used through the mechanical assembling process. In the laser assembling process, the laser power meter and optical microscope are adopted.
NO.2 Packaging & Shipping & Payment
1)Packaging:
Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.
2)Shipping:
We cooperate with SINOTRANS company whose experience in the ocean transportation will guarantee your machine safety. We also provide train transport, especially to Russia, Ukraine and other inland countries.
3)Payment:
We support T/T, L/C, VISA, Mastercard payment terms with Alibaba Trade Assurance.
NO.3Warranty and Service
1.Guarantee for 3 years.
2. Maintenance free of charge for 3 years .
3.We will provide the consumable parts at an agency price.
4.24 hours online service, free technical support.
5.Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
6.We have manual instruction and CD (Guiding Videos) for software Installation, operation and machine's using and maintenance.

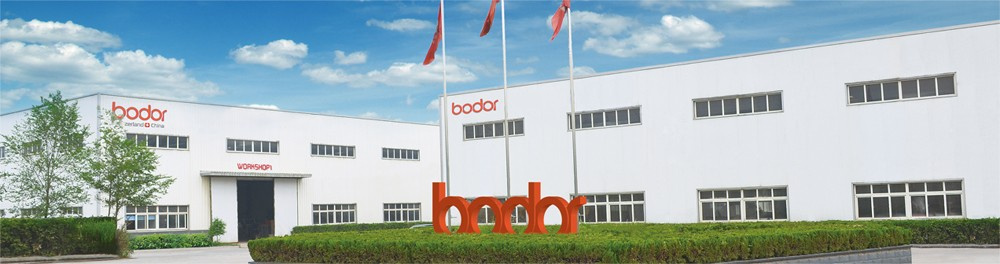

company information
Jinan Bodor CNC Machine Co., Ltd. specializes in R&D and production of various laser equipment, such as laser cutting, engraving and marking. All series machines are with Three-year's warranty. Also our service support various languages, like English, French, Arabic, Spanish, Russian, Korean, Portuguese, German and so on. Meanwhile, customized equipment are available according to different requirements.
Within the field, Bodor has passed CE and FDA qualifications. Moreover, Bodor has successfully practiced ISO quality system and 5S management, which assures high-efficient production and products' reliability. After years of hard work, Bodor's products have made presence in more than 100 Countries such as North America, West Europe, South Asia, South America and Mid East etc.. Facing the chances and challenges of Global Economic Integration, as well as being offered with opportunities of Knowledge Economy Era, the self-motivated Bodor stuff, brave and passionate, initiatively implement the enterprise management policy: "Scientific Management, Continuous Improvement, Rapid Development, Credit First, Quality First". We aim to be a professional, branding, and International suppliers for various industrial solutions.
Quality and credit goes all the way. Bodor, a company surviving fierce market competition, has very strong national culture, and develops shoulder by shoulder with the world and this Era. We are determined to achieve our dreams step by step with the advantages of high technology.
FAQ
Q1: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.
Q2: When I got this machine, but I don't know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
Q4: Before sending me an inquiry on our fiber laser, it is better for you to provide me the following information
1)Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2)Your materials.
Metal/Acrylic/plywood/MDF?
3)You want to engrave or cut?
If cut, could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supplier.
