High Effective Fresh Meat Strip Cutting Machine Cutter
| Price: |
US $ 8500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
QTJ500-II |
| Parts: |
Siemens |
| Weight: |
150kg |
| Input/Output Height: |
Input Height:720mm Output Height:780+-50mm |
| Type: |
Meat Slicers |
| Voltage: |
220V |
| Customized: |
Customized |
Product Description

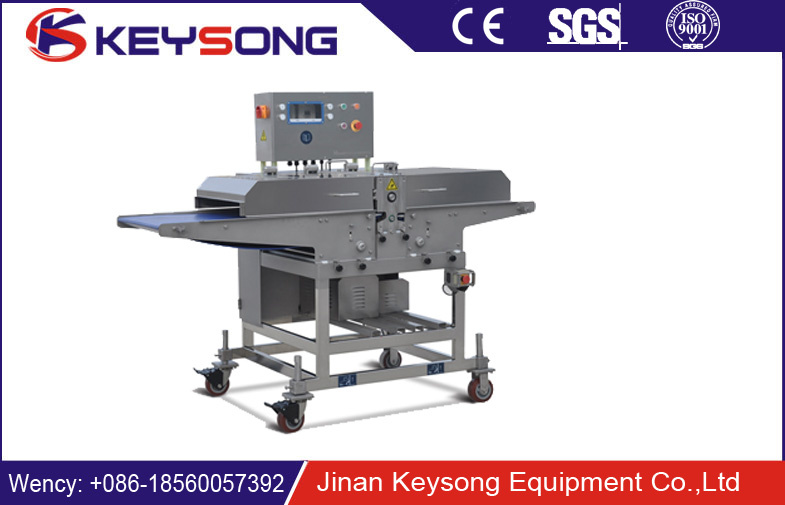

High effective Fresh Meat Strip Cutting Machine Cutter
Fresh Meat Strip Cutting Machine Cutter QTJ500-IIMeat stripping and dicing with circular blade.Suitable for fresh meat processing,including pork, beef and poultry.Application:1.High cutting precision with minimum width 5mm,high efficiency guaranteed by multi blade cutting. Also capable of different thickness cutting combined in single cutting.2.Cutting width is adjusted by changing blade carrier or blade sleeve.3.Floating unloading system to prevent meat from sticking on blade.4.Conveying speed can reach to 18m/min, high production capacity guaranteed.5.Detachable blade carrier, input belt and output belt, easy to clean.6.Mist spraying design smoothing the cut.7.Adopt imported module belt with long life.8.Adopt SIEMENS part with safety service, CE approved.9.Adopt SS and engineering plastic, easy to clean and meet HACCP.10.Easy operation and lower maintenance.Features:1.Precise cutting width.2.Minimize labor cost, high efficiency.3.Can work with strip cutting machine to produce same size strip product.4.Can work with intelligent cutter to produce same weight product.Technical Parameters Model | QTJ500-II |
Belt width | 500mm |
Belt speed | 3~18m/min |
Max.product width | 400mm |
Min .cutting thickness | 5mm |
Max.cutting thickness | 45mm ,can made to 70mm |
Production capacity | 200 - 800 kg/h |
Input/Output height | 1050±50mm |
Power | 1.9kw |
Overall dimension | 2010x903x1615mm |
Breading Machine (Crumbing Machine)SXJ200- II

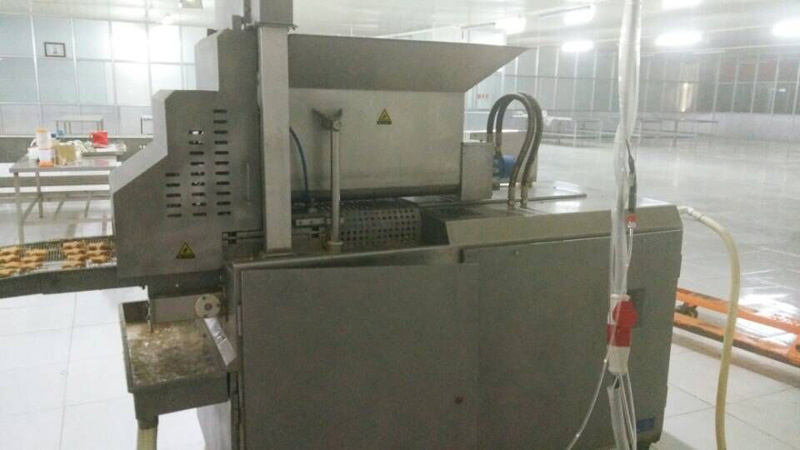

Breading machine SXJ200-can evenly coat the meat like chicken,beef pork, meat and seafood by outpouring the crumb from the hopper when the products is carried by the belt pass under it. For the bottom coating, there is a layer of crumb on the lower belt. Also there is a roller pressing system to press tightly the crumb onto the surface of the food and the thickness of crumb can be regulated by this unit too.
1.Both fine and coarse crumb suitable
2.Easy operation and cleaning
3.Powerful blower and vibrator can easily remove the excess flour.
Preduster(Flouring Machine)SFJ200- IIThe conveyor belt carries the products on to a floor bed, above where a hopper above can offer a layer of flour, this makes the products thinly and evenly coated to make preparation of the next processing step. And it can be joined to the battering machine and breading machine to make different production lines to finish the processing of predusting-battering-predusting,battering-predusting and battering-predusting-breading. etc different procedures. It can predust all around the products, completely even.
Powerful blower and vibrator can easily remove the excess flour.
The pressing roller design can help to coat the products and can regulate the thickness of the coating.
Our Service:
1) Free samples engraving and cutting.
2) Two years warranty.
3) Free technical training.
4) Installation and commission support.
5) 24 hours on-line service.
6) Telephone service.
7) Prompt delivery.
8) English version user manual and operation video.FAQ:1.Are you a factory or trading company?
We are the manufacturer and we have morethan10 years factory experience.As only the machine made by ourself,quality can be trusted,and most important thing is we can do better service after sales.we know how to fix the problem in each parts easliy.so welcome to visit to our factory
2. How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
3. How should I pay for my order? what is the procession of this purchase?
You can do 30% prepayment at first, then we will start to make production.
when the machine is ready , we will take pictures to you, and then you can do the balance.
after we got your payment. We will send the machine to you.
4. How about your service after sales? Can your engineer speak fluent english?
We offer the service from you got the machine,including how to install the machine,
how to use machine. how to let machine work.and so on. usually we will teach you how to do by emailor by skype.our engineer has many years of experience for cnc machine service.he can speak very goodenglish,so he can slove the problem in short time.
5. How about the documents after shipment?
After shipment,well send all original documents to you by DHL, including Packing List,
Commercial Invoice, B/L, and other certificates as required by client.Packing and shipping: Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea or by train.We can transport machine by boat or by training, according to your requirement.
