High Efficiency Hydraulic Low Profile Hexagon Hydraulic Torque Wrench

Prod Model:	FY-W8000
Max.Torque:	2328-41882nm
Min. Torque:	232-4188nm
Metric Nut Size:	24-155mm
Weight:	1.5-20.5kg
Metarial:	High Strength Aluminum Titanium Alloy
Color:	Silver or Customized
Warranty:	2 Years
MOQ:	One Piece
OEM Service:	Yes
Metric Bolt Size:	16-115mm
Type:	Hex Wrench
Material:	Carbon Steel
Standard:	European Type
Feature:	Ordinary
Brand:	Feiyao
Working Mode:	Hydraulic Automatic

Product Description

Features:

1. Rigid steel design ,durability,reliabilty and safety

2. No tools needed for changing hexagon heads

3. Versatility:one hydraulic drive unit per torque capacity can be used to drive any hexagon head within

that range

4. Innovative,pinless wrench construction with quick release drive and automatic crank engagement  fast

operation due to the large nut rotation per wrench cycle(30 degree)and rapid return stroke ,double acting

5. Constant torque output provides high accuracy (±3%) across the full stroke

6. 360 degree swivel manifold with screw lock couplers

7. Optional interchangeable metric and imperial hexagon heads and reducer inserts

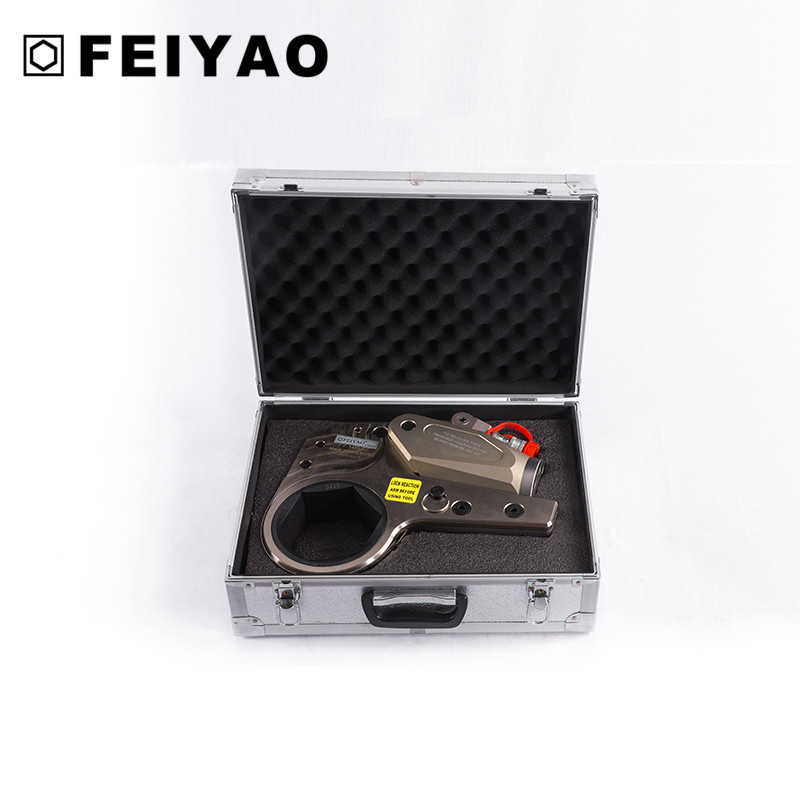

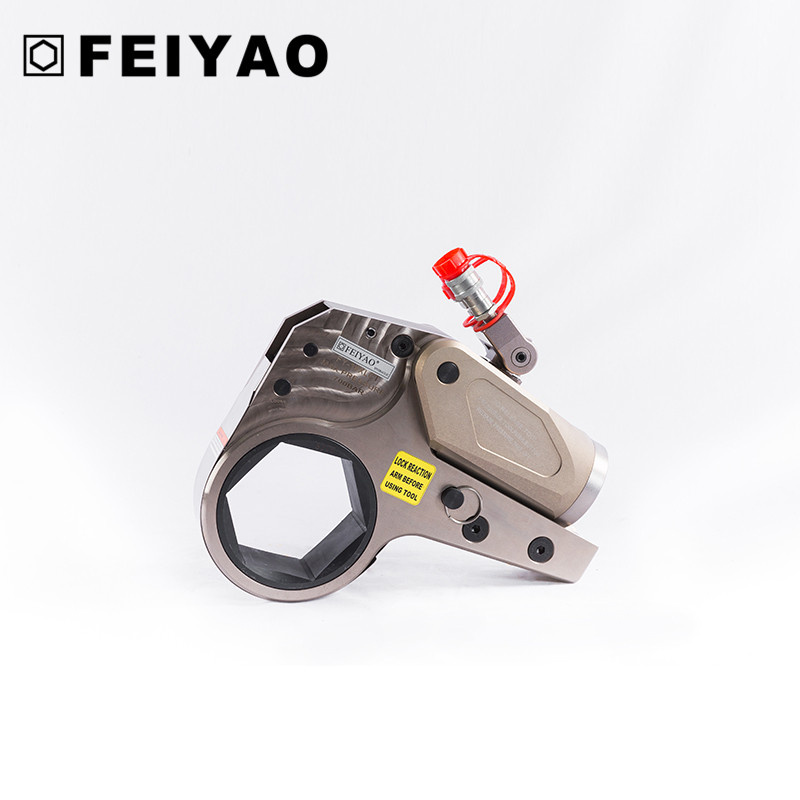

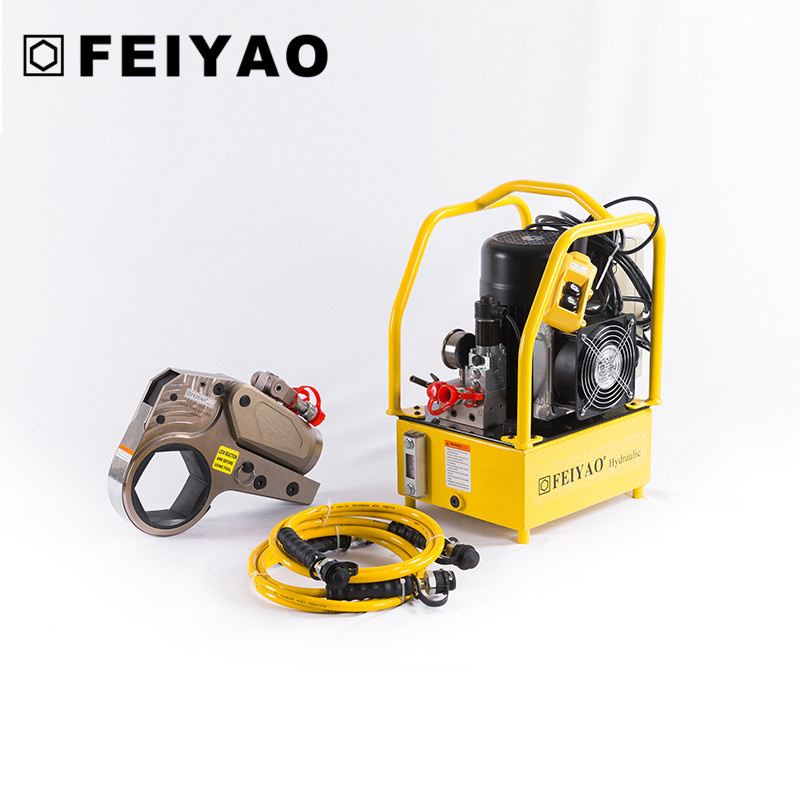

Product Photos:



Parameter information

Model	FY- 02MXTA	FY- 05MXTA	FY- 08MXTA	FY- 10MXTA	FY- 16MXTA	FY- 20MXTA	FY- 27MXTA	FY- 39MXTA	FY- 50MXTA	FY- 60MXTA
Max. Torque (N.M)	1940	4763	8012	10704	15633	20782	28286	39584	50844	58673
Min.torque(N. M)	139	340	572	765	1117	1484	2020	2827	3632	4263
Screw size(mm)	24-55	32-75	41-85	46-95	55-105	60-115	65-130	75-145	95-170	105-185
Bolt size(M)	16-36	22-48	27-56	30-64	36-72	39-80	42-90	48-100	64-120	72-130
axle	3/4"	1"	1-1/2"	1-1/2"	1-1/2"	2-1/2"	2-1/2"	2-1/2"	2-1/2"	2-1/2"
L1	127	170	213	223	251	2774	309	320	358	375
L2	187	253	292	354	359	418	453	490	522	539
L3	106	145	168	206	210	250	260	290	305	315
H3	52	70	82	94	103	110	126	135	150	156
H2	77	101	127	138	147	163	192	205	214	220
H3	98	133	153	184	196	225	234	269	276	288
H4	169	201	200	281	185	326	328	354	358	373
R	26	35	40	50	52	60	66	70	75	78
weight (kg)	2.3	5.2	8	12	14.8	18.9	28	41.2	46.3	53.5

Brief introduction of FEIYAO

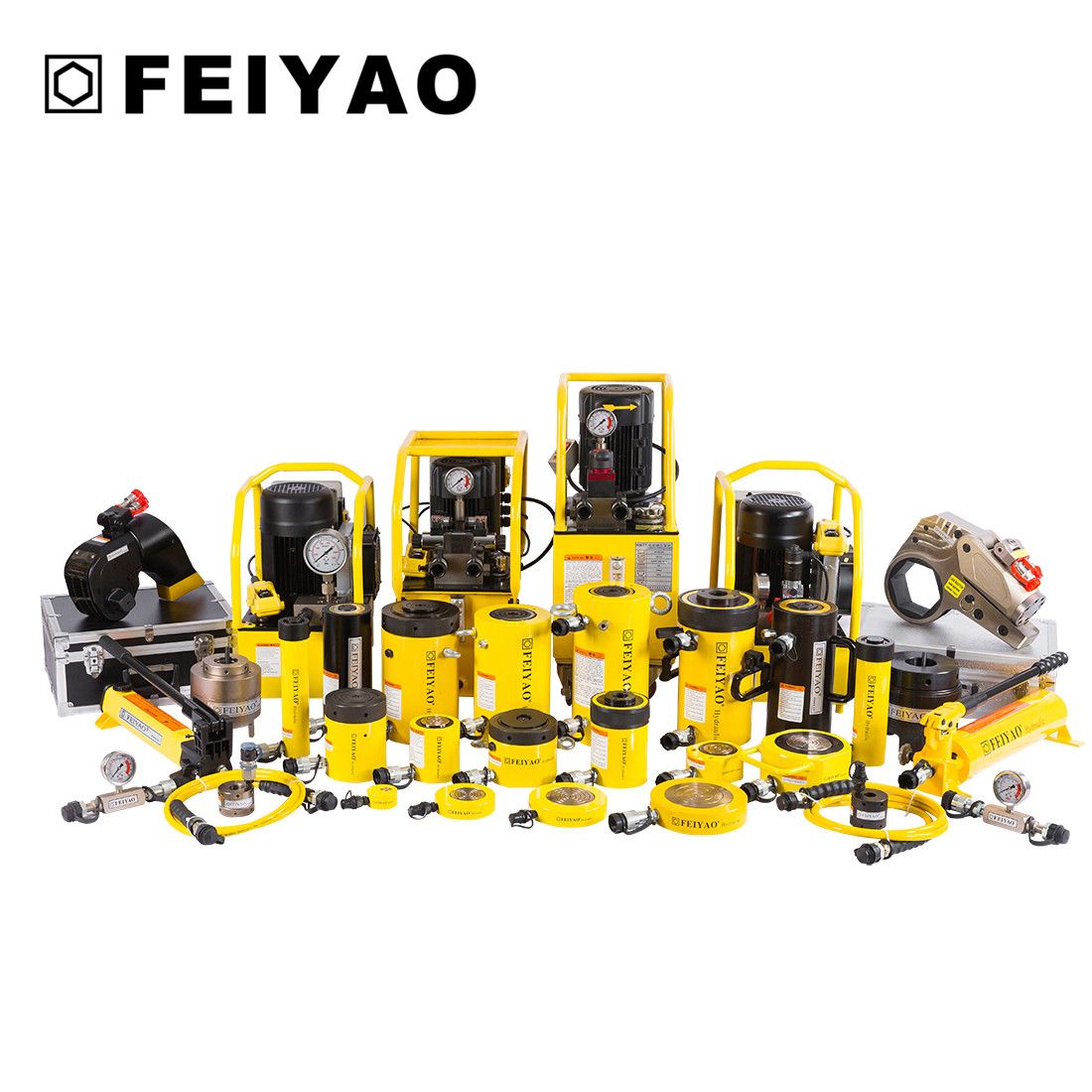

Established in 1978, Jiangsu Feiyao Machinery Manufacturing factory is an professional leading manufacturer of hydraulic tools in China. Such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.

Our products have been widely sold to Europe, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.

Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides, we have gained CE and ISO9001 certificates.


Factory Show:



We warmly welcome all overseas customers to talk with us about business or other cooperations.

Any phone call, E-mali, Fax from you would be a beginning of happy cooperation.

For more information please visit our website:www.fyhydraulic.cn
We are professional manufacturer, offer you competitive price.

If you have any questions about these products , please contact us ,we will try  our best to help you !

FAQ:

Q1: How to contact sales?
A1: Please emailor call: +86-180-5260-7772 for pre-sales.

Q2: How to make payment?
A2: Once order confirmed, we will prepare proforma invoice with our banking details.

Q3: How long does it take to process orders?
A3: It usually takes 10-14 business days to process most orders for no stock, if stock available, only take 2- 3 business days.

Q4: What is the packing method?
A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.

Q5: How to ship?
A5: Sea freight, Air freight or International express(DHL, FEDEX,UPS...) all are available.

Q6: What is the warranty?
A6: 12 months against B/L date.
