High Efficiency on Site Pneumatic Chain Tube Borer

Name: High Efficiency on Site Pneumatic Chain Tube Borer
Brand: tool-buy.com
SKU: 738785405
Availability: InStock
Rating: 4.6 (149 reviews)

Price:	US $ 1750/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Wenzhou Co-Pack Machine Co., Ltd.

Showroom Product Company Profile

Prod Model:	ISM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe
Power Type:	Electric
Type:	Rotary Drilling Rig
Condition:	New
Usage:	Pipe & Pressure Vessel

Product Description

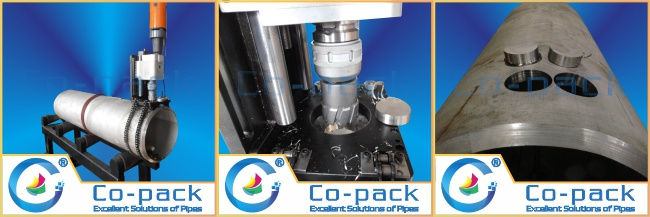

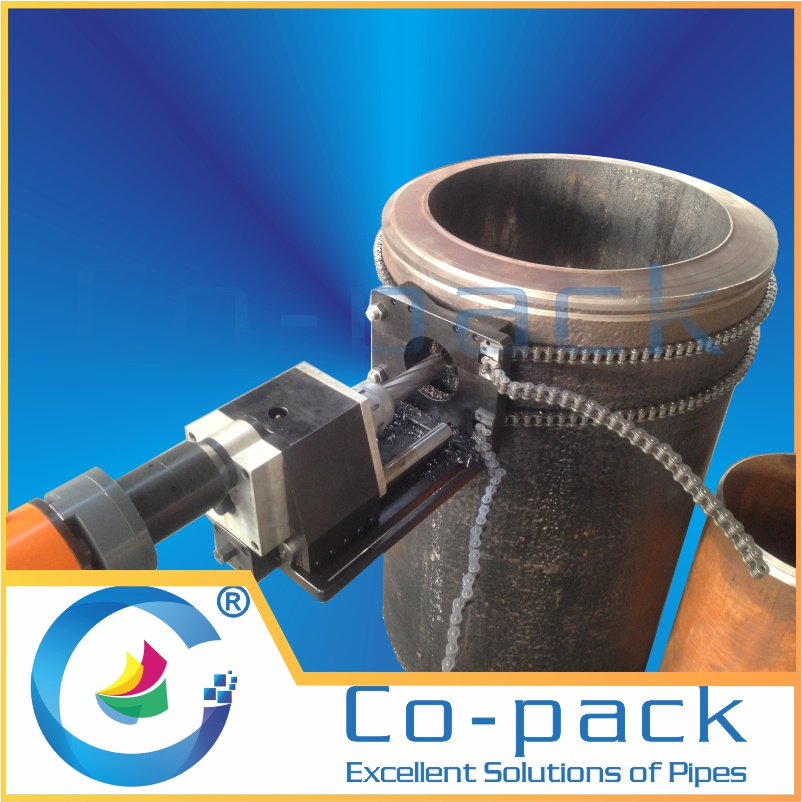

Portable Pipe Drilling Machine

The machine used for drilling hole on the steel pipe, maximum diameter available up to 114mm, drive by high-power carbon brush motor (can use pneumatic motor for preventing explosion in case of dangerous workplace), reduce speed by gear reducer, strong spring clip clamping tool, wolfram carbide hollow drilling bit drill hole and slither machine guide tool feeding. High hardness and large torque, it is good at stainless steel pipe and thick wall pipe drilling hole on site and maintenance of machinery industry. Widely used in petroleum and chemical industry, electric power construction, fire fighting pipeline etc.

Technical Parameters:
Single-phase electric motor, rated voltage 220V, power 2.5KW, frequency 50~60Hz
Optional drive by hydraulic motor or pneumatic motor

Standard Accessory:
Locking chain 1 pce
Feed wrench 1 pce

Working Capacity:

Model (Electric)	Model (Pneumatic)	Clamping Capacity (O.D. mm)	Drilling Thickness (mm)	Drilling Diameter (I.D. mm)	Net Weight (kg)
ISM-170	TSM-170	Φ140-800	2-200	Φ6-114	28
ISM-170-I	TSM-170-I	Φ140-1600	2-200	Φ6-114	34
ISM-170-II	TSM-170-II	Φ140-2400	2-200	Φ6-114	40
