| Prod Model: |
MJ2330A |
| Usage: |
Woodworking |
| Voltage: |
230V |
| Power(W): |
3HP |
| Dimension(L*W*H): |
84X64X62cm |
| Weight: |
174kgs |
| Type: |
Table Panel Saw |
| Layout: |
Horizontal |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Manual |
| Precision: |
Precision |
| Certification: |
ISO |
Product Description
FOB Price: US $ 1, 200 - 1, 500 / Set
Min. Order Quantity: 5 Set/Sets
Supply Ability: 500 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Quick Details
Condition: New
Type: Table Panel Saw
Use: Woodworking
Style: Vertical
Place of Origin: Shandong, China (Mainland)
Brand Name: Weihao
Model Number: MJ2330A
Usage: Woodworking
Voltage: 230V
Power(W): 3HP
Dimension(L*W*H): 84X64X62cm
Weight: 174kgs
Certification: CE
Warranty: 1year
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Packaging Details: PACKING: IN CARTONS AND COMPREG CASES Net / Gross weight Dimensions Main compreg case 220/238kg 83x72x63cm Auxilliay carton I 15/17kg 184x35x19cm Auxilliay carton II 18/20kg 205x25x11cm Auxilliay carton III 32/34kg 62x55x37cm Quantity per 20'/40' container 41/82sets
Delivery Detail: 30-45days
Specifications
Categories: Sliding Table Saw Machine MJ2330A
Product number: MJ2330A

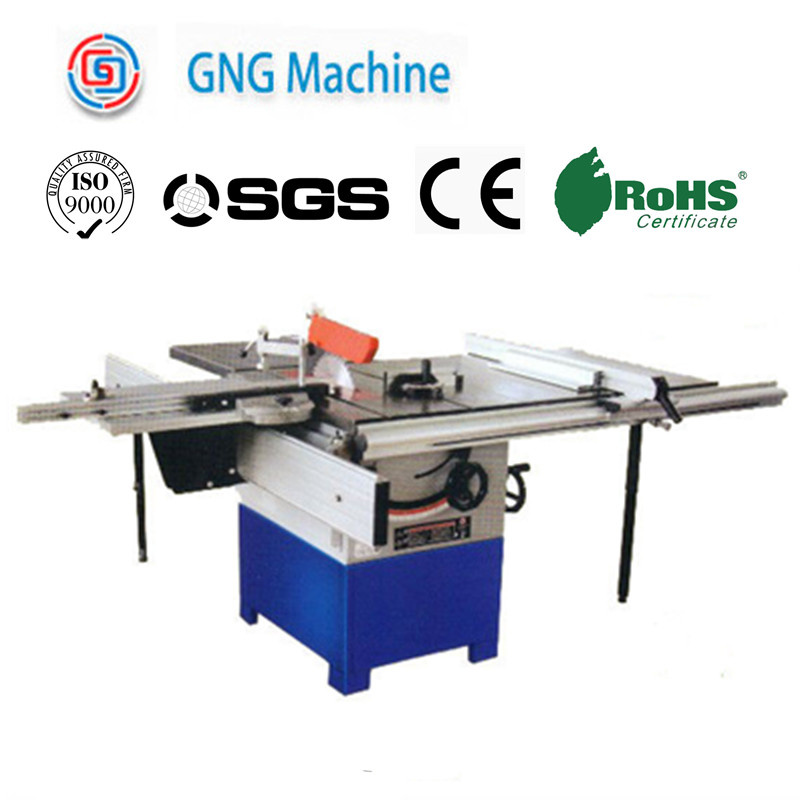

Product name: 12" table panel saw MJ2330A
12" sliding table panel saw machine MJ2330A
TECHNICAL SPECIFICATIONS
| SAW BLADE BORE DIAMETER | 30MM |
| SAW BLADE DIAMETER | 315MM |
| MAIN TABLE SIZE | 600X800MM |
| CROSS EXTENSION TABLE(2PCS) SIZE | 440X800MM |
| RIP EXTENSION TABLE SIZE | 530X600MM |
| SLIDING TABLE | 600X480MM |
| MAXIMUM TIMBER WIDTH | 1220MM |
| MAXIMUM TIMBER LENGTH | 1300MM |
| MOTOR POWER | 4HP |
| MAXIMUM DEPTH OF CUT@ 0 0 | 100MM |
| MAXIMUM DEPTH OF CUT@45 0 | 75MM |
| DUST EXTRACTION OUTLET | 100MM |
