High Frequency Induction Heating Machine for Saw Blade Brazing (GY-40AB)
| Price: |
US $ 1-10000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
GY-40AB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feature: |
High Efficiency |
| Warranty: |
12 Months |
| Duty Cycle: |
100% |
| Cooling: |
Water |
| System Control: |
IGBT |
| Condition: |
New |
| Application: |
Heating,Forging,Melting,Hardening and etc |
| Work Condition: |
Continuously for 24hours |
| Work Principle: |
Electromagnetic Induction Heating |
| Power Source: |
Electric |
Product Description
High Frequency Induction Heating Machine For Saw Blade Brazing (GY-40AB)
Induction Heating Machine, Heating Machine, High Frequency Induction Heating Machine, Induction Heating Machinery, Induction Heater
Major Features:
1. It adopts the most advanced MOS, IGBT frequency conversion control technologies to ensure the high efficiency and maximum output power.
2. It has the constant current and power control function, which can significantly optimize metal heating
process, realize the high efficient and fast heating and bring into play the superior performance of the products.
3. It has the function of three-stage time setting represented by heating-heat preservation-cooling.
Furthermore, the power for heating and heat preservation is available for independent regulation,
which can facilitate the heating and heat preservation, which is applicable to places requiring bulking
and repeated heating.
4. A maximum ten types fault protection and display of over-current, over-voltage, water shortage and
phase missing can provide higher reliability and durability.
5. It is safe and reliable, and requires no equipments of ten thousand voltage, and thus can ensure the
safe operation.
6. The comprehensive full load design is available for 24-hour continuous operation.
7. It is available for ultraviolet temperature detection, which can realize the automatic control of temperature, improve the heating performance and simplify the manual operation.
Application:
Forging(Bar,flat plate,bar end heating,pipe ends,bar end heating)
Pre-heating(Pipe,steel wire,stainless steel wire)
Brazing(Saw blades,carbide tools,cooper tube,aluminum part,drilling tools,Pan)
Annealing(Steel pipe,golf ball head,brass lock,aluminum pan)
Hardening(Gear,shaft,pipe,bearing,pump fitting,steel plate,roller)
shrink fitting(motor,pipe)
Melting(Iron,steel,brass,aluminum,silver,zinc)
Advantage:
Nearly 20 years experience, stable and goods performance
CE,SGC,FCC,ROSH certificated
Cooperated with GM,VOLVO,HONDA and so on.
Suitable for a large range, heating, quenching, forging, melting, soldering and so on.
Less environment pollution
High efficiency,high output&high reliability
Small size &light weight
Parameter: | Model | GY-40AB (Three phase) |
| work power | 340V-430V |
| input current | 41A |
| Fluctuating output power | 40KW |
| fluctuating frequency | 30-80KHZ |
| output current | 200-1800A |
| the flow rate of cooling water | 0.08-0.16Mpa 7.6L/Min |
| water temperature protection point | 40C |
| product size | main:620x250x530mm |
| transformer:480x260x410 mm |
| net weight | main : 34.5kgs |
| transformer : 31.5kgs |

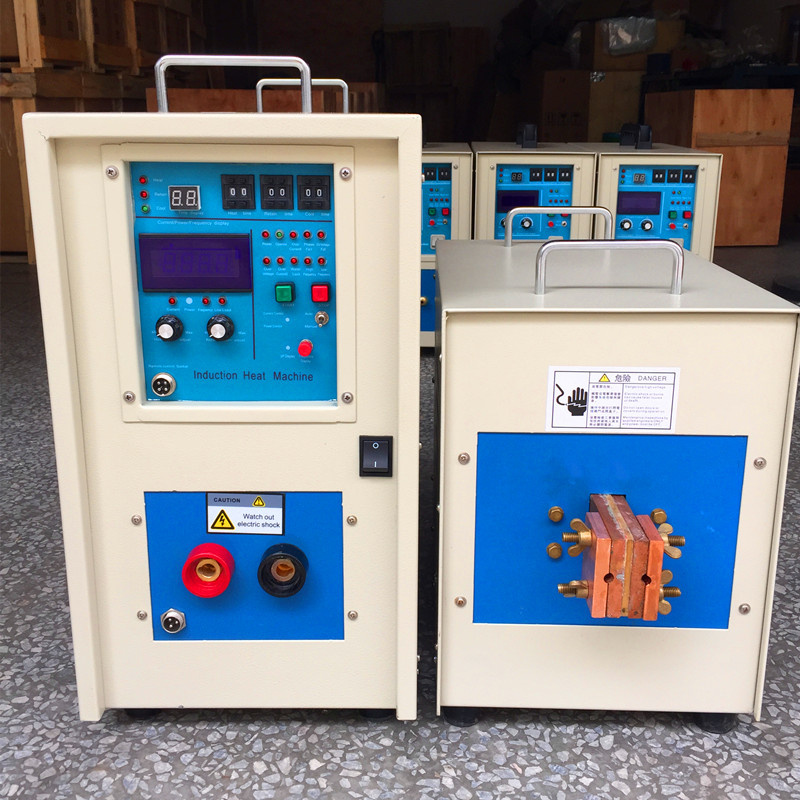

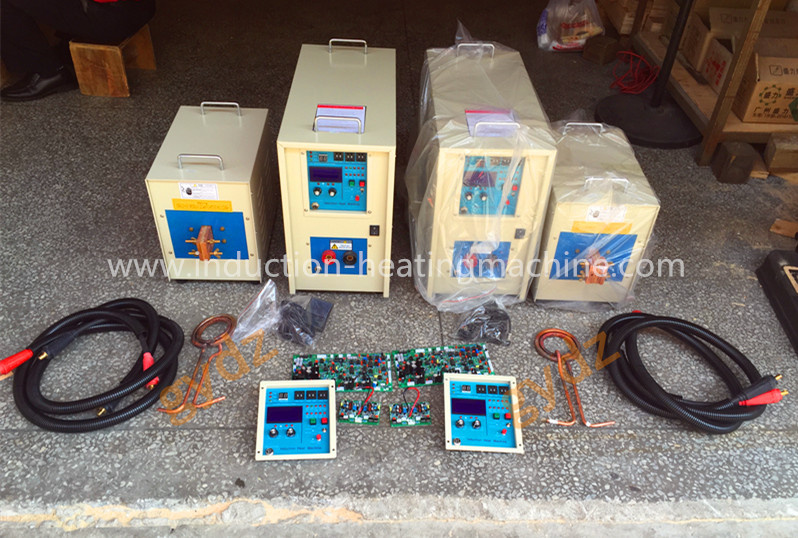

Machine Photo
Founded in 1993, Dongguan Guangyuan Inverter Electronic Equipment Factory is a private high-tech factory. Our factory is located in Wanjiang District of Dongguan City in Zhujiang Delta, with convenient transportation near No. 107 national highway and Guangshen speedway.
We have established an R&D system. It is supported by advanced engineers and professional workers, who are especially engaged in researching and developing the machinery of middle or high frequency induction heating and high frequency inverter electrolysis and galvanization power supply. Since we owned strong technique development capability, our factory has been insisting on producing new product and new craftwork to assure our leading position on technique in this field.
Under the effort of several years, our factory has produced series of high quality products in various categories. We can also exclusively produce these products on your requirement to meet you need. Our middle or high frequency induction heating equipment is produced for special voltage condition of some countries. For instance, there is single-phase 110V, three-phase 220V induction heating equipment for America and Japan and three-phase 415V, 440V induction heating equipment for such southwestern Asia countries as Malay and Thailand.
Our factory has a wholesome distribution network. Our products are delivered to America, Europe and southwestern Asia areas. We also built up a lot of offices to provide prompt and quick service to our consumers.
At the beginning of our foundation, we advocated "work with honest and credit, service for ever". This slogan has deeply footed in the culture of our factory, becoming the soul of development and management. During the process of development, it is firmly believed that a wonderful after-sale service is the base stone for a company' S existing. Therefore, our factory takes the thought of "creating values for costumers" as the core of our managing strategies.
Chinese companies are facing the competition and challenge from the whole globe. Our factory will use advanced technology to provide better after-sale service and to find a proper position in the international market. We will hold the spirit of more professional, advanced and perseverant to pursue the wide application of our products in the market. We will also pursue the co-development and advancement with our suppliers and consumers relying on professional technology and good cooperation efforts.
