| Prod Model: |
YEV-605 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Electromagnetic: |
Gv300/40 |
| Frequency(Hz): |
2-4000 |
| Max. Vibration Force(Kg.F): |
300 |
| Max. Displacement(Mmp-P): |
25 |
| Max. Acceleration(G): |
80 |
| Max. Speed(Cm/S): |
150 |
| Max. Load(Kg): |
65 |
| Armature Weight(Kg): |
2.5 |
| Armature Circumference(mm): |
140 |
| Size(L*W*H, Mm): |
675*560*660 |
| Type: |
Vibration Testing Machine |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
Product Description

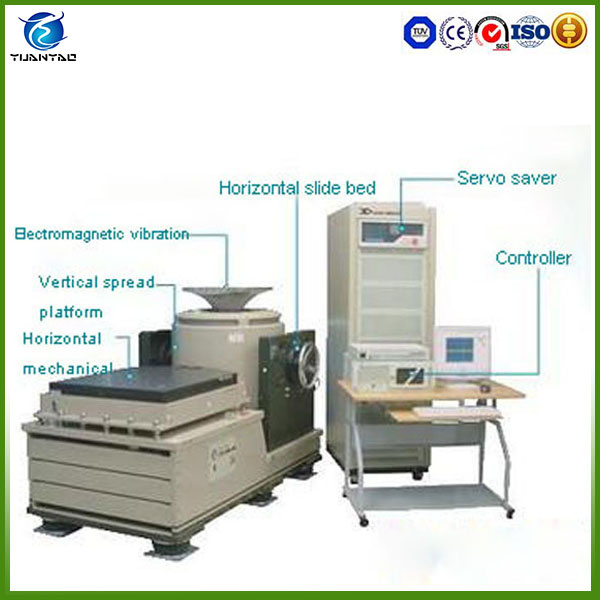

High frequency large radom force electronic Vibration testerIntroduction&Application:
Analog transport package vibration test chamber, Electromagnetic type vibration tester, adopt " double
magnetic circuit structure", " self generation skeleton moving coil", "air suspension bearing", " linear
bearing and roller guide", " ear shaft vibration isolation" and other modern advanced technology and
special technology, which can complete respectively three shaft sine vibration test and broadband
random vibration test, complete the classic (half sine, trapezoid and after peak saw) pulse and shock
response spectrum test. It also can complete mechanics and climatic environment more comprehensive
test equipped with climate box. Vibration tester is widely applied to national defense, weapons, aviation,
aerospace, communications, electronics, electrical appliances, transportation, home appliances, etc.
Feature:
1 The careful design of the moving coil skeleton, has higher first-order axial resonant frequency
2 Light armature, high stiffness, 4000 Hz frequency.
3 Computer connecting line control, immediately store materials.
4 Display controlling chart.
5 Low resistance and high performance design, high efficiency, low cost.
6 High reliability, low fault. 6 Best after sales service: One year free parts maintenance.
7 Customization is available & welcomed.
Except Analog transport package vibration test chamber, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal
Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp.
Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test
equipment, Dust Tester, Steam Aging Tester, Tensile Tester, Drop Tester and so on.
Welcome to enquire and purchase!
Technical parameters: See the label.
| Specification |
| Model | YEV-11 | YEV-12 | YEV-13 | YEV-14 | YEV-15 | YEV-16 |
| Vibrator Model | GV100/25 | GV200/25 | GV300/25 | GV300/40 | GV500/25 | GV600/25 |
| Frequency Range(Hz) | 2-4000 | 2-4000 | 2-4000 | 2-2500 | 2-3000 | 2-2500 |
| Max. Exciting Force(kg.f) | 100 | 200 | 300 | 300 | 500 | 600 |
| Max. Displacement(MMp-p) | 25 | 25 | 25 | 40 | 25 | 25 |
| Max.Acceleration(G) | 40 | 80 | 80 | 33 | 83 | 100 |
| Max. Speed(cm/s) | 150 | 150 | 160 | 120 | 150 | 150 |
| Payload(kg) | 65 | 65 | 110 | 120 | 190 | 190 |
| Moving Coil Weight (kg) | 2.5 | 2.5 | 4 | 9 | 6 | 6 |
| Moving Coil Circular(mm) | 140 | 140 | 150 | 225 | 202 | 202 |
| Vibrator Weight(kg) | 220 | 250 | 240 | 760 | 690 | 700 |
| Dimensions(LWH)mm | 675×560×660 | 675×560×660 | 675×560×660 | 675×560×660 | 800×600×710 | 800×600×710 |
| Power Amplifier Model | SA1K | SA2K | SA3K | SA4K | SA5K | SA6K |
| Power Amplifier Weight(kg) | 210 | 210 | 250 | 300 | 300 | 320 |
| Cooling Method | Force-Air Cooling |
| Power Amplifier Size(L×W×H)mm | 720×545×1625 | 720×545×1625 | 720×545×1625 | 720×545×1625 | 720×545×1625 | 720×545×1625 |
| Power Source[k.w] | AC 1Ψ 220V/50Hz;3Ψ 380V 50Hz |
| General Power(KVA) | 5 | 6 | 6 | 9 | 17 | 18 |
These information just for your reference, if you want to know more or purchase your ideal model, please feel free to contact us, we will happy to help you.
